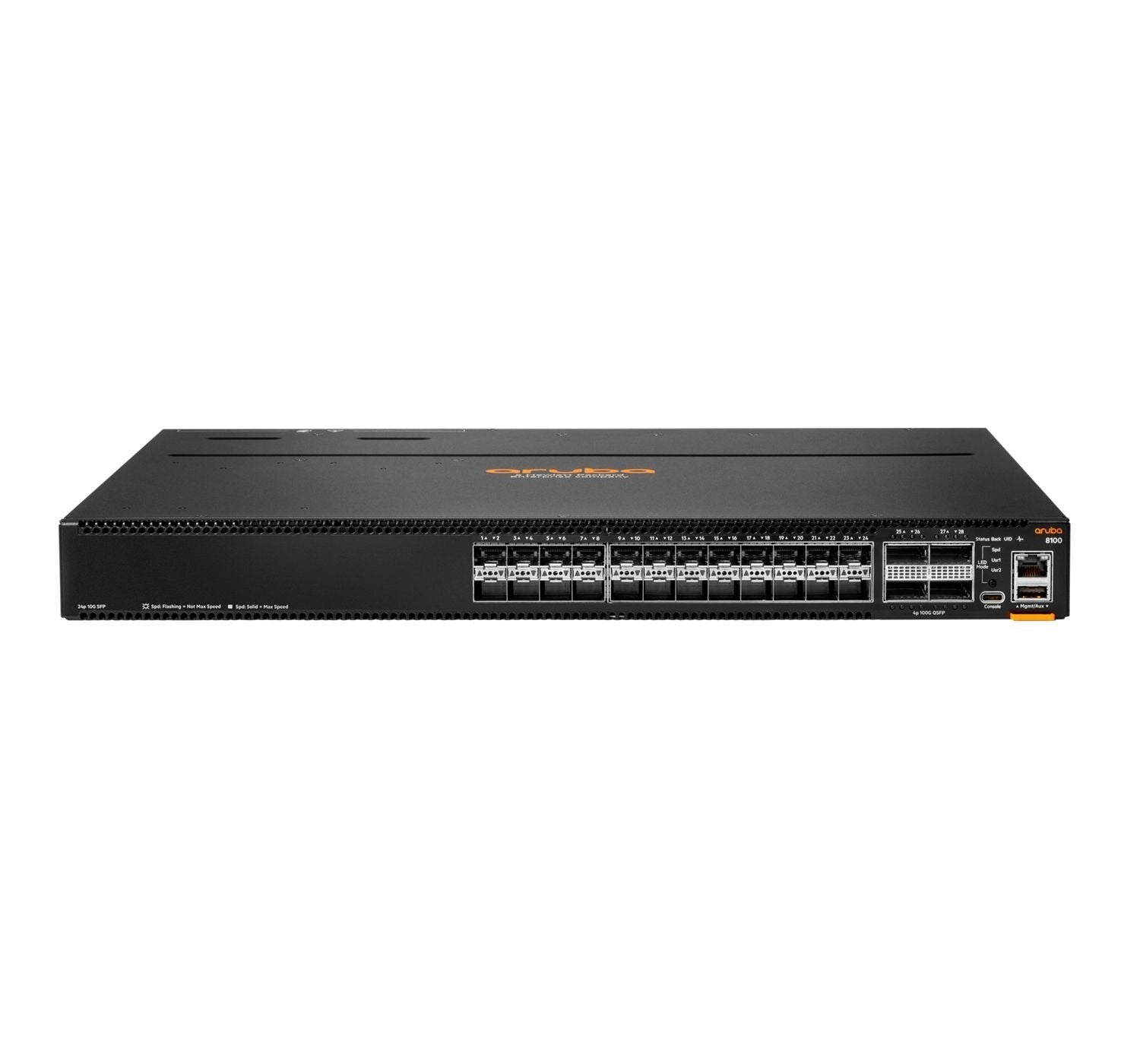

HP Aruba 8360-24XF2C 26-Port 10GbE Enterprise Switch Bundle

VENDOR: HP Mfg Part#: JL710A#ACJ UPC#: 190017406121
1 3

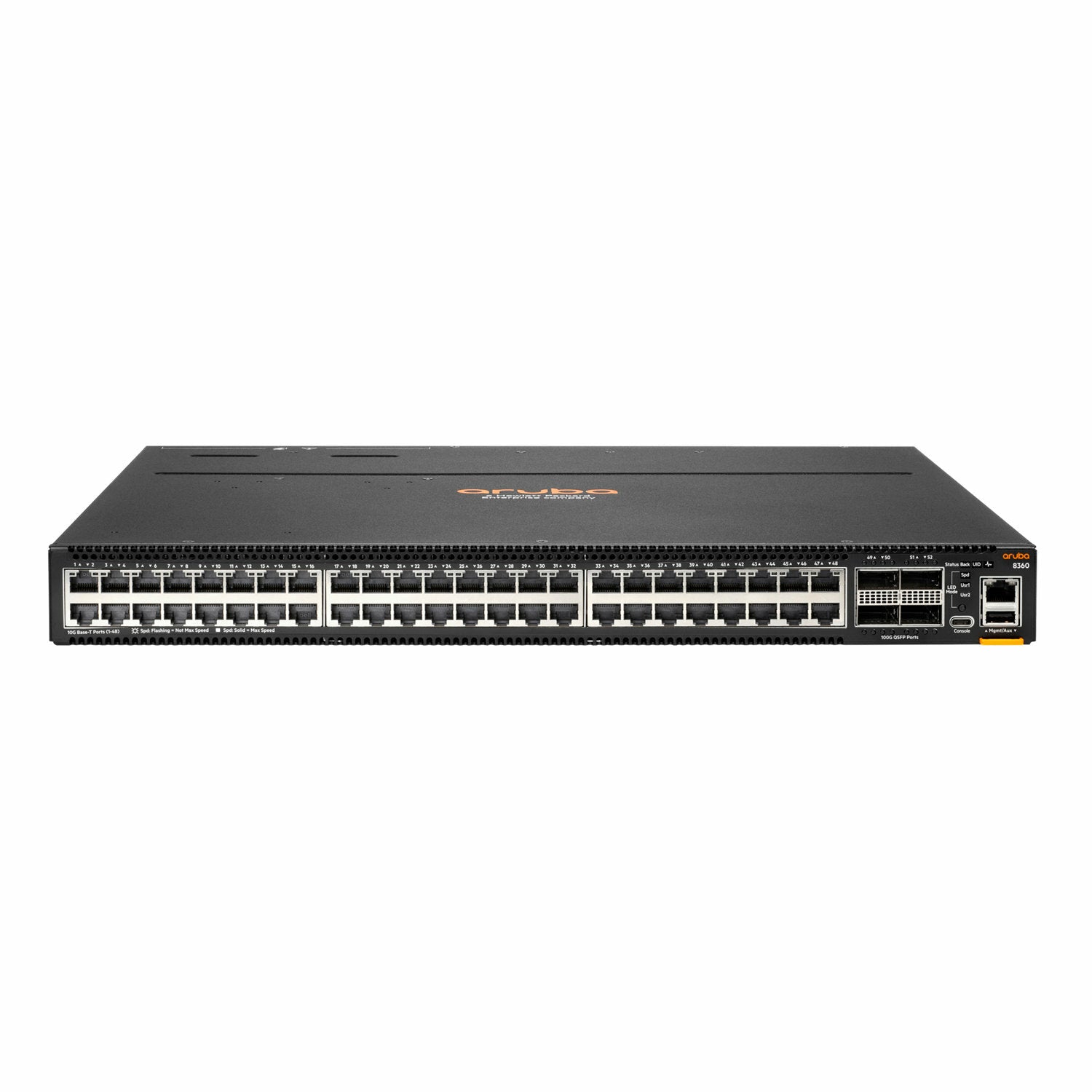

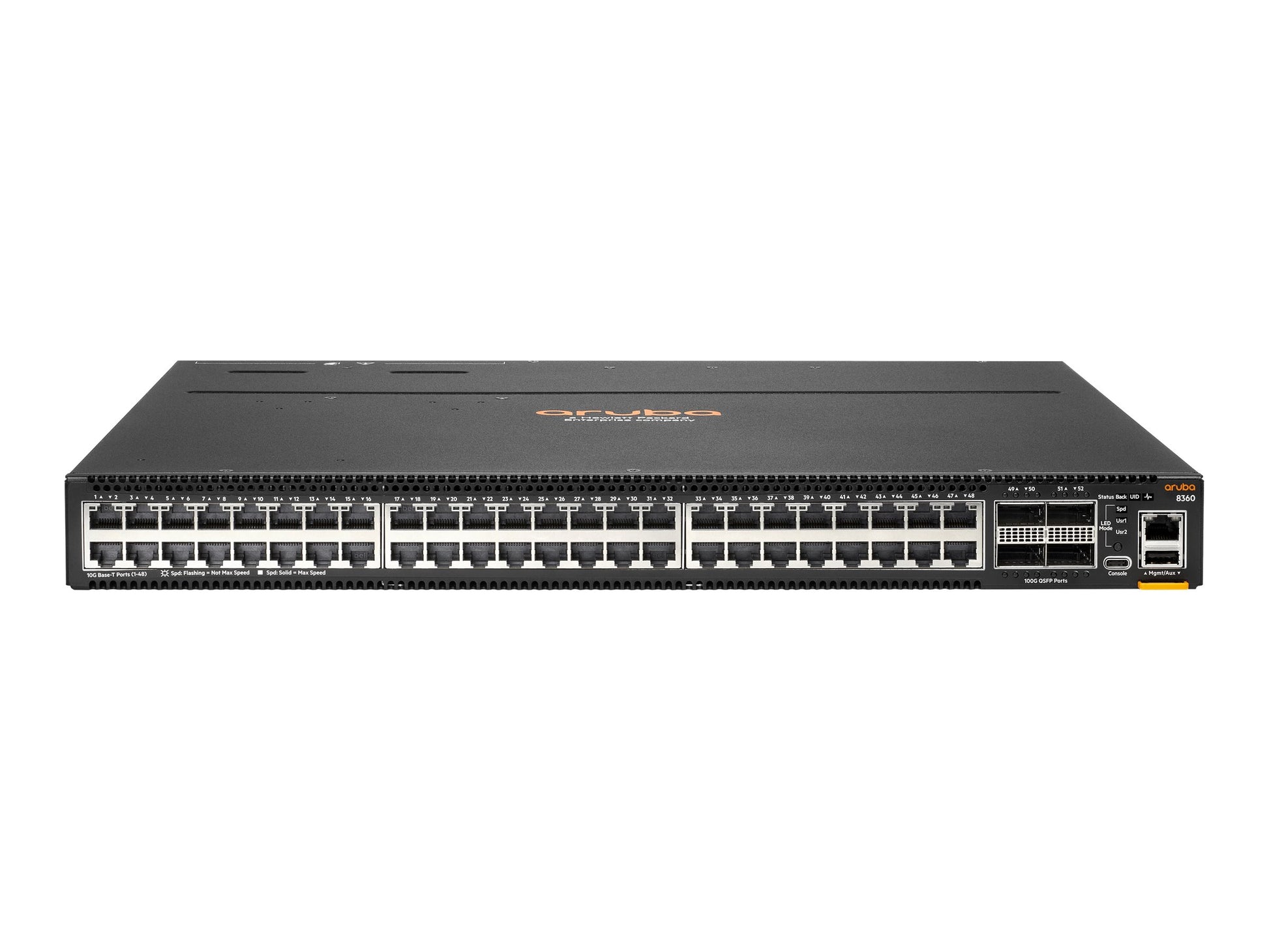

Photo is for illustration purposes only. Actual product may be different.
$25,061.24
$25,061.24
Sale Sold out
MSRP: $31,655.00
Shipping calculated at checkout.
  • 26-port configuration with 10Gbps wired connectivity
  • 10 Gigabit Ethernet support for high-throughput networking
  • Includes 16GB memory, expandable up to 32GB
  • TAA compliant, suitable for government installations
  • Manufactured in Singapore for quality assurance

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Supports high-speed 10GbE networking ideal for demanding enterprise environments
  • TAA compliance makes it a secure choice for federal and regulated markets
  • Scalable memory architecture allows for flexibility in evolving network demands

Product Overview

The HP Aruba 8360-24XF2C is a powerful enterprise switch designed to support the rigorous data demands of modern business infrastructures. With 26 wired ports and 10Gbps throughput, it enables high-speed connections for critical applications such as cloud computing, data center virtualization, and enterprise traffic routing. Its configuration supports 10 Gigabit Ethernet interfaces, delivering the performance essential for low-latency, high-bandwidth communication between servers, storage, and aggregation layers.

This bundle, part of Aruba’s advanced switching portfolio, features 16GB of base memory and is expandable up to 32GB, supporting enhanced scalability and reliable operations in dynamic environments. With TAA compliance, the switch is also well-suited for deployment in government or federally regulated projects. Its country of origin is Singapore, underlining a high standard of manufacturing quality. While exact software functionalities and stack height are not detailed, the unit’s specification ensures it is built for mission-critical uptime and network efficiency.

Organizations investing in this switch gain from Aruba’s trusted reputation in secure, high-throughput networking. Whether deployed in core enterprise environments or edge aggregation points, the HP Aruba 8360-24XF2C delivers consistent performance and flexibility required by IT teams seeking future-ready infrastructure solutions.

Specifications

Product Overview
Product Type Managed Layer 3 Enterprise Switch
Form Factor 1U Rack-mountable
Included Components 8360-24XF2C switch, mounting hardware, power supply
Memory (Base) 16 GB
Memory (Maximum) 32 GB
Switching Capacity 880 Gbps
Throughput 654 Mpps
Weight 9.6 lbs (4.35 kg)
Power Supply Type Dual hot-swappable power supplies (AC)
Power Consumption (Maximum) 130 W

Wireless Features
Wireless Capability

Compliance & Origin
Country of Origin Singapore
TAA Compliant Yes
Certifications UL, CB, CSA, FCC Class A, VCCI, RoHS, WEEE
EMC Compliance EN 55032 Class A, EN 55024
Green Compliant Yes

Advanced Security Features
Access Control 802.1X, MAC authentication, Web-based authentication
Encryption SSH, SSL, SNMPv3
ACL Support IPv4/IPv6 ACLs
DHCP Protection DHCP snooping
DoS Protection Yes
RADIUS/TACACS+ Authentication Supported
Port Security Yes

Interfaces
Total Ports 26
10 Gigabit SFP+ Ports 24
10/25G SFP28 Ports 2
Expansion Slots 2 power supply slots, 2 fan tray slots
Console Port 1 x RJ-45 serial console
Management Ports 1 x 10/100/1000 Mbps RJ-45
Data Transfer Rate 10 Gbps (SFP+), 25 Gbps (SFP28)
Stacking Support Virtual Switching Extension (VSX)

Physical & Environmental
Dimensions (W x D x H) 44.0 x 40.6 x 4.4 cm (17.32 x 15.98 x 1.73 in)
Operating Temperature 0°C to 45°C (32°F to 113°F)
Storage Temperature -40°C to 70°C (-40°F to 158°F)
Operating Humidity 5% to 95% non-condensing
Acoustic Noise (Typical) 55 dB
Cooling Front-to-back or back-to-front airflow (field replaceable fans)

Cloud Management & Licensing
Management Interface Aruba NetEdit, Aruba Central, CLI, SNMP v2/v3
Cloud Management Supported via Aruba Central
Licensing Model Aruba Network Services Platform Licenses (optional)
Remote Monitoring Yes, via Aruba Central
