HP Aruba 8360-24XF2C 26-Port 10GbE Switch Bundle

VENDOR: HP Mfg Part#: JL710A#AC4 UPC#: 190017406060
1 4

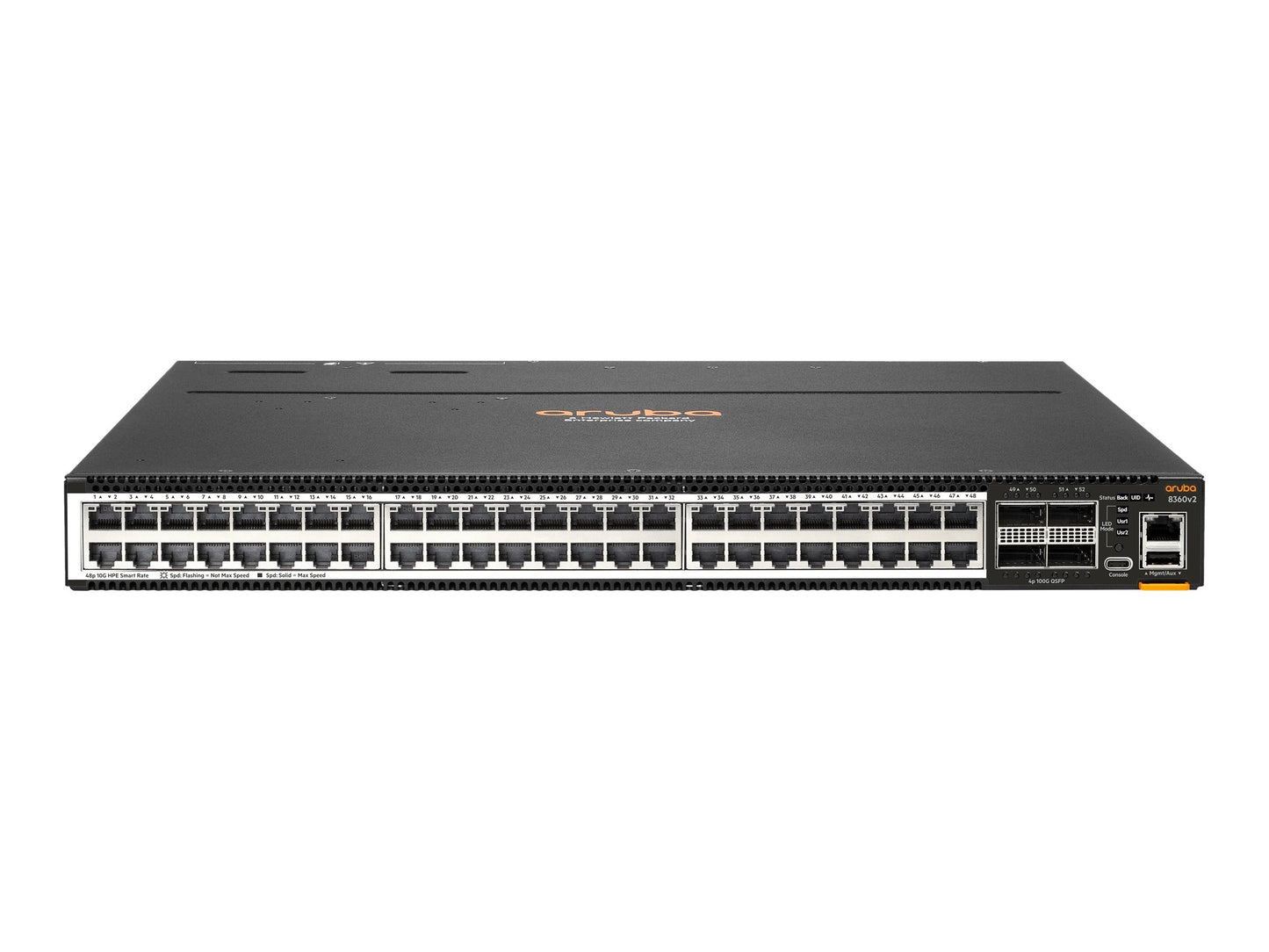

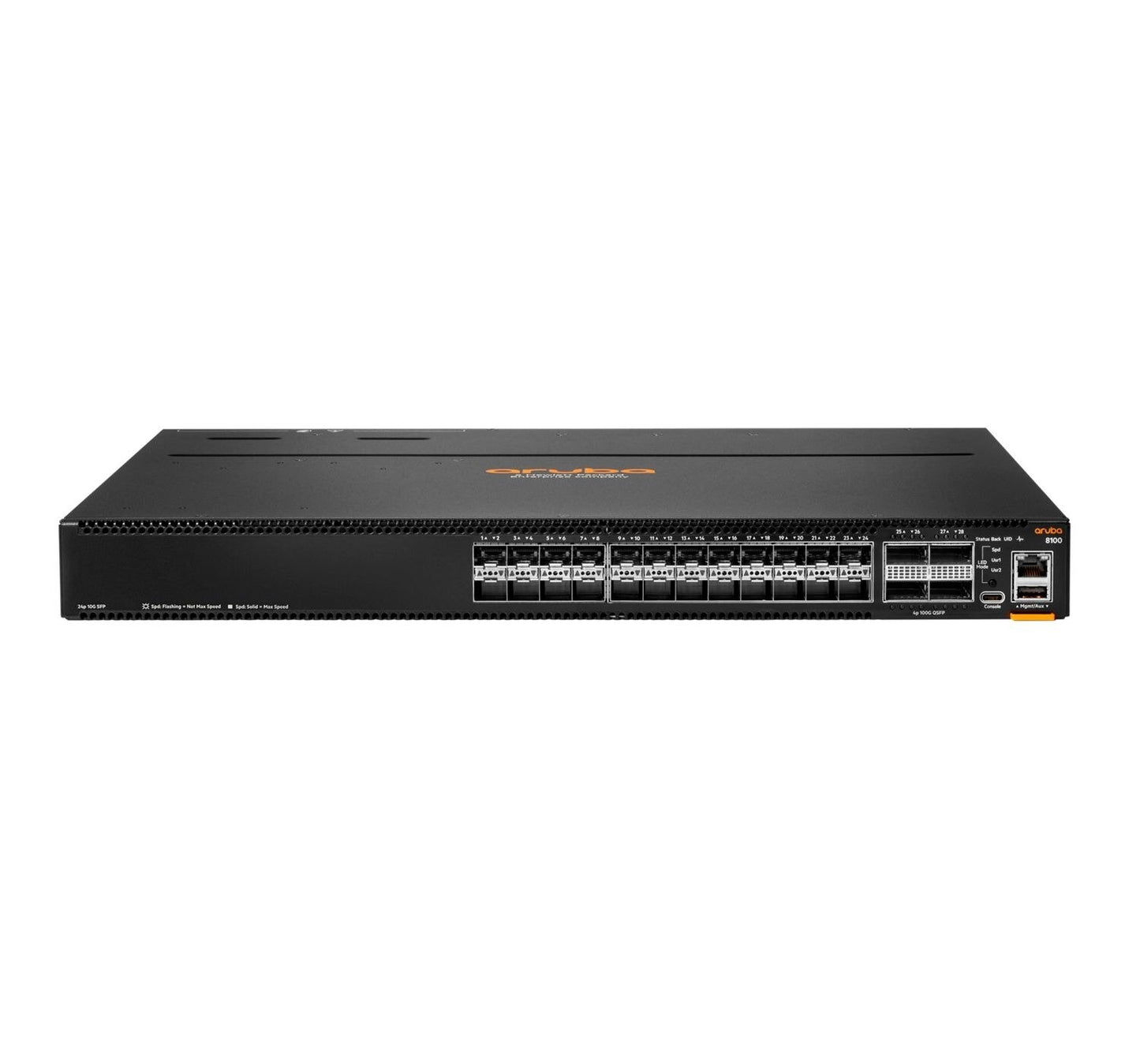

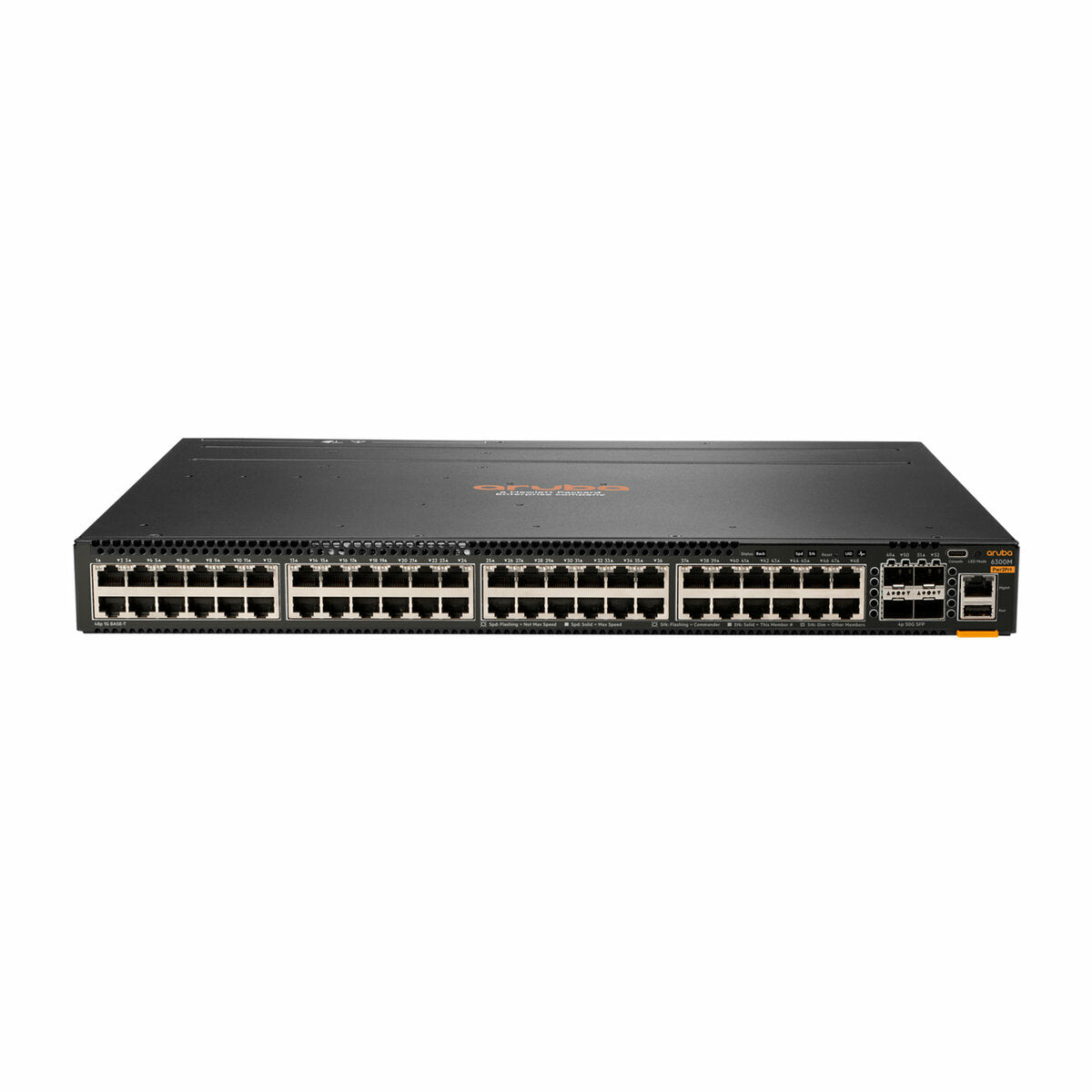

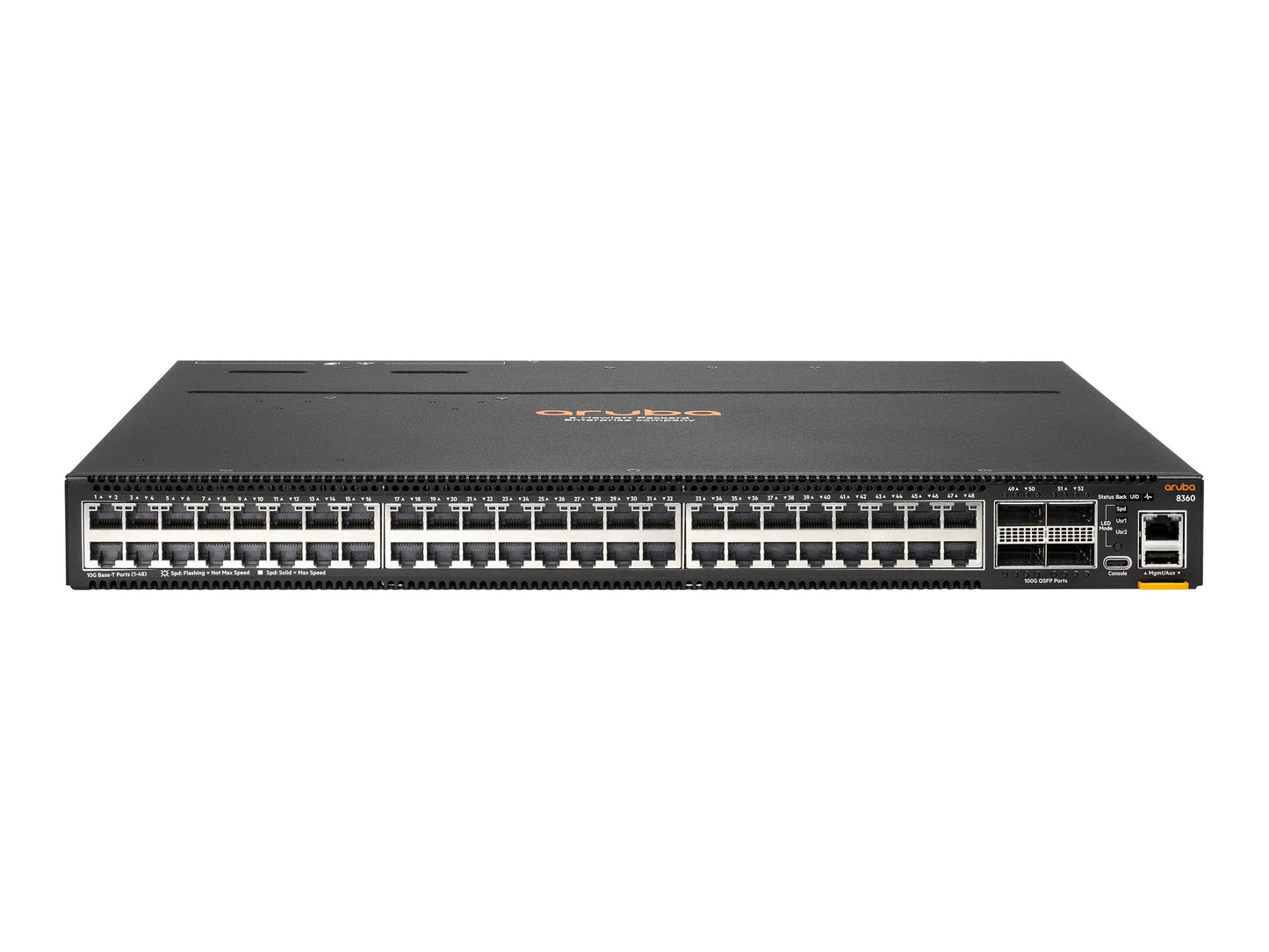

Photo is for illustration purposes only. Actual product may be different.
$25,061.24
$25,061.24
Sale Sold out
MSRP: $31,655.00
Shipping calculated at checkout.
  • - 26-port configuration supporting 10 Gigabit Ethernet connectivity
  • - 16GB installed memory with scalability up to 32GB
  • - TAA compliant for use in regulated and federal environments
  • - Manufactured in Singapore, ensuring high build quality
  • - Suitable for wired enterprise and data center deployments

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Supports 10GbE throughput over 26 ports, ideal for high-performance networking environments.
  • TAA compliance makes this switch suitable for federal and government procurement requirements.
  • Expandable memory enhances long-term scalability and network traffic performance.

Product Overview

The HP Aruba 8360-24XF2C Prt2Pwr3F2PS Bundle delivers high-speed, flexible, and resilient network connectivity for modern enterprise infrastructures. With 26 wired ports supporting 10 Gigabit Ethernet, this switch suits bandwidth-intensive applications like cloud computing and virtualization. It features 16GB of installed memory, scalable up to 32GB, ensuring efficient traffic management.

Designed for security-focused environments, it is TAA compliant and manufactured in Singapore, meeting high production standards. Its scalable and modular architecture makes it suitable for core, aggregation, or top-of-rack data center roles and integration into intelligent network platforms. Aruba’s enterprise-class design ensures a long-term, high-return investment.

Specifications

Product Overview
Product Type Managed Switch
Model Aruba 8360-24XF2C
Form Factor Rack-mountable
Rack Units 1U
Primary Use Case Core, aggregation, or top-of-rack deployment
Included Power Supplies 2 (hot-swappable)
Installed Fan Trays 3 (hot-swappable)
Installed Memory 16 GB
Maximum Supported Memory 32 GB
Switching Capacity 2.0 Tbps
Throughput 1,488 Mpps
Power Supply Type Internal AC
Redundant Power Support Yes
Power Consumption (Max) 165 W

Physical & Environmental
Dimensions (W x D x H) 44.0 x 44.5 x 4.4 cm
Weight 7.25 kg (base chassis with two PSU and three fans)
Operating Temperature Range 0°C to 45°C
Storage Temperature Range -40°C to 70°C
Operating Humidity Range 5% to 95% (non-condensing)
Acoustic Noise 55.4 dB minimum, 62.7 dB maximum

Cloud Management & Licensing
Cloud Management Aruba Central (optional license)
Local Management CLI, GUI, and REST APIs
Software Licensing AOS-CX software; advanced features via license
Included Licenses Base software included; optional Aruba Central license required for cloud management
Automation Support Yes, via NetEdit and APIs

Interfaces
Total Ports 26
10GbE SFP+ Ports 24
10GbE/25GbE SFP28 Ports 2
Management Ports 1 RJ-45 serial console port, 1 RJ-45 out-of-band management port, 1 USB port
Uplink Speed Up to 25Gbps
Port Type Fixed, optical (SFP+ and SFP28)
Data Transfer Rate 10/25 Gbps per port

Compliance & Origin
TAA Compliant Yes
Country of Origin Singapore
Certifications UL, CB, CE, FCC Class A, ICES-003, VCCI, RCM, CCC, BSMI, KC
RoHS Compliant Yes
Energy Efficient Ethernet (EEE) Yes

Advanced Security Features
Access Control 802.1X, MAC authentication, Web-based authentication
Policy Enforcement User role-based access control (RBAC)
Traffic Filtering Access Control Lists (ACLs)
Dynamic Segmentation Supported via Aruba ClearPass integration
