HP Aruba 8360-24XF2C 26-Port 10GbE Switch, JL710A#AKM

VENDOR: HP Mfg Part#: JL710A#AKM UPC#: 190017406169
1 3

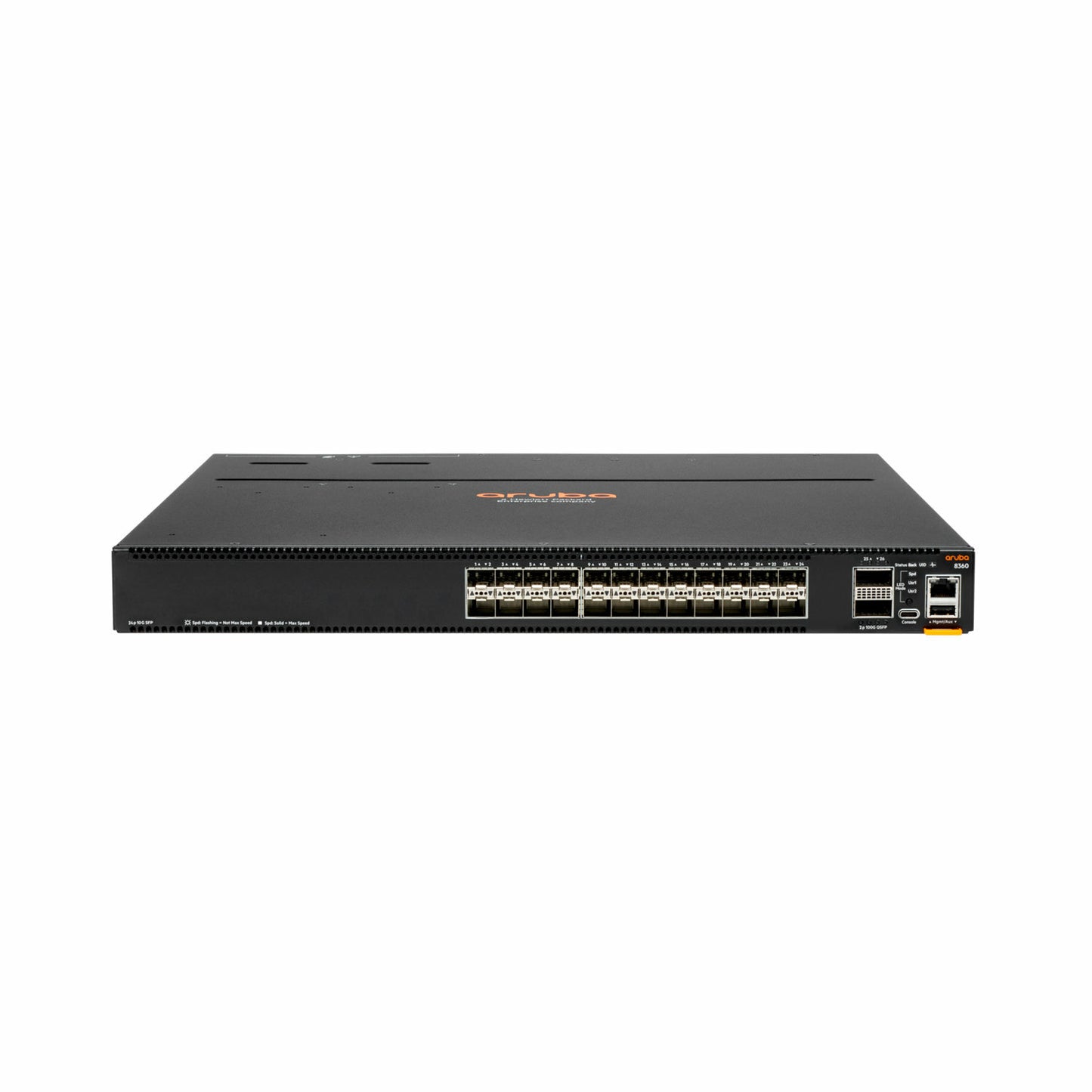

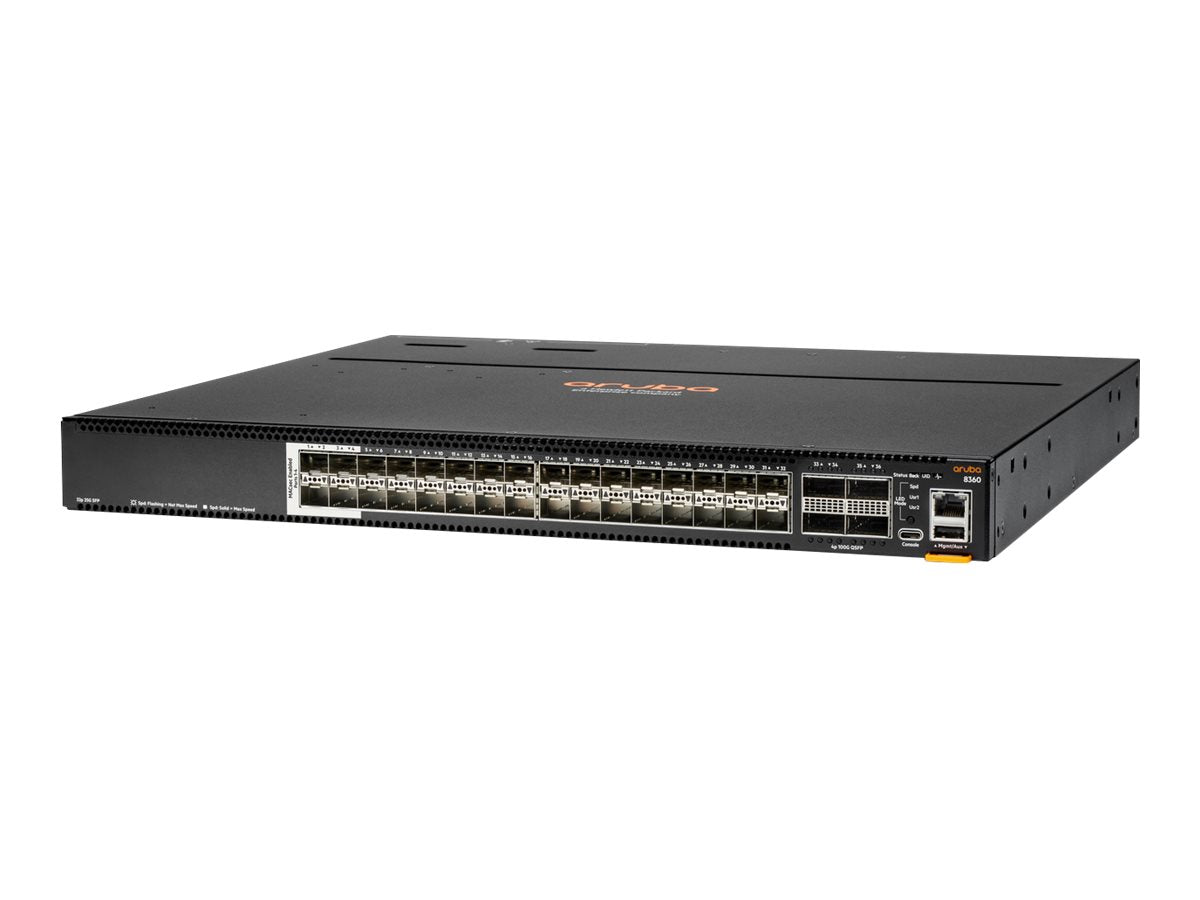

Photo is for illustration purposes only. Actual product may be different.
$25,061.24
$25,061.24
Sale Sold out
MSRP: $31,655.00
Shipping calculated at checkout.
  • 26 x 10 Gigabit Ethernet ports for ultra-fast wired connectivity
  • Integrated 16GB of memory, expandable up to 32GB
  • TAA compliant for government and federal use
  • Manufactured in Singapore for regional compliance
  • Part of HP’s enterprise-grade Aruba networking product line

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Delivers 10Gbps performance across 26 ports, ideal for high-bandwidth enterprise applications
  • TAA compliance ensures suitability for federal and public sector networks
  • Supports large-scale deployments with up to 32GB of memory capacity

Product Overview

The HP Aruba 8360-24XF2C 26-Port Switch (JL710A#AKM) is engineered to deliver exceptional performance within enterprise and campus aggregation networks. This switch integrates 26 networking ports, all operating at 10 Gigabit Ethernet, offering the throughput needed for bandwidth-intensive workloads and high-density environments. With built-in 16GB of memory and capabilities extending up to 32GB, it supports smooth operations of modern applications and services.

TAA-compliant and built in Singapore, the Aruba 8360-24XF2C is ideal for public sector and institutional IT environments that require regulatory compliance. The unit is part of HP's Aruba product line known for its reliability, scalability, and streamlined administration. Designed for edge, aggregation, and core deployments, it helps organizations consolidate networking infrastructure while maintaining flexibility and performance.

Specifications

Product Overview
Product Type Layer 3 Managed Switch
Model Number JL710A#AKM
Product Series Aruba CX 8360
Form Factor 1U Rack-mountable
Total Number of Ports 26
Memory (RAM) 16 GB
Maximum Memory Supported 32 GB
Flash Memory 16 GB eMMC
Power Supply Type Dual Hot-swappable Power Supplies
Redundant Power Supply Supported Yes
Switching Capacity 1.2 Tbps
Forwarding Rate 714 Mpps
Jumbo Frame Support Yes
Packet Buffer 32 MB

Physical & Environmental
Dimensions (W x D x H) 44.25 x 43.04 x 4.39 cm (17.42 x 16.95 x 1.73 in)
Weight 7.31 kg (16.11 lb)
Operating Temperature 0°C to 45°C (32°F to 113°F)
Storage Temperature -40°C to 70°C (-40°F to 158°F)
Operating Humidity 5% to 95% (non-condensing)
Acoustic Noise <65 dB (at 25°C)

Cloud Management & Licensing
Management Interface Aruba AOS-CX CLI, Web GUI, REST API
Cloud-Based Management Supported via Aruba Central (subscription required)
Licensing Model Switch comes with Base OS; optional licenses for advanced features
Zero-Touch Provisioning Yes

Interfaces
10G SFP+ Ports 24
QSFP+ Ports (40G) 2
Console Port 1 x USB Type-C
Management Ports 1 x 10/100/1000Base-T (Out-of-Band)
USB Ports 1 x USB 2.0 Type-A
Interface Type 10GBASE-X SFP+, 40G QSFP+

Compliance & Origin
Country of Origin Singapore
TAA Compliant Yes
Certifications FCC Class A, UL, CE, VCCI, BSMI, ICES
RoHS Compliant Yes
Safety Compliance CB, BSMI, UL, EN 60950/62368
EMI Standards FCC Part 15 Class A

Advanced Security Features
Access Control Lists (ACLs) Yes
802.1X Authentication Yes
MACsec Encryption Yes
DHCP Snooping Yes
Dynamic ARP Inspection Yes
IP Source Guard Yes
Control Plane Policing (CoPP) Yes
