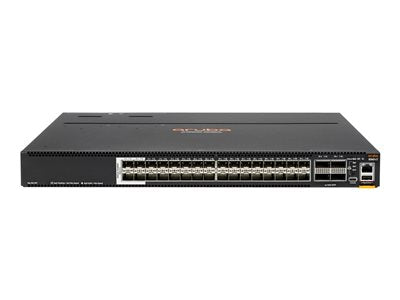

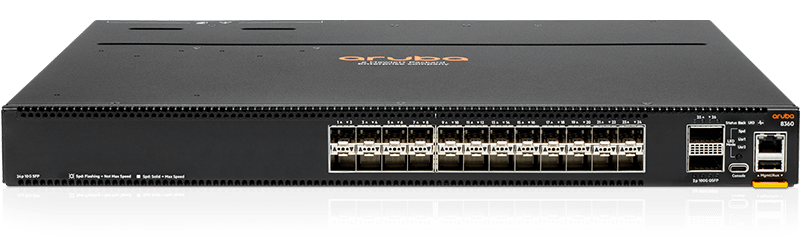

HP Aruba 8360-24XF2C Managed Switch 24-Port JL710A#ACC

VENDOR: HP Mfg Part#: JL710A#ACC UPC#: 190017406084
1 4
Photo is for illustration purposes only. Actual product may be different.
$25,061.24
$25,061.24
Sale Sold out
MSRP: $31,655.00
Shipping calculated at checkout.
  • 24 x 1 Gigabit SFP/10 Gigabit SFP+ ports and 2 x 40/100 Gigabit QSFP+/QSFP28 ports
  • 880 Gbps switching capacity and 1 µs latency
  • Support for advanced L3 protocols such as OSPF, BGP, and GRE
  • Redundant power (N+1) and fan tray included for high availability
  • 64 VLANs per port with support for 4094 VLANs and 9KB jumbo frames
  • 16 GB RAM, 32 GB flash memory, and 1.8 GHz processor supporting high-performance operations

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Engineered for mission-critical networks with hot-plug redundant power and fans for nonstop operation
  • Comprehensive Layer 3 routing and management protocol support ensures full network scalability and control
  • Switching bandwidth and port versatility scale seamlessly with 1/10/40/100 GbE options, ideal for core and data center networking

Product Overview

The HP Aruba 8360-24XF2C Managed Switch (JL710A#ACC) is a high-performance Layer 3 rack-mountable switch featuring 24 SFP/SFP+ and 2 QSFP+/QSFP28 ports for up to 100GbE networking. Designed with enterprise reliability in mind, it includes redundant hot-swappable power supplies and fans, and delivers 880 Gbps switching capacity with 1 µs latency. Equipped with advanced routing support—including OSPF, BGP, VRRP, and GRE—and compliant with key IEEE standards, this TAA-compliant switch provides secure, efficient, and scalable network management. Additional capabilities like MACsec encryption, jumbo frames, and 32MB packet buffers ensure readiness for demanding data environments.

Specifications

Product Overview
Product Type Layer 3 Managed Switch
Form Factor Rack-mountable 1U with front-to-back airflow
Installed Power Supplies 2 hot-swappable internal power supplies
Power Redundancy Yes
Redundancy Scheme N+1
Power Provided 550 Watt
Voltage Required AC 120/230 V (47 – 63 Hz)
Cooling System 3 hot-swappable fan trays
Weight 17.79 lbs
MTBF 375668 hours
Service & Support Limited lifetime warranty

Physical & Environmental
Dimensions (W x D x H) 17.4 in x 16 in x 1.7 in
Min Operating Temperature 32 °F
Max Operating Temperature 104 °F
Humidity Range Operating 15% – 95% (non-condensing)
Humidity Range Storage 15% – 95% (non-condensing)

Cloud Management & Licensing
Remote Management Protocols SNMP, RMON, SNMPv2c, SNMPv3, TFTP, SSH, SSH-2, CLI, SFTP, NTP, ICMP, IPv4, IPv6, RSTP
Cloud Management Platform Aruba Central (supported)

Interfaces
Total Ports 24 x 1G/10G SFP/SFP+ + 2 x 40/100G QSFP+/QSFP28
SFP/SFP+ Ports 24
QSFP+/QSFP28 Ports 2
USB Ports 2 x USB
Serial Console Ports 1 x RJ-45, 1 x USB-C
LAN Ports 1 x RJ-45 for out-of-band management
Switching Capacity 880 Gbps
Throughput 2 Mbps
Latency 1 µs
Jumbo Frame Support 9 KB
Packet Buffer 32 MB
Virtual Interfaces (VLANs) per Port 4094

Compliance & Origin
Country of Origin Singapore
TAA Compliant Yes
Compliant Standards IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1t, IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.3ba, IEEE 802.1AX
Additional Certifications EMC, ICES-003 Class A, RoHS, Laser Class 1, UL 60950-1, ISO 7779, VCCI Class A, EN 50581:2012, CSA 22.2 No. 60950-1, EN 61000-3-3:2013, EMC 2014/30/EU, ISO 9296, FCC CFR47 Part 15 A, Directive 2014/35/EU, EN 55032:2015, CISPR 32 Class A, EN 61000-3-2:2014 Class A, CISPR 35, EN 60950-1:2006+A1:2010+A11:2009+A2:2013+A12:2011, EN 60825-1:2014, EN 55035:2017, EN/IEC 62368-1:2014, IEC 60825-1:2014 Class 1

Advanced Security Features
Supported Routing Protocols OSPF, EGP, BGP-4, BGP, IGMPv2, IGMPv3, VRRP, PIM-SM, GRE, OSPFv3, static IPv4/IPv6 routing, ECMP, PBR, MSTP, RSTP, STP, MLD, MSDP, ERPS, VXLAN, VTEP
Security Protocols MACsec (802.1AE), SSHv2, RADIUS, TACACS+
Encryption Standards FIPS 140-2 compliant
Access Control ACL support, Role-based access control (RBAC)
Network Protection Features Loop protection, Storm control, Broadcast suppression, DHCP protection, BPDU Guard, UDLD, BFD
Traffic Monitoring sFlow, Port mirroring, QoS, DWRR
Virtualization Features VSX, VXLAN, Link Aggregation
