HP Aruba 8360-24XF2C Prt2Pwr3F2PS Switch Bundle JL710A#ACF

VENDOR: HP Mfg Part#: JL710A#ACF UPC#: 190017406114
1 2

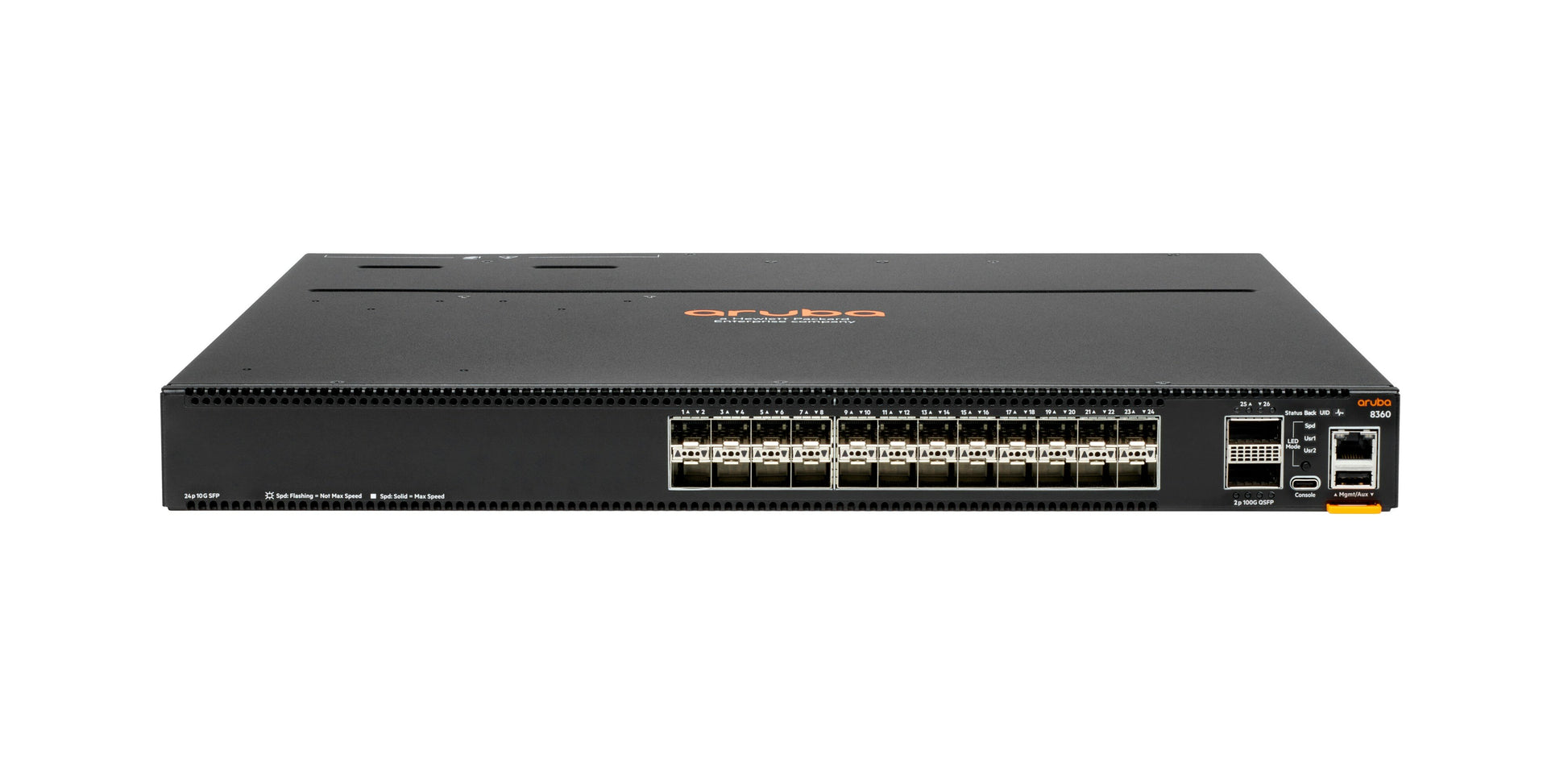

Photo is for illustration purposes only. Actual product may be different.
$25,061.24
$25,061.24
Sale Sold out
MSRP: $31,655.00
Shipping calculated at checkout.
  • 26-port 10 Gigabit Ethernet switch for high-throughput connectivity
  • 16GB of system memory to support advanced networking and routing functions
  • 32GB of storage for configuration and firmware management
  • TAA-compliant for government and regulatory markets
  • Manufactured in Singapore, ensuring global quality standards
  • Bundle configuration (Prt2Pwr3F2PS) for deployment flexibility

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • High-performance 10GbE switch with 26 ports, ideal for bandwidth-intensive environments
  • TAA-compliance ensures suitability for government and federally regulated applications
  • Memory and storage capacity empower large-scale configurations and network virtualization

Product Overview

The HP Aruba 8360-24XF2C Prt2Pwr3F2PS Bundle JL710A#ACF is a high-speed 10 Gigabit Ethernet switch offering 26 ports for efficient network expansion. With 16GB of memory and 32GB storage, it handles demanding workloads and supports advanced configurations. As a TAA-compliant device manufactured in Singapore, it is designed for government and enterprise use cases. Suitable for data centers and scalable infrastructures, this switch delivers reliable performance and future-ready networking.

Specifications

Product Overview
Product Type Managed Layer 3 Switch
Form Factor 1U Rack-mountable
Weight 6.9 kg (15.2 lb)
Power Requirements 100-240 VAC, 50/60 Hz
Power Supply 2x Power Supply Units (PSU) included
Memory 16 GB DDR4
Flash Storage 32 GB
Switching Capacity 1.2 Tbps
Forwarding Rate 595.2 Mpps

Wireless Features
Wireless Capability

Compliance & Origin
Country of Origin Singapore
TAA Compliant Yes
Safety Certifications UL, CSA, IEC 60950-1, EN 60950-1
EMC Certifications FCC Part 15 Class A, VCCI Class A, EN 55032 Class A
Environment Compliance RoHS, WEEE, REACH

Advanced Security Features
Access Control 802.1X, MAC authentication, Web-based authentication
ACL Support IPv4/IPv6 ACLs
Traffic Monitoring RSPAN, sFlow
MACsec Encryption Supported (802.1AE on select ports)
DHCP Protection DHCP snooping, Dynamic ARP Protection
Dynamic Segmentation Supported via Aruba ClearPass

Interfaces
Total Ports 26
10G SFP+ Ports 24 x 1/10GbE SFP+ ports
40G QSFP+ Ports 2 x 40GbE QSFP+ ports
Management Ports 1 x RJ-45 Serial Console, 1 x Micro USB Console, 1 x USB Type-A
Ethernet Management Port 1 x 10/100/1000 Mbps RJ-45
Data Transfer Rate 10 Gbps (SFP+), 40 Gbps (QSFP+)

Physical & Environmental
Dimensions (W x D x H) 43.9 x 35.6 x 4.39 cm (17.3 x 14.0 x 1.73 in)
Operating Temperature 0°C to 45°C (32°F to 113°F)
Operating Humidity 5% to 95% (non-condensing)
Acoustic Noise Level 54.8 dB
Cooling Front-to-back airflow with redundant fans
Mounting Options Rack-mount brackets included

Cloud Management & Licensing
Management Interface Web GUI, CLI, REST API, Aruba NetEdit
Cloud Management Supported via Aruba Central (subscription required)
Licensing Requirement Aruba CX Essentials, Advanced Licenses (optional)
Configuration Database Dual-configuration database with rollback and validation
