HP Aruba 8360-24XF2C Pwr2Prt3F2PS Bdl Switch JL711A#B2C

VENDOR: HP Mfg Part#: JL711A#B2C UPC#: 190017406442
1 3

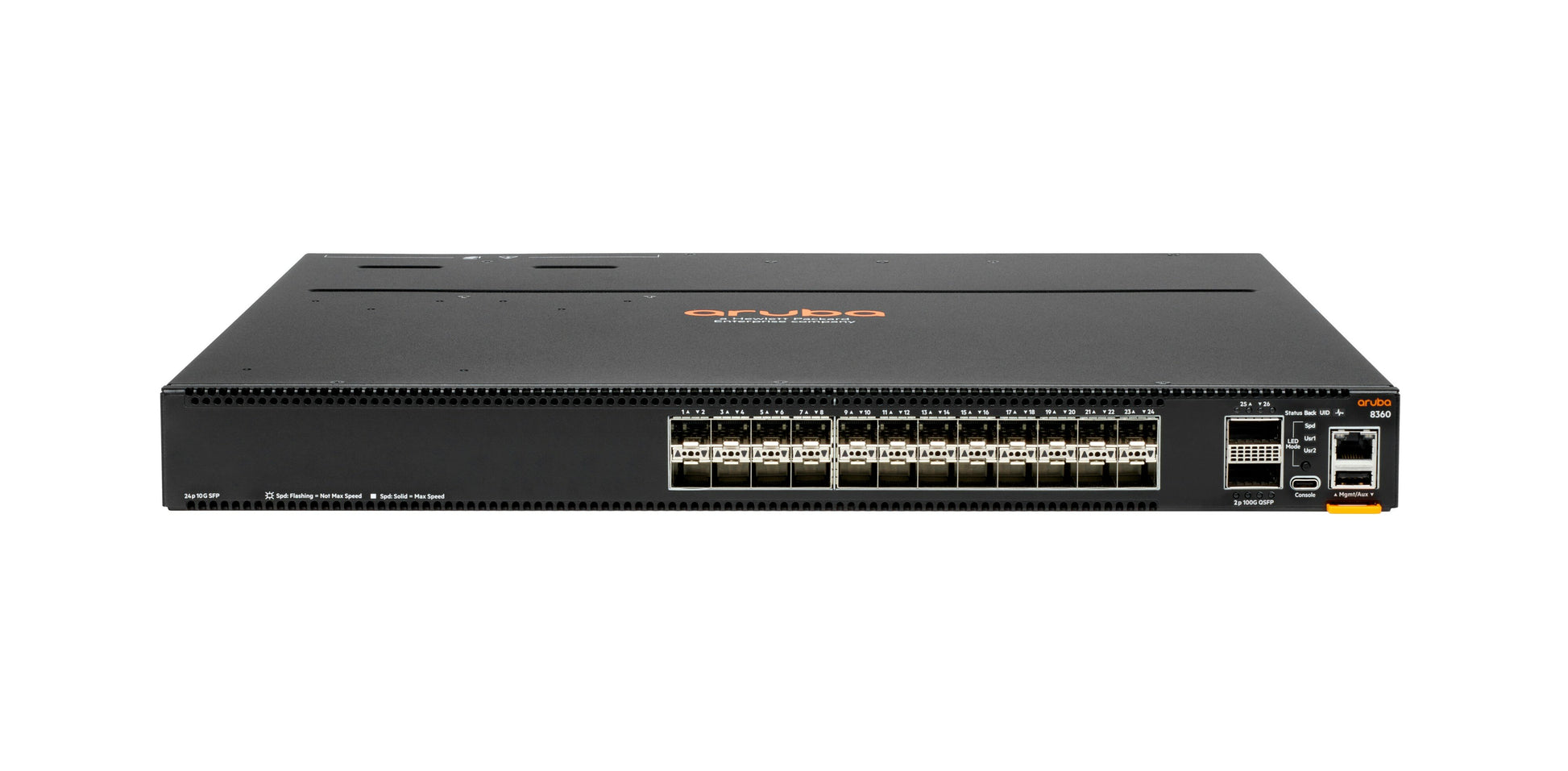

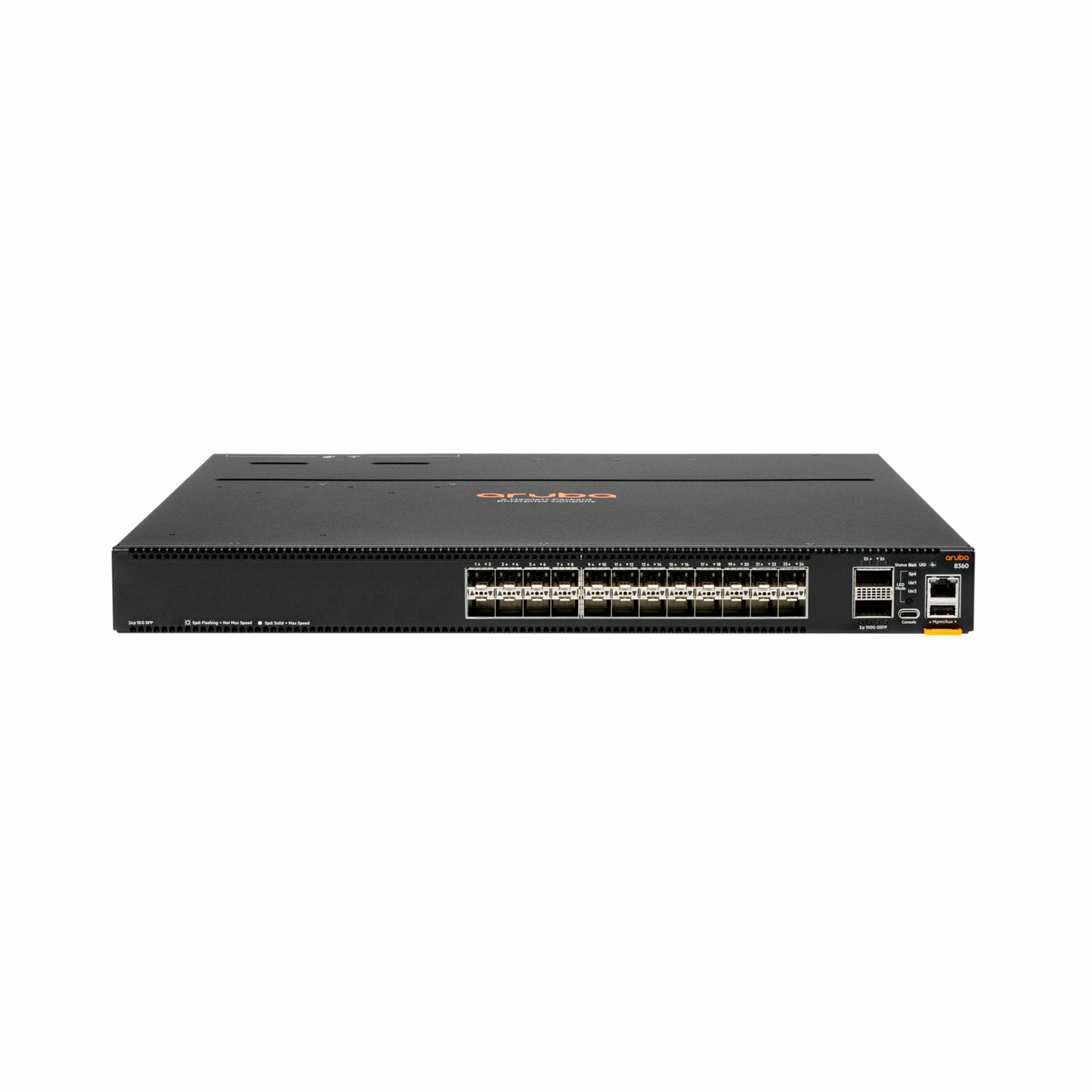

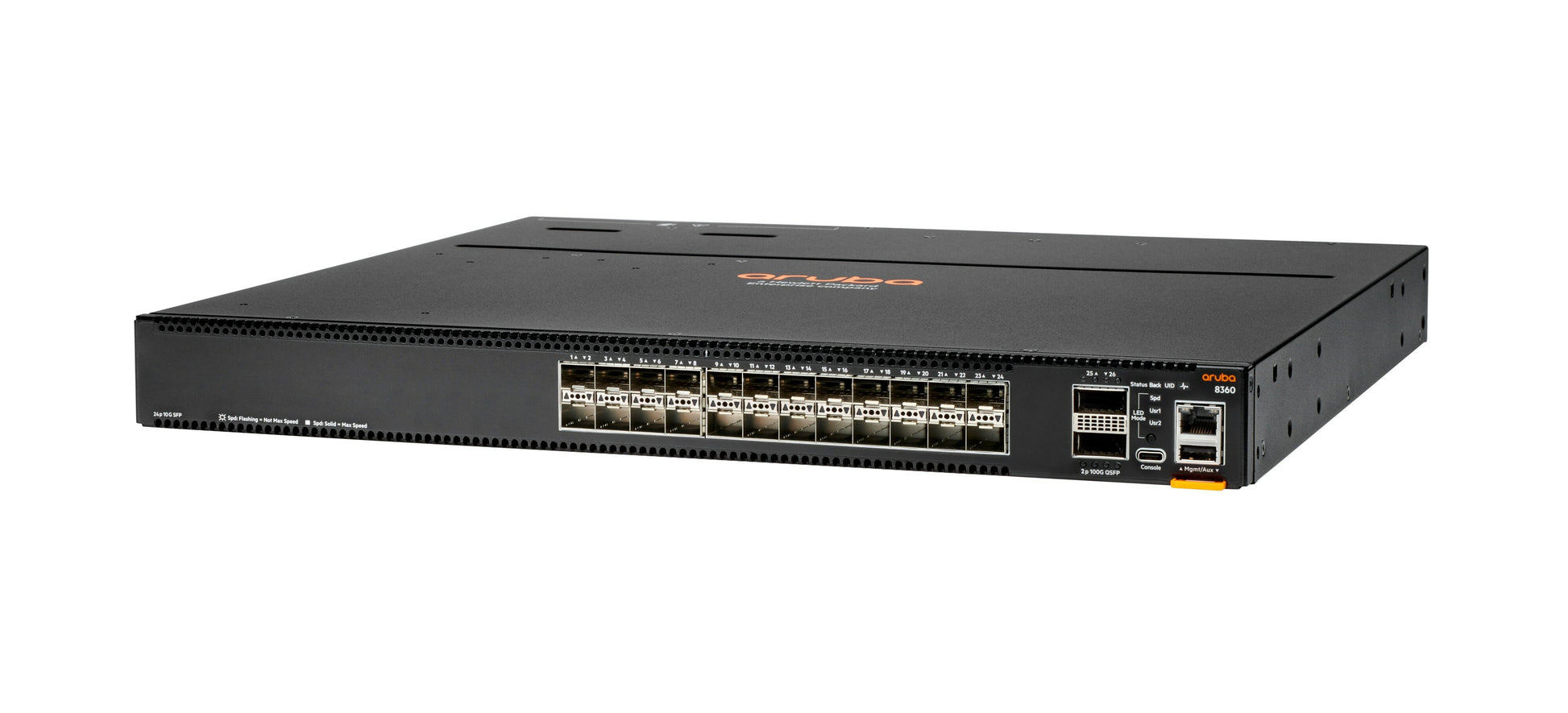

Photo is for illustration purposes only. Actual product may be different.
$25,061.24
$25,061.24
Sale Sold out
MSRP: $31,655.00
Shipping calculated at checkout.
  • Supports Layer 3 advanced routing protocols
  • Delivers data transfer rates up to 100 Gbps
  • 24 ports of 1GbE/10GbE (SFP/SFP+), 2 ports of 40GbE/100GbE (QSFP+/QSFP28)
  • Equipped with 32 GB of flash memory
  • Maximum operational power consumption of 550 Watts
  • TAA compliant and includes a limited lifetime warranty

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • High-speed 100 Gbps throughput supports demanding enterprise networking tasks efficiently
  • Flexible port configuration with SFP/SFP+/QSFP+/QSFP28 and breakout cable support for scalable deployment
  • Backed by a limited lifetime warranty, ensuring lower total cost of ownership and investment protection

Product Overview

The HP Aruba 8360-24XF2C Pwr2Prt3F2PS Bdl (JL711A#B2C) is a high-performance Layer 3 switch built for enterprise-grade core and aggregation networking. Delivering up to 100 Gbps data transfer and featuring 30 total ports, it supports SFP, SFP+, QSFP+, and QSFP28 configurations for flexible deployment. Key specifications include 32 GB flash memory, 550W power consumption, and compatibility across 100–240 VAC voltage ranges. Manufactured in Singapore and TAA compliant, it comes with a limited lifetime warranty, ensuring long-term reliability and scalability for demanding IT infrastructures.

Specifications

Product Overview
Manufacturer HP
Model Aruba 8360-24XF2C Pwr2Prt3F2PS Bdl
Manufacturer Part Number JL711A#B2C
Product Type Managed Layer 3 Switch
Switch Series Aruba CX 8360
Form Factor Rack-mountable
Rack Units 1U
Flash Memory 32 GB
Power Consumption (Typical) 550 W
Power Supply Type AC Power Supply
AC Input Voltage 100–240 VAC
Hot-swappable Power Supplies Yes, power supply redundancy supported
Weight 17.8 lbs.

Cloud Management & Licensing
Management Interface Aruba NetEdit, Aruba CX Mobile App, CLI, REST API
Cloud Management Platform Aruba Central (optional)
Licensing Requirement Aruba Central license required for cloud management
Included Software Features Advanced Layer 3 routing, QoS, ACLs, VXLAN, BGP, OSPF
Configuration Method Out-of-band management port, USB, console port

Physical & Environmental
Width 17.4 inches
Depth 16 inches
Height 1.73 inches
Operating Temperature 0°C to 45°C (32°F to 113°F)
Operating Humidity 5% to 95% (non-condensing)
Airflow Direction Front-to-back or back-to-front (depends on fan configuration)
Fan Redundancy Yes

Interfaces
Total Ports 30
1GbE/10GbE SFP/SFP+ Ports 24
40GbE/100GbE QSFP+/QSFP28 Ports 2
Data Transfer Rate 100 Gbps
Data Link Protocols 100 Gigabit Ethernet, 40 Gigabit Ethernet, 10 Gigabit Ethernet, 1 Gigabit Ethernet
Breakout Support Yes, via 4x10G or 4x25G breakout cables
Transceiver Support 1GBASE-T SFP, 10GBASE-T SFP+
Forwarding Bandwidth 2.4 Tbps
Switching Capacity 2.4 Tbps
Throughput 1,190 Mpps
MAC Address Table Size 128K entries

Advanced Security Features
Access Control Lists (ACLs) Yes
MACsec Encryption Support Yes (hardware ready, license may be required)
DHCP Protection Yes
ARP Protection Yes
Port Security Yes
Network Access Control (NAC) Yes, via Aruba ClearPass (optional)

Compliance & Origin
Country of Origin Singapore
TAA Compliant Yes
Environmental Compliance RoHS, WEEE
Certifications UL, FCC Class A, EN 60950, ICES-003 Class A, VCCI, CE
Warranty Limited Lifetime Warranty
