Products Network Stuff HP Aruba 8360-24XF2C Switch...

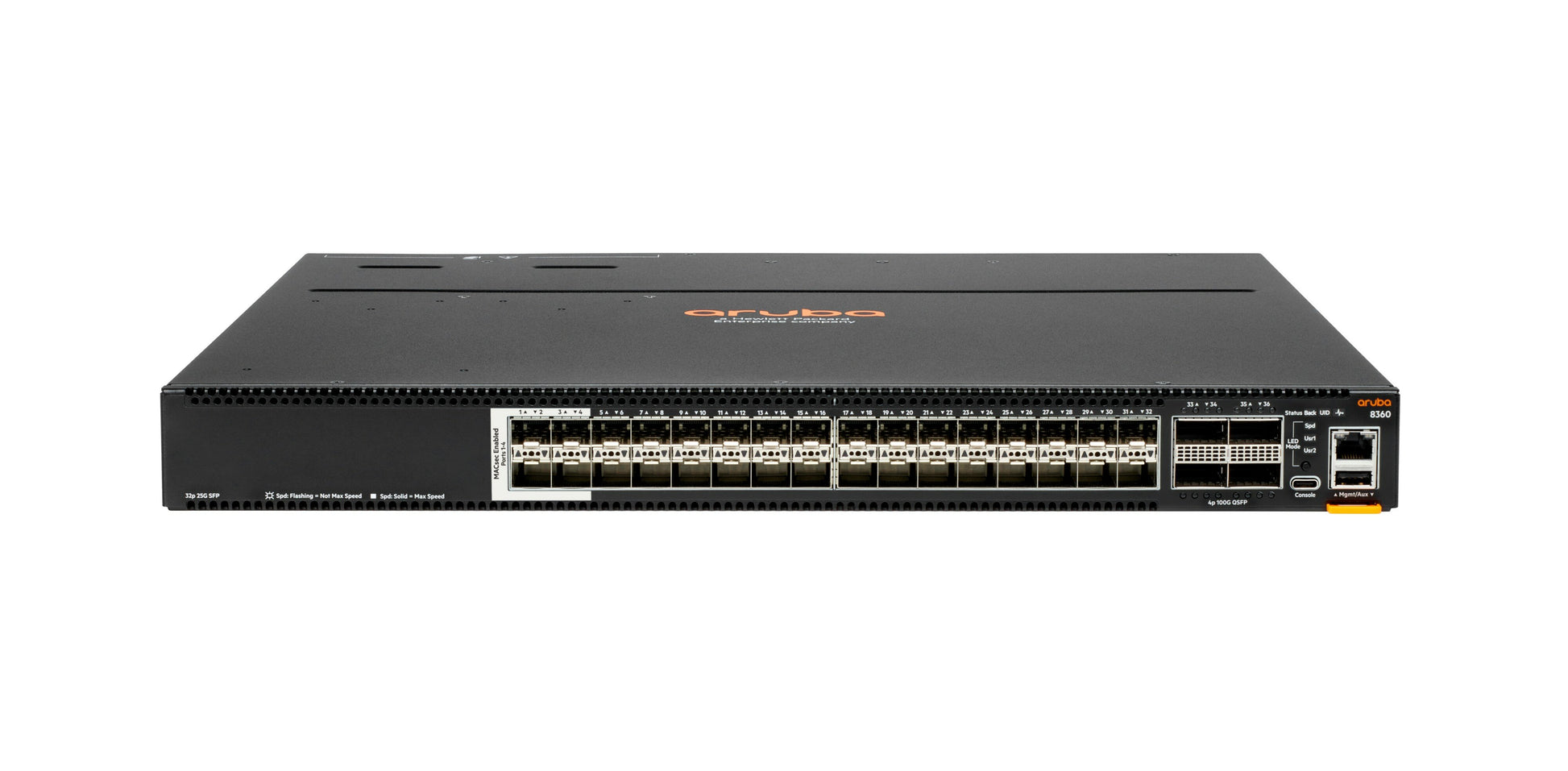

HP Aruba 8360-24XF2C Switch Bundle JL710A#B2C, 100GbE, 30 Ports

VENDOR: HP Mfg Part#: JL710A#B2C UPC#: 190017406213
1 3
Photo is for illustration purposes only. Actual product may be different.
$25,061.24
$25,061.24
Sale Sold out
MSRP: $31,655.00
Shipping calculated at checkout.
  • 30 total ports including 24 SFP/SFP+ and 2 QSFP+/QSFP28 ports
  • Supports up to 100 Gbps data transfer rate for high-throughput networking
  • Layer 3 advanced routing protocol capabilities
  • 32 GB of installed flash memory for system performance
  • 550W power consumption with flexible voltage requirement (100–127 / 200–240 VAC)
  • TAA compliant and backed by a limited lifetime warranty

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Designed for scalable high-speed enterprise networking with support for 100GbE ports and breakout cables
  • Layer 3 advanced routing and flexible interface options provide ultimate deployment flexibility
  • Limited lifetime warranty and TAA compliance ensure long-term value and regulatory adherence

Product Overview

The HP Aruba 8360-24XF2C Switch Bundle (JL710A#B2C) is part of the Aruba CX 8360 switch series, designed for demanding infrastructures. It features 30 high-speed ports including 24 SFP/SFP+ ports and 2 QSFP+/QSFP28 ports capable of up to 100GbE, with optional transceiver and breakout cable support for maximum flexibility. Leveraging its Layer 3 advanced routing, this switch enables seamless integration into dynamic enterprise environments. A 550W power rating, 32 GB of flash storage, and multi-voltage operation enhance its robustness. Thanks to TAA compliance and a limited lifetime warranty, this model offers long-term assurance to IT teams and data center professionals.

Specifications

Product Overview
Product Type Managed Layer 3 Ethernet Switch
Series Aruba CX 8360 Switch Series
Model Number JL710A#B2C
Form Factor 1U Rack-Mountable
Weight 17.8 lbs.
Power Consumption (Typical) 550 Watt
Maximum Power Consumption 550 Watt
Power Supply Type Internal AC Power Supply
Voltage Required 100-127 and 200-240 VAC

Wireless Features

Compliance & Origin
Country of Origin Singapore
TAA Compliant Yes
Certifications UL, cUL, CB, FCC Class A, VCCI, CE, ICES, RoHS
Warranty Limited Lifetime Warranty
Green Compliance RoHS, REACH

Advanced Security Features
Access Control 802.1X, MAC Authentication, RADIUS, TACACS+
Security Protocols SSH, HTTPS, SNMPv3
User Role-Based Access Control Yes
Dynamic Segmentation Yes, with Aruba ClearPass integration
DoS Attack Protection Yes

Interfaces
Total Number of Ports 30
Port Configuration 24 x 1G/10G SFP/SFP+ ports, 2 x 40G/100G QSFP+/QSFP28 ports
Transceiver Type Supported SFP, SFP+, QSFP+, QSFP28
Breakout Cable Support Yes - Supports 4x10G/25G breakout cables
Management Ports 1 x RJ-45 out-of-band management port
Console Port 1 x RJ-45 console port + 1 x USB Type-C console port
USB Ports 1 x USB 3.0 Type-A port
Ethernet Protocols Supported IEEE 802.3, 802.3u, 802.3ab, 802.3z, 802.3ae
Data Transfer Rate Up to 100 Gbps per port

Physical & Environmental
Dimensions (W x D x H) 1.73 x 17.4 x 16 inches
Rack Mountable Yes
Operating Temperature 32°F to 113°F (0°C to 45°C)
Storage Temperature -40°F to 158°F (-40°C to 70°C)
Operating Humidity 5% to 95% non-condensing
Altitude Range Up to 10,000 ft (3,048 m)
Acoustic Noise 58 dB (typical)
Cooling Front-to-back airflow with fan trays

Cloud Management & Licensing
Network Management Aruba Central (Cloud), Aruba NetEdit, CLI, Web GUI, REST API
Cloud Management Options Yes – Aruba Central supported
Included Software Licenses Base Layer 3 features included, optional Advanced Data Center Networking license
Flash Memory 32 GB
RAM 8 GB
