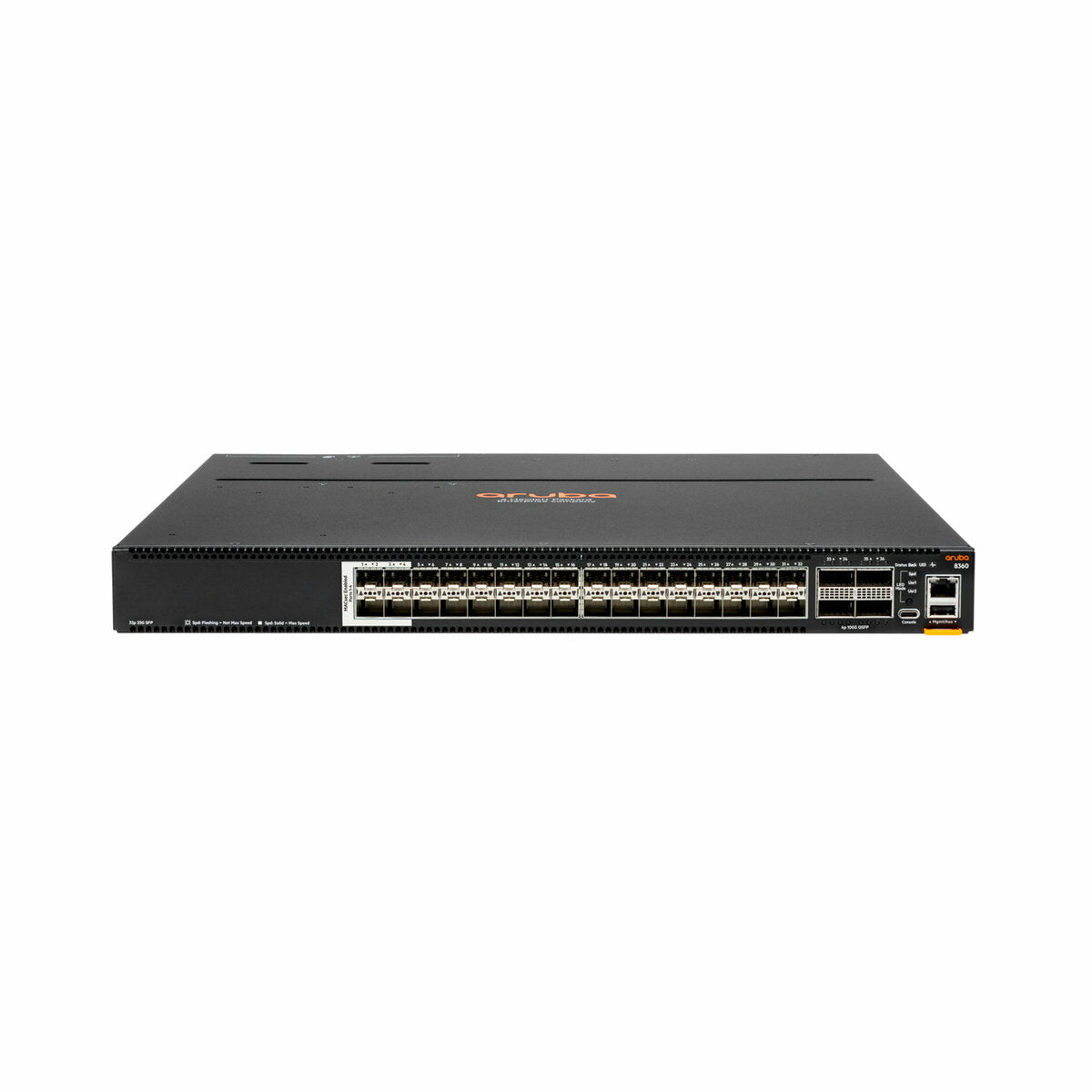

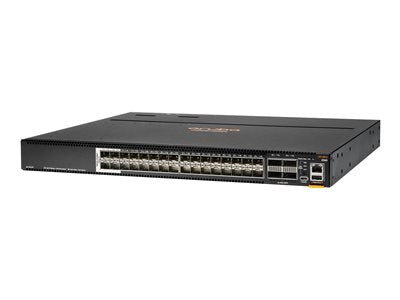

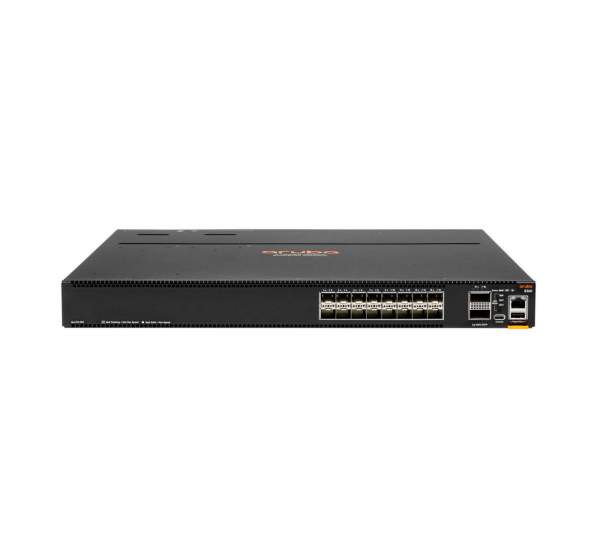

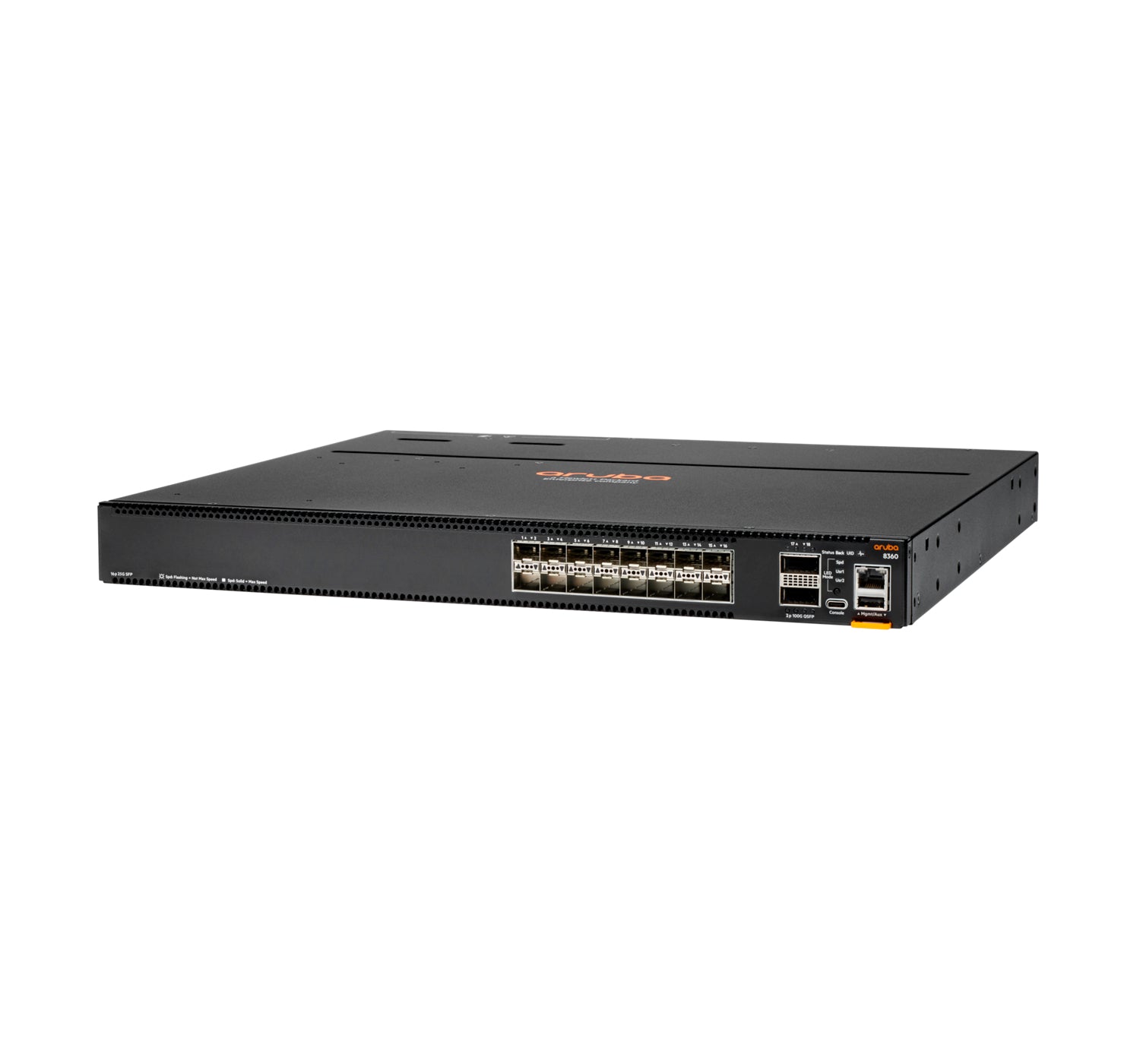

HP Aruba 8360-32Y4C 32-Port L3 Managed Switch (JL701A#ABB)

VENDOR: HP Mfg Part#: JL701A#ABB UPC#: 190017403960
1 5
Photo is for illustration purposes only. Actual product may be different.
$32,606.14
$32,606.14
Sale Sold out
MSRP: $41,185.00
Shipping calculated at checkout.
  • 32-port Layer 3 managed switch supporting 1/10/25/40/100 GbE via SFP+/QSFP28 interfaces
  • 2.4 Tbps switching capacity with 1 µs latency and 9KB jumbo frame support
  • Advanced routing protocols: OSPF, BGP, VRRP, IGMP, ECMP, and policy-based routing
  • Redundant N+1 power supplies and hot-swappable fan modules
  • Includes 16 GB RAM, 32 GB flash, and 1.8 GHz processor for efficient performance
  • Robust security: MACsec, FIPS 140-2 encryption, TACACS+ and RADIUS authentication

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Delivers high-speed, low-latency networking ideal for scalability in core enterprise infrastructures
  • Extensive support for Layer 3 routing protocols and security features ensures robust and secure traffic control
  • TAA-compliant build with redundant components and lifetime warranty supports long-term mission-critical operations

Product Overview

The HP Aruba 8360-32Y4C (JL701A#ABB) is a high-capacity Layer 3 managed switch optimized for enterprise and data center deployments. It features 32 ports supporting up to 100 Gbps, with a 2.4 Tbps switching capacity and 1 µs latency for ultra-fast connectivity. Advanced protocols like OSPF, BGP-4, and VRRP, together with encryption and authentication features, ensure secure data routing. The unit includes dual redundant internal power supplies (N+1), hot-swappable fan trays, and a 1U rackmount form factor with back-to-front airflow, facilitating efficient installation. It is TAA-compliant and built to meet rigorous IEEE and safety standards. Suitable for scalable, high-reliability environments requiring policy-driven and remote-managed infrastructure.

Specifications

Product Overview
Product Type Layer 3 Managed Switch
Form Factor Rack-mountable - 1U
Airflow Back to front
Processor 1.8 GHz
RAM 16 GB
Flash Memory 32 GB
Weight 18.06 lbs
Power Requirements AC 120/230 V (47 - 63 Hz)
Power Redundancy Yes
Power Redundancy Scheme N+1
Power Provided 550 Watt
Power Device Internal power supply - hot-plug
Installed Power Supplies 2
Maximum Supported Power Supplies 2
Included Accessories 3 fan trays
Switching Capacity 2.4 Tbps
Throughput 2 Mbps
Latency 1 µs

Cloud Management & Licensing
Management Interface Web GUI, CLI, Aruba Central compatible
Remote Management Protocols SNMP, SSH, CLI, SFTP, NTP, ICMP, IPv4, IPv6
Cloud Platform Support Aruba Central
License Requirement Optional for cloud-based features

Physical & Environmental
Dimensions (W x D x H) 17.4 in x 16 in x 1.7 in
Min Operating Temperature 32 °F
Max Operating Temperature 104 °F
Humidity Range Operating 15 - 95% (non-condensing)
Humidity Range Storage 15 - 95% (non-condensing)
Fan Redundancy Yes (hot swappable)

Interfaces
Total Port Count 32
SFP/SFP+/SFP28 Ports 28 x 1/10/25 GbE
QSFP+/QSFP28 Ports 4 x 40/100 GbE
Additional SFP28 Ports 4 x 10/25 GbE
RJ-45 Ports 1 x 1GbE LAN
Console Ports 1 x serial console, 1 x USB-C console
USB Ports 1 x USB-C
Jumbo Frame Support 9KB
MAC Address Table Size 320K
VLAN Support 4094 VLANs (802.1Q)

Advanced Security Features
Authentication Methods RADIUS, TACACS+, SSH2
Encryption Algorithm FIPS 140-2
MACsec Support Yes
Access Control Lists (ACLs) Yes
Packet Storm Protection Yes
DHCP Snooping Yes

Compliance & Origin
Compliance Standards IEEE 802.1D, 802.1Q, 802.1p, 802.3x, 802.3ad, 802.1w, 802.3ae, 802.1s, 802.1ab, 802.3ba, 802.1AX
Safety & EMC Certifications UL 60950-1, EN 60950-1, IEC 60825-1, EN 55032, FCC Part 15A, RoHS
TAA Compliant Yes
Country of Origin Singapore
Warranty Limited lifetime warranty
