HP Aruba 8360-32Y4C Managed 32-Port 100GbE Rack Switch JL701A#ACD

VENDOR: HP Mfg Part#: JL701A#ACD UPC#: 190017404028
1 2

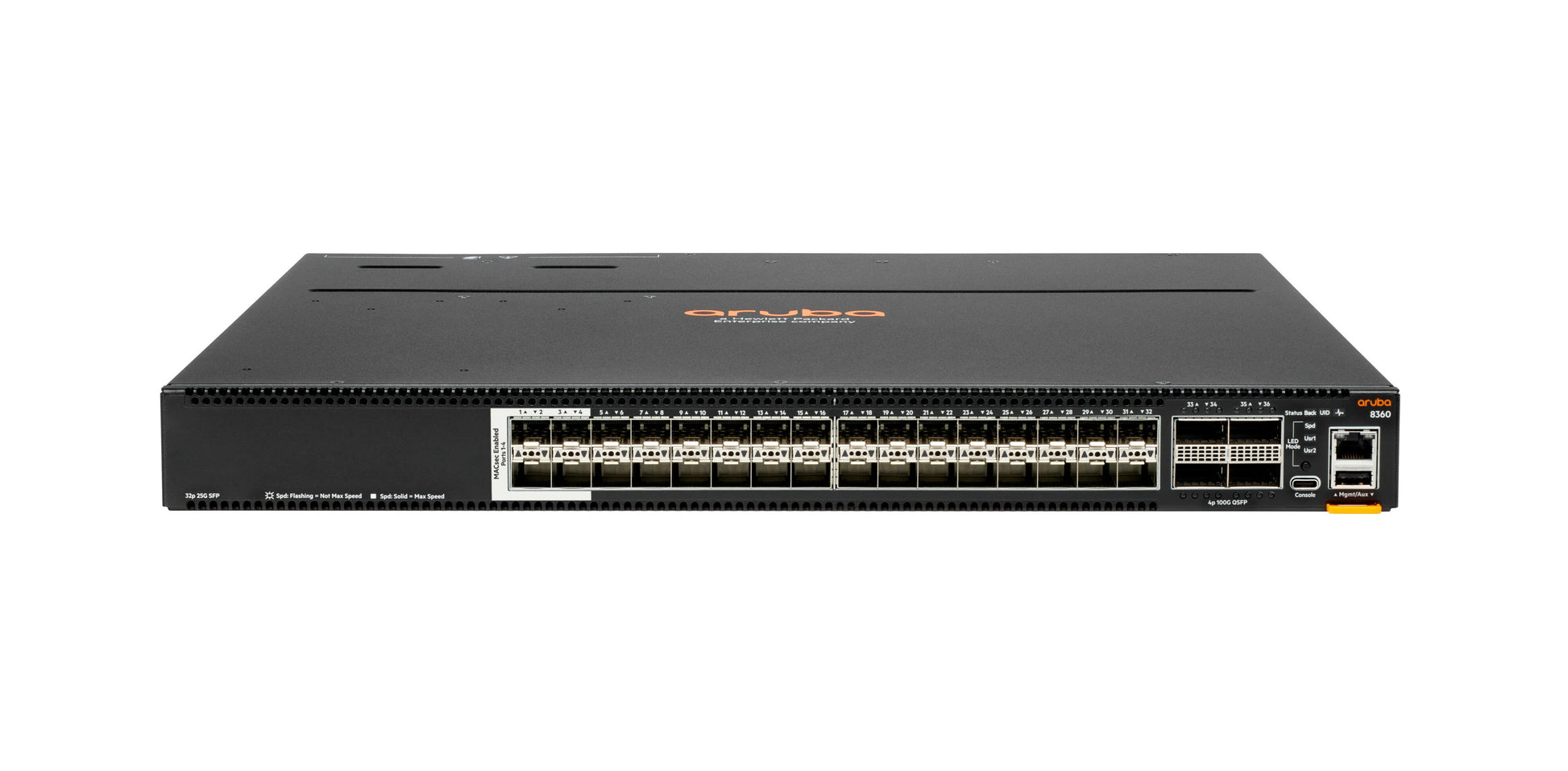

Photo is for illustration purposes only. Actual product may be different.
$32,606.14
$32,606.14
Sale Sold out
MSRP: $41,185.00
Shipping calculated at checkout.
  • Layer 3 managed switch with 32 ports supporting up to 100GbE connectivity
  • 2.4 Tbps switching capacity with 1 µs latency for high-performance data transfer
  • Redundant hot-swappable fans and dual internal power supplies (N+1)
  • Advanced routing protocols: OSPFv3, BGP-4, policy-based routing (PBR), and ECMP
  • Support for Jumbo Frames (9KB), 4094 VLANs, and MACsec encryption
  • Remote management via SNMP, SSH, CLI, and more, with 16 GB RAM and 32 GB flash

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • High port density and flexible multi-speed interfaces support scalability in modern data centers
  • Redundant power and cooling systems ensure high availability and reduce downtime risk for critical deployments
  • Extensive routing protocol and security suite enables versatile integration into complex network topologies

Product Overview

The HP Aruba 8360-32Y4C (JL701A#ACD) is a Layer 3 managed 32-port 100GbE switch designed for data center and enterprise environments. It includes 28 x 1/10/25GbE SFP ports and 4 x 100GbE QSFP+ ports, supports 2.4 Tbps switching capacity, 1 μs latency, and 9KB jumbo frames. The switch delivers high network resilience via redundant power (N+1) and hot-swappable fans. It fully supports L3 routing protocols such as OSPFv3, BGP-4, and PBR, and includes advanced security features like MACsec and authentication via RADIUS and TACACS+. With TAA compliance and built-in 16 GB RAM and 32 GB flash, this switch is an ideal choice for high-throughput, secure, and scalable deployments.

Specifications

Product Overview
Type Layer 3 Managed Switch
Form Factor Rack-mountable - 1U
Weight 18.06 lbs
Power Requirements AC 120/230 V (47 - 63 Hz)
Power Device Internal power supply - hot-plug
Power Provided 550 Watt
Installed Power Supplies 2
Max Supported Power Supplies 2
Power Redundancy Yes
Power Redundancy Scheme N+1
Processor 1.8 GHz
RAM 16 GB
Flash Memory 32 GB
Included Accessories 3 fan trays

Cloud Management & Licensing
Management Interface CLI, SNMP, SSH, SFTP, TFTP, Web-based
Remote Management Protocols SNMPv2c, SNMPv3, SSH/SSH2, SFTP, RMON, NTP
Supported Management Features Aruba Central, sFlow, LLDP, DHCP, NTP, VSX

Physical & Environmental
Width 17.4 in
Depth 16 in
Height 1.7 in
Operating Temperature (Min) 32 °F (0 °C)
Operating Temperature (Max) 104 °F (40 °C)
Operating Humidity Range 15 - 95% (non-condensing)
Storage Humidity Range 15 - 95% (non-condensing)

Routing & Protocols
Supported Routing Protocols OSPFv3, BGP-4, OSPF, IGMP, VRRP, PIM-SM, ECMP, GRE, MLD, Static IPv4/IPv6, Policy-Based Routing (PBR)
VLAN Support Yes - 4094 Virtual Interfaces per Port (802.1Q)
Spanning Tree Protocols STP, RSTP, MSTP, Rapid PVST+
Multicast Routing IGMP, PIM, MSDP, MLD

Interfaces
Number of Ports 32
Port Configuration 28 x 1/10/25GbE SFP/SFP+/SFP28, 4 x 40/100GbE QSFP+/QSFP28
Console Ports 1 x Serial, 1 x USB-C Console
Additional Interfaces 1 x LAN RJ-45, 1 x USB-C
Switching Capacity 2.4 Tbps
Forwarding Latency 1 µs
Jumbo Frame Support 9KB
Packet Buffer Size 32MB

Advanced Security Features
Authentication Methods RADIUS, TACACS+, Secure Shell (SSH), Secure Shell v.2 (SSH2)
Security Algorithms FIPS 140-2
MACsec Support Yes
Access Control Lists (ACLs) Yes
Traffic Filtering Policy-based routing (PBR), QoS, IPv4/IPv6 ACLs

Compliance & Origin
Compliant Standards IEEE 802.3z, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.1AX, IEEE 802.1Q, IEEE 802.1ab (LLDP), IEEE 802.3ba, FCC Part 15 Class A, CE, UL 60950-1, IEC 60950-1, IEC 62368-1, CISPR 32/35, TAA
TAA Compliant Yes
Country of Origin Singapore
