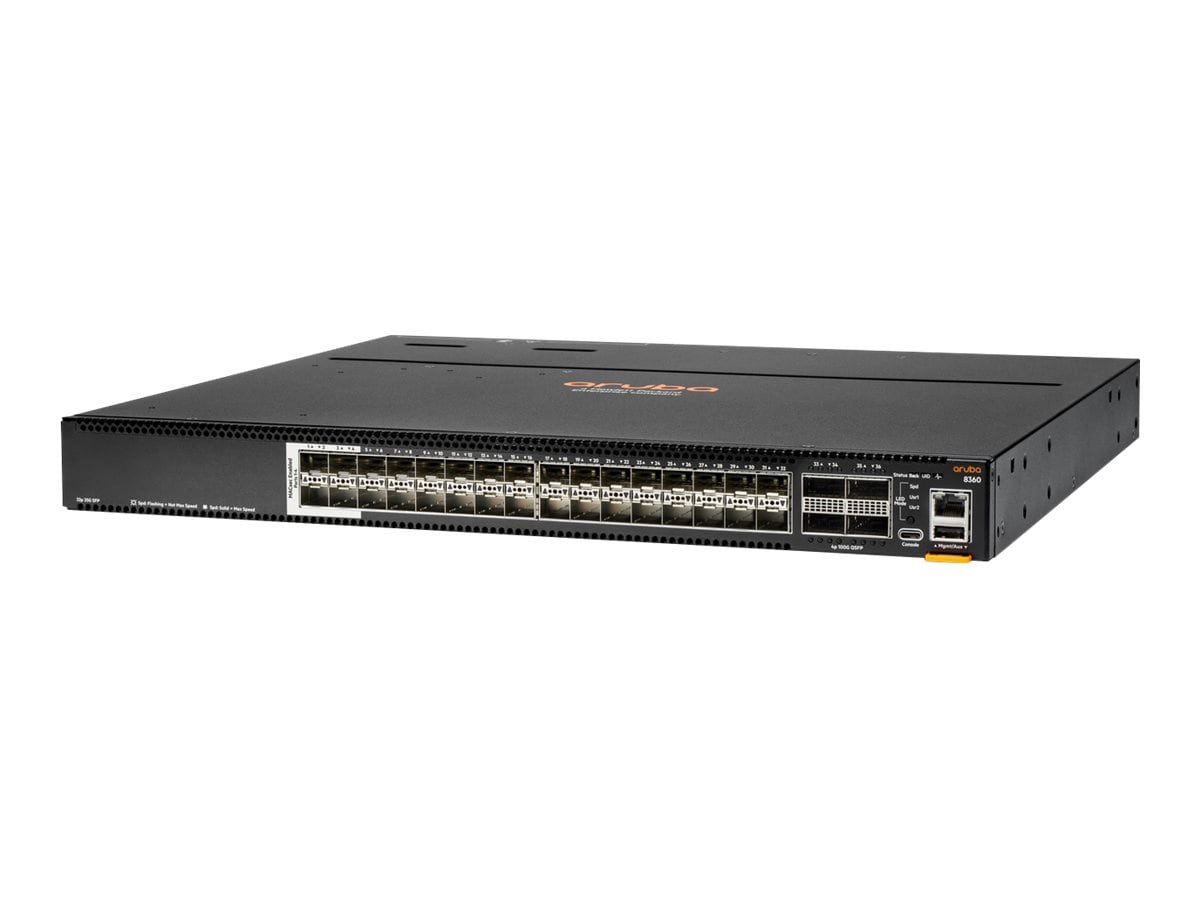

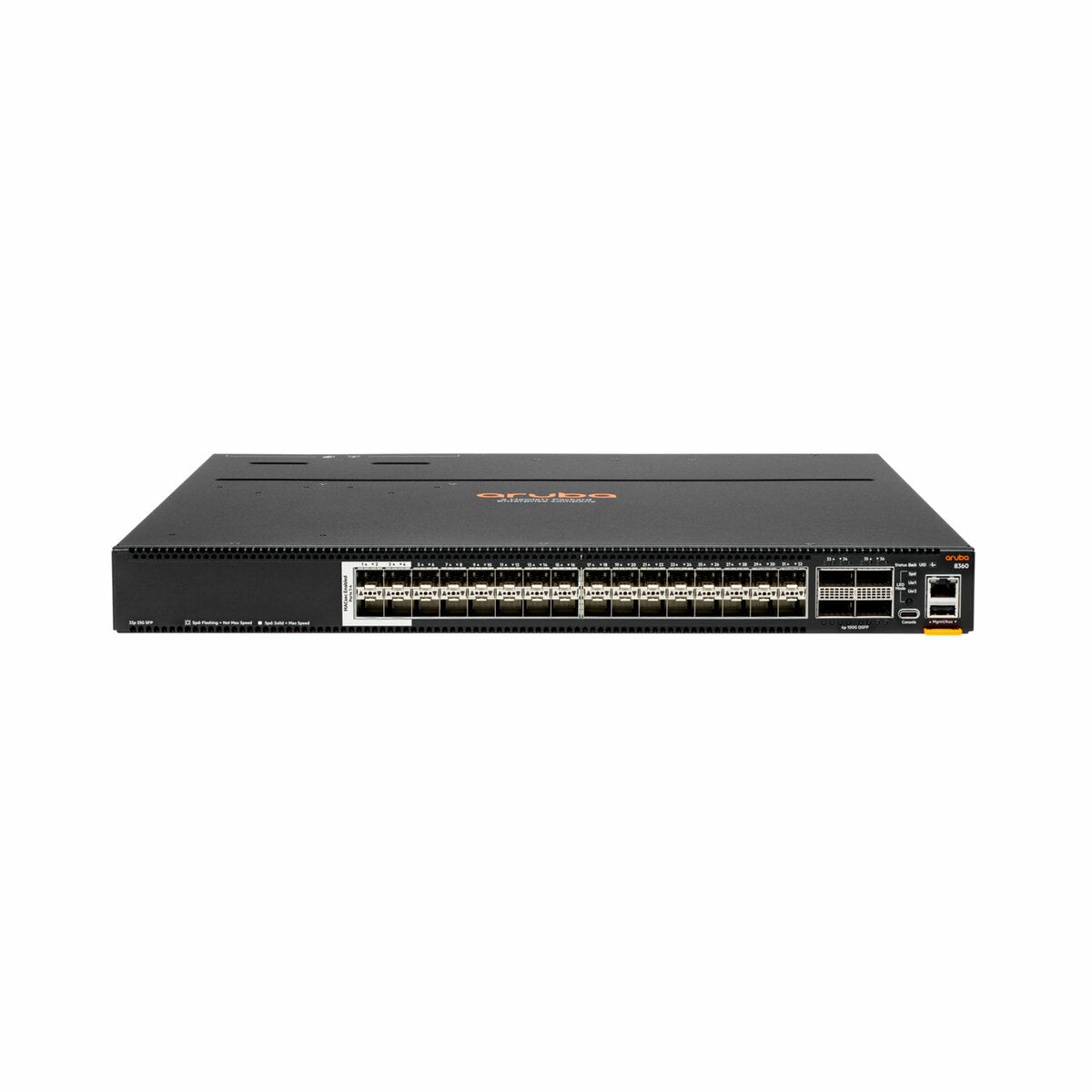

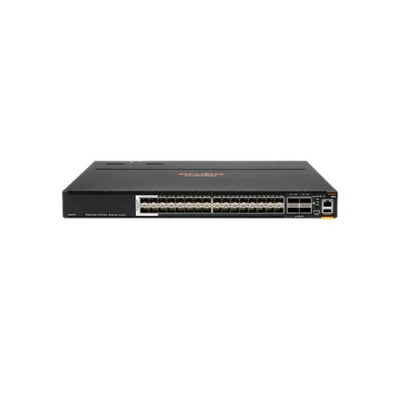

HP Aruba 8360-32Y4C Prt2Pwr3F2PS Network Switch Bundle

VENDOR: HP Mfg Part#: JL700A#ACD UPC#: 190017403793
1 5
Photo is for illustration purposes only. Actual product may be different.
$32,606.14
$32,606.14
Sale Sold out
MSRP: $41,185.00
Shipping calculated at checkout.
  • TAA compliant for federal and regulated procurement standards
  • Manufactured in Singapore for consistent build quality
  • Includes power and cooling components in bundle
  • Part of Aruba 8360 series offering streamlined enterprise-grade networking

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Suitable for TAA-restricted environments such as federal or government procurement.
  • Includes essential power and fan modules, reducing need for additional component purchases.
  • Part of HP's Aruba 8360 series, trusted for high-performance, scalable networking solutions.

Product Overview

The HP Aruba 8360-32Y4C Prt2Pwr3F2PS is a data center-class network switch bundle designed for large-scale enterprise and mission-critical connectivity. It belongs to HP’s Aruba 8360 series and is manufactured in Singapore, complying with TAA (Trade Agreements Act) standards. Though detailed port specifications are not provided, the inclusion of power and fan modules within the bundle indicates a unit optimized for modular scalability and high availability. The product’s design and origin make it well-suited for government or regulated sector deployments where compliance and reliability are top priorities.

Specifications

Product Overview
Product Type Layer 3 Modular Ethernet Switch
Series Aruba 8360 Series
Model Number JL700A#ACD
Bundle Components 32-port 25G SFP28 & 4-port 100G QSFP28 switch, 2 power supplies, 3 fans
Switching Capacity 2.56 Tbps
Forwarding Rate 1,450 Mpps
Form Factor 1U Rack-mountable
Power Supply Dual Hot-swappable Power Supplies (included)
Redundancy N+1 Fans, 1+1 Power Supplies
Weight 7.3 kg (16.1 lbs)
Power Consumption (Maximum) 175 W

Wireless Features
Wireless Capability

Compliance & Origin
Country of Origin Singapore
TAA Compliant Yes
Certifications UL, CE, FCC Class A, EN55032, RoHS, REACH, WEEE
Environmental Compliance RoHS, WEEE, China RoHS

Advanced Security Features
Access Control 802.1X, MAC Authentication, Web Authentication
Network Security DHCP Snooping, Dynamic ARP Protection, IP Source Guard
Port Security MAC-based
Control Plane Policing (CoPP) Yes
Encrypted Management SSH, HTTPS, SNMPv3
MACsec (802.1AE) Supported on selected ports

Interfaces
Total Ports 36
25GbE Ports 32 x SFP28
100GbE Ports 4 x QSFP28
Management Ports 1 x RJ-45 serial console; 1 x RJ-45 out-of-band management; 1 x USB
Data Transfer Rate 25/100 Gbps

Physical & Environmental
Dimensions (W x D x H) 43.9 x 42.1 x 4.4 cm (17.3 x 16.6 x 1.73 in)
Rack Units 1U
Operating Temperature 0°C to 45°C (32°F to 113°F)
Storage Temperature -40°C to 70°C (-40°F to 158°F)
Operating Humidity 5% to 95%, non-condensing
Acoustic Noise (typical) 58.6 dB
Cooling Method Front-to-Back Airflow with Hot-swappable Fans

Cloud Management & Licensing
Management Interface ArubaOS-CX CLI, Web GUI, REST APIs
Cloud Management Support Aruba Central (Subscription Required)
Licensing Model Subscription-based for enhanced services
Included Software Features Basic L2/L3 switching, VXLAN, OSPF, BGP, VRF support
Automation Support NetEdit, REST API, Python scripting
