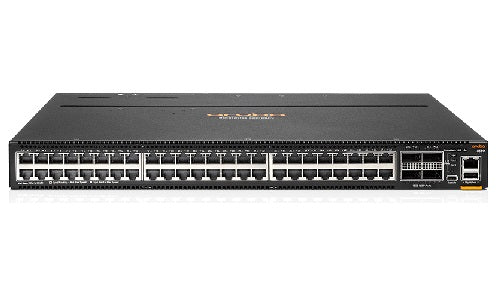

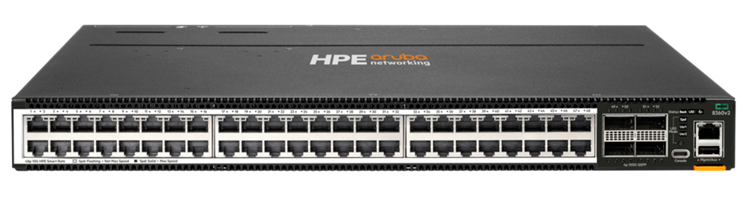

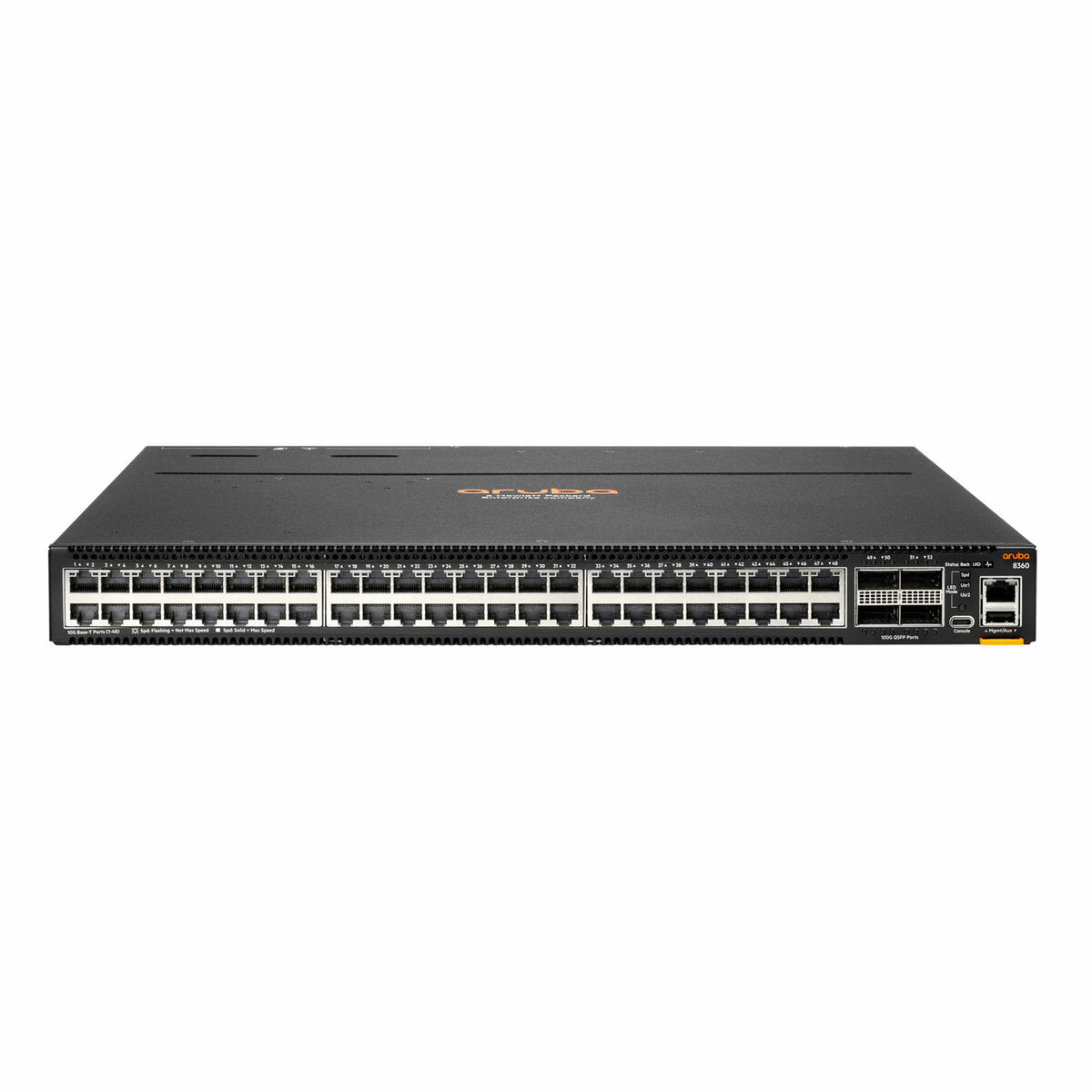

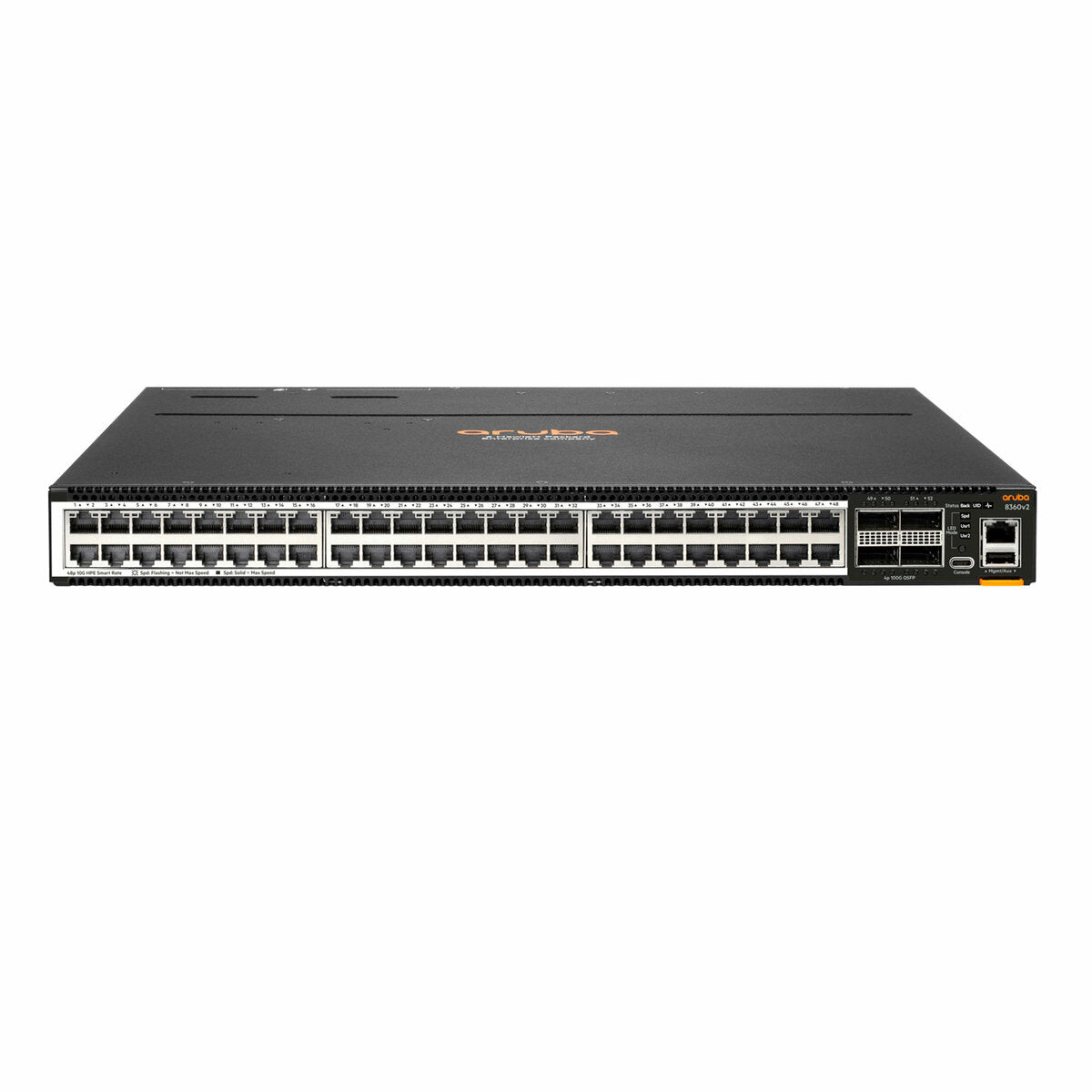

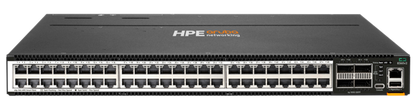

HP Aruba 8360-48XT4C 48-Port 100GbE Switch Bundle

VENDOR: HP Mfg Part#: JL707A#B2E UPC#: 190017405537
1 4
Photo is for illustration purposes only. Actual product may be different.
$32,329.03
$32,329.03
Sale Sold out
MSRP: $40,835.00
Shipping calculated at checkout.
  • 48 ports of 100M/1GbE/10GBASE-T and 4 ports of 40GbE/100GbE (QSFP+/QSFP28)
  • Supports advanced Layer 3 routing protocols for scalable deployments
  • Data transfer rate up to 100 Gbps for high-performance networking
  • Operational power consumption of 550W with dual-voltage input (100-127V and 200-240V)
  • Includes 32 GB flash memory for enhanced switching operations
  • TAA-compliant; backed by limited lifetime warranty

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Supports both 10G copper access and 100G uplinks, ideal for hybrid networking topologies.
  • Includes power redundancy in bundle, improving business continuity and reducing downtime risk.
  • TAA compliance and Singapore-based manufacturing meet federal and regulated procurement standards.

Product Overview

The HP Aruba 8360-48XT4C Pwr2Prt3F2PS Bdl is a high-performance network switch in the Aruba CX 8360 series, designed for modern enterprise and data center architectures. It features 48 multi-speed 100M/1G/10G ports and 4 uplink ports supporting 40GbE/100GbE via QSFP+/QSFP28 modules. The switch includes Layer 3 advanced routing protocols for scalable deployments. With a data transfer capacity of 100 Gbps, 32 GB flash memory, and dual-voltage power compatibility, it supports performance-critical and latency-sensitive applications. Power redundancy, TAA compliance, and a limited lifetime warranty make it a reliable choice for enterprise IT environments.

Specifications

Product Overview
Product Type Managed Switch
Form Factor 1U Rack-mountable
Series Aruba CX 8360
Model 8360-48XT4C
Power Consumption (Operational) 550 Watt
Maximum Power Consumption 550 Watt
Power Requirements 100-127 VAC / 200-240 VAC
Flash Memory Installed 32 GB
Weight 18.85 lbs

Wireless Features
Wireless Support

Compliance & Origin
Country of Origin Singapore
TAA Compliant Yes
Certifications UL, CE, FCC Class A, RoHS, VCCI, ICES
Environmental Standards RoHS, WEEE
Service & Support Limited Lifetime Warranty

Advanced Security Features
Access Control Lists (ACLs) Yes
Secure Shell (SSH) Yes
802.1X Authentication Yes
MACsec Support Yes
DHCP Snooping Yes
Dynamic ARP Inspection Yes
IP Source Guard Yes
Role-Based Access Control Yes

Interfaces
Total Ports 52
Copper Ports (100M/1G/10GBASE-T) 48
Uplink Ports (40G/100G QSFP+/QSFP28) 4
Data Link Protocols Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet, 40 Gigabit Ethernet, 100 Gigabit Ethernet
Routing Capability Layer 2 and Layer 3
Data Transfer Rate Up to 100 Gbps
Switching Capacity 2.4 Tbps
Forwarding Rate 1,190 Mpps
MAC Address Table Size 296,000 entries
Jumbo Frame Support Yes, up to 9198 bytes

Physical & Environmental
Dimensions (HxWxD) 1.73 x 17.4 x 16 in
Operating Temperature 0°C to 45°C (32°F to 113°F)
Storage Temperature -40°C to 70°C (-40°F to 158°F)
Operating Humidity 5% to 95% (non-condensing)
Airflow Front-to-back
Acoustic Noise 58.8 dB

Cloud Management & Licensing
Management Interface Aruba Network Analytics Engine (NAE), Aruba Central (optional)
CLI Support Yes
SNMP v1, v2c, v3
REST API Yes
Cloud Management Compatibility Aruba Central
Software Licensing Included base license, additional licenses may be required
