| Product Type | Managed Switch |
| Switch Model | Aruba CX 8360-48XT4C |
| Included Bundle Components | 48-port switch, 2 power supplies, 3 fans |
| Form Factor | 1U Rack-mountable |
| Power Supply | Dual hot-swappable AC power supplies included |
| Redundant Fans | Yes, 3 hot-swappable fans |
| Weight | 10.1 kg (22.3 lbs) |
| Power Consumption (Typical) | 130 W |
| Power Consumption (Maximum) | 150 W |

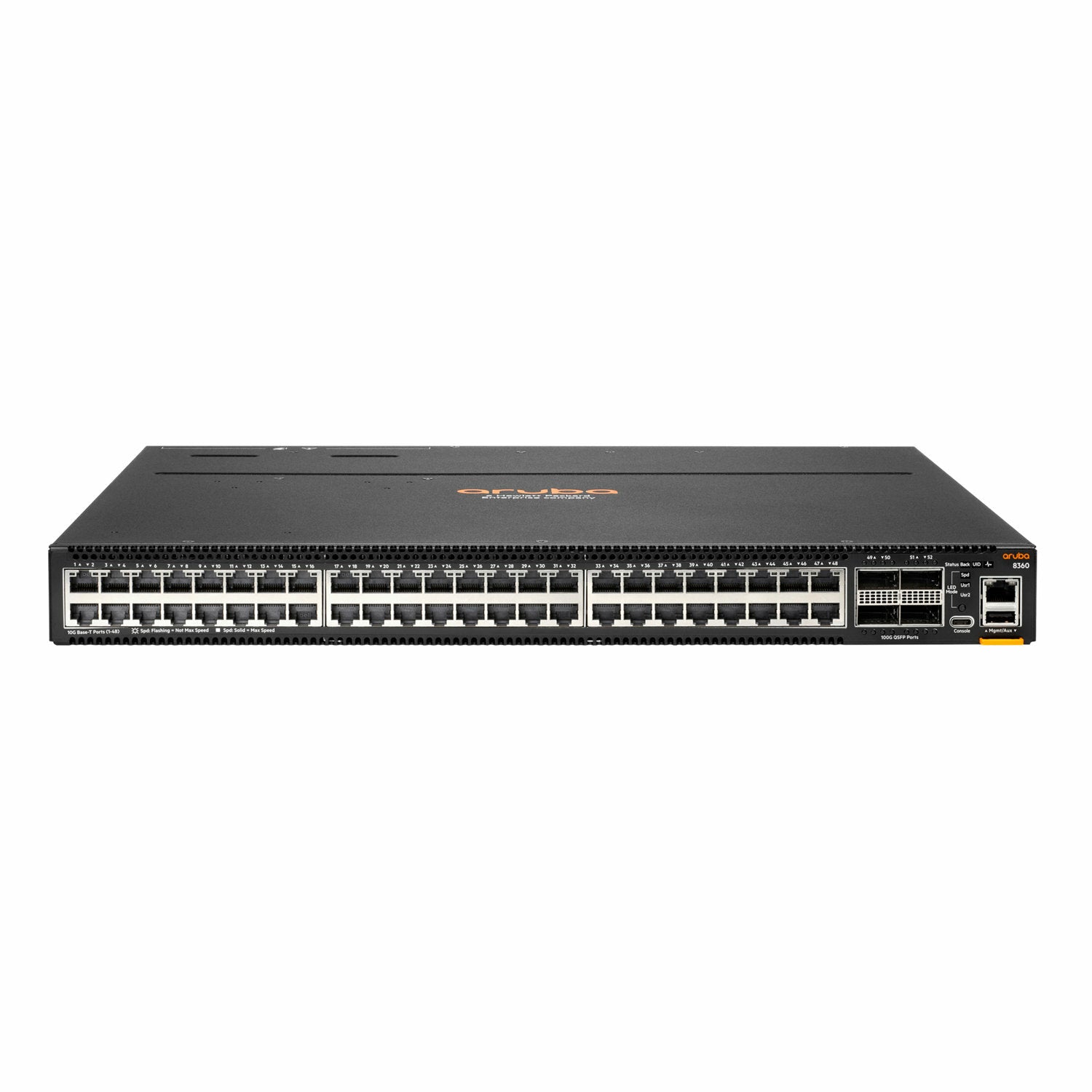

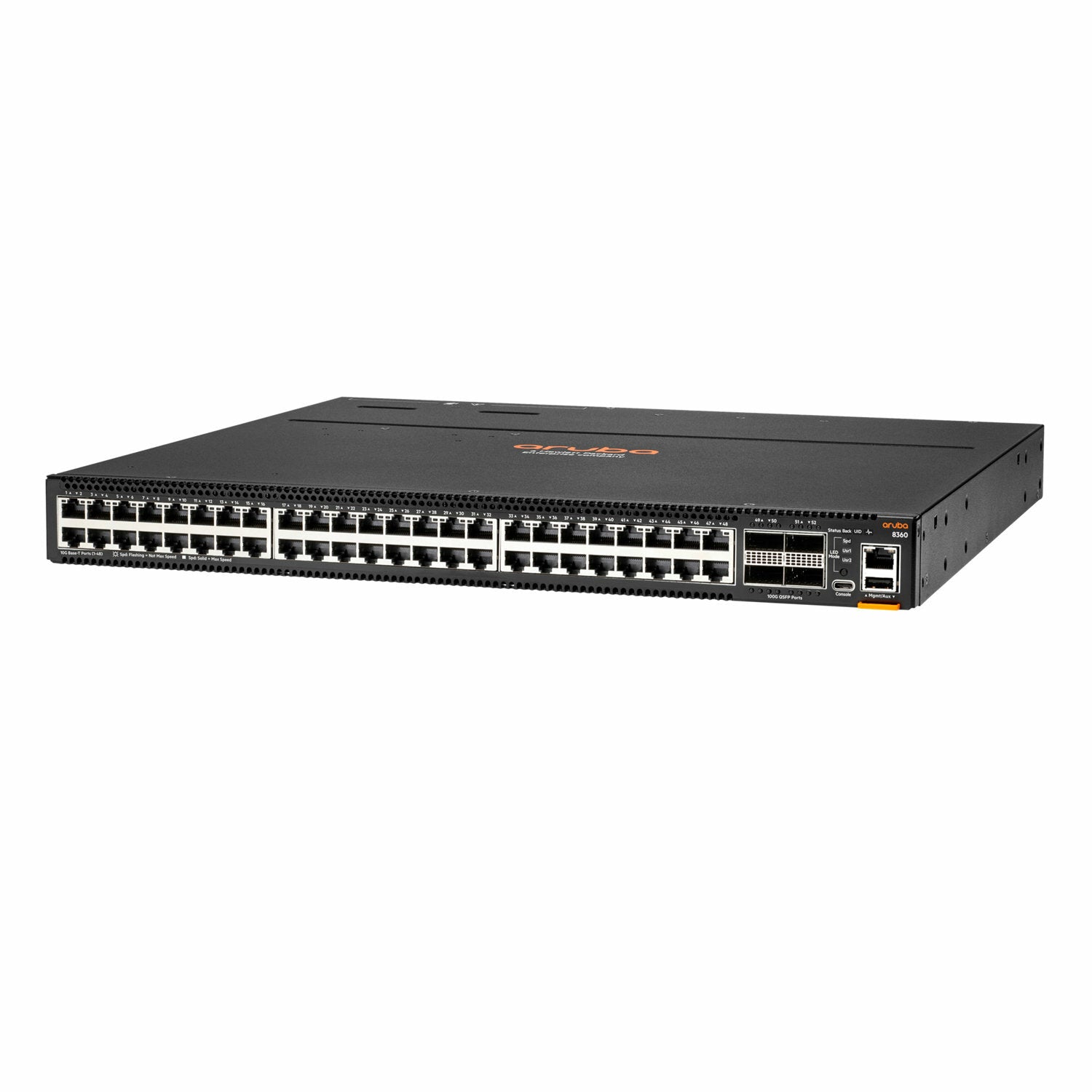

HP Aruba 8360-48XT4C Prt2Pwr3F2PS Switch Bundle JL706A#ACF
Photo is for illustration purposes only. Actual product may be different.
Regular price
$32,329.03
Regular price
Sale price
$32,329.03
Unit price
per
MSRP: $40,835.00
Shipping calculated at checkout.
Couldn't load pickup availability
- TAA compliance ensures suitability for government and regulated environments
- Manufactured in Singapore, offering traceable origin and sourcing
- Part of Aruba 8360 switch series for enterprise network deployments
Shipping & Returns
Shipping & Returns
All our products can be shipped anywhere in the Continental United States.
Key Benefits
Eye-Insights™ by Eye-In Technologies
AI-Powered Summaries from Online Customer Reviews
AI-Powered Summaries from Online Customer Reviews
Eye-Insights™ are generated by proprietary AI that analyzes real online customer reviews to highlight top pros and key product features. While we aim for accuracy, insights are provided “as-is” and individual results may vary.
- Compliant with TAA standards, making it eligible for federal and defense applications
- Manufactured in Singapore, ensuring reliable sourcing and quality control
- Designed as part of Aruba's enterprise-class 8360 series, supporting critical infrastructure needs
Product Overview
The HP Aruba 8360-48XT4C Prt2Pwr3F2PS Bundle (JL706A#ACF) is designed for enterprise-grade networking with its regulated-use compliance and reliable sourcing from Singapore. Engineered as part of the Aruba 8360 switch family, it's ideal for data center and aggregation use cases. Although detailed performance specifications are not available, its TAA compliance and branded build position it as a dependable solution for high-performance and secure network infrastructures.
Specifications
Product Overview
Physical & Environmental
| Dimensions (H x W x D) | 4.39 x 43.97 x 48.01 cm |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) |
| Operating Humidity | 5% to 95% (non-condensing) |
| Acoustic Noise | 65 dB (typical) |
| Fan Redundancy | Yes |
| Power Redundancy | Yes |
Cloud Management & Licensing
| Management Interface | Aruba Network Analytics Engine (NAE), Aruba Central (cloud-based), CLI, Web GUI, REST API |
| Included Licensing | Base OS includes L2/L3 features; optional Advantage licensing for enhanced features |
| Cloud Management Support | Yes, with Aruba Central |
| Monitoring and Analytics | Real-time telemetry and analytics via NAE |
| Automation Capabilities | REST APIs, Python scripting, event-driven automation |
Interfaces
| Total Ethernet Ports | 48 x 10GBASE-T |
| Uplink Ports | 4 x 40/100G QSFP28 |
| Expansion Slots | 4 QSFP28 ports |
| Console Ports | 1 x RJ-45 serial console, 1 x USB-C console |
| Management Ports | 1 x 10/100/1000BASE-T (RJ-45) |
| USB Ports | 1 x USB 2.0 type-A |
| Data Transfer Rate | 10/100/1000 Mbps, 10G, 40G, 100G |
| Switching Capacity | 2.8 Tbps |
| Forwarding Rate | 1,309 Mpps |
Compliance & Origin
| TAA Compliance | Yes |
| Country of Origin | Singapore |
| Certifications | UL, CE, CB, FCC Class A, VCCI, BSMI, ICES, RCM |
| Environmental Compliance | RoHS, REACH, WEEE |
Advanced Security Features
| Access Control | 802.1X, MAC Authentication, Captive Portal |
| Advanced Security | Dynamic segmentation, role-based access control |
| Traffic Filtering | ACLs (Access Control Lists) |
| Encryption Support | MACsec (802.1AE) supported on select ports |
| Secure Configuration Access | SSH, HTTPS |
