HP Aruba 8360-48XT4C Switch Bundle JL706A#A1X

VENDOR: HP Mfg Part#: JL706A#A1X UPC#: 190017405094
1 4

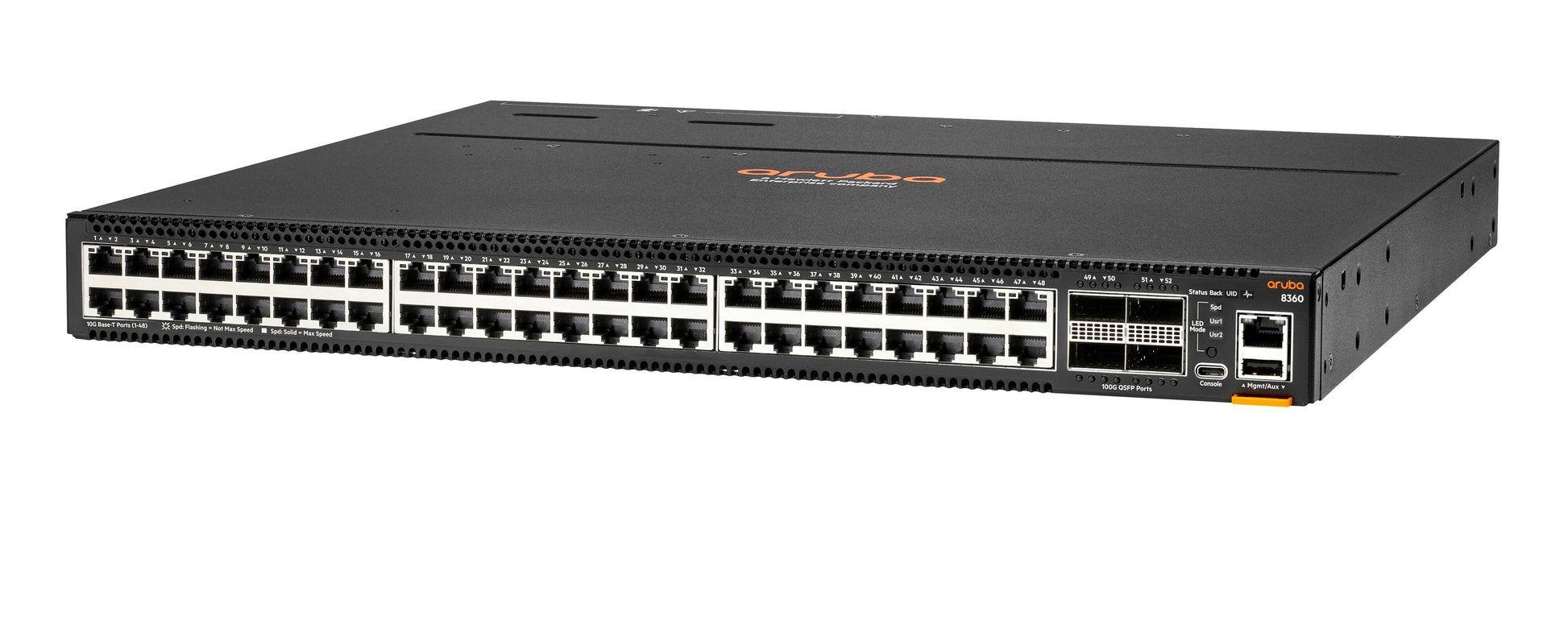

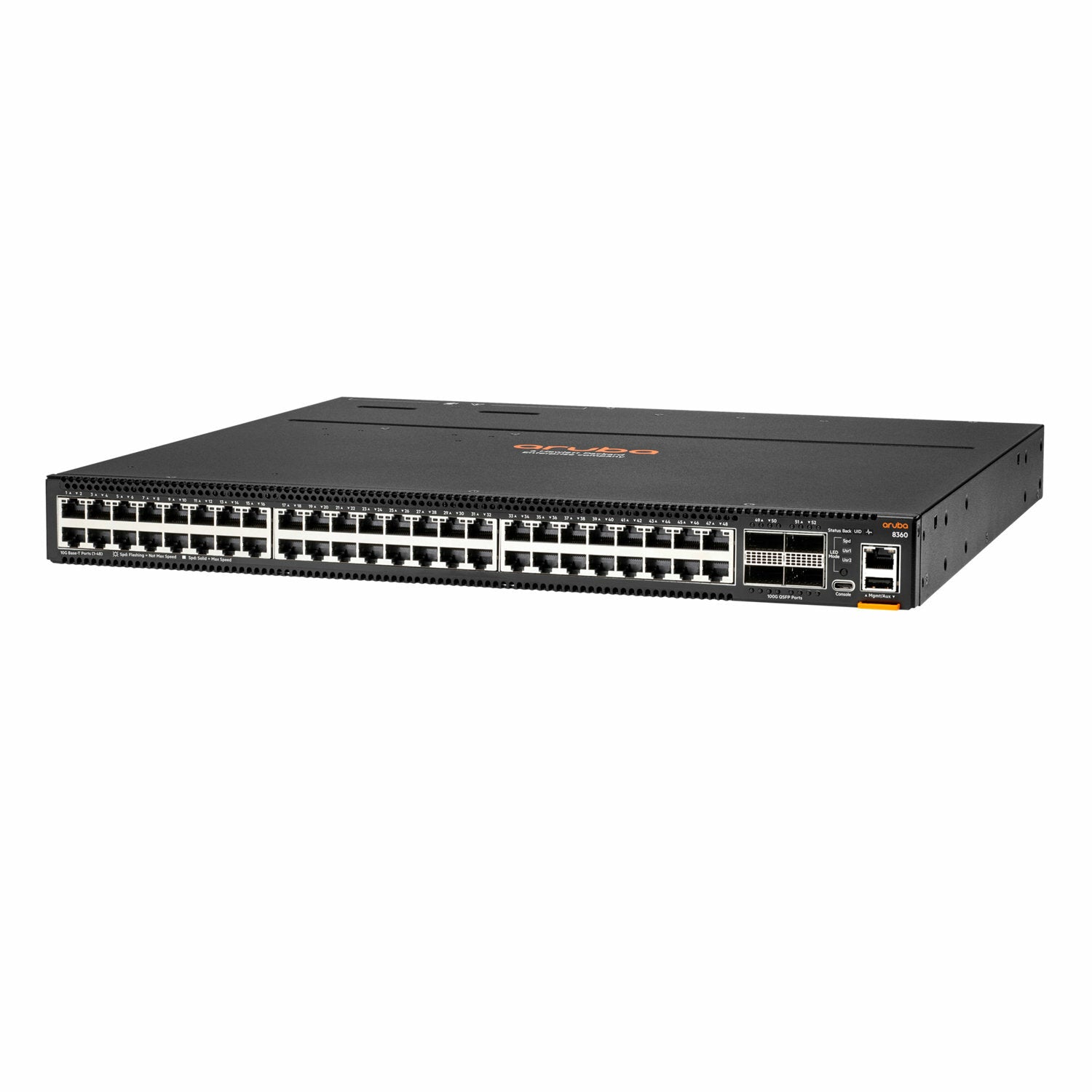

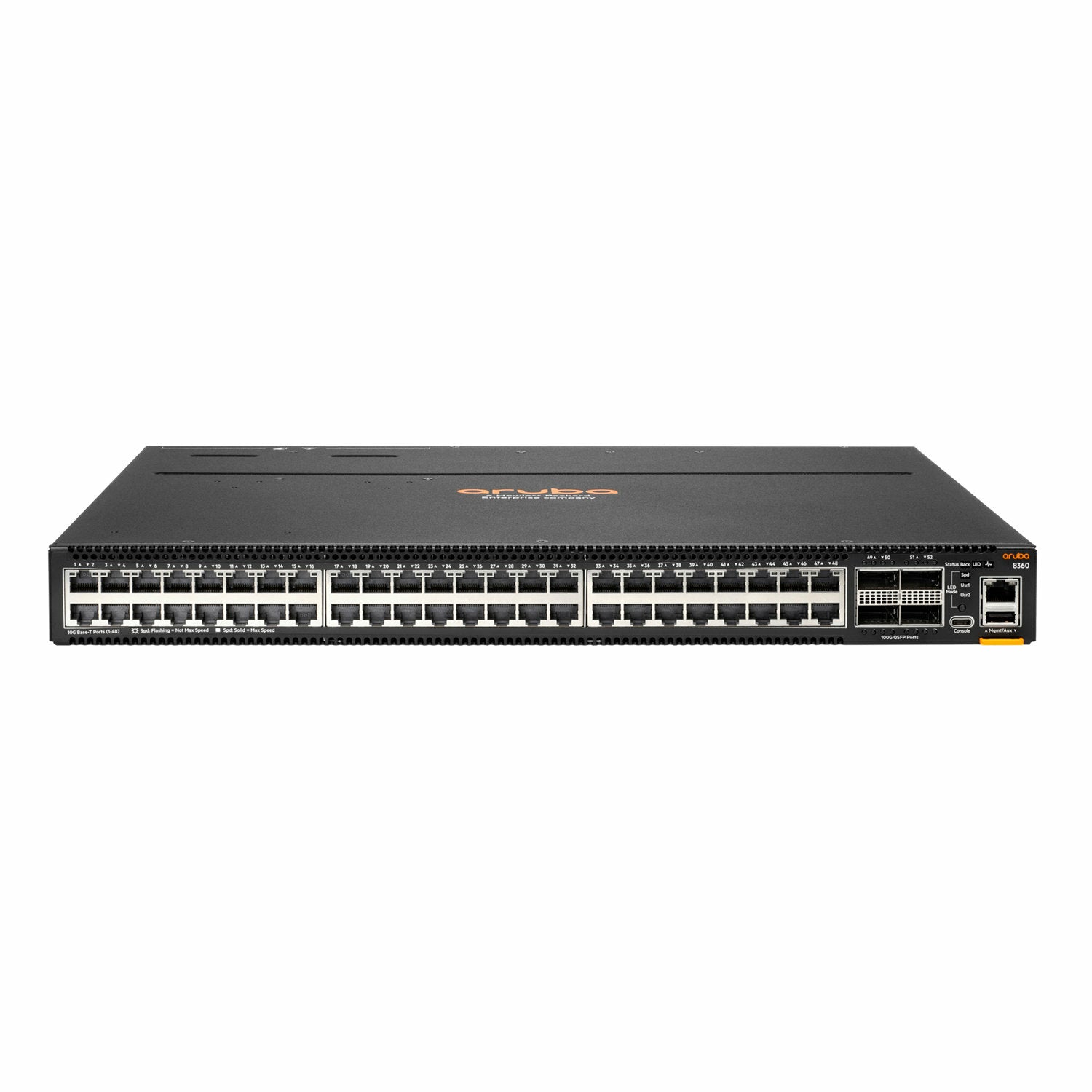

Photo is for illustration purposes only. Actual product may be different.
$32,329.03
$32,329.03
Sale Sold out
MSRP: $40,835.00
Shipping calculated at checkout.
  • - TAA compliant for use in government and regulated industries
  • - Built-in dual power and fan modules for redundancy
  • - Manufactured in Singapore with high production quality
  • - Part of the Aruba 8360 switch family known for modular scalability
  • - Designed for high-performance enterprise networking environments

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • - Meets strict TAA compliance, making it ideal for government procurement and secure enterprise installations
  • - Bundled configuration includes essential components like power and fan modules, reducing setup complexity and ensuring redundancy out of the box
  • - Part of the Aruba 8360 product line, offering trusted performance and scalability for growing network demands

Product Overview

The HP Aruba 8360-48XT4C Prt2Pwr3F2PS Bdl CL en is a high-performance enterprise switch bundle designed for flexibility, reliability, and scale. As part of the Aruba 8360 series, it includes dual power supplies and fan modules for enhanced uptime and enterprise-grade resiliency. With its TAA compliance and Singapore origin, it adheres to stringent manufacturing and regulatory standards. The bundle supports future-ready networking, suitable for core, aggregation, and edge deployments, offering a mix of performance and centralized manageability ideal for modern enterprise network architectures.

Specifications

Product Overview
Product Type Layer 3 Modular Switch Bundle
Series Aruba CX 8360 Series
Model Number JL706A#A1X
Included Modules 2x power supplies, 3x fan modules
Form Factor 1U Rack-mountable
Switching Capacity 2.16 Tbps
Forwarding Rate 1,190 Mpps
Power Supply Dual hot-swappable 800W AC Power Supplies
Redundant Fans Yes, hot-swappable
Management Type Cloud-managed, Web GUI, CLI

Wireless Features
Wireless Capabilities

Compliance & Origin
Country of Origin Singapore
TAA Compliant Yes
Certifications UL, CB, FCC Class A, VCCI, BSMI, CE, RCM
RoHS Compliance Yes
EMC Standards EN 55032, EN 55024, EN 61000-3-2

Advanced Security Features
Access Control 802.1X, MAC authentication, Web authentication
Network Segmentation Private VLAN, VLAN ACLs
Traffic Filtering Layer 2–4 ACLs
DHCP Protection DHCP snooping, Dynamic ARP Inspection
Secure Management SSH, HTTPS, SNMPv3
Role-Based Access Control Yes
DoS Protection Yes

Interfaces
Total Ports 52
10GBASE-T Ports 48
100GbE QSFP28 Ports 4
Console Ports 1x RJ-45 and 1x USB mini-B
USB Ports 1x USB Type-A for external storage
Management Ports 1x RJ-45 out-of-band management
Stacking Support Virtual Switching Extension (VSX) supported
Data Transfer Rate 10 Gbps per Base-T port, 100 Gbps per QSFP28 port

Physical & Environmental
Dimensions (W x D x H) 44.04 x 45.72 x 4.39 cm (17.34 x 18.0 x 1.73 in)
Weight 8.9 kg (19.6 lbs)
Operating Temperature 0°C to 45°C (32°F to 113°F)
Storage Temperature -40°C to 70°C (-40°F to 158°F)
Operating Humidity 5% to 95% non-condensing
Altitude Up to 4,570 m (15,000 ft)
Heat Dissipation 636 BTU/hr (typical)
Cooling Front-to-back airflow with field-replaceable fan modules

Cloud Management & Licensing
Cloud Management Platform Aruba Central
Switch OS Aruba AOS-CX
Configuration Interface Web GUI, REST API, CLI, Aruba NetEdit
Licensing Requirements Aruba Central subscription required for cloud management
Telemetry Real-time network analytics and event monitoring
Upgrade Management Centralized via Aruba Central or NetEdit
