| Type | Managed Layer 3 Network Switch |
| Model | Aruba CX 8360-48XT4C v2 |
| Series | Aruba CX 8360 v2 Switch Series |
| Form Factor | 1U Rackmount |
| Weight | 23.65 lbs. |
| Power Consumption (Operational) | 110 Watt |
| Max Power Consumption | 110 Watt |
| CPU | 1.8 GHz Quad-Core ARM Cortex-A72 |
| System Memory | 16 GB RAM |
| Packet Buffer Size | 32 MB |
| Switching Capacity | Up to 2.4 Tbps |
| Forwarding Rate | Up to 1,785 Mpps |

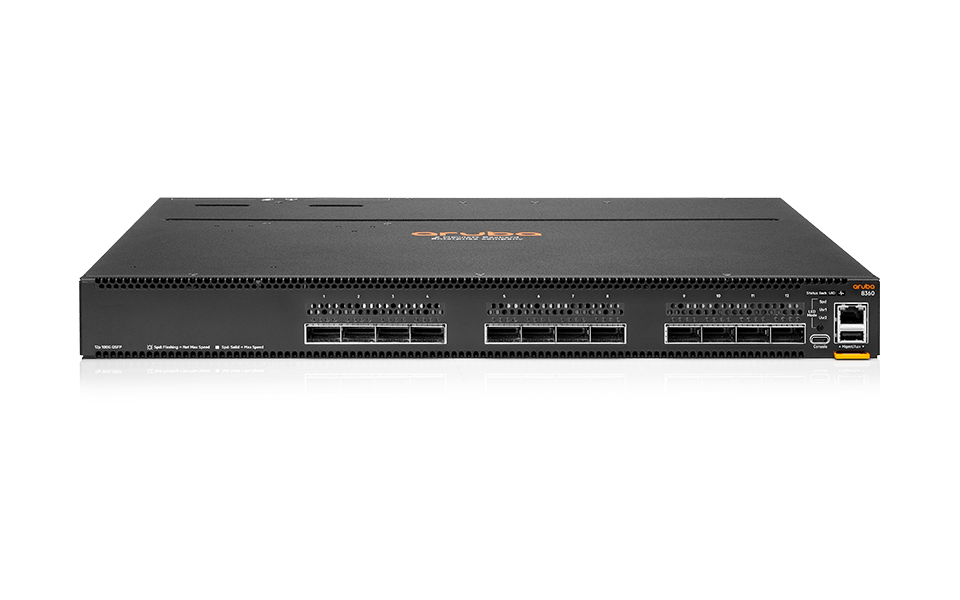

HP Aruba 8360-48XT4C V2 Switch, 52-Port, 100GbE, JL720C
Photo is for illustration purposes only. Actual product may be different.
Regular price
$31,933.19
Regular price
Sale price
$31,933.19
Unit price
per
MSRP: $40,335.00
Shipping calculated at checkout.
Couldn't load pickup availability
- Up to 52 ports with support for QSFP+/QSFP28, SFP/SFP+, and 10GBASE-T interfaces
- 100 Gbps maximum data transfer rate supporting high-throughput networking
- 1.8 GHz quad-core 64-bit CPU with 16 GB RAM and 32 GB of flash storage
- Advanced Layer 3 routing protocol for efficient network segmentation
- High availability features including VSX redundancy
- Max operational power consumption of only 110 Watts
Shipping & Returns
Shipping & Returns
All our products can be shipped anywhere in the Continental United States.
Key Benefits
Eye-Insights™ by Eye-In Technologies
AI-Powered Summaries from Online Customer Reviews
AI-Powered Summaries from Online Customer Reviews
Eye-Insights™ are generated by proprietary AI that analyzes real online customer reviews to highlight top pros and key product features. While we aim for accuracy, insights are provided “as-is” and individual results may vary.
- Offers high port density and 100 Gbps throughput, suitable for enterprise-level data centers
- Advanced routing capabilities and high availability design improve network resiliency and uptime
- Flexible interface options and TAA compliance support diverse deployment scenarios in regulated environments
Product Overview
The HP Aruba 8360-48XT4C V2 Switch is part of the Aruba CX 8360 v2 Switch Series, built for next-gen enterprise networks. With support for up to 52 ports across high-speed formats like QSFP+/QSFP28 and SFP/SFP+, it accommodates diverse connectivity demands. Powered by a 1.8 GHz quad-core CPU, 16 GB RAM, and a 32 MB packet buffer, it delivers robust performance and responsive switching. Features include Layer 3 Advanced routing capabilities and VSX redundancy to ensure high availability. Pairing 100 Gbps throughput with a compact 1.73-inch rack profile and TAA compliance, it's engineered for scalable and secure mission-critical environments.
Specifications
Product Overview
Wireless Features
| Wireless Capability |
Compliance & Origin
| Country of Origin | Singapore |
| TAA Compliant | Yes |
| Certifications | UL, CSA, CB, FCC, VCCI, BSMI, CE, RoHS |
Advanced Security Features
| Routing Protocols | Static, OSPF, BGP, IS-IS, PIM, VRF, ECMP |
| Security Services | Access Control Lists (ACLs), DHCP snooping, Dynamic ARP protection, IPv6 RA Guard |
| MACsec Encryption | Supported on select ports |
| Network Segmentation | Dynamic Segmentation with ClearPass Policy Manager |
| High Availability | VSX (Virtual Switching Extension) redundancy |
| Monitoring & Analytics | Aruba Network Analytics Engine (NAE) |
Interfaces
| Total Number of Ports | 52 |
| Port Configuration | 48 x 100M/1GbE/10GBASE-T and 4 x 40GbE/100GbE (QSFP+/QSFP28) |
| Interface Types | QSFP+/QSFP28, SFP/SFP+, RJ-45 (10GBASE-T) |
| Port Speeds Supported | 100M, 1G, 10G, 25G (via breakout), 40G, 100G |
| Data Transfer Rate | 100 Gbps (per port maximum) |
| Data Link Protocols | Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet, 100 Gigabit Ethernet |
| Breakout Support | 4x10G/25G breakout through QSFP+/QSFP28 |
| Uplink Ports | 4 x 40GbE/100GbE (QSFP+/QSFP28) |
| Management Ports | 1 x RJ-45 serial console port; 1 x RJ-45 management port; 1 x USB-C console; 1 x USB 3.0 Type-A |
Physical & Environmental
| Width | 17.4 Inch |
| Depth | 22 Inch |
| Height | 1.73 Inch |
| Cooling | Front-to-back airflow (field-reversible fans) |
| Operating Temperature | 0°C to 45°C (32°F to 113°F) |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) |
| Operating Humidity | 5% to 95% non-condensing |
Cloud Management & Licensing
| Management Interface | Aruba AOS-CX CLI, Web UI, Aruba Central, REST API, NetEdit |
| Cloud-Enabled Management | Yes, via Aruba Central (subscription required) |
| Licensing Model | Perpetual and subscription licensing options |
| Included Software Features | Aruba Network Analytics Engine, VSX, Dynamic Segmentation, NAE, ACLs |
