HP Aruba 8360-48XT4CV2 Switch Bundle, US English, R9G13A#ABA

VENDOR: HP Mfg Part#: R9G13A#ABA UPC#: 190017597751
1 5

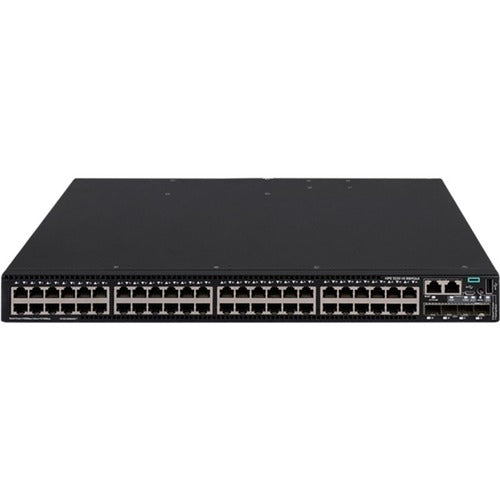

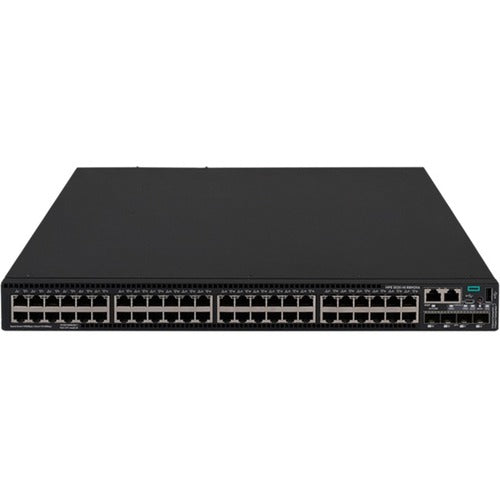

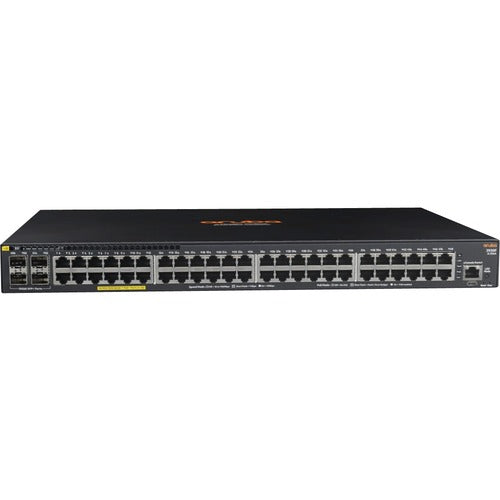

Photo is for illustration purposes only. Actual product may be different.
$28,350.51
$28,350.51
Sale Sold out
MSRP: $37,125.00
Shipping calculated at checkout.
  • - Layer 3 advanced routing with MACsec encryption for secure enterprise data traffic
  • - Up to 48x 100M/1G/10GBASE-T and 4x 40GbE/100GbE (QSFP+/QSFP28) connectivity
  • - 1.8 GHz 4-core 64-bit CPU with 16 GB RAM and 32 GB flash storage
  • - Operation power consumption is 110 Watts
  • - Includes limited lifetime warranty for long-term assurance
  • - TAA compliant and U.S. English localized

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • - Designed for high-performance enterprise and data center deployments with Layer 3 routing and advanced security features
  • - Offers flexible port configurations including high-speed 10G, 40G, and 100G interfaces for scalable architectures
  • - TAA compliance and lifetime warranty provide government-grade reliability and long-term investment protection

Product Overview

The HP Aruba CX 8360-48XT4CV2 is part of the Aruba CX 8360 v2 Switch Series, designed for core and aggregation network roles. It features a 1.8 GHz 4-core CPU, 16 GB RAM, and 32 GB storage, with Layer 3 advanced routing and MACsec-secured communication. Port configurations are flexible, including up to 48x 10G ports and 4x 40/100GbE options. With 110W power consumption and a limited lifetime warranty, it's optimized for efficiency and long-term use.

Specifications

Product Overview
Product Type Managed Layer 3 Network Switch
Series Aruba CX 8360 v2
Part Number R9G13A#ABA
Form Factor 1U Rack-mountable
Weight 23.65 lbs
Processor 1.8 GHz ARM Cortex-A72 4-core
System Memory (RAM) 16 GB
Internal Storage 32 GB eMMC
Power Consumption (Typical) 110 Watt
Power Requirements 100–240V AC, 50/60 Hz
Redundant Power Supply Support Yes, hot-swappable
Warranty Limited Lifetime Warranty

Wireless Features

Compliance & Origin
Country of Origin Singapore
TAA Compliant Yes
Certifications UL, CE, FCC Class A, VCCI, ICES-003
RoHS Compliance Yes
WEEE Compliance Yes
REACH Compliance Yes

Advanced Security Features
MACsec Support Supported on selected ports
Access Control Lists (ACLs) Yes, Layer 2 and Layer 3 ACLs
802.1X Authentication Yes, with RADIUS
Dynamic Segmentation Supported
DHCP Snooping Yes
IP Source Guard Yes
ARP Protection Yes
DoS Protection Yes

Interfaces
Total Ports 48 x 10GBASE-T, 4 x QSFP+/QSFP28
Port Type 48 x 100M/1G/10GBASE-T, 4 x 40G/100G QSFP+/QSFP28
Interface Options QSFP+/QSFP28 ports support 4x10G/25G breakout cables
Data Transfer Speed Up to 100 Gbps per QSFP28 port
Switching Capacity 2.8 Tbps
Forwarding Rate 1,309 Mpps
MAC Address Table Size 195,000 entries
Buffer Size 32 MB

Physical & Environmental
Dimensions (W x D x H) 17.4 x 20.0 x 1.75 in
Rack Units 1U
Cooling Front-to-back airflow
Fan Type Hot-swappable redundant fans
Operating Temperature 0°C to 45°C (32°F to 113°F)
Storage Temperature -40°C to 70°C (-40°F to 158°F)
Operating Humidity 5% – 95% non-condensing
Altitude Up to 3,050 meters (10,000 feet)

Cloud Management & Licensing
Management Interface Aruba AOS-CX CLI, Web GUI, Aruba NetEdit, REST API
Cloud Support Aruba Central Compatible
Licensing Advanced features may require subscription licenses
Zero Touch Provisioning (ZTP) Yes
