| Product Type | Layer 3 Modular Switch |
| Form Factor | 1U Rack-mountable |
| Processor | 1.8 GHz quad-core CPU |
| RAM | 16 GB |
| Flash Storage | 32 GB |
| Power Consumption (Max) | 725 Watt |
| Power Requirements | 7.1A at 100-127 VAC / 3.4A at 200-240 VAC |
| Warranty | Limited Lifetime Warranty |
| Product Name | HP Aruba 8360-48Y6C v2 Switch |
| Part Number | JL704C#ABA |
HP Aruba 8360-48Y6C v2 Switch, 48-Port, 100GbE QSFP28, MACsec, JL704C#ABA

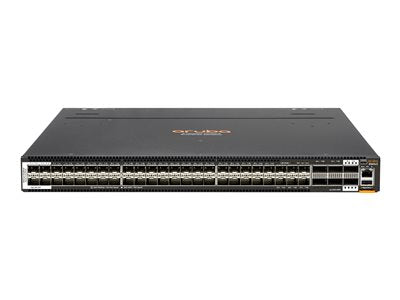

Photo is for illustration purposes only. Actual product may be different.
Regular price
$36,928.81
Regular price
Sale price
$36,928.81
Unit price
per
MSRP: $46,645.00
Shipping calculated at checkout.
Couldn't load pickup availability
- 1. 44 ports supporting 1GbE/10GbE/25GbE via SFP/SFP+/SFP28 interfaces
- 2. 6 total ports of 40GbE/100GbE via QSFP+/QSFP28, 2 with MACsec encryption
- 3. 1.8 GHz 4-core 64-bit CPU with 16 GB RAM and 32 GB flash storage
- 4. Advanced Layer 3 routing capabilities for high-performance traffic handling
- 5. Power efficient with 725W max and 230W idle consumption
- 6. Limited Lifetime Warranty and TAA compliance for regulated deployments
Shipping & Returns
Shipping & Returns
All our products can be shipped anywhere in the Continental United States.
Key Benefits
Eye-Insights™ by Eye-In Technologies
AI-Powered Summaries from Online Customer Reviews
AI-Powered Summaries from Online Customer Reviews
Eye-Insights™ are generated by proprietary AI that analyzes real online customer reviews to highlight top pros and key product features. While we aim for accuracy, insights are provided “as-is” and individual results may vary.
- Scales seamlessly in modern data centers with rich high-speed port density and flexibility across Ethernet standards
- Enhances data security with MACsec encryption on 25GbE and 100GbE ports
- Reduces operational overhead through advanced Layer 3 features and Aruba's CX OS for automation and visibility
Product Overview
The HP Aruba 8360-48Y6C v2 Switch is an enterprise-class, modular Layer 3 switch tailored for high-density networking environments such as data centers and large-scale campus networks. It features a powerful 1.8 GHz quad-core CPU, 16 GB RAM, and 32 GB flash storage. Designed for performance and scalability, the switch offers 44 multi-speed SFP ports, 4 MACsec-enabled SFP ports, and 6 high-speed QSFP+/QSFP28 ports, including 2 with MACsec for secure 100GbE connectivity.
With a power-efficient design running at a maximum 725W, it complies with TAA standards and includes a Limited Lifetime Warranty. Its advanced Layer 3 routing and Aruba CX OS provide smart traffic handling, automation, and enhanced visibility—making it ideal for organizations seeking network modernization and operational simplicity. U.S. localization with English interface ensures straightforward deployment in domestic environments.
Specifications
Product Overview
Wireless Features
| Wireless Capability |
Compliance & Origin
| TAA Compliant | Yes |
| Country of Origin | Singapore |
| Certifications | UL, CSA, VCCI, FCC Class A, ICES Class A, CE, BSMI, CCC, RCM |
| Safety Compliance | RoHS, REACH, WEEE |
Advanced Security Features
| MACsec Encryption | Yes, on 6 ports |
| Access Control Lists (ACLs) | Supported |
| 802.1X Port Security | Supported |
| DHCP Snooping | Supported |
| Dynamic ARP Inspection | Supported |
| IP Source Guard | Supported |
| Network Access Control | Aruba ClearPass compatible |
Interfaces
| Total Ports | 54 |
| SFP/SFP+/SFP28 Ports | 44 x 1G/10G/25G |
| SFP+/SFP28 with MACsec | 4 x 10G/25G |
| QSFP+/QSFP28 Ports | 4 x 40G/100G |
| QSFP+/QSFP28 Ports with MACsec | 2 x 40G/100G |
| MACsec Support | Supported on 6 ports (4 SFP+/SFP28 & 2 QSFP+/QSFP28) |
| Management Ports | 1 x RJ-45 console, 1 x USB (Type A), 1 x RJ-45 out-of-band management |
| Data Transfer Rates | Up to 100 Gbps per port (QSFP28) |
| Switching Capacity | Up to 3.6 Tbps |
| Throughput | Up to 2,678 Mpps |
Physical & Environmental
| Form Factor | 1U |
| Height | 1.73 Inches (44 mm) |
| Width | 17.4 Inches (442 mm) |
| Depth | 22 Inches (559 mm) |
| Weight | 23.65 lbs (10.73 kg) |
| Operating Temperature | 0°C to 45°C (32°F to 113°F) |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) |
| Operating Humidity | 5% to 95% (non-condensing) |
| Noise Level | 52 dB (typical), varies with fan speed |
| Cooling | Front-to-back airflow with field-replaceable fan trays |
Cloud Management & Licensing
| Operating System | ArubaOS-CX |
| Management Interface | Web GUI, CLI, REST API, Aruba NetEdit, Aruba Central (cloud-based) |
| Cloud Management | Supported via Aruba Central |
| Licensing | No subscription required for basic features; optional licenses for advanced analytics and security |
