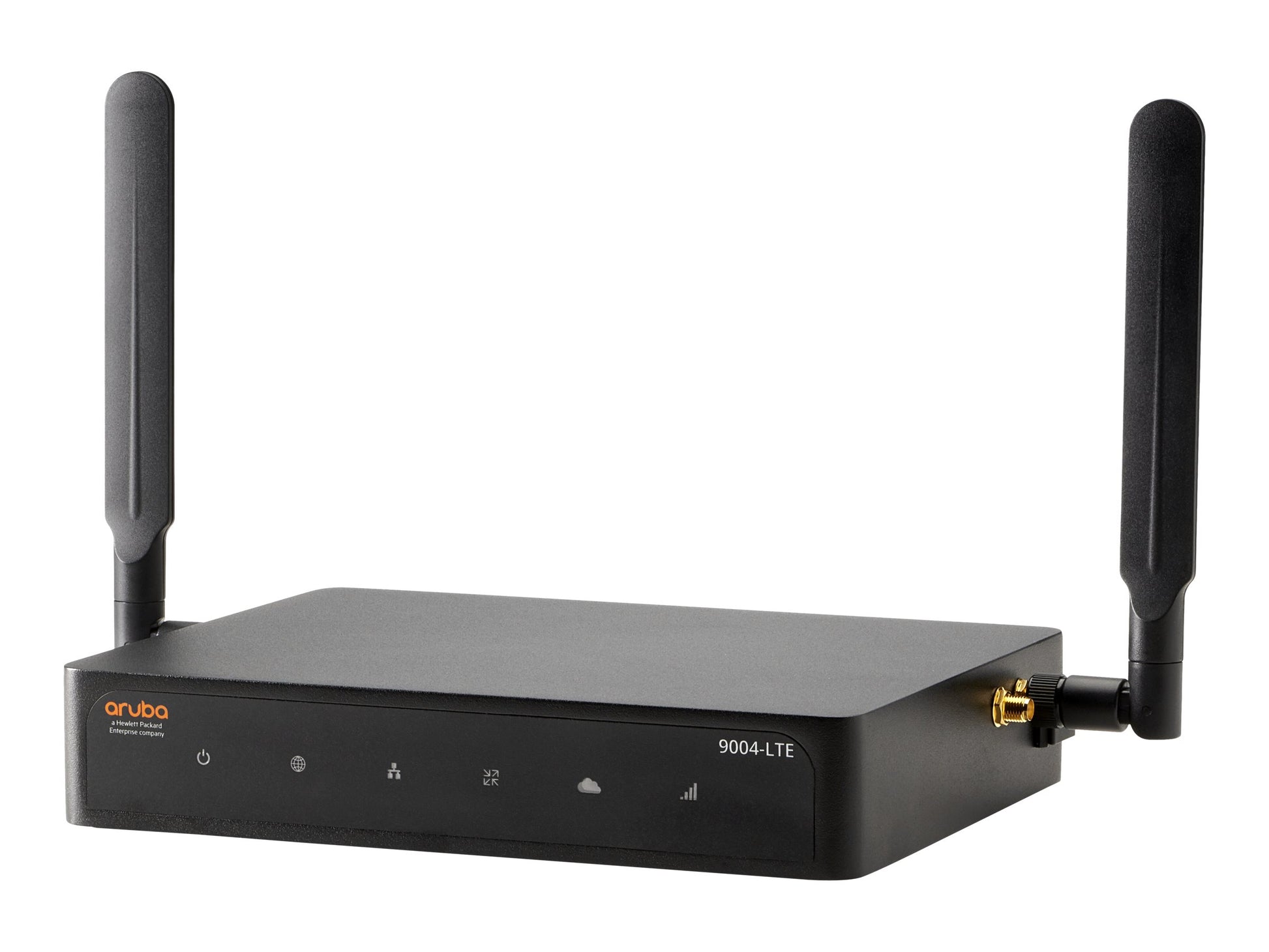

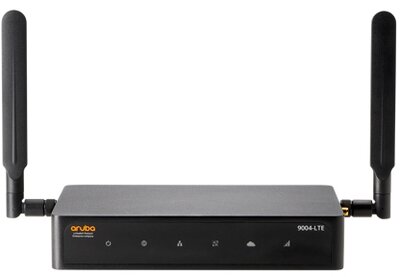

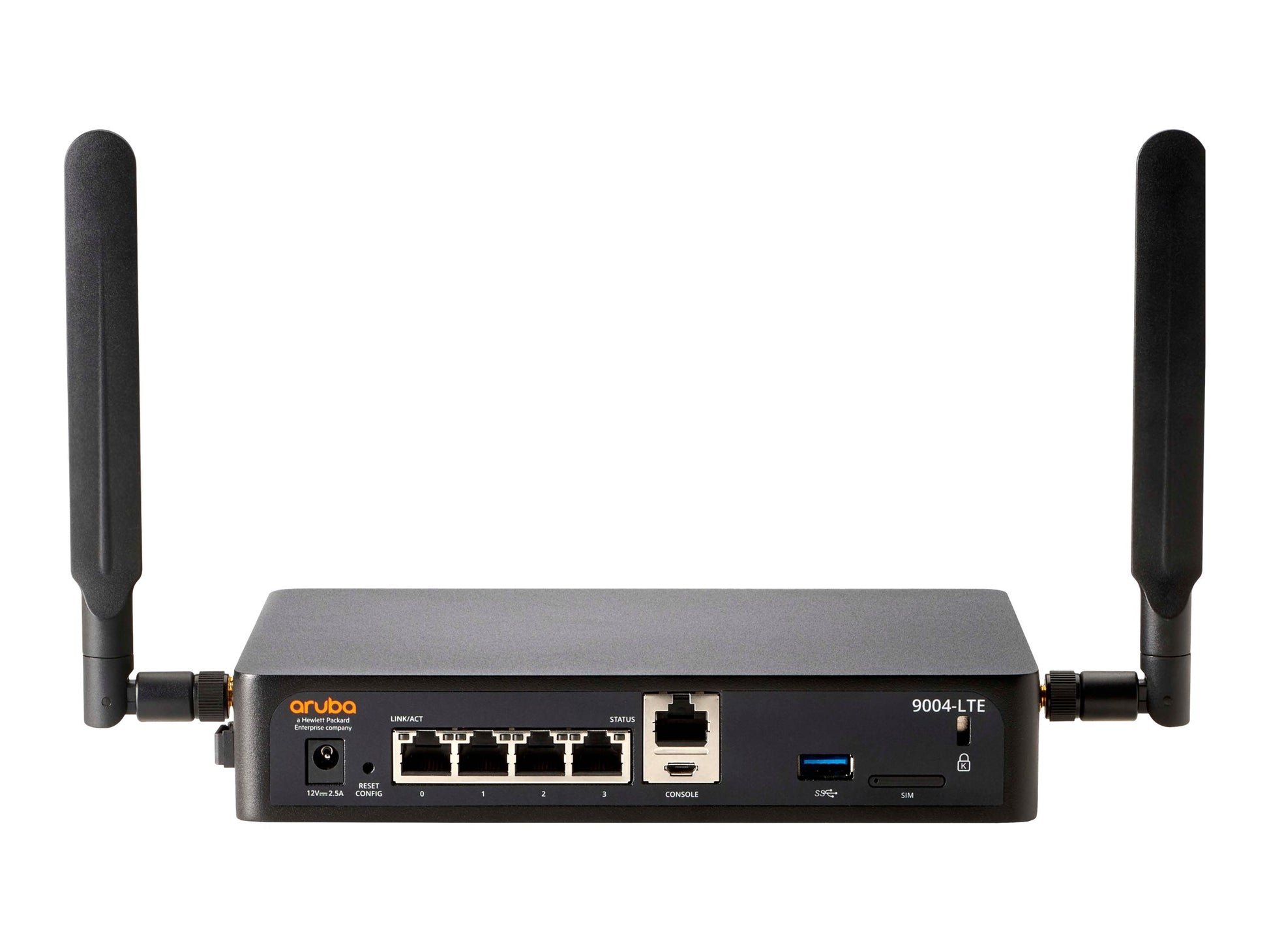

HP Aruba 9004 (JP) TAA LTE Branch Gateway – R3V94A

VENDOR: HP Mfg Part#: R3V94A UPC#: 190017407159
1 3
Photo is for illustration purposes only. Actual product may be different.
$1,878.70
$1,878.70
Sale Sold out
MSRP: $2,373.00
Shipping calculated at checkout.
  • Cloud-managed LTE gateway with support for ZigBee, NFC, and Bluetooth 5.0
  • 4 Gigabit Ethernet ports with wireless and mobile broadband connectivity
  • Firewall throughput of 2 Gbps and bridged throughput of 4 Gbps
  • Supports up to 2048 devices and 32,426 active firewall sessions
  • Fanless external design with low 25W power consumption
  • TAA-compliant and includes 2 dipole antennas for extended connectivity

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Delivers robust performance with up to 4 Gbps of bridged throughput and high session/device capacity
  • Assures regulatory compliance and government deployment readiness with full TAA and FIPS certifications
  • Combines versatile wireless protocols and SD-WAN support in a compact, low-power, and fanless design

Product Overview

The HP Aruba 9004 (JP) TAA LTE Branch Gateway is an enterprise-grade, compact networking solution built for branch environments. With 4 Gigabit Ethernet ports and support for LTE, ZigBee, NFC, and Bluetooth 5.0, it enables seamless wired and wireless integration. Designed for cloud management, it handles up to 2048 devices and 32,426 firewall sessions efficiently. A fanless design ensures quiet operation, while DPI, firewall features, QoS, and SD-WAN support enhance traffic control and security. Compliance with TAA standards and an included pair of dipole antennas make it flexible for government and enterprise use.

Specifications

Product Overview
Product Description HPE Aruba 9004-LTE (JP) FIPS/TAA - gateway - ZigBee, NFC, Bluetooth, LTE - cloud-managed - TAA Compliant
Device Type Gateway
Form Factor External
Weight 2.52 lbs
Power Requirements AC 120/230 V (50/60 Hz)
Power Consumption (Operational) 25 Watt
Power Device External power adapter
Included Accessories 2 x dipole antennas
IoT Compatible Yes
Cloud-Managed Yes
Pricing Type BTO
Manufacturer Warranty 1-year warranty

Wireless Features
Wireless Protocols ZigBee, NFC, Bluetooth 5.0, LTE
Bluetooth Version 5.0
Cellular Protocol LTE
Mobile Broadband Access Yes
Wireless Antennas 2 x dipole antennas included

Compliance & Origin
Country of Origin UNITED STATES
TAA Compliant Yes
Compliant Standards EN 61000-3-2, NOM, EN 61000-3-3, EN55024, ICES-003 Class B, CCC, FCC Part 15, UL 60950-1, ANATEL, FIPS, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, VCCI Class B, NCC, EN 301 489-1, CAN/CSA C22.2 No. 60950-1 Second Edition, EN 55032 Class B, CNS 13438 Class B, KN32 Class B, EN 60950:2005, CISPR 32 Class B, EN 301 489-17, RED 2014/53/EU

Advanced Security Features
Firewall Protection Yes
Deep Packet Inspection (DPI) Yes
Quality of Service (QoS) Yes

Interfaces
Port Count 4
Interface Types 4 x Ethernet 1000 - RJ-45, 1 x USB 3.0, 1 x console - RJ-45/micro-USB
Data Link Protocols Gigabit Ethernet, ZigBee, NFC, Bluetooth 5.0, LTE
Connectivity Technology Wireless, wired
Performance Firewall throughput: 2 Gbps ¦ Bridged throughput: 4 Gbps
Status Indicators Status, WAN, LAN
Firewall Session Capacity 32,426 active sessions
Maximum Supported Devices 2048

Physical & Environmental
Width 7.8 in
Depth 6 in
Height 1.5 in
Min Operating Temperature 32 °F
Max Operating Temperature 104 °F
Humidity Range (Operating) 10 - 90% (non-condensing)
Cooling Fanless

Cloud Management & Licensing
Cloud Management Supported
SD-WAN Support Yes
Management Interface Cloud-managed via Aruba Central (license required)
