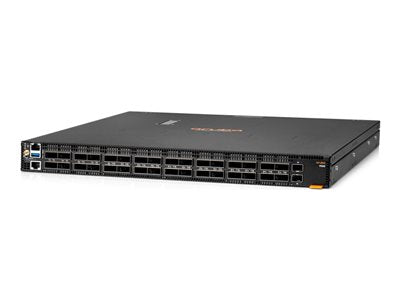

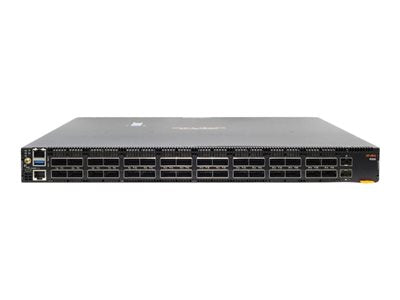

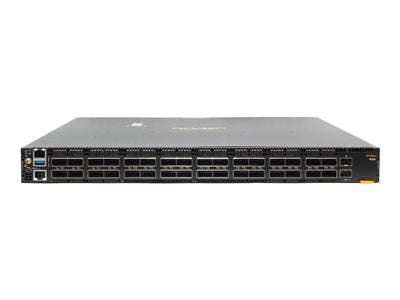

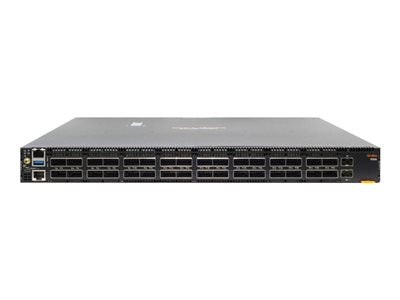

HP Aruba 9300-32D 32-Port 400G QSFP-DD Managed Switch (S1D08A#ACD)

VENDOR: HP Mfg Part#: S1D08A#ACD
1 4
Photo is for illustration purposes only. Actual product may be different.
$91,634.18
$91,634.18
Sale Sold out
MSRP: $119,995.00
Shipping calculated at checkout.
  • 32 x 100/200/400G QSFP-DD ports + 2 x 1/10G SFP+ uplinks
  • Switching capacity of 25.6 Tbps and throughput of 5 Bpps
  • 32GB SDRAM with 128GB Flash memory
  • Routing support including OSPF, BGP-4, RIP, PBR, and ECMP
  • Complies with IEEE 802.1D/Q/3ad/w/s; supports sFlow, VXLAN, VRRP, BFD
  • Redundant hot-swappable power supplies and power-to-port airflow

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Future-proof your network with 400G support across 32 QSFP-DD ports, suitable for scaling data centers.
  • Ensure maximum uptime with power redundancy (N+1), six fan trays, and dual hot-swappable power supplies.
  • Streamline management and visibility via SNMP v3 and sFlow along with robust Layer 3 routing protocols.

Product Overview

The HP Aruba 9300-32D (S1D08A#ACD) is a rack-mountable Layer 3 managed switch designed for high-density data centers. With 32 QSFP-DD 100/200/400G ports, 25.6 Tbps switching capacity, and 5 Bpps throughput, it is ideal for heavy virtualization and core aggregation uses. The unit enables efficient management with SNMP v2c/v3 and features redundant, hot-swappable power supplies. Comprehensive protocol support includes OSPF, BGP, VXLAN, and PBR. Thermal control is ensured with power-to-port airflow and six integrated fan trays. Additional assets like 32GB RAM, IPv4/IPv6 multicast support, and a limited lifetime warranty make this a reliable and scalable solution for high-demand networks.

Specifications

Product Overview
Type Layer 3 Managed Switch
Form Factor 1U Rack-mountable
Processor Intel Xeon D-1537 1.7 GHz
RAM 32 GB SDRAM
Flash Memory 128 GB
Weight 26.12 lbs
Power Requirements AC 200-225 V (50/60 Hz)
Power Redundancy Yes (N+1)
Power Supply Type Internal hot-plug, 2 installed (max 2)
Airflow Direction Power-to-port
Included Accessories Rack kit (2-post), 6 fan trays

Wireless Features

Compliance & Origin
Country of Origin Taiwan
TAA Compliant Yes
Certifications & Standards FCC Part 15 Class A, ICES-003, EN 55032, EN 55024, CISPR 32 Class A, VCCI Class A, IEC/EN 62368-1, UL 62368-1, EN 61000 series, ISTA 3C, CNS 13483

Advanced Security Features
Routing Protocols OSPF, OSPFv3, BGP-4, BGP, RIP-2, RIPng, ECMP, policy-based routing (PBR), static IPv4/IPv6 routing
Security Features VRRP, UDLD, Rapid PVST+, BFD, IGMP/MLD Snooping, IPv4/IPv6 Access Control Lists

Interfaces
Total Ports 34
QSFP-DD Ports 32 x 100/200/400G QSFP-DD
SFP+ Ports 2 x 1/10G SFP+
Console Ports 1 x RJ-45, 1 x micro-USB
Management Port 1 x Ethernet management port
Switching Capacity 25.6 Tbps
Throughput 5 Bpps
Packet Buffer Size 132 MB

Physical & Environmental
Width 17.3 in
Depth 23.2 in
Height 1.7 in
Min Operating Temperature 32 °F
Max Operating Temperature 113 °F
Operating Humidity 15 - 95% (non-condensing)
Min Storage Temperature -40 °F
Max Storage Temperature 158 °F
Storage Humidity 15 - 90% (non-condensing)

Cloud Management & Licensing
Remote Management Protocols SNMP v2c/v3
Management Features CLI, Web GUI, Aruba NetEdit, Aruba Central (cloud)

Switching & Features
MAC Address Table Size 81920
IPv4 Host Table Capacity 163840
IPv6 Host Table Capacity 81920
IPv4 Direct Routes 65536
IPv6 Direct Routes 32768
IGMP Groups 8192
MLD Groups 8192
Multicast IPv4 Groups 8192
Multicast IPv6 Groups 4096
Features VXLAN, sFlow, DCBX, PFC, Cisco IPSLA, ETS, VSX, ERPS
