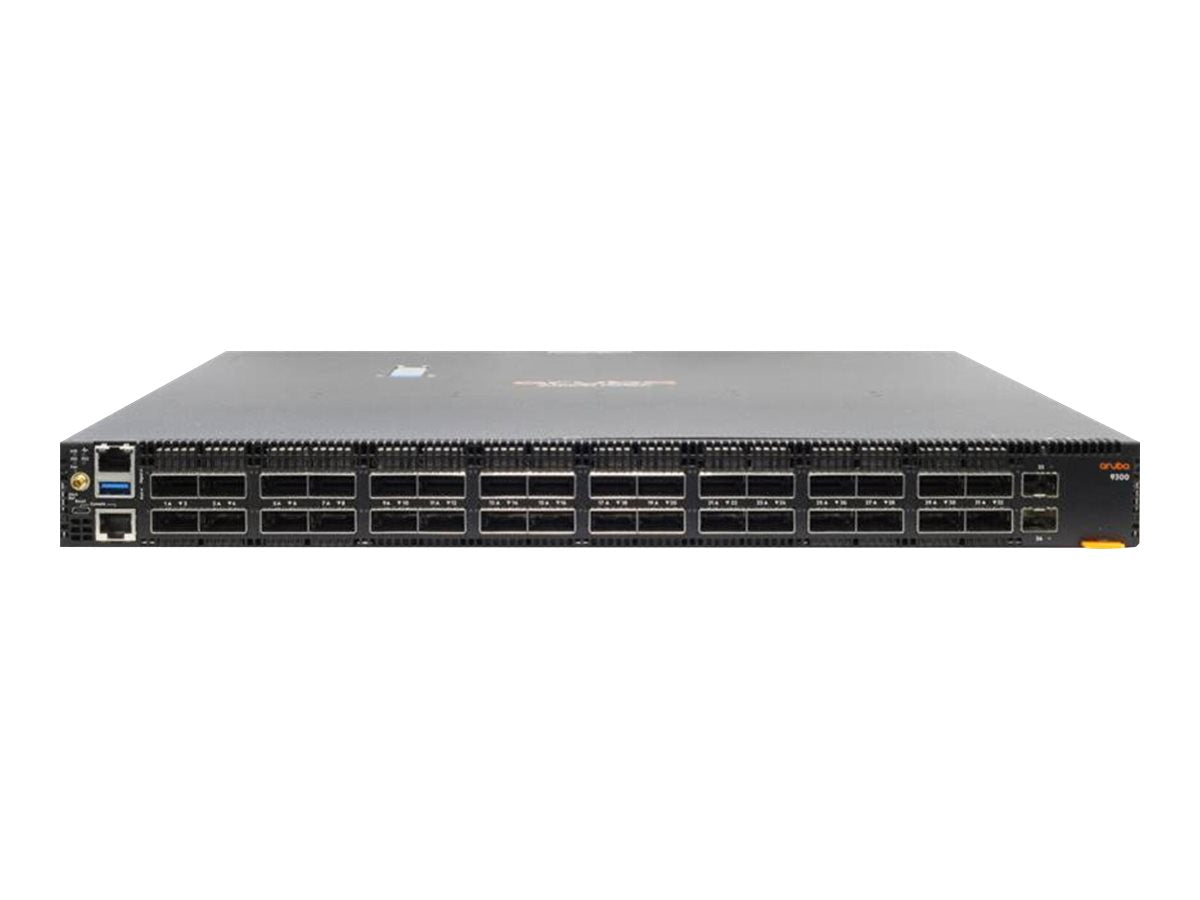

HP Aruba 9300-32D 32-Port 400GBps Network Switch Bundle

VENDOR: HP Mfg Part#: S1D08A#ACQ
1 4
Photo is for illustration purposes only. Actual product may be different.
$91,634.18
$91,634.18
Sale Sold out
MSRP: $119,995.00
Shipping calculated at checkout.
  • Supports 32 QSFP-DD high-speed ports
  • Delivers up to 400GBps data throughput
  • Equipped with 32GB RAM and 128MB Flash memory
  • TAA compliant for government procurement
  • Manufactured in Taiwan

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Supports high-throughput scenarios with 400GBps across 32 ports, ideal for data-intensive networks.
  • TAA compliance ensures suitability for government and regulated industry deployments.
  • Built-in 32GB RAM enhances performance for advanced routing and configuration tasks.

Product Overview

The HP Aruba 9300-32D Power2Port Switch Bundle (S1D08A#ACQ) is a high-performance solution built to meet the rigorous needs of modern networking infrastructures. Designed for large-scale data centers and demanding enterprise applications, it delivers impressive connection rates up to 400GBps via 32 QSFP-DD ports, supporting high-speed data aggregation and optimized traffic flow across core network segments. With its substantial 32GB of RAM and 128MB of flash memory, the switch is well-equipped to handle large routing tables and advanced configurations while ensuring consistently low latency and fast failover protection.

This model includes full TAA compliance, making it an ideal candidate for government and federally funded installations that require strict procurement standards. Manufactured in Taiwan, it also meets regional compliance benchmarks. The device falls within the Aruba 9300 family and forms part of HP’s enterprise-grade switching solutions, offering scalable performance for long-term network growth. The combination of high port density and QSFP-DD technology supports simplified wiring architecture and more efficient rack usage, further maximizing data center ROI.

Whether deployed in hyperscale environments or enterprise backbones, the Aruba 9300-32D ensures resilient operation, ease of integration, and consistent throughput under heavy demand. It is purpose-built to power next-generation applications with speed, scale, and security at the core.

Specifications

Product Overview
Product Type Managed Network Switch
Model Aruba 9300-32D Power2Port Bundle
Form Factor Rack-mountable
Rack Units 1U
Power Supply Type Hot-swappable redundant power supplies
Power Consumption Up to 650 Watts
Flash Memory 128 MB
System Memory (RAM) 32 GB
Switching Capacity 25.6 Tbps
Forwarding Rate 11.43 Bpps
Packet Buffer 64 MB

Wireless Features
Wireless Support

Compliance & Origin
TAA Compliant Yes
Country of Origin Taiwan
Certifications UL, CE, FCC, VCCI, ICES, CB, RoHS
Safety Standards UL 62368-1, EN 62368-1
EMI Standards FCC Part 15 Class A, EN 55032 Class A

Advanced Security Features
Access Control 802.1X, MAC authentication, VLAN assignment
Secure Management HTTPS, SSH, SNMPv3
DHCP Protection Dynamic ARP Inspection, DHCP Snooping
Network Protection Port Security, Control Plane Policing, DoS protection
Traffic Filtering ACLs for IPv4/IPv6
Encryption Secure Boot, TPM-based encryption key storage

Interfaces
Port Count 32
Port Type QSFP-DD
Maximum Data Rate per Port 400 Gbps
Total Number of Ports 32 x 400GbE
Expansion Slot Types QSFP-DD
Aggregate Throughput Up to 12.8 Tbps full duplex
Physical Layer Interface Ethernet
Backplane Bandwidth 25.6 Tbps

Physical & Environmental
Dimensions (W x D x H) 43.92 x 48.01 x 4.39 cm
Weight Approximately 8.8 kg (19.4 lbs)
Operating Temperature 0°C to 45°C (32°F to 113°F)
Storage Temperature -40°C to 70°C (-40°F to 158°F)
Operating Humidity 5% to 95% non-condensing
Acoustic Noise Level 68.9 dB (maximum)
Cooling Front-to-back airflow with field-replaceable fans

Cloud Management & Licensing
Cloud Management Platform Aruba Central
Management Interface Web UI, CLI, REST API, SNMP v2/v3
Switch Software Aruba AOS-CX
Licensing Requirements Aruba Network Operating System License (optional)
Included Cloud Features Zero-Touch Provisioning, Network Analytics, AI-driven Operations
