| Product Type | Data Center Switch |
| Model | Aruba 9300-32D Power2Port Switch Bundle |
| Form Factor | 1U Rack-mountable |
| Processor | Multi-core ARM CPU |
| RAM | 32 GB |
| Flash Memory | 128 MB |
| Power Supply | Redundant hot-swappable PSUs supported |
| Input Voltage | 100–240 VAC |
| Power Frequency | 50/60 Hz |
| Power Consumption (Typical) | 360W (with optics) |
| Power Consumption (Max) | 600W |
| Switching Capacity | 25.6 Tbps |
| Forwarding Rate | 11.4 Bpps |
| Latency | <1 µs |
HP Aruba 9300-32D Power2Port Switch Bundle, 32-Port, 400Gbps

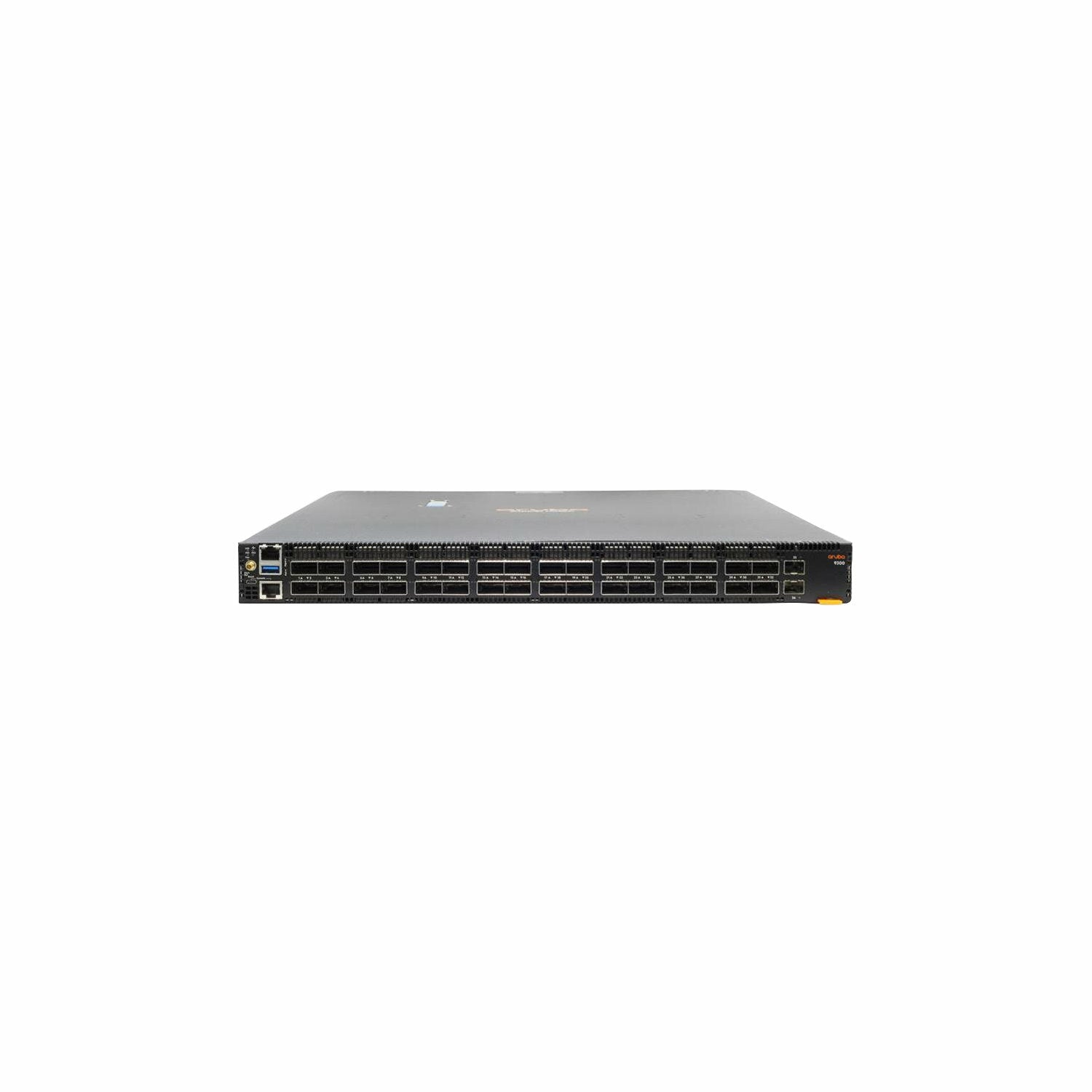

Photo is for illustration purposes only. Actual product may be different.
Regular price
$91,634.18
Regular price
Sale price
$91,634.18
Unit price
per
MSRP: $119,995.00
Shipping calculated at checkout.
Couldn't load pickup availability
- 32 QSFP-DD ports supporting up to 400Gbps total throughput
- 32GB RAM for high-performance data handling
- 128MB flash memory for system configurations and backups
- Manufactured in Taiwan
- TAA compliant for use in government-regulated environments
Shipping & Returns
Shipping & Returns
All our products can be shipped anywhere in the Continental United States.
Key Benefits
Eye-Insights™ by Eye-In Technologies
AI-Powered Summaries from Online Customer Reviews
AI-Powered Summaries from Online Customer Reviews
Eye-Insights™ are generated by proprietary AI that analyzes real online customer reviews to highlight top pros and key product features. While we aim for accuracy, insights are provided “as-is” and individual results may vary.
- High port density with QSFP-DD for exceptional data throughput and scalability
- Integrated 32GB RAM and 128MB flash provide fast, reliable switching and configuration resilience
- TAA compliance ensures suitability for government and enterprise-grade deployments
Product Overview
The HP Aruba 9300-32D Power2Port Switch Bundle (S1D08A#ACF) is a high-performance networking solution designed for ultra-fast data transmission in demanding enterprise and data center applications. With 32 QSFP-DD ports supporting speeds up to 400Gbps, and 32GB RAM plus 128MB flash memory, this device is built for scalability and resilience. TAA compliance and Taiwanese origin make it suitable for regulated industries and government procurements.
Specifications
Product Overview
Physical & Environmental
| Dimensions (W x D x H) | 43.9 x 60.8 x 4.4 cm (17.28 x 23.94 x 1.73 in) |
| Weight | 10.8 kg (23.8 lbs) |
| Operating Temperature | 0°C to 45°C (32°F to 113°F) |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) |
| Operating Humidity | 5% to 95% non-condensing |
| Acoustic Noise | 59.3 dB (Typical) |
| Airflow Direction | Front-to-back or back-to-front (depending on fans/PSUs) |
Cloud Management & Licensing
| Cloud Management | Aruba Central (optional) |
| Management Interface | CLI, REST API, SNMP, Web UI |
| Operating System | Aruba AOS-CX |
| Virtual Switching Framework (VSF) | Supported |
| Software Licensing Model | Perpetual or Subscription (based on features) |
Interfaces
| Total Ports | 32 |
| Port Type | QSFP-DD |
| Port Speed | 400Gbps per port |
| Supported Data Rates | 10/25/40/50/100/200/400Gbps |
| Management Ports | 1 x RJ-45 Management Port, 1 x USB Type-A, 1 x Micro USB Console |
| Time Synchronization | 1 x 1PPS input, 1 x 10MHz input |
| Out-of-Band Management | Yes |
Compliance & Origin
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Certifications | FCC Class A, ICES Class A, VCCI Class A, UL, CE, RoHS |
Advanced Security Features
| Access Control | 802.1X, MAC authentication, Web authentication |
| Storm Control | Supported |
| DHCP Snooping | Yes |
| ARP Protection | Yes |
| IP Source Guard | Yes |
| Network Access Control | RADIUS, TACACS+ |
| Secure Management | SSH, HTTPS, SNMPv3 |
