| Product Type | Data Center Switch |
| Model | Aruba 9300-32D |
| Form Factor | 1U Rack-mountable |
| RAM | 32 GB |
| Flash Memory | 128 MB |
| Throughput | 400 Gbps |
| Switching Capacity | 25.6 Tbps |
| Power Supply Type | Dual hot-swappable power supplies |
| Redundant Fans | Yes, hot-swappable |
| AC Power Input | 100–240 VAC, 50/60 Hz |

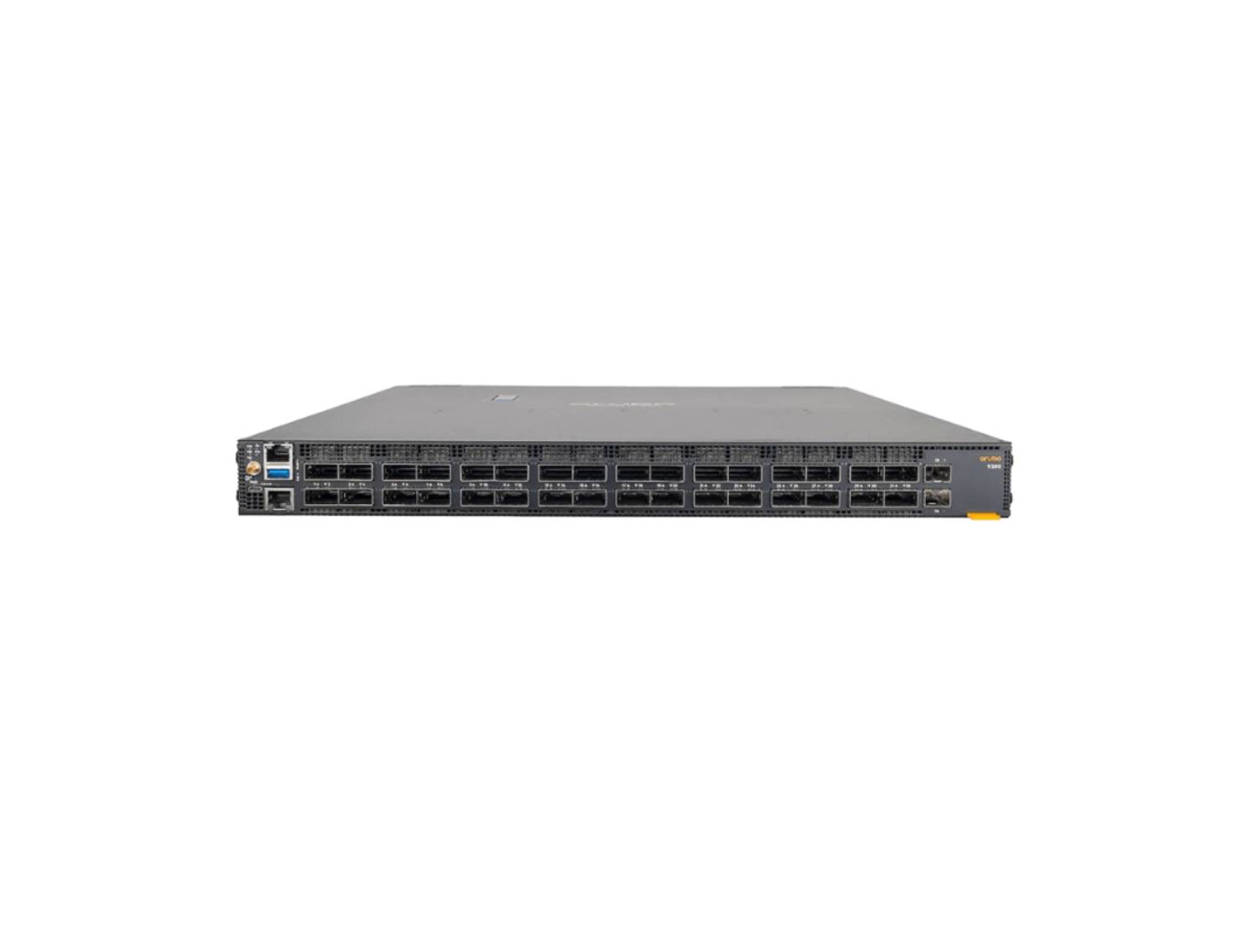

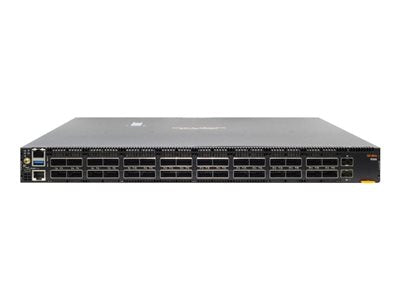

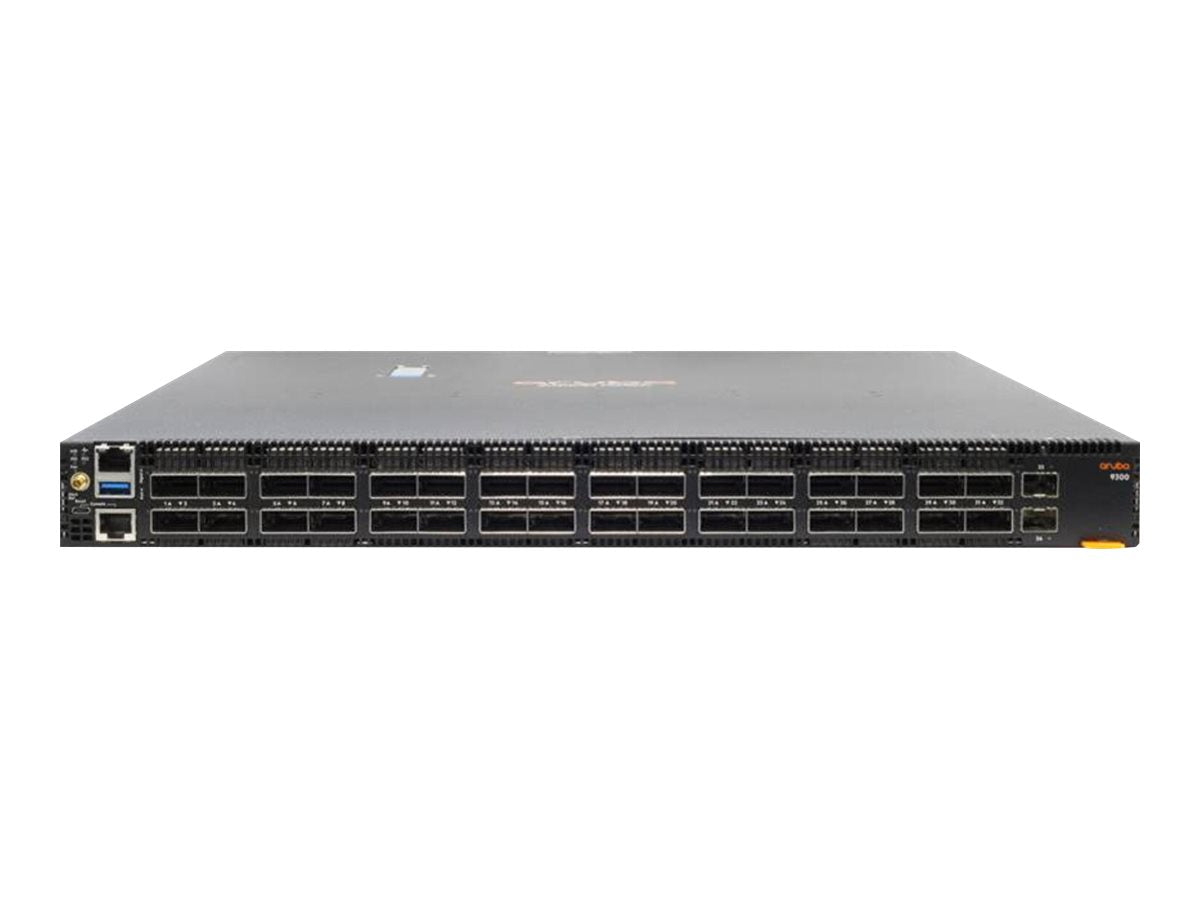

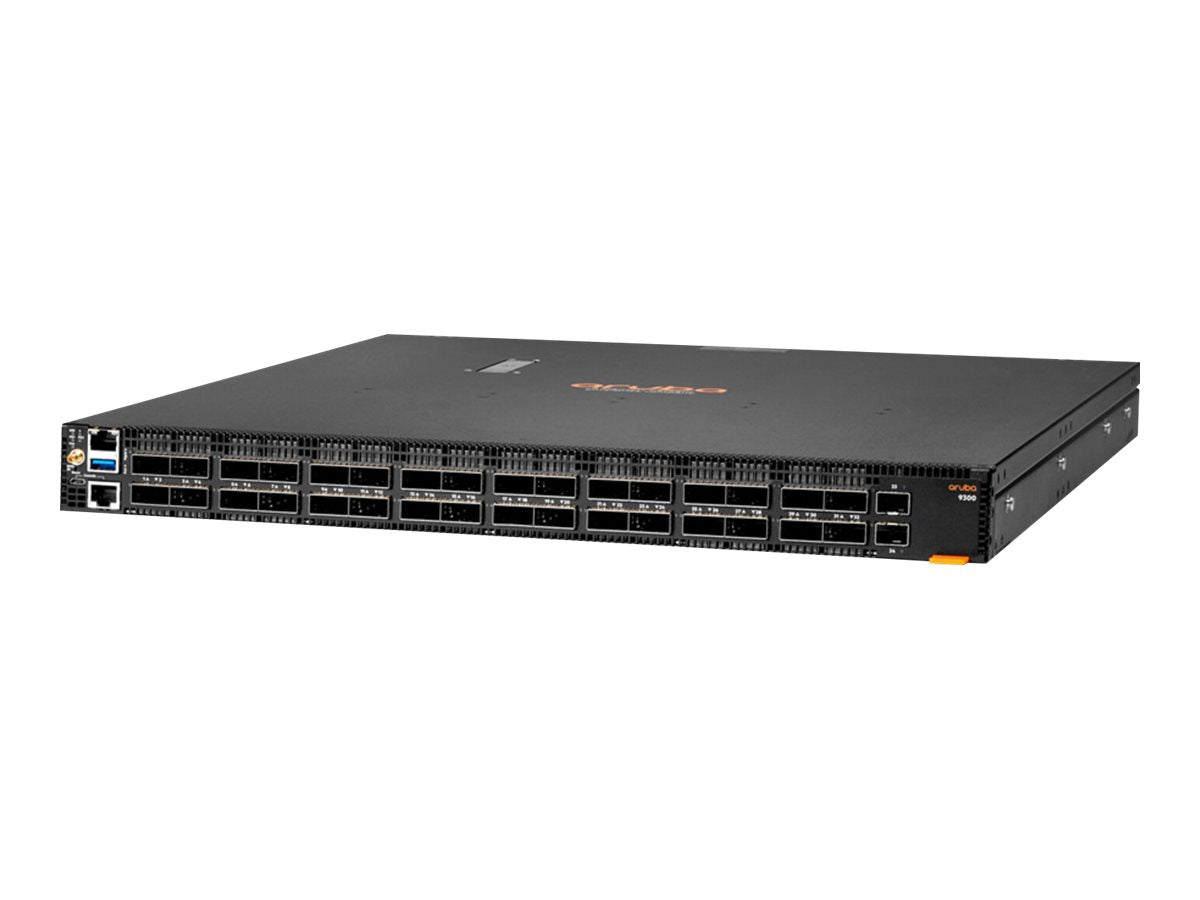

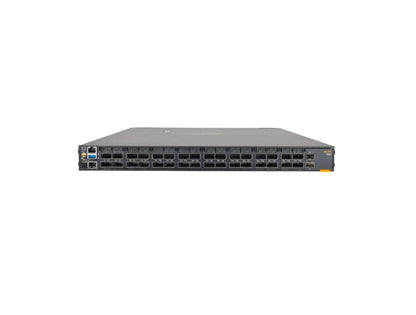

HP Aruba 9300-32D Switch Bundle, 32-Port, 400Gbps
Photo is for illustration purposes only. Actual product may be different.
Regular price
$91,634.18
Regular price
Sale price
$91,634.18
Unit price
per
MSRP: $119,995.00
Shipping calculated at checkout.
Couldn't load pickup availability
- 32 QSFP-DD high-speed ports support up to 400Gbps aggregate bandwidth
- 32GB RAM enables high-performance operations and configuration flexibility
- 128MB flash memory for firmware and configuration storage
- TAA compliant, ideal for government or regulated industry use
- Manufactured in Taiwan for quality assurance
Shipping & Returns
Shipping & Returns
All our products can be shipped anywhere in the Continental United States.
Key Benefits
Eye-Insights™ by Eye-In Technologies
AI-Powered Summaries from Online Customer Reviews
AI-Powered Summaries from Online Customer Reviews
Eye-Insights™ are generated by proprietary AI that analyzes real online customer reviews to highlight top pros and key product features. While we aim for accuracy, insights are provided “as-is” and individual results may vary.
- Delivers ultra-high-speed 400Gbps switching performance through 32 QSFP-DD ports for bandwidth-intensive environments
- TAA compliance ensures suitability for government procurement and secure deployments
- Part of HP's Aruba networking ecosystem, supporting consistent integration and centralized management
Product Overview
The HP Aruba 9300-32D Pwr2Prt Sw Bdl is a high-capacity data center switch featuring 32 QSFP-DD ports capable of 400Gbps total throughput. Optimized for enterprise and cloud-scale deployments, it integrates 32GB RAM and 128MB flash memory for responsive operational performance. This unit is TAA-compliant and assembled in Taiwan, supporting secure and compliant network infrastructures.
Specifications
Product Overview
Wireless Features
| Wireless Support | No |
Compliance & Origin
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Certifications | UL, FCC Class A, CE, VCCI, ICES |
| RoHS Compliance | Yes |
| WEEE Compliance | Yes |
Advanced Security Features
| Access Control | 802.1X, MAC authentication, Web-based authentication |
| Role-Based Access Control (RBAC) | Yes |
| Dynamic Segmentation | Supported |
| Secure Boot | Yes |
| TPM (Trusted Platform Module) | Integrated TPM 2.0 |
| MACsec Encryption | Supported (IEEE 802.1AE) |
| DoS Attack Prevention | Supported |
| System Security | Digitally signed OS, Secure shell (SSH), SSL |
Interfaces
| Total Ports | 32 |
| Port Type | QSFP-DD |
| Port Speeds Supported | 40/100/200/400 Gbps |
| Management Ports | 1 x RJ-45 out-of-band management port, 1 x USB Type-A port, 1 x Console port |
| Data Transfer Rate per Port | 400 Gbps |
| Uplink Ports | All ports configurable (no designated uplink) |
| Stacking Support | Supported via ports |
Physical & Environmental
| Dimensions (H x W x D) | 4.39 x 43.97 x 50.8 cm (1.73 x 17.32 x 20.0 in) |
| Weight | 13.5 kg (29.76 lbs) |
| Operating Temperature | 0°C to 45°C (32°F to 113°F) |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) |
| Operating Humidity | 5% to 95% non-condensing |
| Acoustic Noise | Less than 70 dBA |
| Cooling | Front-to-back or back-to-front airflow (field-reversible) |
Cloud Management & Licensing
| Management Interface | Aruba AOS-CX CLI, Web GUI, Aruba Central cloud management |
| Cloud Management | Supported via Aruba Central |
| Included Licensing | Base OS with optional support and service subscriptions |
| Telemetry and Analytics | Supported, via NetEdit and Aruba Central |
| REST API Support | Yes, RESTful APIs available |
| Automation | Supported via Python and Ansible |
