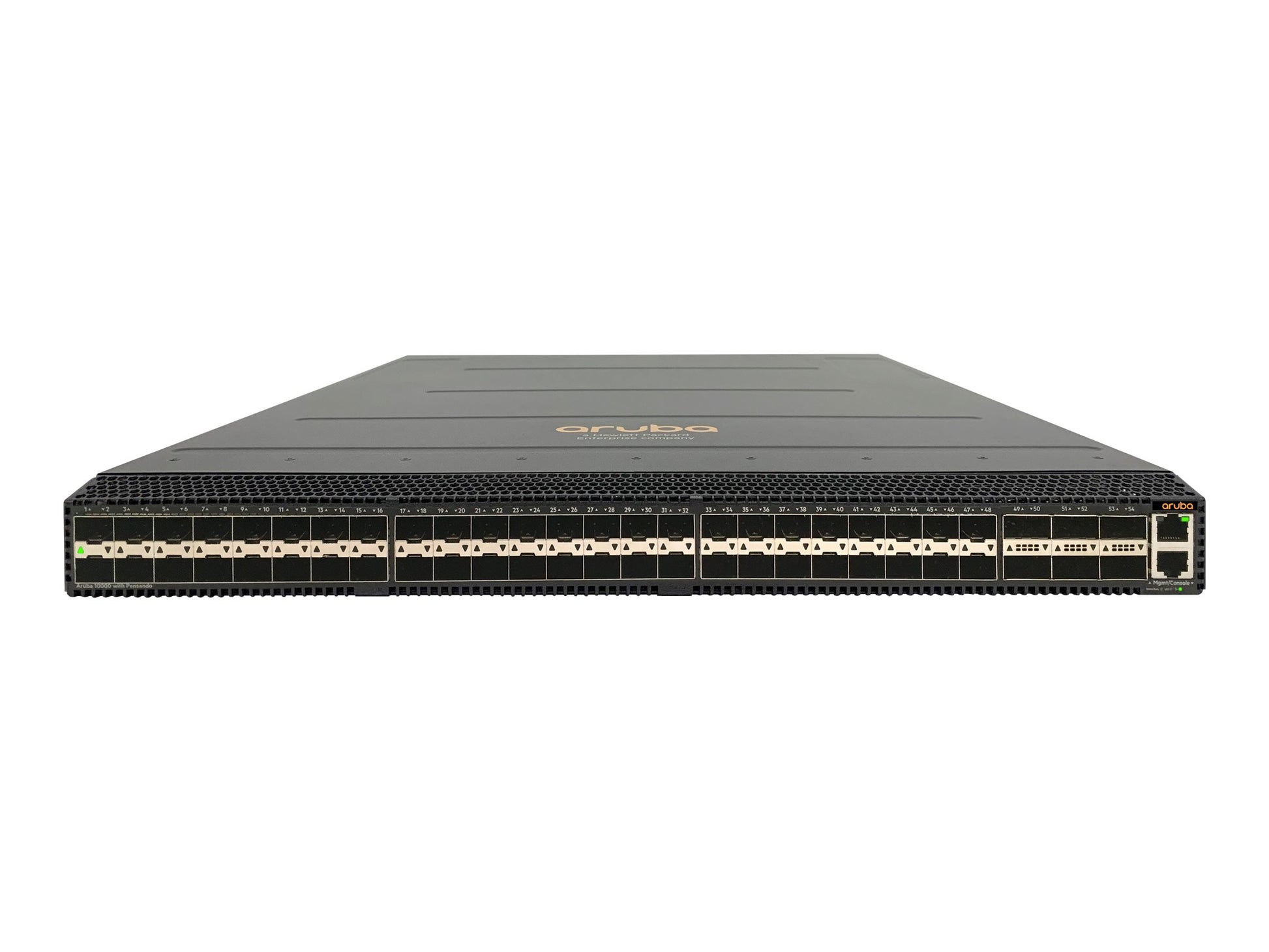

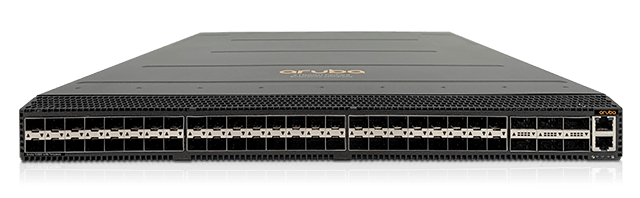

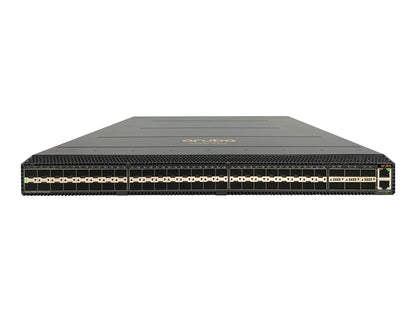

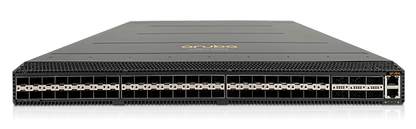

HP Aruba CX 10000-48Y6C Switch, 48 SFP28, 6 QSFP28, R8P13A#ABA

VENDOR: HP Mfg Part#: R8P13A#ABA UPC#: 190017537566
1 4
Photo is for illustration purposes only. Actual product may be different.
$44,049.35
$44,049.35
Sale Sold out
MSRP: $55,639.00
Shipping calculated at checkout.
  • - 48 SFP28 and 6 QSFP28 interfaces supporting up to 100 Gbps throughput
  • - Dual 3GHz Pensando Elba DPUs for distributed network services
  • - 2.9GHz CPU with 32 GB RAM and 64 GB SSD for high processing capacity
  • - Advanced Layer 3 routing and SNMP-based remote management
  • - 1RU form factor with 550W power consumption and wide AC input range (100–240VAC)
  • - Operating temperature range from 0°C to 40°C with extended storage tolerance

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • - Delivers edge-accelerated services and reduces backhaul latency with integrated Pensando DPU technology
  • - Consolidates performance and security functions to reduce appliance sprawl, improving ROI and lowering total cost of ownership
  • - TAA compliance and U.S. manufacturing make it ideal for government or regulated sector deployments

Product Overview

The HPE Aruba Networking CX 10000-48Y6C is a high-performance 1RU switch integrating 48 SFP28 and 6 QSFP28 ports with support for 100 Gbps throughput. Powered by dual 3GHz Pensando Elba DPUs and a 2.9GHz CPU, it enables distributed services at the edge while enhancing network security and efficiency. Equipped with 32 GB RAM, 64 GB SSD, and advanced Layer 3 routing, it supports remote management via SNMP and suits demanding enterprise environments. TAA compliant and efficient at 550W, this model minimizes cost and complexity by avoiding centralized traffic chokepoints.

Specifications

Product Overview
Product Type Data Center Switch
Model HP Aruba CX 10000-48Y6C
Manufacturer Part Number R8P13A#ABA
Form Factor 1RU
Weight 21.45 lbs.
Power Requirements 100-240VAC
Power Consumption (Max) 550 Watt
Power Supply Type Internal dual redundant power supplies
Processor 2.9 GHz CPU + Dual 3 GHz Pensando Elba DPUs
Installed RAM 32 GB
Storage Capacity 64 GB SSD

Wireless Features
Wireless Support

Compliance & Origin
TAA Compliant Yes
Country of Origin United States
Certifications UL, CE, CB, FCC, RoHS
Environmental Standards REACH, WEEE

Advanced Security Features
Integrated Firewall Yes, with Pensando distributed services
Access Control 802.1X, MAC authentication, RADIUS
Threat Detection Real-time East-West traffic inspection
Micro-Segmentation Supported
Encryption MACsec 256-bit
Security Policy Enforcement Hardware-accelerated with embedded DPU firewall

Interfaces
Total Network Ports 54
SFP28 Ports 48
QSFP28 Ports 6
Data Link Protocols Gigabit Ethernet, 10/25/40/100 Gigabit Ethernet
Switching Capacity 4.8 Tbps
Packet Forwarding Rate 2,380 Mpps
MAC Address Table Size 256,000 entries
Jumbo Frame Support Yes
Layer Support Layer 2 and Layer 3

Physical & Environmental
Width 17.25 Inch
Depth 20.12 Inch
Height 1.75 Inch
Operating Temperature Range 0°C to 40°C
Storage Temperature Range -40°C to 70°C
Relative Humidity (Operating) 5% to 95% (non-condensing)
Acoustic Noise 65 dB (typical)
Cooling Front-to-back airflow with redundant fans

Cloud Management & Licensing
Management Interface CLI, REST API, SNMP v2/v3, Aruba NetEdit
Management Platform Aruba Central (optional licensing)
Licensing Model Perpetual or subscription-based licenses
Telemetry Support Streaming telemetry supported
Automation Support Yes, via NetEdit and REST API
