| Product Type | Layer 3 Managed Switch with Integrated Services |
| Series | Aruba CX 10000 |
| Model | HPE Aruba Networking CX 10000 Switch Series with Pensando |
| Form Factor | 1RU |
| Weight | 21.45 lbs. |
| Power Supply Type | Internal AC power supply with redundancy support |
| Power Provided | 550 Watt |
| Power Consumption (Operational) | 550 Watt |
| Power Voltage Required | 100-240VAC |
| Connectivity Technology | Wired |

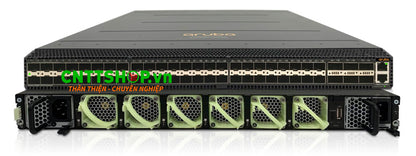

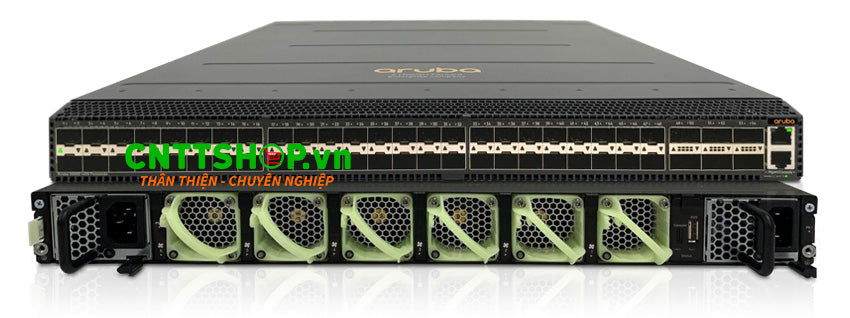

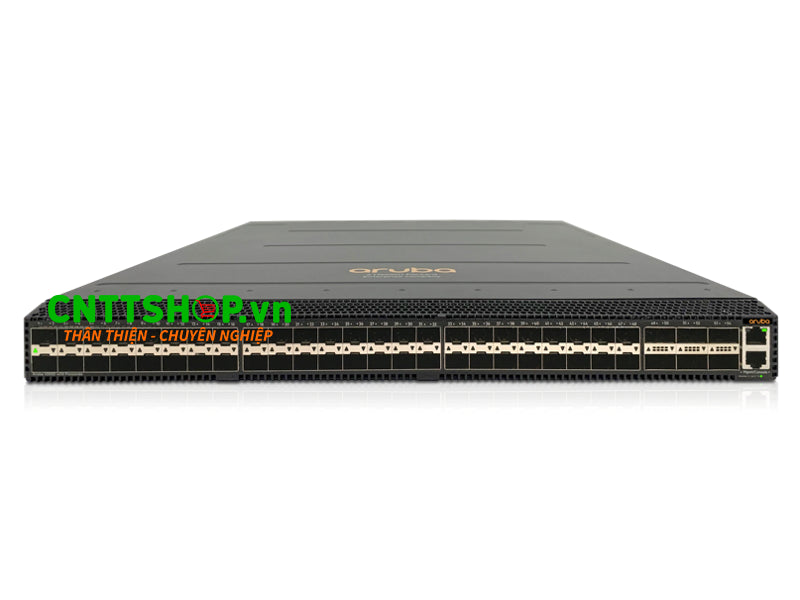

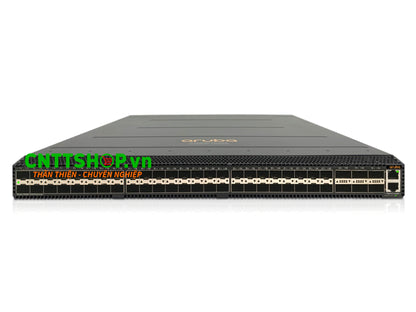

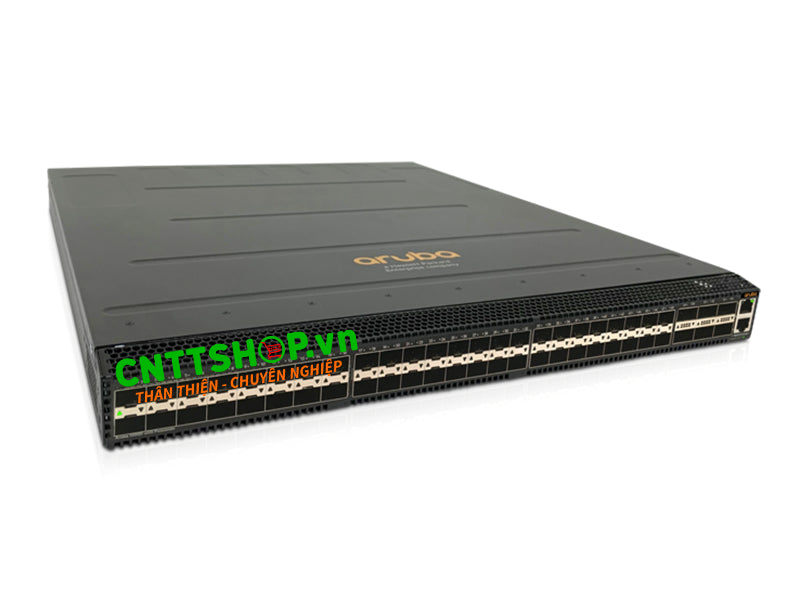

HP Aruba CX 10000-48Y6C Switch with Pensando, 48xSFP28, 6xQSFP28, 550W
Photo is for illustration purposes only. Actual product may be different.
Regular price
$44,049.35
Regular price
Sale price
$44,049.35
Unit price
per
MSRP: $55,639.00
Shipping calculated at checkout.
Couldn't load pickup availability
- 48 SFP28 and 6 QSFP28 ports for high-density connectivity
- Layer 3 Advanced routing with SNMP remote management
- Dual Pensando Elba 3GHz DPUs for distributed processing
- 32 GB RAM and 64 GB SSD for robust onboard performance
- Supports up to 100 Gbps data transfer rate
- Compact 1RU form factor with 550W power draw
Shipping & Returns
Shipping & Returns
All our products can be shipped anywhere in the Continental United States.
Key Benefits
Eye-Insights™ by Eye-In Technologies
AI-Powered Summaries from Online Customer Reviews
AI-Powered Summaries from Online Customer Reviews
Eye-Insights™ are generated by proprietary AI that analyzes real online customer reviews to highlight top pros and key product features. While we aim for accuracy, insights are provided “as-is” and individual results may vary.
- Ideal for high-performance enterprise data centers requiring decentralized traffic processing
- Improves security and reduces appliance sprawl through intelligent edge computing
- TAA-compliant device with a 1-year warranty, suitable for public sector deployments
Product Overview
The HP Aruba CX 10000-48Y6C with Pensando redefines switching with integrated advanced data services through dual Pensando Elba DPUs. Featuring 48 SFP28 and 6 QSFP28 ports, it supports up to 100 Gbps performance with ultra-low latency. It includes 32 GB RAM, 64 GB SSD, and dual 64 MB flash for optimum system integrity. Built in a 1RU chassis, it draws 550W with Layer 3 advanced routing and SNMP remote management. This switch enhances security and simplifies infrastructure by avoiding centralized traffic chokepoints.
Specifications
Product Overview
Physical & Environmental
| Width | 1.75 Inch |
| Depth | 17.25 Inch |
| Height | 20.12 Inch |
| Operating Temperature (Min) | 0°C |
| Operating Temperature (Max) | 40°C |
| Storage Temperature (Min) | -40°C |
| Storage Temperature (Max) | 70°C |
| Relative Humidity (Operating) | 5% to 95% non-condensing |
| Cooling Method | Front-to-back airflow |
Cloud Management & Licensing
| Management Interface | Aruba AOS-CX with Web GUI, CLI, Aruba Central support |
| Included OS | ArubaOS-CX |
| Licensing Model | Subscription-based for DPU services |
| Cloud-Managed | Yes, via Aruba Central |
Interfaces
| Total Port Count | 56 |
| Interface Types | 48x SFP28, 6x QSFP28 |
| SFP28 Ports | 48 |
| QSFP28 Ports | 6 |
| Port Speed | 1/10/25 Gbps on SFP28, 40/100 Gbps on QSFP28 |
| Data Transfer Rate | Up to 100 Gbps |
| Data Link Protocols | Gigabit Ethernet, 10 Gigabit Ethernet, 25 Gigabit Ethernet, 40 Gigabit Ethernet, 100 Gigabit Ethernet |
| Forwarding Rate | Up to 2.4 Tbps |
| Routing Protocols | OSPF, BGP, EVPN, VRF, BFD, PIM |
| Remote Management Protocol | SNMP |
Advanced Security Features
| Integrated DPU Security Services | Yes, Dual Pensando Elba DPUs |
| Firewall Capabilities | Distributed Stateful Firewall |
| Microsegmentation Support | Yes |
| East-West Traffic Filtering | Yes |
| Encryption Support | AES-256 for management and data plane |
| Monitoring & Telemetry | Real-time telemetry with flow-level visibility |
Compliance & Origin
| Country of Origin | United States |
| TAA Compliant | Yes |
| Certifications | UL, FCC Class A, CE, RoHS |
| Warranty | Limited Lifetime Warranty, see https://www.arubanetworks.com/assets/support/warranty |
