Products Network Stuff HP Aruba CX 8360-32Y4CV2 v2...

HP Aruba CX 8360-32Y4CV2 v2 Switch Bundle, 110W, L3, 64-bit CPU

VENDOR: HP Mfg Part#: R9G09A#ABA UPC#: 190017596839
1 1

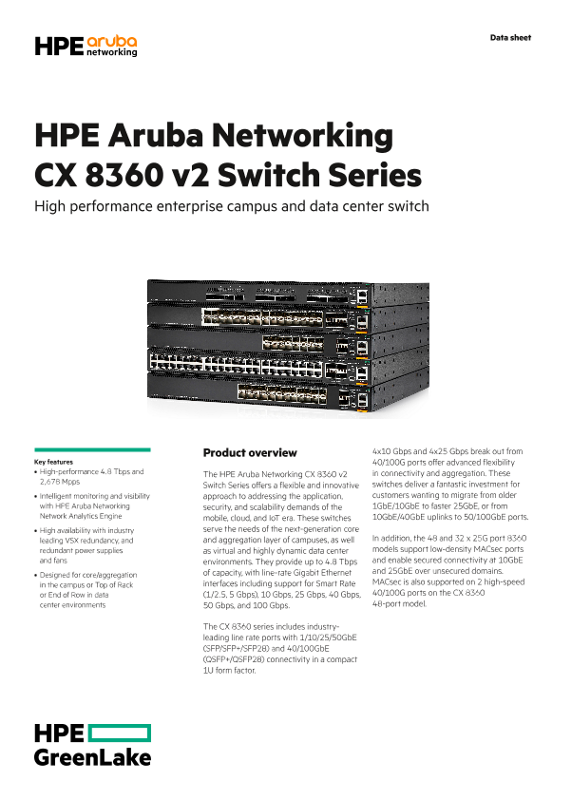

Photo is for illustration purposes only. Actual product may be different.
$28,594.88
$28,594.88
Sale Sold out
MSRP: $37,445.00
Shipping calculated at checkout.
  • 1. 1.8 GHz 4-core 64-bit processor with 16 GB RAM and 32 GB flash storage
  • 2. Flexible port options including 1G/10G/25G/40G/100G via SFP/QSFP interfaces
  • 3. Advanced Layer 3 routing with breakout cable and transceiver compatibility
  • 4. MACsec encryption for secure connectivity across untrusted domains
  • 5. Low 110W operational power consumption
  • 6. Limited Lifetime Warranty with TAA compliance

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Engineered with a 64-bit quad-core processor and 16 GB RAM to deliver high-speed and stable network performance.
  • Built-in MACsec encryption ensures secure data transfer over untrusted domains, meeting enterprise security standards.
  • Flexible multi-speed interface support and breakout cable options offer scalable deployment across evolving network infrastructures.

Product Overview

The HP Aruba CX 8360-32Y4CV2 v2 is a powerful, modular Layer 3 switch designed for demanding enterprise and data center environments. Driven by a 1.8 GHz, 64-bit quad-core processor, 16 GB of RAM, and 32 GB flash storage, it delivers fast, reliable network performance. A flexible port architecture supports a mix of 10GbE, 25GbE, 40GbE, and 100GbE interfaces for versatile connectivity options. Built-in MACsec encryption enhances security across distributed networks. With just 110W operational power consumption and a limited lifetime warranty, it balances performance, efficiency, and long-term value, making it ideal for modern, scalable infrastructures.

Specifications

Product Overview
Product Type Modular Layer 3 Switch
Model Aruba CX 8360-32Y4CV2 v2
Processor 1.8 GHz 64-bit quad-core
RAM 16 GB
Flash Memory 32 GB
Power Consumption (Operational) 110 Watt
Maximum Power Consumption 110 Watt
Weight 23.65 lbs
Routing Protocol Layer 3 Advanced
Features MACsec secured connectivity over untrusted domains
Warranty Limited Lifetime Warranty

Wireless Features
Wireless Capability

Compliance & Origin
Country of Origin Singapore
TAA Compliant Yes
Safety Standards UL, CSA, CB, CE
EMC Compliance FCC Class A, VCCI Class A, EN 55024, EN 55032 Class A
Certifications RoHS, WEEE, REACH

Advanced Security Features
Encryption Support MACsec (802.1AE) on selected ports
Access Control Port-based and user-based 802.1X
RADIUS Accounting Integrated
Control Plane Protection CPPU (Control Plane Policing Utility)
DHCP Snooping Yes
IP Source Guard Yes
Dynamic ARP Protection Yes
Secure Management SSH, HTTPS, TACACS+

Interfaces
10/25 GbE Ports 24 x 1GbE/10GbE (SFP/SFP+)
40/100 GbE Ports 12 x 40GbE/100GbE (QSFP+/QSFP28)
Breakout Support 4x10G/25G breakout cables supported
Additional Modularity Supports optional 1GBASE-T SFP and 10GBASE-T SFP+ transceivers
Interface Expansion 48 ports of 100M/1GbE/10GBASE-T and 4 x 40GbE/100GbE (QSFP+/QSFP28)
Aggregate Throughput 2.4 Tbps switching capacity
Packet Forwarding Rate 1,190 Mpps

Physical & Environmental
Form Factor 1U rack mountable
Dimensions (W x D x H) 17.32 x 20.67 x 1.73 in
Operating Temperature 0°C to 45°C (32°F to 113°F)
Non-Operating Temperature -40°C to 70°C (-40°F to 158°F)
Operating Humidity 5% to 95% non-condensing
Acoustic Noise 56.6 dB typical
Heat Dissipation 375 BTU/hr (max)

Cloud Management & Licensing
Management Interface Aruba Network Analytics Engine, CLI, Web GUI, REST API
Cloud Management Platform Aruba Central (optional license)
Software Licensing Foundation and Advanced Licenses available
Included Cloud Features Not bundled; available via Aruba Central subscription
