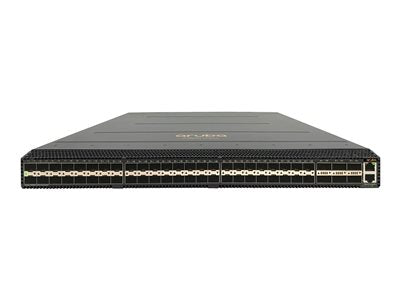

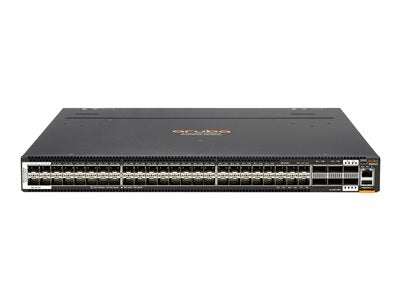

HP Aruba CX 8360-48Y6C V2 Switch, 100GbE, 58-Port, JL705C#ABA

VENDOR: HP Mfg Part#: JL705C#ABA UPC#: 190017567938
1 5
Photo is for illustration purposes only. Actual product may be different.
$36,928.81
$36,928.81
Sale Sold out
MSRP: $46,645.00
Shipping calculated at checkout.
  • Quad-core 1.8 GHz 64-bit processor with 16 GB RAM and 32 GB flash storage
  • 58 total networking ports including SFP28 and QSFP28 interfaces supporting up to 100GbE
  • MACsec encryption available on select 10/25GbE and 40/100GbE ports
  • Runs Aruba AOS-CX operating system with automated network management features
  • Dual power supplies supporting 100-240 VAC input with max 725W power usage
  • Comes with a limited lifetime warranty; TAA compliant

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Delivers exceptional port density with 58 total ports including multiple 100GbE uplinks for high-speed core and aggregation applications
  • Advanced automation and Layer 3 routing powered by AOS-CX reduces IT overhead and enhances operational efficiency
  • Includes MacSec security, dual redundant power, and a limited lifetime warranty for enterprise-grade resiliency

Product Overview

The HP Aruba CX 8360-48Y6C V2 is a high-performance switch designed for enterprise and data center applications. Powered by a 1.8 GHz quad-core processor and 16 GB RAM, it supports Layer 3 advanced routing and delivers exceptional throughput. Connectivity includes 44 SFP/SFP+/SFP28 ports, 4 MACsec-enabled 10/25GbE ports, and 6 QSFP+/QSFP28 ports (2 with MACsec) for 40/100GbE. The switch operates on Aruba’s AOS-CX OS, offering automation and management features to reduce operational overhead. Dual power supplies ensure reliability, and it draws up to 725W. Measuring 1.73 x 17.4 x 22 inches, it integrates smoothly into rack-mounted environments. TAA-compliant and backed by a limited lifetime warranty, it is a future-ready solution for demanding network infrastructures.

Specifications

Product Overview
Type Layer 3 Managed Switch
Form Factor 1U Rack-Mountable
Processor 1.8 GHz Quad-Core
RAM 16 GB
Flash Memory 32 GB
Power Supply Type Dual Hot-Swappable Power Supplies
Installed Power Supplies 2
Power Consumption (Max) 725 Watts
Voltage Required 100–127 VAC / 200–240 VAC, 50/60 Hz
Weight 23.65 lbs (10.73 kg)

Wireless Features
Wireless Support

Compliance & Origin
Country of Origin Singapore
TAA Compliant Yes
Certifications UL, CSA, VCCI, CE, FCC Class A
Compliance Standards RoHS, WEEE

Advanced Security Features
MACsec Encryption Yes on select ports
Access Control Lists (ACLs) Yes
802.1X Authentication Yes
RADIUS/TACACS+ Support Yes
Secure Management HTTPS, SSH, SNMPv3

Interfaces
Total Ports 58
SFP/SFP+/SFP28 Ports 44 x 1GbE/10GbE/25GbE
SFP+/SFP28 with MACsec 4 x 10GbE/25GbE
QSFP+/QSFP28 Ports 4 x 40GbE/100GbE
QSFP+/QSFP28 with MACsec 2 x 40GbE/100GbE
Data Link Protocols 10/25/40/100 Gigabit Ethernet
Uplink Speed Support Up to 100 Gbps
Throughput Up to 2.16 Tbps
Switching Capacity 2.16 Tbps
Forwarding Rate 1,428 Mpps

Physical & Environmental
Dimensions (H x W x D) 1.73 x 17.4 x 22 in (4.39 x 44.2 x 55.9 cm)
Operating Temperature 32°F to 113°F (0°C to 45°C)
Storage Temperature -40°F to 158°F (-40°C to 70°C)
Operating Humidity 5% to 95% non-condensing
Altitude Up to 10,000 ft (3,048 m)
Cooling Front-to-back airflow with variable-speed fans

Cloud Management & Licensing
Operating System Aruba AOS-CX
Management Interface Web GUI, CLI, REST API, Aruba NetEdit, Aruba Central
Automation Support Yes via AOS-CX and NetEdit
Cloud-Based Management Yes (via Aruba Central)
License Requirement Some features may require a license
