| Manufacturer | HP |
| Product Name | HP Aruba CX 8360 v2 Switch, 32Y4CV2 Bundle, US Version |
| Part Number | R9G08A#ABA |
| Series | Aruba CX 8360 v2 Switch Series |
| Network Device Type | Switch |
| Routing Protocol | Layer 3 Advanced |
| Form Factor | Rack-mountable |
| Processor Type | Quad-core ARM CPU |
| Processor Speed | 1.8 GHz |
| Installed Memory (RAM) | 16 GB |
| Flash Memory | 32 GB |
| Power Requirements | 100 to 240 VAC, 50/60 Hz |
| Power Consumption (Typical) | 110 Watt |
| Max Power Consumption | 110 Watt |
| Weight | 23.65 lbs. |

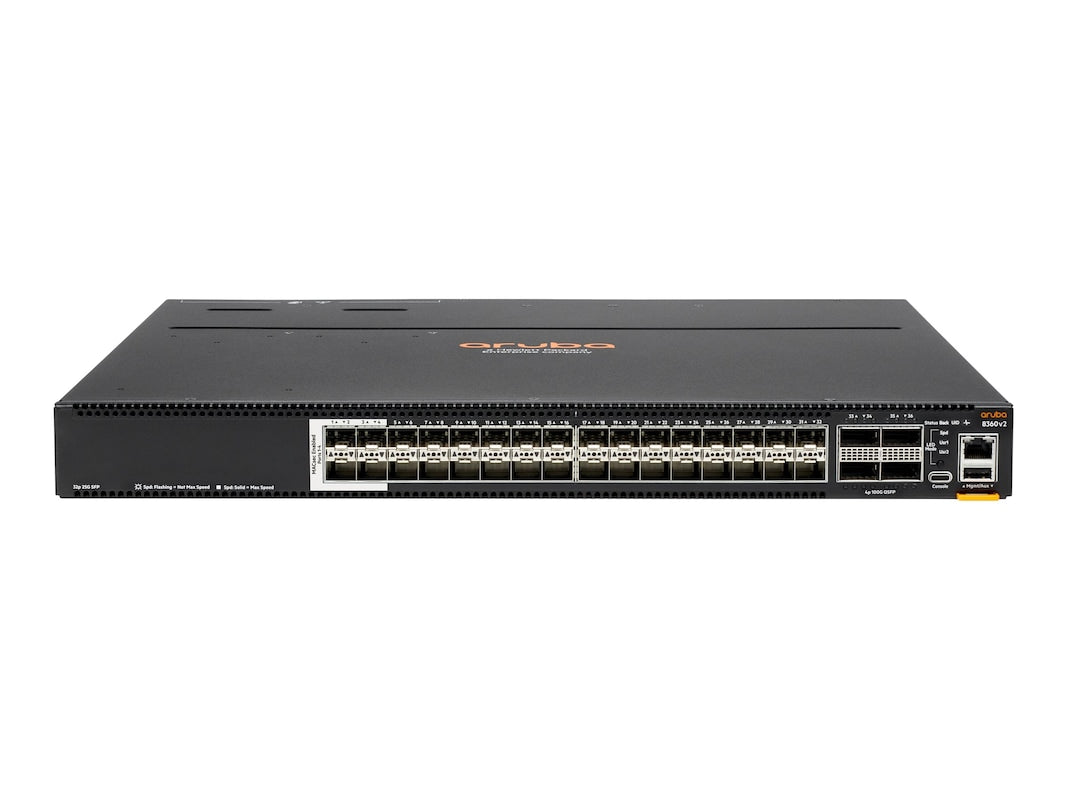

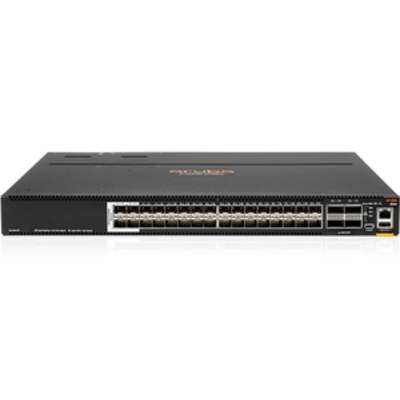

HP Aruba CX 8360 v2 Switch, 32Y4CV2 Bundle, US Version
Photo is for illustration purposes only. Actual product may be different.
Regular price
$28,594.88
Regular price
Sale price
$28,594.88
Unit price
per
MSRP: $37,445.00
Shipping calculated at checkout.
Couldn't load pickup availability
- 1. 1.8 GHz 64-bit quad-core processor with 16 GB RAM and 32 GB flash storage.
- 2. Supports up to 48x 10GBASE-T and 4x 100GbE high-speed ports depending on configuration.
- 3. Layer 3 Advanced routing capabilities for scalable network management.
- 4. MACsec encrypted connectivity for secure transmissions over untrusted networks.
- 5. 110W operational power consumption for energy efficiency.
- 6. TAA-compliant and covered by a Limited Lifetime Warranty.
Shipping & Returns
Shipping & Returns
All our products can be shipped anywhere in the Continental United States.
Key Benefits
Eye-Insights™ by Eye-In Technologies
AI-Powered Summaries from Online Customer Reviews
AI-Powered Summaries from Online Customer Reviews
Eye-Insights™ are generated by proprietary AI that analyzes real online customer reviews to highlight top pros and key product features. While we aim for accuracy, insights are provided “as-is” and individual results may vary.
- Supports next-gen data center speeds with multiple 100GbE and 10GbE high-density port options.
- Built-in MACsec encryption helps meet security requirements for enterprise-grade compliance.
- Comes bundled with U.S. power modules and English localization—ready for immediate deployment in domestic networks.
Product Overview
The HP Aruba CX 8360-32Y4CV2 is part of the 8360 v2 Switch Series, delivering enterprise-grade performance with a powerful 1.8 GHz 4-core CPU, 16 GB RAM, and 32 GB flash. It supports advanced Layer 3 routing stack and offers multiple high-speed port variations including 100GbE, 40GbE, and 10GbE. Features like MACsec encryption ensure secure operations in vulnerable environments. The device is TAA-compliant, carries a limited lifetime warranty, and includes a dual power configuration optimized for U.S. deployment with English localization.
Specifications
Product Overview
Wireless Features
| Wireless Support |
Compliance & Origin
| Country of Origin | Singapore |
| TAA Compliant | Yes |
| Certifications | FCC Class A, Industry Canada, VCCI Class A, EN 55032 Class A, CE, CB |
| Warranty | Limited Lifetime Warranty |
| Environmental Standards | RoHS, WEEE |
Advanced Security Features
| MACsec Encryption | Yes, IEEE 802.1AE on supported ports |
| Access Control Lists (ACLs) | Layer 2-4 ACLs supported |
| DHCP Snooping | Yes |
| ARP Protection | Dynamic ARP inspection |
| Port Security | Yes |
| 802.1X Authentication | Yes, with RADIUS support |
| Traffic Filtering | Yes, policy-based routing available |
| Secure Boot | Yes |
Interfaces
| Total Port Count | 32 data ports + 4 uplinks (depends on model configuration) |
| Port Type 1 | 12 x 40GbE/100GbE QSFP+/QSFP28 (support for 4x10G/25G breakout) |
| Port Type 2 | 24 x 1GbE/10GbE SFP/SFP+ |
| Port Type 3 | 2 x 40GbE/100GbE QSFP+/QSFP28 |
| Port Type 4 | 48 x 100M/1GbE/10GBASE-T |
| Uplink Interfaces | 4 x 40GbE/100GbE QSFP+/QSFP28 |
| Management Ports | 1 x RJ45 serial console, 1 x USB-C console |
| Out-of-Band Management | 1 x RJ-45 Ethernet management port |
Physical & Environmental
| Product Dimensions (H x W x D) | 1.75 x 17.5 x 18.9 in (4.45 x 44.45 x 48 cm) |
| Operating Temperature Range | 0°C to 45°C (32°F to 113°F) |
| Storage Temperature Range | -40°C to 70°C (-40°F to 158°F) |
| Operating Humidity Range | 5% to 95% (non-condensing) |
| Acoustic Noise | 65 dB max |
| Cooling | Front-to-back or back-to-front airflow (model dependent) |
Cloud Management & Licensing
| Management Platform | Aruba AOS-CX |
| Supported Cloud Management | Aruba Central (subscription required) |
| CLI Console Access | Yes, via USB-C and RJ45 serial |
| Web-Based GUI | Yes |
| REST API Support | Yes |
| NetEdit Compatibility | Yes (automation and orchestration tool) |
| Licensing Model | Feature-based, some features require subscription or license |
