HP Aruba CX 8360 v2 Switch R9G11A#ABA, Layer 3, 110W, MACsec, 16GB RAM

VENDOR: HP Mfg Part#: R9G11A#ABA UPC#: 190017597294
1 5

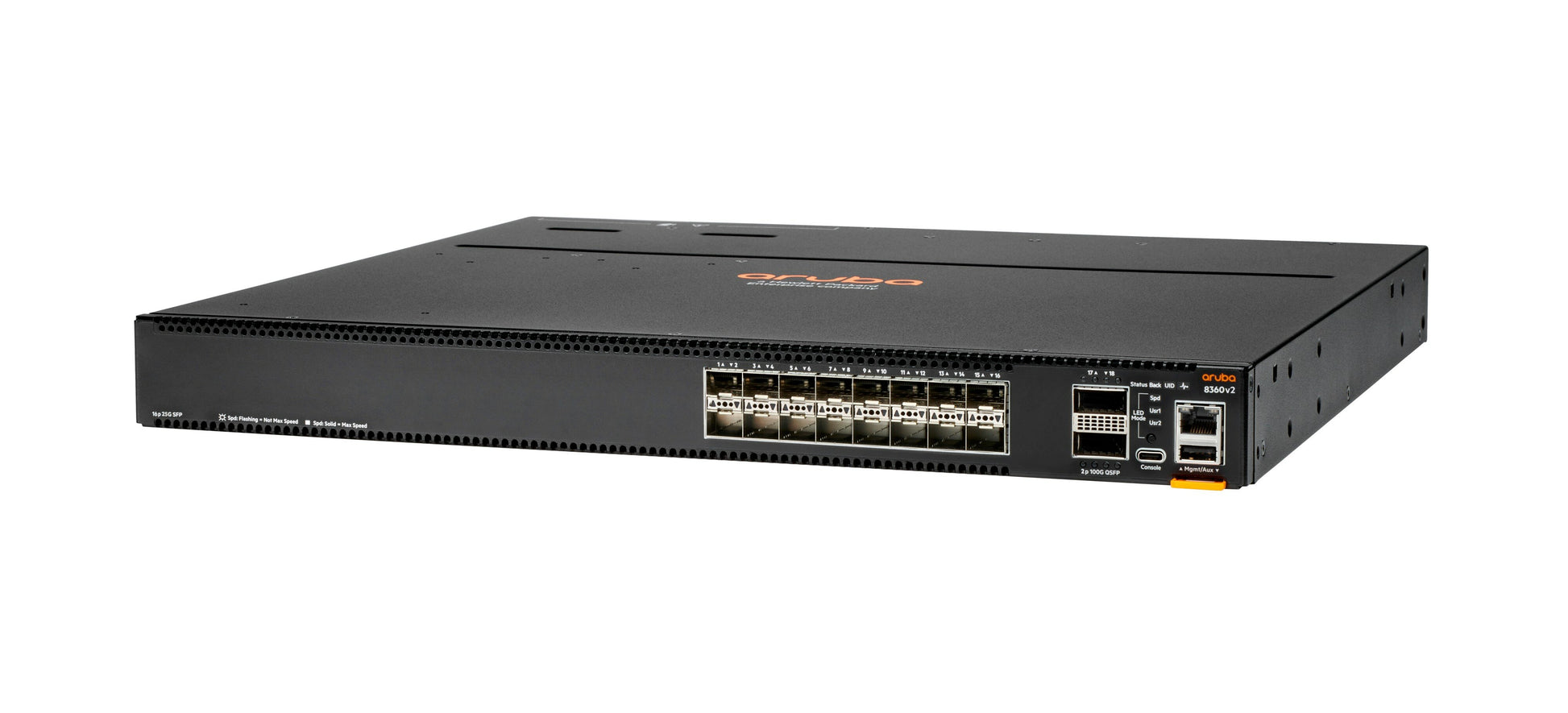

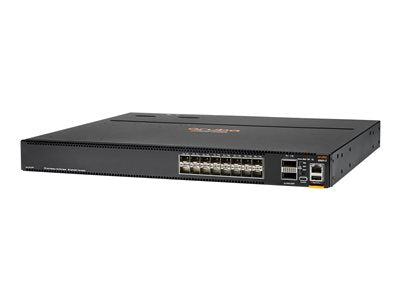

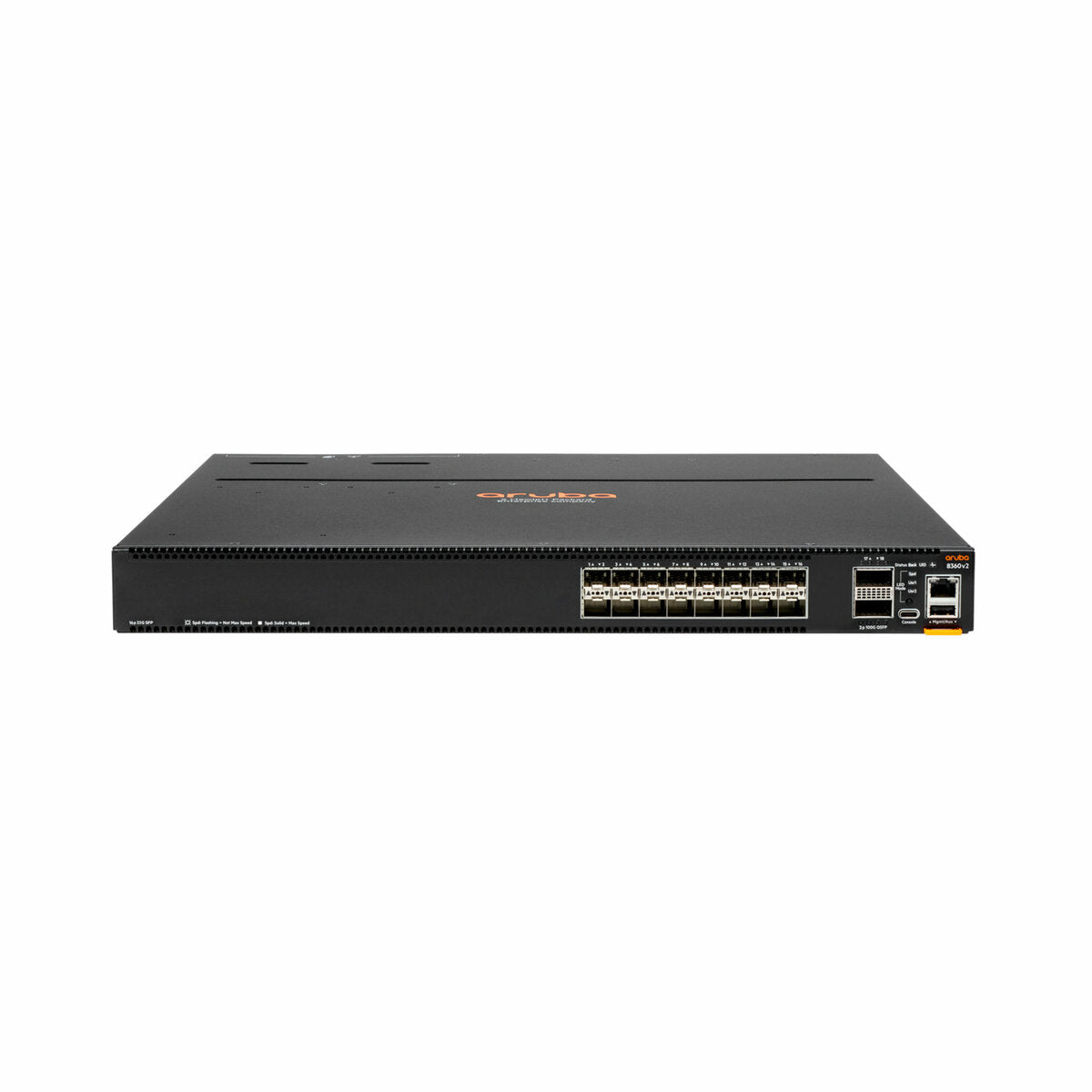

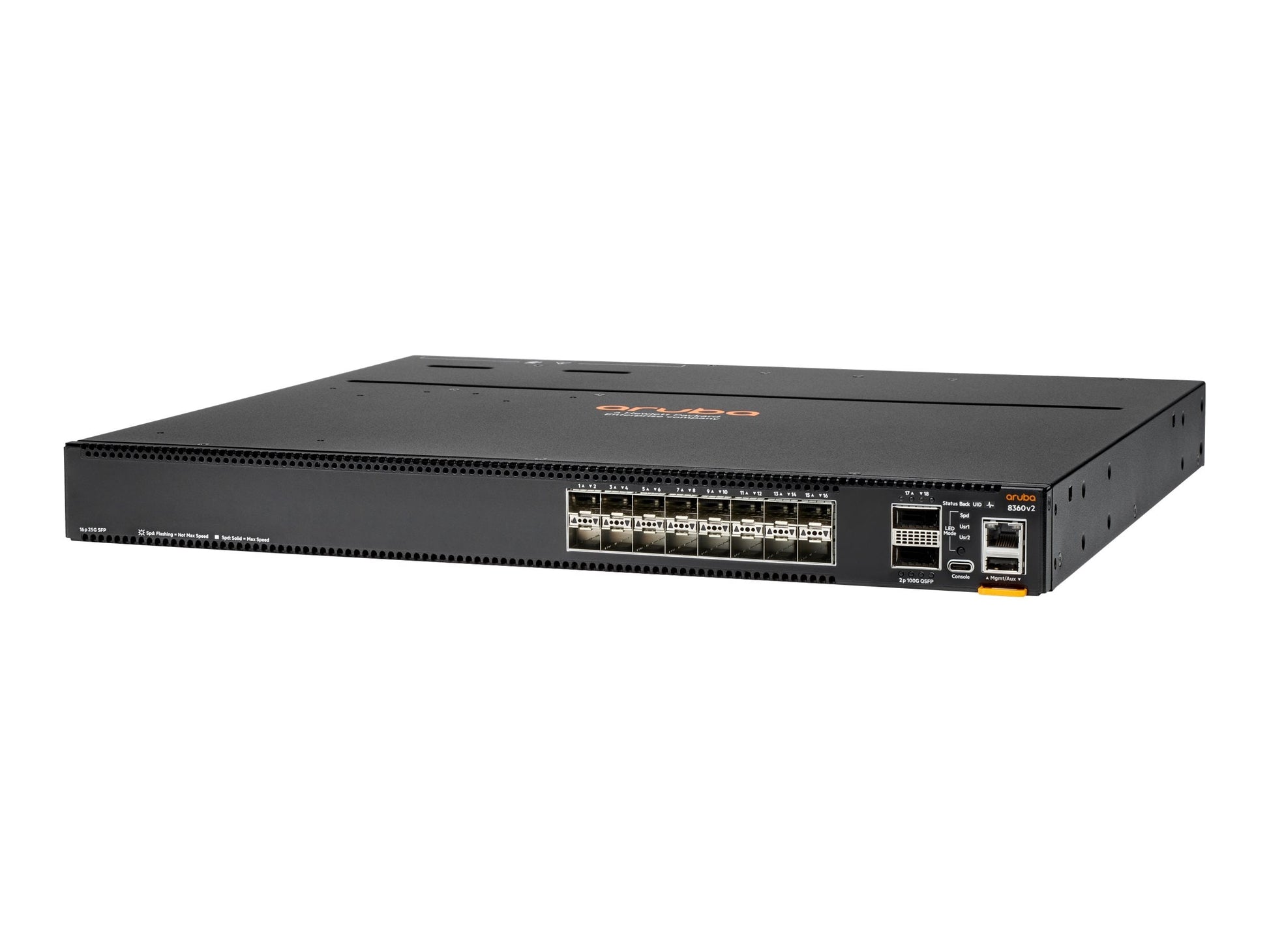

Photo is for illustration purposes only. Actual product may be different.
$22,875.14
$22,875.14
Sale Sold out
MSRP: $29,955.00
Shipping calculated at checkout.
  • 1. 1.8 GHz 4-core 64-bit CPU for responsive Layer 3 routing
  • 2. 16 GB RAM and 32 GB flash storage for high-throughput data handling
  • 3. MACsec support for secure traffic over untrusted domains
  • 4. Modular interface options: QSFP+/QSFP28, SFP/SFP+, 10GBASE-T
  • 5. Low operational power draw at just 110W
  • 6. TAA compliant with Limited Lifetime Warranty

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Advanced Layer 3 capabilities and MACsec encryption make the switch suitable for mission-critical, secure environments.
  • Flexible high-speed port options and breakout compatibility support scalable network design and future growth.
  • Low 110W power consumption and a Limited Lifetime Warranty offer long-term energy savings and investment protection.

Product Overview

The HP Aruba CX 8360-16Y2CV2 v2 Switch Series is engineered for high-performance Layer 3 networking in demanding data center and campus deployments. Featuring a 1.8 GHz quad-core 64-bit CPU, 16 GB RAM, and MACsec-secured connectivity, it delivers scalable security and speed for modern infrastructures. The device supports a wide range of modular interface options including QSFP+/QSFP28 and SFP/SFP+ with breakout compatibility. With 110W power efficiency and TAA compliance, it aligns with enterprise and government needs. A Limited Lifetime Warranty ensures extended ROI and network protection.

Specifications

Product Overview
Product Type Layer 3 Managed Switch
Model Aruba CX 8360 v2 Switch Series
Form Factor 1U Rack-mountable
Processor 1.8 GHz Quad-core 64-bit CPU
Memory (RAM) 16 GB
Packet Buffer Size 32 MB
Flash Memory 16 GB eMMC
Weight 23.65 lbs.
Power Consumption (Typical) 110 Watts
Max Power Consumption 110 Watts
Redundant Power Support Yes, with optional power supplies

Wireless Features
Wireless Support No

Compliance & Origin
Country of Origin Singapore
TAA Compliant Yes
Certifications UL, CE, FCC Class A, VCCI, BSMI, RoHS
Warranty Limited Lifetime Warranty

Advanced Security Features
MACsec Encryption Yes, IEEE 802.1AE 256-bit
Access Control RADIUS, TACACS+, 802.1X, DHCP snooping
Control Plane Protection CPU Protection, Control Plane Policing (CoPP)
Routing Security OSPF MD5/SHA, BGP MD5

Interfaces
Total Ports 16
Port Types QSFP+/QSFP28 (supporting 40GbE/100GbE with 4x10G/25G breakout)
Other Supported Port Options SFP/SFP+, 10GBASE-T, 1GBASE-T
Expansion Slots 2 power supply slots, 2 fan module slots
Data Transfer Rates 100 Gbps / 40 Gbps / 25 Gbps / 10 Gbps / 1 Gbps
Switching Capacity 3.2 Tbps
Forwarding Rate 1,190 Mpps

Physical & Environmental
Dimensions (W x D x H) 17.4 x 18.1 x 1.7 in (44.2 x 45.9 x 4.3 cm)
Operating Temperature 0°C to 45°C (32°F to 113°F)
Storage Temperature -40°C to 70°C (-40°F to 158°F)
Operating Humidity 5% to 95% non-condensing
Acoustic Noise 65.8 dB at 25°C
Cooling Front-to-back airflow with hot-swappable fan modules

Cloud Management & Licensing
Management Interface Aruba AOS-CX CLI, REST API, Web-based GUI, Aruba Central (Cloud)
Cloud Management Supported via Aruba Central
Licensing Model ArubaOS-CX Foundation and Advanced Licenses
Telemetry & Analytics Built-in Network Analytics Engine (NAE)
