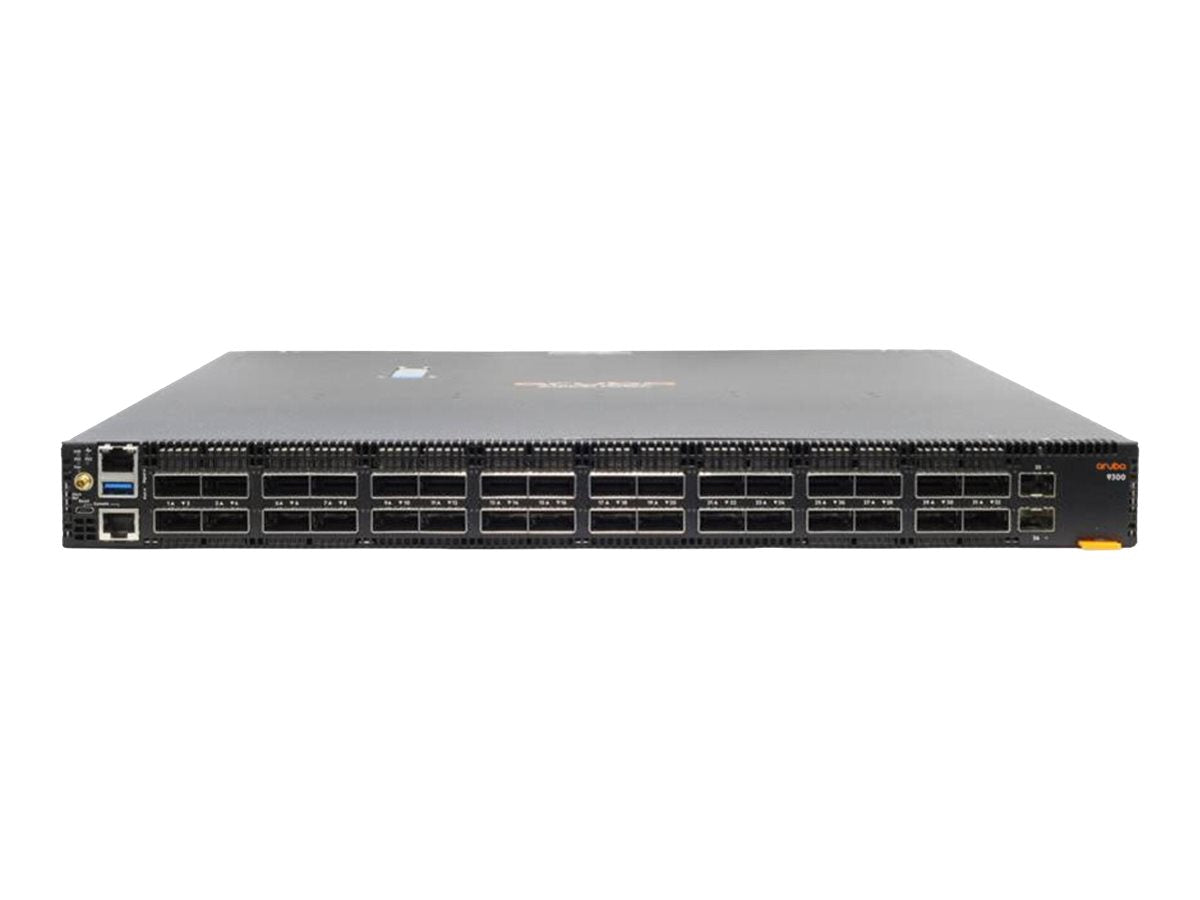

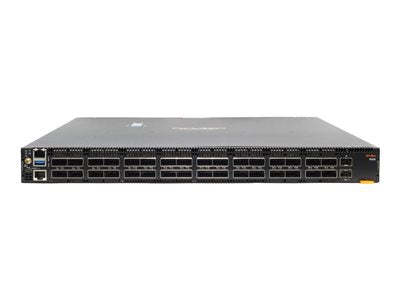

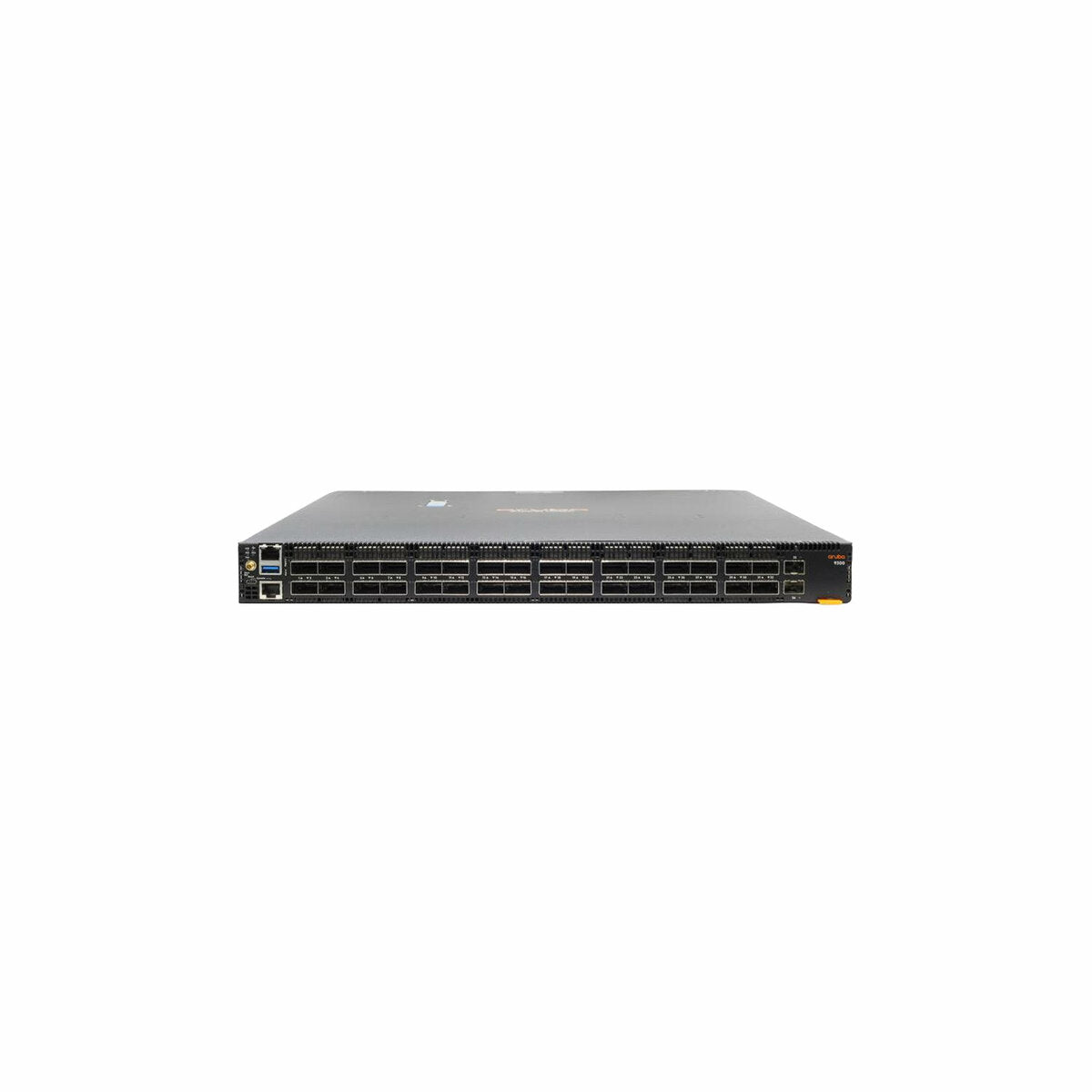

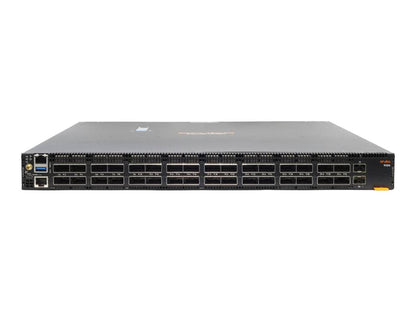

HP Aruba CX 9300 Switch, 32GB RAM, 400GbE, R9A29A#ABA

VENDOR: HP Mfg Part#: R9A29A#ABA UPC#: 190017562964
1 5
Photo is for illustration purposes only. Actual product may be different.
$94,999.95
$94,999.95
Sale Sold out
MSRP: $119,995.00
Shipping calculated at checkout.
  • Data transfer rates supported: 100Gbps, 200Gbps, 400Gbps
  • Installed memory: 32GB RAM with dual 16GB SODIMM
  • Storage: 128GB M.2 SSD, 4GB mSATA, and 128MB SPI Flash
  • Port configuration: 34 high-speed Ethernet ports
  • Interface options: SNMP, RJ-45 serial, RJ-45 OOBM, Micro USB
  • Power requirement: 600W operational, 220-240V for full utilization

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Supports multiple ultra-high-speed standards (100G/200G/400G), ideal for future-proofing data centers.
  • Includes dual 16GB SODIMMs and 128GB SSD for superior memory management and network processing.
  • Backed by Aruba’s limited lifetime warranty, ensuring long-term reliability and support.

Product Overview

The HP Aruba CX 9300 Switch is engineered for high-performance, high-capacity networking environments. With a 1.7GHz processor and 32GB of installed RAM, this switch ensures seamless operation across intensive workloads. It features a versatile 34-port configuration and supports data link protocols across 100, 200, and 400 Gigabit Ethernet, making it suitable for modern enterprise data centers that demand scalability and bandwidth efficiency. Its robust architecture includes 128GB of M.2 SSD storage, 4GB mSATA, and dual 16GB SODIMMs.

Physically, the unit measures 1.71 inches high by 17.26 inches deep by 23.23 inches wide, and weighs 26.12 lbs., making it suitable for rack deployment. Interface options include SNMP-compatible RJ-45 serial, RJ-45 OOBM Ethernet, and Micro USB. The switch also supports 600W power consumption and requires 220-240V input for full port utilization. TAA compliant and built in Taiwan, it comes with Aruba's limited lifetime warranty for confidence in long-term use.

Specifications

Product Overview
Product Type Layer 3 Managed Switch
Series Aruba CX 9300
Form Factor Rack-mountable 1U
Processor 1.7 GHz ARM CPU
RAM 32 GB
Storage 128 GB M.2 SSD + 4 GB mSATA
Installed Memory Modules 2 x 16 GB SODIMM
Power Consumption (Max) 600 Watts
Power Requirements 100-127 VAC / 220-240 VAC, 50/60 Hz
Hot-Swap Power Supply Yes, supported

Wireless Features
Wireless Capability

Compliance & Origin
Country of Origin Taiwan
TAA Compliant Yes
Certifications UL, CE, FCC, VCCI, RoHS, WEEE
Energy Efficient Ethernet (EEE) Yes
Warranty Limited Lifetime Warranty by Aruba

Advanced Security Features
Access Control 802.1X, MACsec, RADIUS, TACACS+
DoS Protection Yes
DHCP Protection Dynamic ARP Inspection, DHCP Snooping
Secure Management Access SSH, HTTPS
Traffic Filtering ACLs, QoS, Port Security

Interfaces
Total Ports 34
Port Configuration QSFP+, QSFP28, SFP+ (modular)
Supported Ethernet Rates 100/200/400 Gigabit Ethernet
Data Link Protocols 100GbE, 200GbE, 400GbE
Console Ports 1 x RJ-45 serial, 1 x Micro USB
Out-of-Band Management Port 1 x RJ-45 Ethernet
Management Protocols SNMP, Telnet, SSH, Web GUI, REST API
Expansion Slots Yes, modular hardware design

Physical & Environmental
Width 17.26 in (438.4 mm)
Depth 23.23 in (590 mm)
Height 1.71 in (43.5 mm)
Weight 26.12 lbs (11.85 kg)
Rack Units 1U
Operating Temperature 0°C to 45°C (32°F to 113°F)
Storage Temperature -40°C to 70°C (-40°F to 158°F)
Operating Humidity 5% to 95% non-condensing
Cooling Type Front-to-back airflow, fan-based
Mounting Type 19-inch rack mount

Cloud Management & Licensing
Management Interface Aruba Central, CLI, Web UI, REST API
Cloud Integration Compatible with Aruba Central
Licensing Model Subscription-based for Aruba Central features
Included Licenses None (Licenses sold separately)
