HPE Aruba CX 8100 40XT8XF4C Switch Bundle R9W92A#B2B

VENDOR: HP Mfg Part#: R9W92A#B2B
1 3

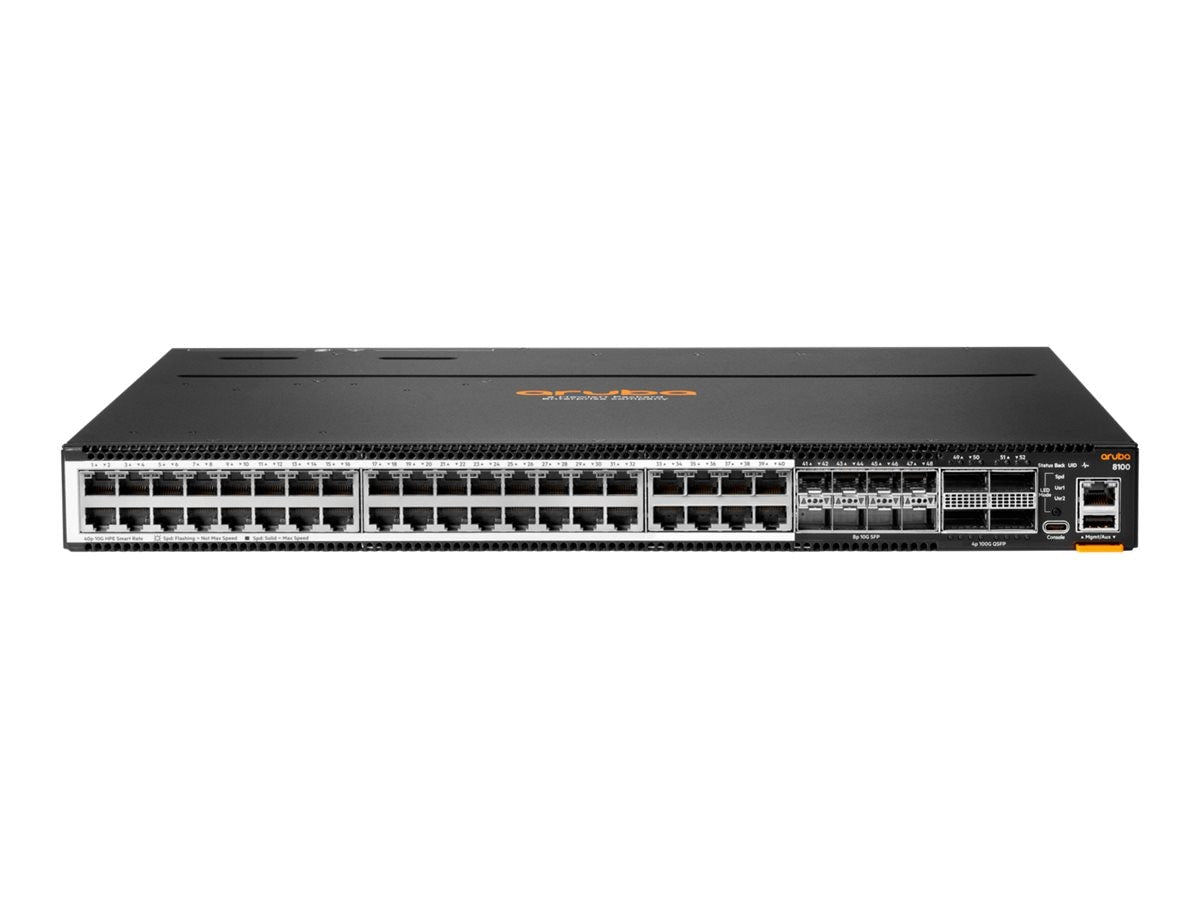

Photo is for illustration purposes only. Actual product may be different.
$23,592.64
$23,592.64
Sale Sold out
MSRP: $29,800.00
Shipping calculated at checkout.
  • Quad-core ARM Cortex A72 1.8 GHz processor for high-performance switching
  • 40-port 100M/1/2.5/5/10 GbE access capability for flexible connectivity
  • 8 SFP/SFP+ and 4 QSFP+/QSFP28 ports enabling 10/40/100 GbE uplinks
  • Rated for 120W idle power and 500W maximum power for energy-efficient operation
  • Supports dual AC input ranges: 100–127V (7.1A) and 200–240V (3.4A)
  • TAA compliant and includes JmpCbl for NA/JP/TW regional installation

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Designed for enterprise and data center environments requiring scalable high-speed Ethernet, with up to 100 GbE uplinks.
  • Energy-efficient with only 120W idle power and support for flexible voltage inputs, enabling reduced operational costs.
  • Backed by a Limited Lifetime Warranty and TAA compliance, ensuring long-term reliability and public sector readiness.

Product Overview

The HPE Aruba Networking CX 8100 Series Switch (R9W92A#B2B) features a quad-core ARM Cortex A72 1.8 GHz processor for enterprise-grade performance. It includes 40 multi-speed access ports (100M/1/2.5/5/10 GbE) along with 8 SFP/SFP+ and 4 QSFP+/QSFP28 uplinks to enable flexible scaling and uplink options. With a maximum power draw of 500W and idle power of just 120W, the unit offers an efficient, power-conscious switching solution. Compliance with TAA regulations, regional jumper cables for easy deployment in NA/JP/TW, and a Limited Lifetime Warranty further enhance its value as a data center or enterprise core asset.

Specifications

Product Overview
Product Type Layer 3 Managed Ethernet Switch
Switch Series Aruba CX 8100 Series
Model Number R9W92A#B2B
Processor Quad-core ARM Cortex A72 1.8 GHz
Form Factor 1U rack-mountable
Power Consumption (Max) 500W
Power Consumption (Idle) 120W
Power Supply Dual redundant hot-swappable power supplies (included)
Cooling Redundant hot-swappable fans
Warranty Limited Lifetime Warranty

Wireless Features
Wireless Support No (Wired Switch)

Compliance & Origin
Country of Origin Singapore
TAA Compliance Yes
Certifications UL, CE, FCC Class A, VCCI, ICES, RoHS, WEEE
Emission Standards EN 55032 Class A, EN 61000-3-2, EN 61000-3-3

Advanced Security Features
Access Control 802.1X, MAC authentication, Web-based authentication
DHCP Snooping Yes
Dynamic ARP Protection Yes
IP Source Guard Yes
Control Plane Policing (CoPP) Yes
Traffic Filtering Ingress & Egress ACLs
Secure Shell (SSH) Yes
Secure Web Management (HTTPS) Yes

Interfaces
Total Ports 52
10GBASE-T Ports (1/2.5/5/10G) 40
SFP/SFP+ Ports 8
QSFP+/QSFP28 Ports 4
Aggregate Bandwidth Up to 1.2 Tbps
Switching Capacity 2.4 Tbps
Forwarding Rate 1,190 Mpps
Flash Memory 16 GB
System Memory 8 GB DRAM
Packet Buffer Size 42 MB
MAC Address Table Size 128K entries

Physical & Environmental
Dimensions (H x W x D) 4.39 x 44.25 x 56 cm
Chassis Height 1U
Weight Approx. 9.2 kg (20.3 lbs)
Operating Temperature 0°C to 45°C (32°F to 113°F)
Storage Temperature -40°C to 70°C (-40°F to 158°F)
Operating Humidity 5% to 95% non-condensing
Acoustic Noise (typical) 59.2 dB
Airflow Direction Front-to-back or back-to-front (field configurable)

Cloud Management & Licensing
Management Platform Aruba Central (Cloud-based), Aruba NetEdit
CLI Management Yes
REST API Support Yes
Included Licensing None (licenses sold separately)
Zero Touch Provisioning Supported
