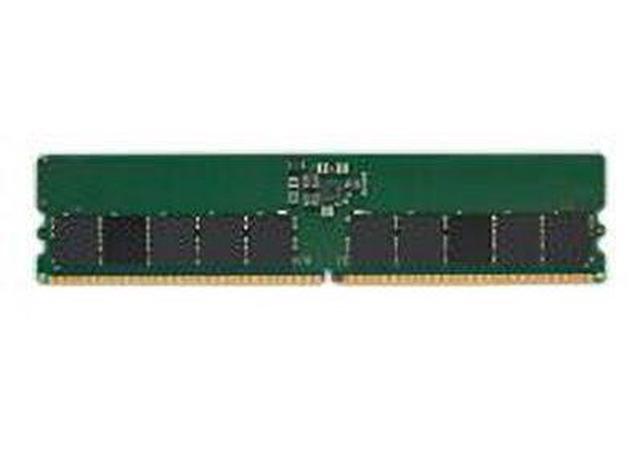

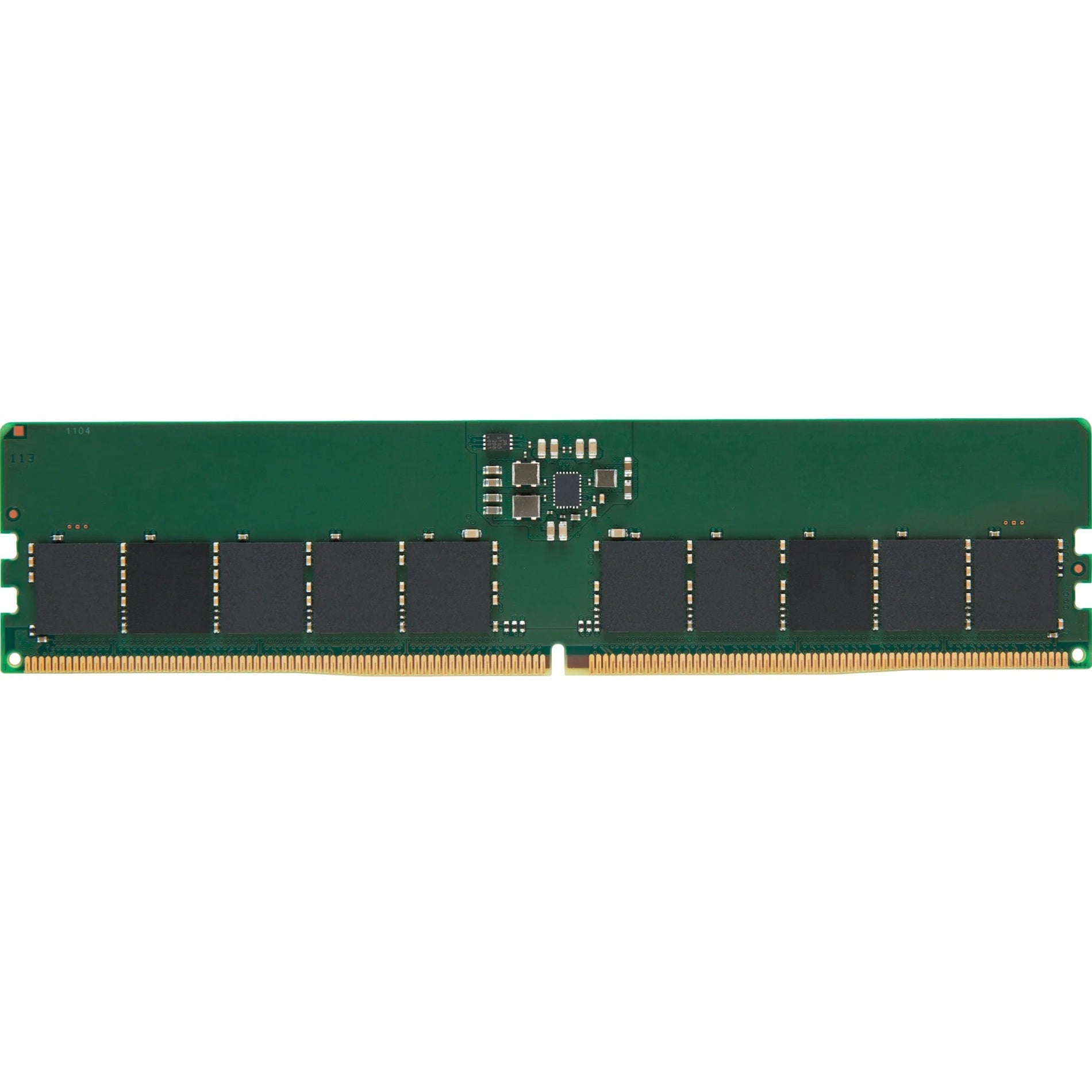

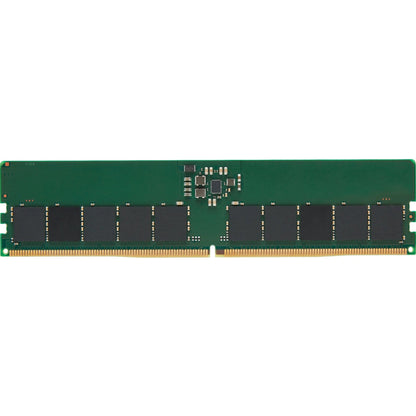

Kingston 16GB DDR5-4800 ECC DIMM CL40 288-pin (KTH-PL548E-16G)

VENDOR: KINGSTON Mfg Part#: KTH-PL548E-16G UPC#: 740617334456
1 3
Photo is for illustration purposes only. Actual product may be different.
$98.75
$98.75
Sale Sold out
MSRP: $145.00
Shipping calculated at checkout.
  • 16GB DDR5 DRAM operating at 4800 MHz for high transfer rates
  • 288-pin DIMM form factor compatible with modern server/workstation motherboards
  • Error Correcting Code (ECC) for improved data reliability
  • Low voltage operation at 1.1V for energy efficiency
  • CAS latency of CL40 for balanced speed and stability
  • TAA-compliant, made in Taiwan, with lifetime warranty

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Offers high memory bandwidth at 4800 MHz, ideal for handling demanding workloads
  • ECC functionality ensures system integrity in critical business and enterprise environments
  • Lifetime warranty and TAA compliance provide long-term value and eligibility for government procurement

Product Overview

The Kingston 16GB DDR5-4800MT/s ECC Module (KTH-PL548E-16G) is designed for high-performance enterprise computing environments. This 288-pin DIMM module operates at 4800 MHz using DDR5 technology to deliver increased bandwidth and energy efficiency. Integrated ECC capabilities ensure data integrity, essential for mission-critical systems. With a low 1.1V supply voltage and a CL40 latency profile, it provides stability and optimized performance. The module is TAA compliant and manufactured in Taiwan, backed by a lifetime warranty for added peace of mind.

Specifications

Product Overview
Manufacturer Kingston
Product Name 16GB DDR5-4800 ECC DIMM CL40
Part Number KTH-PL548E-16G
Product Type DRAM Module
Module Type Unbuffered ECC DIMM
Form Factor DIMM 288-pin
Capacity 16 GB
Memory Technology DDR5 SDRAM
Speed 4800 MT/s (MHz)
CAS Latency (CL) CL40
Voltage 1.1 V
Error Correction ECC
Rank 1R (Single Rank)
Chip Organization x8
SPD Support Yes
Thermal Sensor Yes

Physical & Environmental
Height 31.25 mm
Module Thickness 3.8 mm
Operating Temperature (Minimum) 0°C
Operating Temperature (Maximum) 85°C
Storage Temperature (Minimum) -55°C
Storage Temperature (Maximum) 100°C
Humidity (Operating) 10% to 90% non-condensing
Humidity (Non-operating) 5% to 95% non-condensing

Cloud Management & Licensing
Remote Monitoring

Interfaces
Interface Type 288-pin DIMM
Memory Bus 64-bit
Bus Type PC5-38400
Data Transfer Rate 4800 MT/s

Compliance & Origin
Country of Origin Taiwan
TAA Compliant Yes
RoHS Compliant Yes
REACH Compliant Yes
Halogen Free Yes
Warranty Lifetime limited warranty

Advanced Security Features
Secure Boot Support
