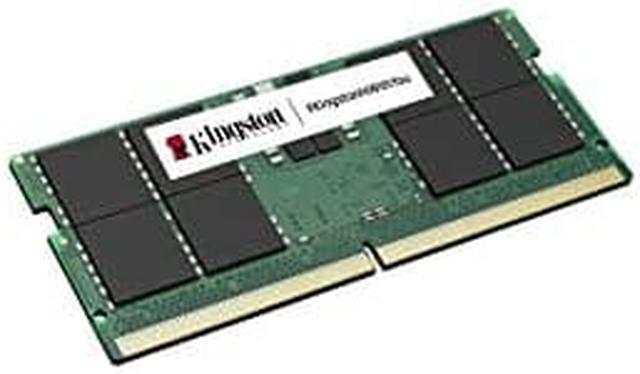

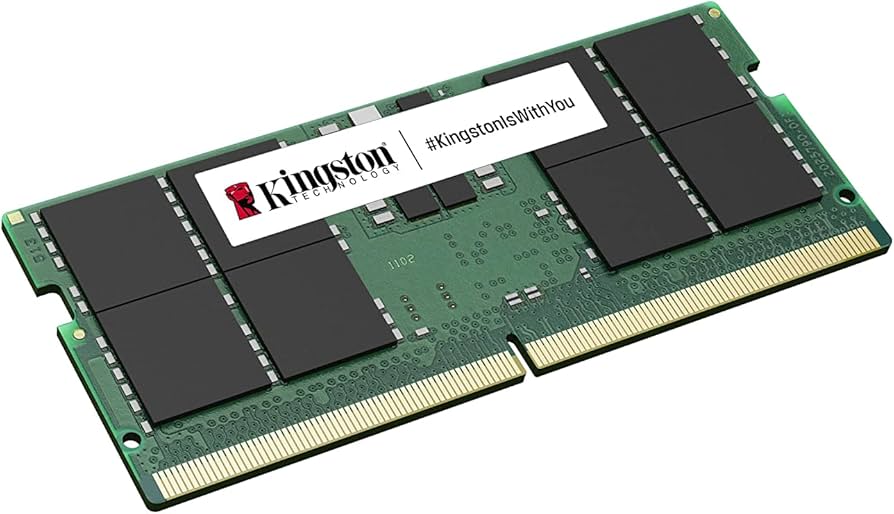

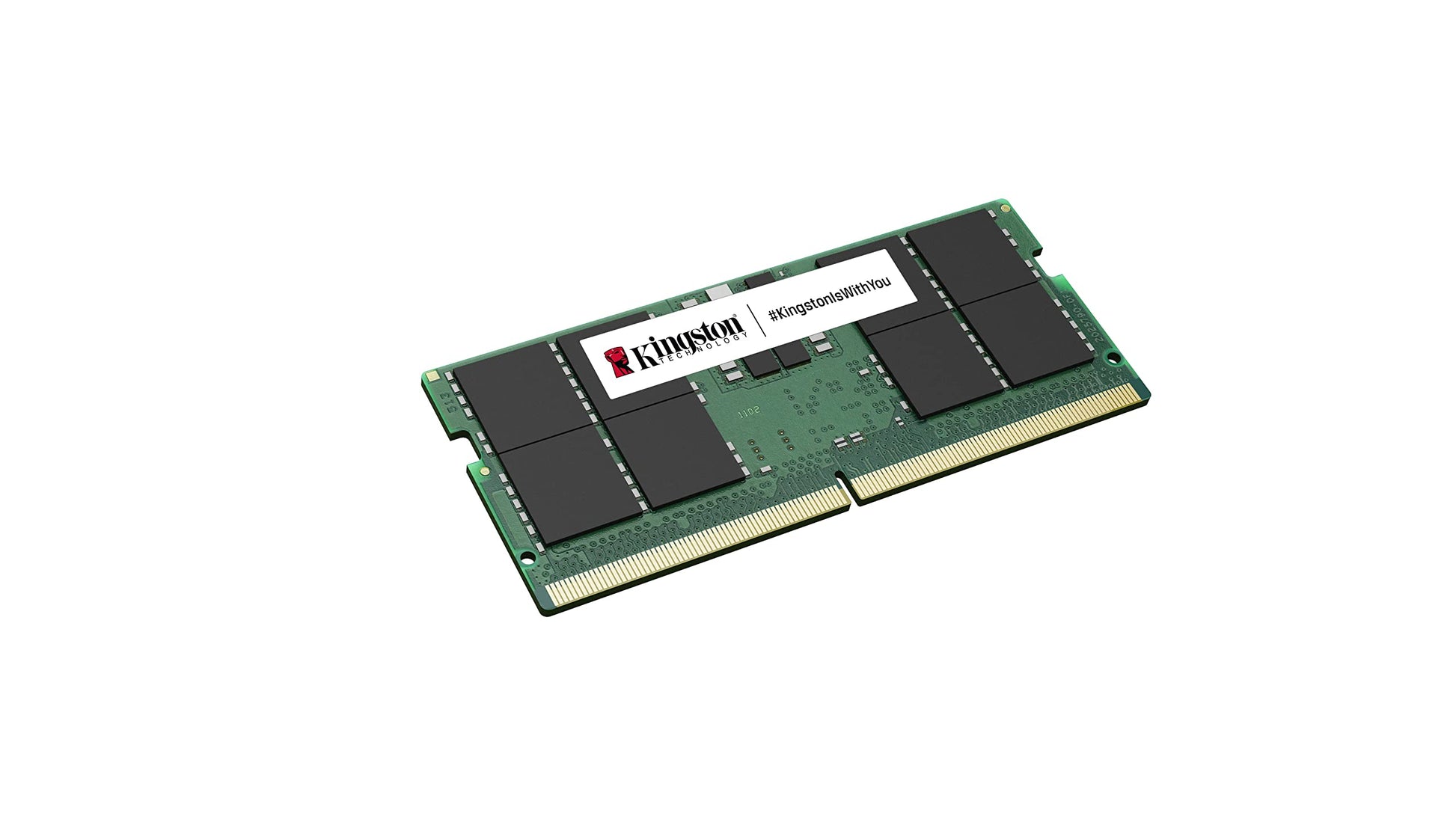

Kingston 32GB DDR5 5600MT/s DIMM CL46 Non-ECC 2Rx8

VENDOR: KINGSTON Mfg Part#: KVR56U46BD8-32 UPC#: 740617332865
1 3
Photo is for illustration purposes only. Actual product may be different.
$86.57
$86.57
Sale Sold out
MSRP: $90.00
Shipping calculated at checkout.
  • 32GB DDR5 SDRAM operating at 5600 MHz for high-speed performance
  • 288-pin DIMM form factor compatible with standard desktop motherboards
  • Non-ECC configuration for general-purpose and workstation environments
  • CL46 CAS latency for balanced performance
  • 1.1V low-power operation to improve efficiency
  • TAA compliant and manufactured in Taiwan for sourcing transparency

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Delivers ultra-fast 5600MT/s speed, ideal for high-performance computing and demanding applications
  • Energy-efficient 1.1V operation reduces thermal output and power consumption
  • Fully TAA compliant, suitable for government and contract requirements

Product Overview

The Kingston 32GB DDR5 5600MT/s DIMM is designed to meet the performance demands of modern computing systems. Operating at an impressive 5600 MHz, this DDR5 module ensures faster data transfer rates and increased bandwidth, making it ideal for demanding applications such as content creation, data analysis, and high-end multitasking. With its 32GB capacity and 288-pin DIMM form factor, it provides ample memory expansion for desktops and workstations.

This Non-ECC memory is engineered for environments where data integrity is handled at the system level. Its CL46 CAS latency and 1.1V power requirement contribute to efficient, low-power operation. The dual-rank 2Rx8 configuration aids in balancing performance and capacity for general-purpose professional usage. With TAA compliance and manufacturing in Taiwan, it ensures reliable supply chain integrity for government and commercial applications.

Specifications

Product Overview
Product Type Desktop Memory Module
Form Factor 288-pin DIMM
Memory Technology DDR5 SDRAM
Capacity 32 GB
Module Configuration 2Rx8
Data Integrity Non-ECC
Buffered/Registered Unbuffered
Performance Profile
Power Supply Voltage 1.1 V
Rank Dual Rank
Compatibility PC Desktops and Workstations supporting DDR5

Physical & Environmental
Height 31.25 mm
Module Depth 133.35 mm
Operating Temperature (Min) 0°C
Operating Temperature (Max) 85°C
Storage Temperature (Min) -55°C
Storage Temperature (Max) 100°C
Humidity (Non-condensing) 10% to 90%

Cloud Management & Licensing
Cloud Management
License Type

Interfaces
Memory Speed 5600 MT/s (Mega Transfers per second)
CAS Latency (CL) 46
Memory Bus Width 64-bit
Pin Count 288-pin
I/O Bus Clock 5600 MHz
Error Checking Non-ECC

Compliance & Origin
Country of Origin Taiwan
TAA Compliant Yes
RoHS Compliant Yes
Reach Compliant Yes
Halogen Free Yes

Advanced Security Features
Integrated Security Features
On-Die ECC Yes (for internal chip error correction)
