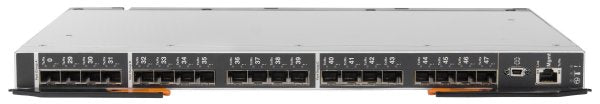

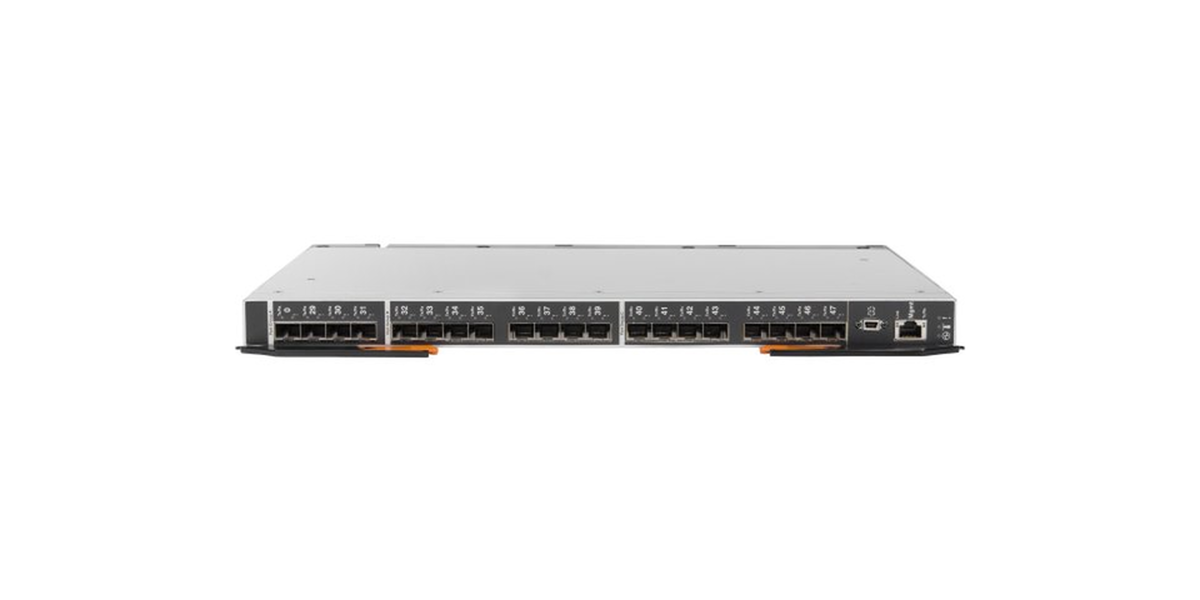

Lenovo Flex FC5022 24-Port 16Gb ESB SAN Scalable Switch

VENDOR: LENOVO Mfg Part#: 90Y9356 UPC#: 883436248716
1 5
Photo is for illustration purposes only. Actual product may be different.
$13,645.90
$13,645.90
Sale Sold out
MSRP: $17,599.00
Shipping calculated at checkout.
  • 24 ports for scalable network infrastructure
  • Supports 16Gb Fibre Channel for high-speed data transfer
  • TAA compliance ensures suitability for government and regulated sectors
  • Manufactured in Mexico for consistent build quality

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Delivers high-speed 16Gb Fibre Channel performance, ideal for demanding SAN environments.
  • Supports 24 ports, providing significant scalability for expanding enterprise networks.
  • TAA-compliant and manufactured in Mexico, meeting requirements for public sector and enterprise use.

Product Overview

The Lenovo Flex FC5022 24-Port 16Gb ESB SAN Scalable Switch is engineered for enterprise environments needing high-performance and scalable SAN infrastructure. With 24 ports and 16Gb Fibre Channel support, it offers rapid and reliable data transmission in mission-critical settings. The switch is TAA compliant and manufactured in Mexico, suitable for stringent deployment scenarios. Though certain specifications such as form factor and exact interface types are not included, its high transfer rate and enterprise-grade reliability make it a strong choice for data center scalability and operational optimization.

Specifications

Product Overview
Product Type Scalable Switch
Form Factor Embedded switch module
Weight 1.13 kg (2.5 lbs)
Power Consumption 50 watts (maximum)
Power Supply Supplied by Flex System chassis

Physical & Environmental
Dimensions 220 mm x 200 mm x 30 mm (8.66 in x 7.87 in x 1.18 in)
Operating Temperature 10°C to 40°C (50°F to 104°F)
Non-Operating Temperature -40°C to 70°C (-40°F to 158°F)
Operating Humidity 8% to 80% (non-condensing)
Non-Operating Humidity 5% to 95% (non-condensing)
MTBF 300,000 hours
Cooling Chassis-provided air cooling

Cloud Management & Licensing
Management Interface Brocade Fabric OS via CLI, Web Tools, SNMP, SMI-S
Management Access Out-of-Band Ethernet management port
Licensing Model Pay-as-you-grow, port activation license
Included Licenses 12-port base license, additional ports require upgrade license
Monitoring Tools Integrated diagnostics and Fabric Watch

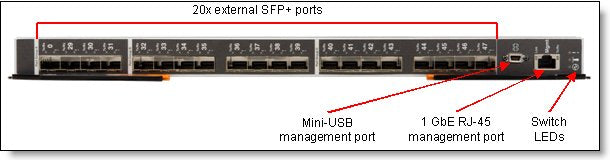

Interfaces
Number of Ports 24
Data Transfer Rate 16 Gbps
Port Type SFP+ (Fibre Channel)
Port Speeds 16 Gb/s, 8 Gb/s, 4 Gb/s auto-sensing
Data Link Protocol 16Gb Fibre Channel
Switch Fabric Throughput 768 Gbps full duplex
Latency <1 µs (cut-through switching)
Expansion Bays Up to 12 external SFP+ uplinks configurable
Port Scalability Licensable from 12 to 24 ports

Compliance & Origin
TAA Compliance Yes
Country of Origin Mexico
Regulatory Approvals UL, cUL, CE, FCC Part 15 Class A
RoHS Compliance Yes
ENERGY STAR Compliant Yes

Advanced Security Features
Access Control Role-Based Access Control (RBAC)
Authentication RADIUS, LDAP, TACACS+
Encryption FC-SP authentication, DH-CHAP, FIPS 140-2 compliance
Traffic Isolation Supports Virtual Fabrics and Quality of Service (QoS)
System Security Secure Boot, Secure Firmware Download
