Products Memory, Storage and Components Lenovo ThinkSystem 5400 PRO...

Lenovo ThinkSystem 5400 PRO 960GB RI SATA 6Gb SSD Hot Swap

VENDOR: LENOVO Mfg Part#: 4XB7A82266 UPC#: 889488633388
1 3

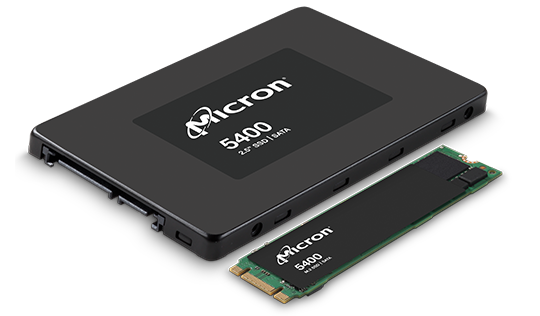

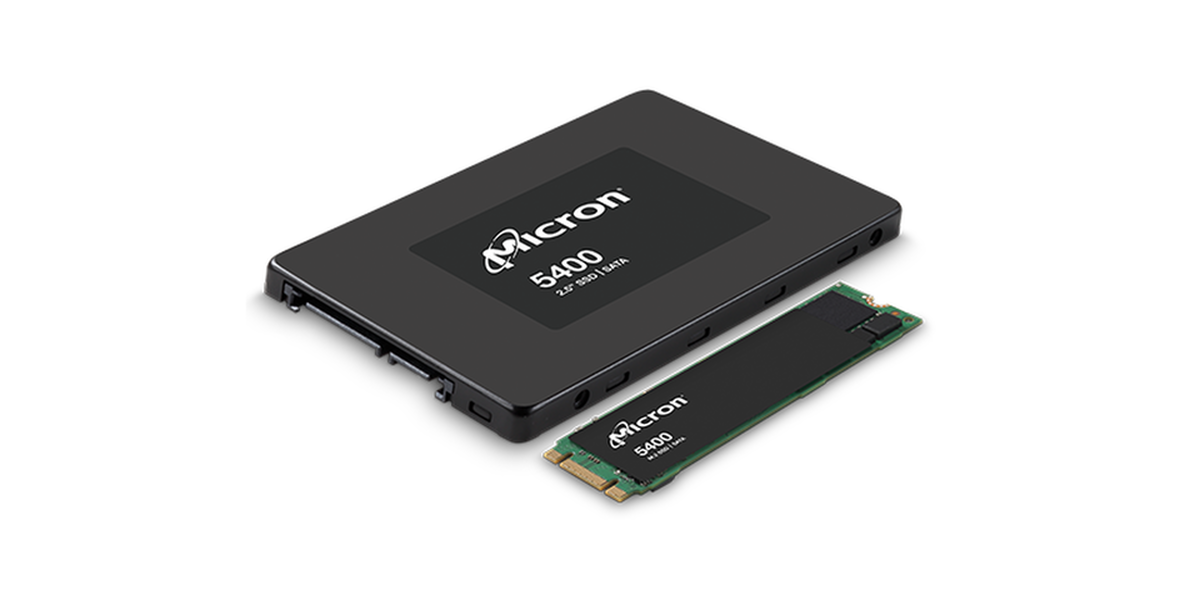

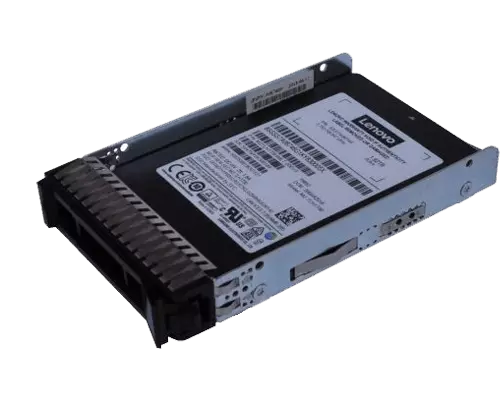

Photo is for illustration purposes only. Actual product may be different.
$999.00
$999.00
Sale Sold out
Shipping calculated at checkout.
  • 960GB 3D TLC NAND flash capacity ideal for read-intensive workloads
  • SATA 6Gb/s interface with up to 540 MBps sequential read and 520 MBps write speeds
  • Max 4KB random read/write: 95,000 / 33,000 IOPS for responsive performance
  • MTBF of 3,000,000 hours and endurance up to 2628 TBW for reliability
  • Hot-swap capable for seamless maintenance in live systems
  • Supports S.M.A.R.T. and integrates with secure SED-compatible RAID/HBA controllers

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • High IOPS and reliability make this drive ideal for enterprise-level server deployments.
  • Hot-swap and compact 7mm design provide excellent serviceability and space efficiency in rack setups.
  • Backed by a 1-year warranty and RoHS-compliant build for dependable lifecycle and regulatory support.

Product Overview

The Lenovo ThinkSystem 5400 PRO Read Intensive SSD provides enterprise-grade performance for data centers and servers requiring high read throughput and durability. Featuring a 960GB capacity and SATA 6Gb/s interface, this solid-state drive is tuned for read-intensive environments, achieving up to 95,000 IOPS for 4KB random reads and 540 MBps in sequential read operations. It integrates 3D TLC NAND flash technology and is equipped with S.M.A.R.T. monitoring for proactive drive management.

With a 3 million hour MTBF and 2628 TB endurance, it’s ideal for fault-tolerant primary storage or caching layers. Hot-swap support enhances uptime in dynamic server environments, while the compact 7mm design and efficient power use suit space-constrained deployments. A 1-year warranty, RoHS compliance, and SED controller compatibility provide lifecycle assurance and security support. TAA and COO details available on request.

Specifications

Product Overview
Type Solid State Drive (SSD)
Form Factor 2.5-inch
Capacity 960 GB
Usage Intent Read Intensive (RI)
Interface SATA 6 Gb/s
NAND Type 3D TLC NAND
Hot Swap Support Yes
MTBF 3,000,000 hours
Endurance 2628 TB (Total Bytes Written)
Warranty 1-Year Limited Warranty
S.M.A.R.T. Monitoring Yes
SED Controller Compatibility Yes (requires supported SAS HBA or RAID controller)

Physical & Environmental
Width 2.8 inches
Depth 4.0 inches
Height 0.3 inches
Weight 2.5 ounces
Power Consumption (Read) 2.8 W
Power Consumption (Write) 3.1 W
Minimum Operating Temperature 0 °C
Maximum Operating Temperature 70 °C

Cloud Management & Licensing
Management Interface
License Included
Cloud Monitoring Features

Interfaces
Interface Type SATA 6 Gb/s
Data Transfer Rate 6 Gbps
Max 4KB Random Read 95,000 IOPS
Max 4KB Random Write 33,000 IOPS
Max Sequential Read 540 MBps
Max Sequential Write 520 MBps

Compliance & Origin
RoHS Compliant Yes
Trade Agreement Act (TAA) Compliant Inquire
Country of Origin Inquire

Advanced Security Features
SED (Self-Encrypting Drive) Supported with appropriate controller
Controller Support Requires MegaRAID SafeStore or SAS HBA with SED support
