| Product Type | Direct View LED Cabinet |
| Display Technology | Micro COB (Chip-on-Board) Bonded DVLED |
| Pixel Pitch | 1.25 mm |
| Resolution (per cabinet) | 480 x 270 pixels |
| Refresh Rate | 7680 Hz |
| Scan Type | 15:1 |
| Brightness | 1000 nits |
| Viewing Angle (Horizontal/Vertical) | 170° / 170° |
| Contrast Ratio | 20,000:1 |
| Cabinet Type | Ceiling mountable, Main Top |
| Megapixel Controller Compatible | Yes |
| Redundancy Support | Signal Redundancy |
| Power Consumption (Typ./Max) | 70W / 160W |
| Power Supply | 100–240V AC, 50/60Hz |
| Power Connector Type | Secure Socket |
| Cabinet Class | Class 0 |

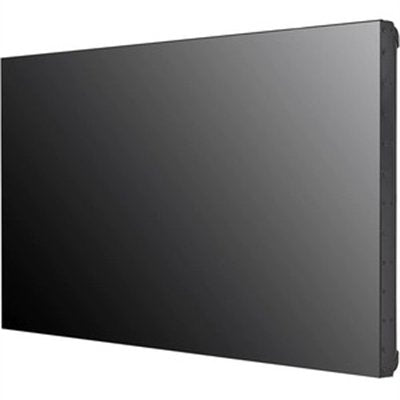

LG TAA MAGNIT LSAP VI F.L.A.T. Series DVLED Cabinet P1.25, 7680Hz, 1000 nits
Photo is for illustration purposes only. Actual product may be different.
Regular price
$8,373.00
Regular price
Sale price
$8,373.00
Unit price
per
MSRP: $10,467.00
Shipping calculated at checkout.
Couldn't load pickup availability
- Pixel pitch: P1.25 for high-definition close-range viewing
- Refresh rate: 7,680Hz for ultra-smooth motion handling
- Brightness: 1000 nits for visibility in high ambient light
- Resolution: 480x270 with Micro COB bonding technology
- Scan rate: 15:1, Ceiling-type mounting design
- Signal redundancy and secure socket data connection support
Shipping & Returns
Shipping & Returns
All our products can be shipped anywhere in the Continental United States.
Key Benefits
Eye-Insights™ by Eye-In Technologies
AI-Powered Summaries from Online Customer Reviews
AI-Powered Summaries from Online Customer Reviews
Eye-Insights™ are generated by proprietary AI that analyzes real online customer reviews to highlight top pros and key product features. While we aim for accuracy, insights are provided “as-is” and individual results may vary.
- Optimized for high-resolution installations with P1.25 pitch and advanced refresh rate performance
- Secure and redundant signal architecture ensures system uptime in mission-critical environments
- TAA compliance and compatibility with Megapixel Controllers support enterprise and public-sector integrations
Product Overview
TAA MAGNIT LSAP VI F.L.A.T. Series DVLED, P1.25, 480x270 resolution, D-IC / High performance Refresh rate 7,680Hz, Scan rate 15:1 Ceiling type cabinet, Signal Redundancy, Main Top, Secure Socket data connection, Panel/Cabinet compatible with Megapixel Controller,, 0 class, Micro COB - Bonded, 1000 nit brightness, 600x337.5x44.9Specifications
Product Overview
Physical & Environmental
| Dimensions (W x H x D) | 600 × 337.5 × 44.9 mm |
| Weight per Cabinet | 7.5 kg |
| Cabinet Material | Aluminum Die-Casting |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -20°C to 60°C |
| Operating Humidity | 10% to 80% RH (non-condensing) |
| Storage Humidity | 10% to 85% RH (non-condensing) |
| Cooling Method | Fanless design (Natural Convection) |
Cloud Management & Licensing
| Remote Management Compatibility | LG ConnectedCare (Optional) |
| Controller Compatibility | Megapixel VRR Controller, LG CVEA Controller |
| Display System Support | F.L.A.T. Series Compatible Systems |
Interfaces
| Data Interface | Secure Socket |
| Controller Interface | Compatible with Megapixel VRR Controller |
| Signal Redundancy | Supported |
| Signal Input Type | LVDS / Proprietary LED Module Input |
Compliance & Origin
| TAA Compliance | Yes |
| Country of Origin | South Korea |
| Certifications | FCC Class A, CE, ETL Listed |
| EMC Standard | FCC Part15, Class A |
| RoHS Compliant | Yes |
Advanced Security Features
| Signal Integrity Features | Secure Socket and Signal Redundancy |
| Display Failover Support | Yes – via Redundancy Systems |
