| Product Type | Access Point |
| Model | WAX610Y |
| Manufacturer | NETGEAR |
| Manufacturer Part Number | WAX610Y-100NAS |
| UPC | 606449152562 |
| Form Factor | Ceiling/Wall Mountable, Outdoor |
| Deployment Location | Outdoor |
| Weight | 0.93 kg (2.05 lb) |
| Power Requirements | 802.3at PoE+ (Power over Ethernet) |
| Power Consumption (Max) | 15.3W |
| Warranty | 5-Year Hardware Warranty |

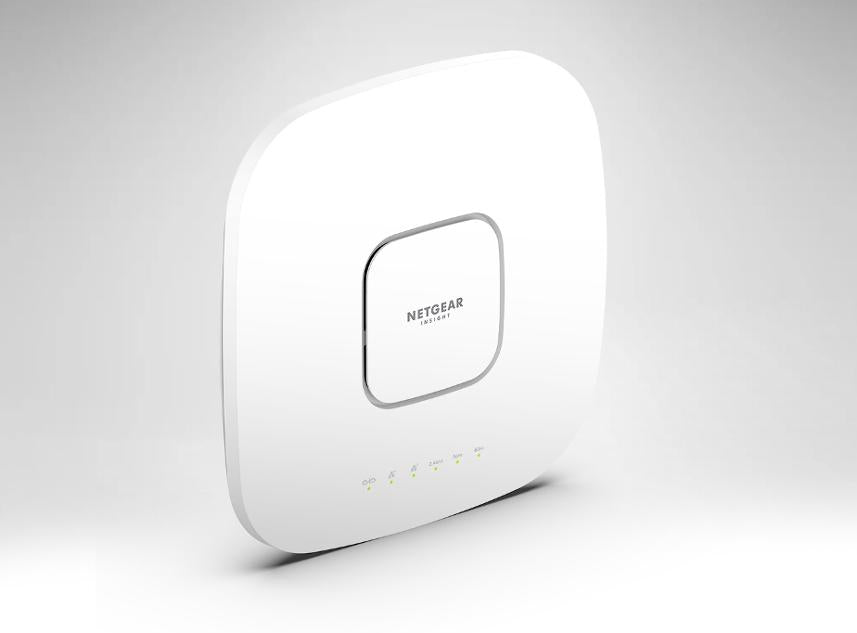

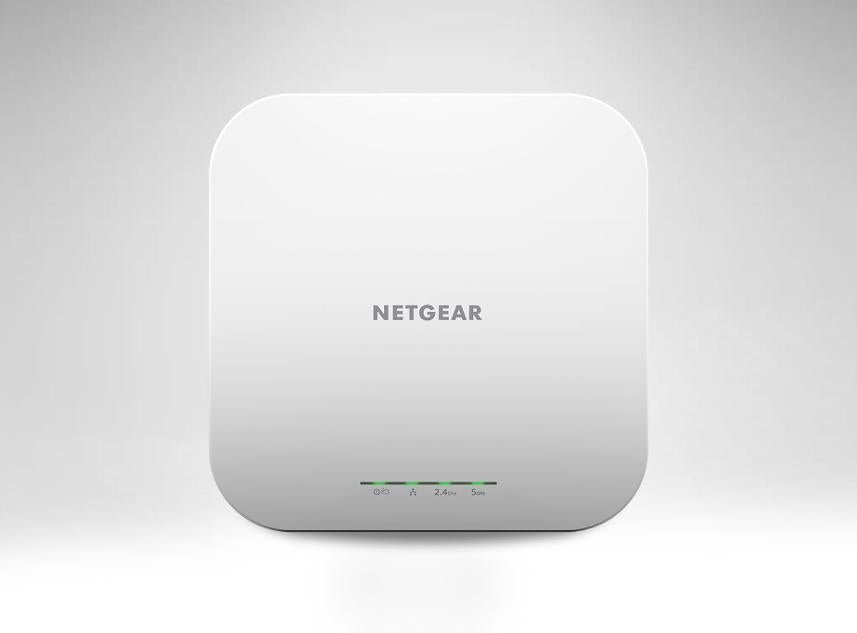

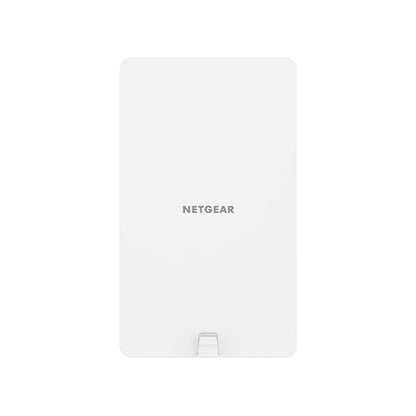

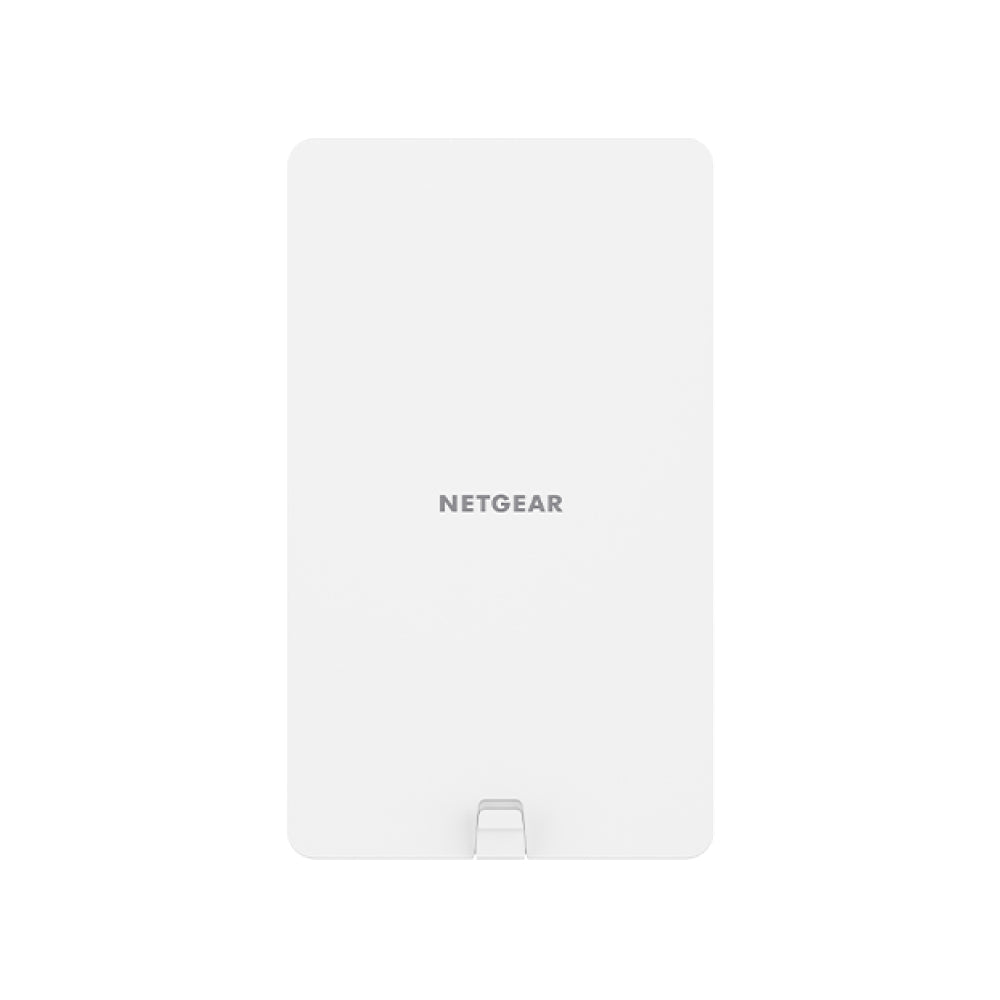

NETGEAR Insight Managed WiFi 6 AX1800 Outdoor Access Point
Photo is for illustration purposes only. Actual product may be different.
Regular price
$269.85 USD
Regular price
Sale price
$269.85 USD
Unit price
per
MSRP: $389.97
Shipping calculated at checkout.
Couldn't load pickup availability
- WiFi 6 (802.11ax) support on 2.4 GHz and 5 GHz bands
- 2.5 Gbps RJ-45 Ethernet uplink for high-speed connectivity
- Outdoor-rated design suitable for harsh environments
- Insight cloud management platform with 1-year subscription included
- TAA compliant and manufactured in Taiwan
- Single-port (100/1000/2.5GBASE-T) Gigabit Ethernet interface
Shipping & Returns
Shipping & Returns
All our products can be shipped anywhere in the Continental United States.
Key Benefits
Eye-Insights™ by Eye-In Technologies
AI-Powered Summaries from Online Customer Reviews
AI-Powered Summaries from Online Customer Reviews
Eye-Insights™ are generated by proprietary AI that analyzes real online customer reviews to highlight top pros and key product features. While we aim for accuracy, insights are provided “as-is” and individual results may vary.
- Delivers high-throughput outdoor wireless access with dual-band WiFi 6 and 2.5 Gbps uplink
- Includes remote management through Insight cloud with 1-year subscription, reducing onsite maintenance
- 5-year hardware warranty provides long-term deployment confidence for enterprise networks
Product Overview
NETGEAR Insight Managed WiFi 6 AX1800 Dual Band AX1800 Outdoor Access Point - One 100/1000/2.5GBASE-T Gigabit Ethernet (RJ-45) ports - 5 yearsSpecifications
Product Overview
Wireless Features
| Wi-Fi Generation | WiFi 6 (802.11ax) |
| Wi-Fi Standards | 802.11a/b/g/n/ac/ax |
| Dual Band Support | Yes |
| 2.4 GHz Max Data Rate | 600 Mbps |
| 5 GHz Max Data Rate | 1200 Mbps |
| Combined Maximum Throughput | 1800 Mbps |
| Number of Spatial Streams | 4 |
| MIMO Configuration | 2x2 (2.4GHz) + 2x2 (5GHz) |
| MU-MIMO Support | Yes |
| Beamforming | Yes |
| Wi-Fi Security | WPA3, WPA2-PSK, WPA2-Enterprise |
| Maximum Clients Supported | 250+ |
| OFDMA Support | Yes |
| BSSID Support | 16 per radio |
| SSID Broadcast | Yes |
| SSID per Band | Up to 8 SSIDs per radio |
Compliance & Origin
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Certifications | FCC, IC, CE, UL, Wi-Fi Certified 6 |
| Environment Standards | RoHS, WEEE |
Advanced Security Features
| VLAN Support | Yes (IEEE 802.1Q VLAN tagging) |
| Client Isolation | Yes |
| Access Control | MAC address filtering |
| Network Authentication | WPA3/WPA2 Enterprise & PSK |
| Traffic Separation | Yes (per-SSID VLAN mapping) |
Interfaces
| Ethernet Port Count | 1 |
| Ethernet Interface Type | 100/1000/2.5GBASE-T Gigabit Ethernet (RJ-45) |
| LAN Data Transfer Rate | 2.5 Gbps |
| Uplink Speed | 2.5 Gbps |
| PoE Support | Yes (802.3at PoE+) |
Physical & Environmental
| Width | 7.12 in (180.8 mm) |
| Depth | 12.0 in (304.8 mm) |
| Height | 1.33 in (33.78 mm) |
| Enclosure Rating | IP55 Rated |
| Mount Type | Wall or Pole Mount |
| Operating Temperature | -20°C to +60°C (-4°F to +140°F) |
| Storage Temperature | -40°C to +70°C (-40°F to +158°F) |
| Operating Humidity | 5% to 95% non-condensing |
Cloud Management & Licensing
| Cloud Management Platform | NETGEAR Insight |
| Subscription Included | 1-Year Insight Premium Included |
| Remote Management | Yes via Insight App & Cloud Portal |
| Monitoring Features | Real-time alerts, topology, analytics, remote configuration |
| Firmware Updates | Yes, via Cloud |
