| Product Type | Network Device |
| Model | WAX620 |
| Manufacturer | NETGEAR |
| Product Name | NETGEAR Insight WAX620 WiFi 6 AX3600 Dual-Band Access Point |
| Manufacturer Part Number | WAX620-100NAS |
| Form Factor | Ceiling or Wall Mountable |
| Mounting Options | Ceiling, Wall |
| Weight | 830 g |
| Power Supply | Power over Ethernet (PoE) |
| PoE Standard | 802.3at PoE+ |
| Power Consumption (Max) | 17.3 W |
| Warranty | 5-Year Limited Hardware Warranty |

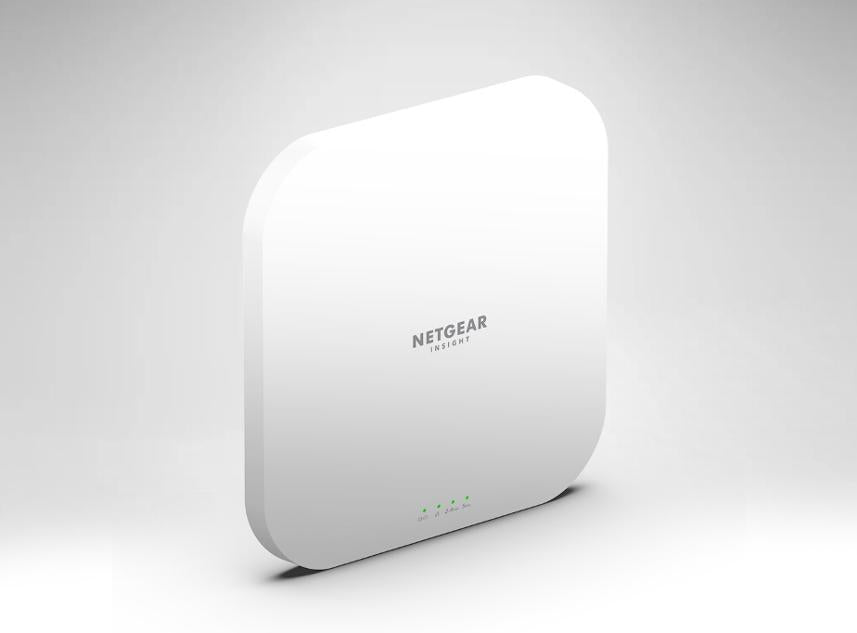

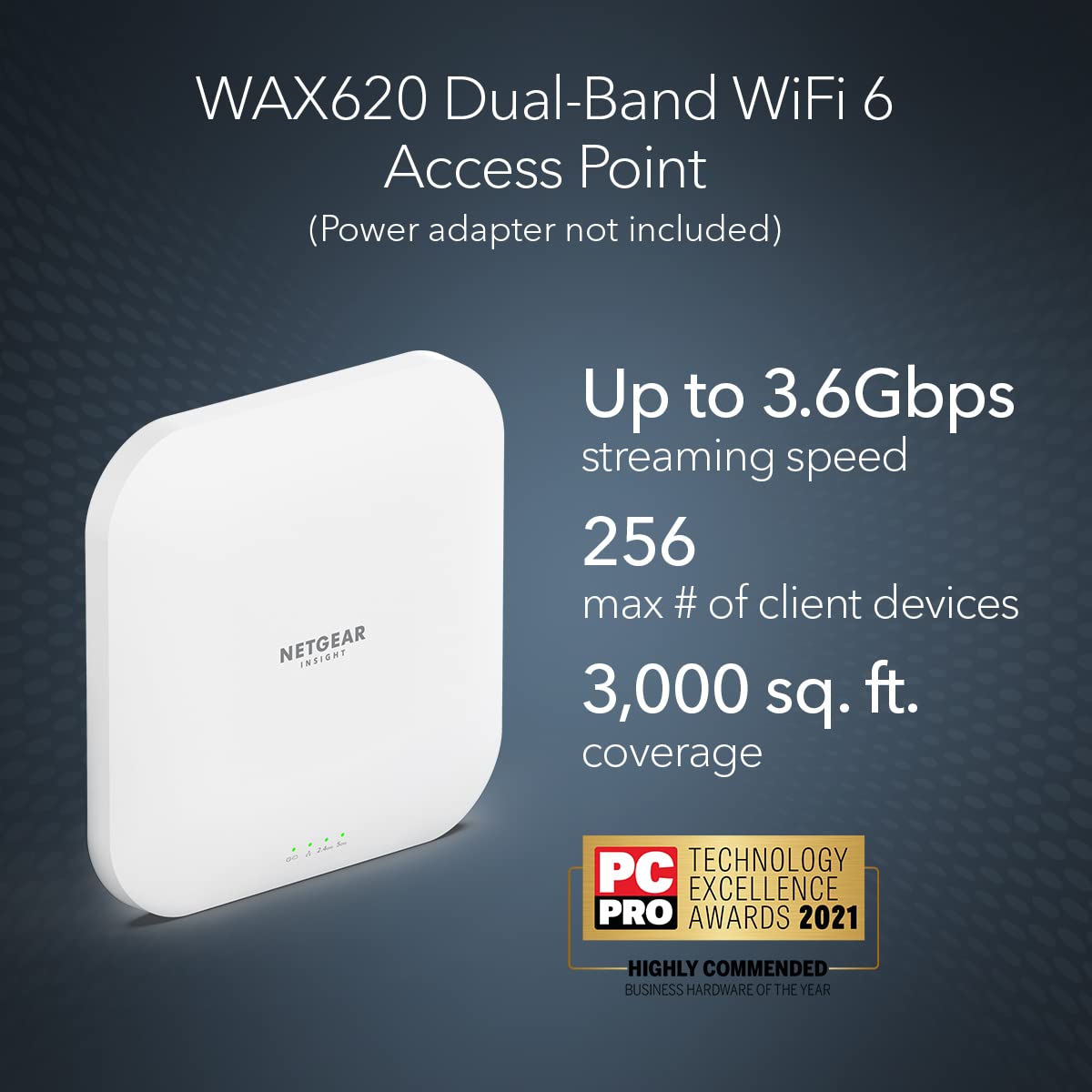

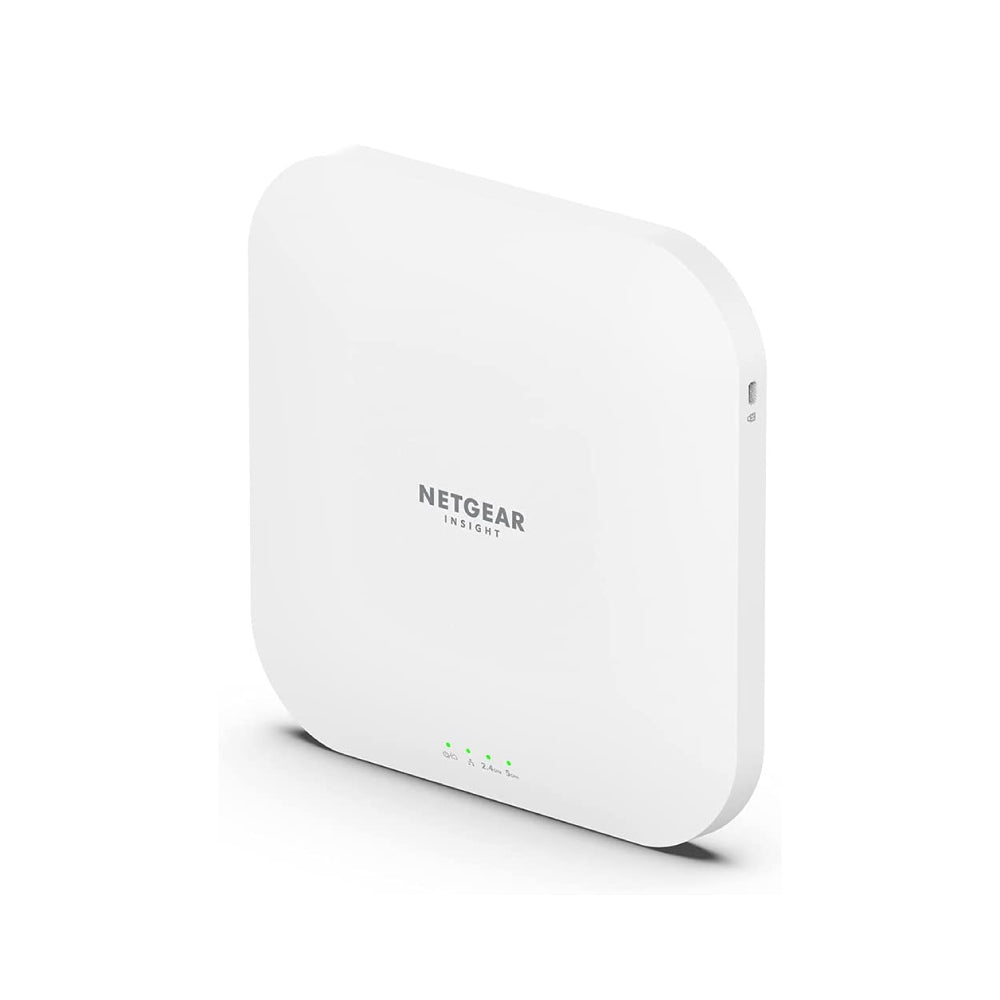

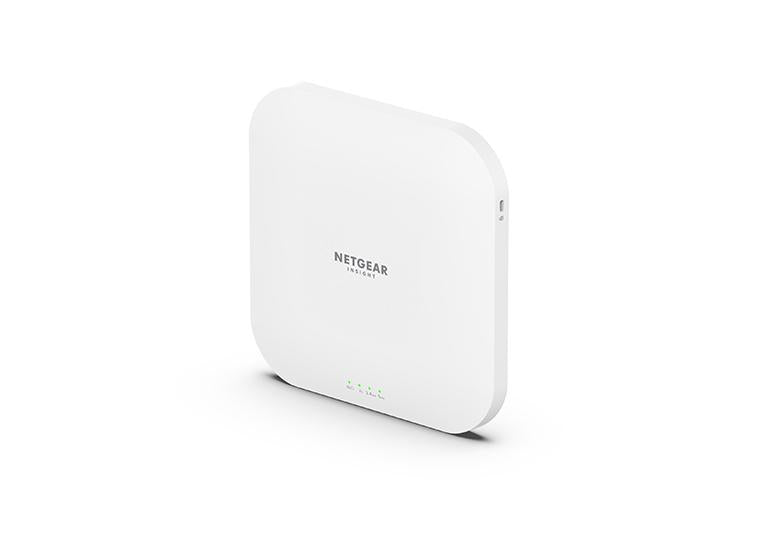

NETGEAR Insight WAX620 WiFi 6 AX3600 Dual-Band Access Point
Photo is for illustration purposes only. Actual product may be different.
Regular price
$248.19 USD
Regular price
Sale price
$248.19 USD
Unit price
per
MSRP: $358.77
Shipping calculated at checkout.
Couldn't load pickup availability
- WiFi 6 (802.11ax) dual-band support with 2.4 GHz and 5 GHz operation
- Single 100/1000/2.5GBASE-T multi-gig Ethernet RJ-45 port
- Supports legacy WiFi standards: 802.11a/b/g/n/ac
- Centralized device management via NETGEAR Insight
- Compact form factor: 8.09" x 8.09" x 1.35"
- 5-year warranty and TAA compliance
Shipping & Returns
Shipping & Returns
All our products can be shipped anywhere in the Continental United States.
Key Benefits
Eye-Insights™ by Eye-In Technologies
AI-Powered Summaries from Online Customer Reviews
AI-Powered Summaries from Online Customer Reviews
Eye-Insights™ are generated by proprietary AI that analyzes real online customer reviews to highlight top pros and key product features. While we aim for accuracy, insights are provided “as-is” and individual results may vary.
- Delivers cutting-edge WiFi 6 performance and higher user capacity for dense environments
- Includes multi-gigabit Ethernet support to remove network bottlenecks and support modern applications
- NETGEAR Insight remote management simplifies deployment and reduces ongoing maintenance costs
Product Overview
NETGEAR Insight Managed WiFi 6 AX3600 Dual Band Multi-Gig Access Point - One 100/1000/2.5GBASE-T Gigabit Ethernet(RJ-45) portsSpecifications
Product Overview
Wireless Features
| Wi-Fi Standard | 802.11a/b/g/n/ac/ax |
| Frequency Band | 2.4 GHz and 5 GHz (Dual Band) |
| Radio Count | Dual |
| MU-MIMO | Yes, 4x4 MU-MIMO per band |
| OFDMA Support | Yes |
| Maximum Theoretical Throughput | 3600 Mbps |
| 2.4 GHz Throughput | 1200 Mbps |
| 5 GHz Throughput | 2400 Mbps |
| Spatial Streams | 4x4 |
| Internal Antennas | Yes |
| Antenna Type | Internal omnidirectional |
Compliance & Origin
| Country of Origin | TAIWAN |
| TAA Compliance | Yes |
| Regulatory Compliance | FCC, IC, CE, RoHS |
| Certifications | Wi-Fi 6 Certified |
Advanced Security Features
| Wireless Security Standards | WPA3, WPA2-PSK, WPA-Enterprise |
| Client Isolation | Yes |
| SSID Broadcast Control | Yes |
| MAC Address Filtering | Yes |
| 802.1X Authentication | Yes |
| VLAN Support | Yes, up to 64 VLANs |
Interfaces
| Networking Type | Ethernet |
| Connectivity Technology | Wireless |
| Data Transfer Rate | 2.5 Gbps |
| Data Link Protocol | Gigabit Ethernet |
| Transport Protocol | Gigabit Ethernet |
| Ethernet Interface Type | 1 x 100/1000/2.5GBASE-T RJ-45 |
| Port Count | 1 |
Physical & Environmental
| Width | 8.09 in |
| Depth | 8.09 in |
| Height | 1.35 in |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -20°C to 70°C (-4°F to 158°F) |
| Operating Humidity | 10% to 90% non-condensing |
| Storage Humidity | 5% to 95% non-condensing |
Cloud Management & Licensing
| Management Interface | NETGEAR Insight Remote/Cloud Management |
| Cloud Managed | Yes |
| Controllerless Architecture | Yes - Insight Managed |
| Local Device Management | Yes via web UI |
| Mobile App Management | Yes - NETGEAR Insight App |
| License Requirement | No license required for basic Insight features |
