Samsung XHB-EP8L-TYPE4X3 Outdoor LED Display

VENDOR: SAMSUNG Mfg Part#: LH080XHBCLE UPC#: 887276720425
1 2

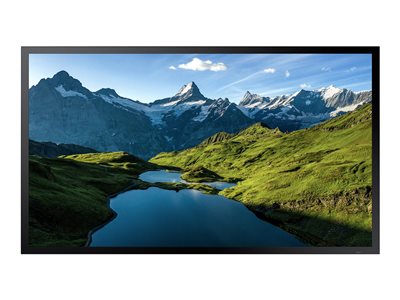

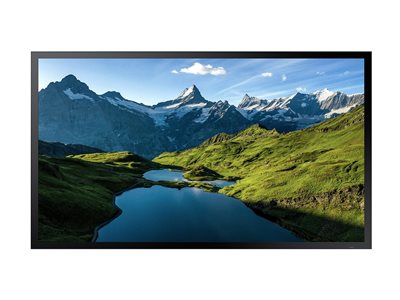

Photo is for illustration purposes only. Actual product may be different.
$4,911.31
$4,911.31
Sale Sold out
MSRP: $6,557.83
Shipping calculated at checkout.
  • LED Display panel with flat screen and 8.21 mm pixel pitch
  • 7000 nits of brightness and a 7000:1 contrast ratio for high visibility
  • 281 trillion color support for rich, vibrant imaging
  • 7680 Hz refresh rate for smooth video playback
  • Operates in extreme environments: -40°C to 50°C
  • TAA compliant and compatible with 100–240 VAC voltage input

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Delivers high-impact outdoor signage with 7000 nits brightness for visibility in direct sunlight.
  • Designed for extreme weather conditions with -40°C to 50°C operating range.
  • Supports massive color depth (281 trillion colors) and ultra-high refresh rate for vivid, flicker-free visuals.

Product Overview

The Samsung XHB-EP8L-TYPE4X3 LED Display is designed for impactful outdoor presentations, leveraging high-end specifications tailored for demanding signage applications. This flat-panel display boasts a pixel pitch of 8.21 mm, a remarkable brightness level of 7000 nits, and a vivid 7000:1 contrast ratio, providing rich visual detail even in direct sunlight. Supporting up to 281 trillion colors with a 7680 Hz refresh rate, it excels in high-traffic environments like transportation hubs, retail exteriors, and open public spaces.

Engineered for industrial endurance, the display operates reliably between -40°C to 50°C, and its robust build—measuring 690 mm in width and depth, and 1035 mm in height—offers durability without compromising display performance. The universal 100–240 VAC input supports flexible deployment across varying electrical infrastructures. With a power consumption of 400 watts, the unit balances strong visual output with efficient energy use.

Ideal for 24/7 digital signage, especially where bright ambient lighting and harsh environmental exposure would challenge lesser displays, the XHB-EP8L-TYPE4X3 forms a key part of Samsung's XHB series known for their TAA compliance and visual consistency. Note that some auxiliary features like HDR and enhancements are not present, but the core performance capabilities position this display as a strong ROI-driven investment for commercial outdoor visual communication.

Specifications

Product Overview
Manufacturer Samsung
Product Name Samsung XHB-EP8L-TYPE4X3 Outdoor LED Display
Model Number LH080XHBCLE
Type LED Display
Form Factor Flat Panel
Display Diagonal Size
Weight 42.7 kg
Power Consumption (Operational) 400 Watt
Power Requirements 100-240 VAC, 50/60 Hz

Wireless Features

Display Characteristics
Resolution 84 x 126
Pixel Pitch 8.21 mm
Brightness 7000 nits
Color Support 281 Trillion Colors
Contrast Ratio 7000:1
Viewing Angle (Horizontal/Vertical) 160° / 117°
Refresh Rate 7680 Hz
HDR Support None
Picture Enhancement None

Cloud Management & Licensing
Remote Management Support
Included Software
Cloud Control Platform
License Model

Interfaces
Input Interfaces
Control Interface

Physical & Environmental
Width 690 mm
Depth 690 mm
Height 1035 mm
Operating Temperature (Min) -40°C
Operating Temperature (Max) 50°C
Operating Humidity
Weather Resistance Yes (Outdoor Rated)

Compliance & Origin
Country of Origin Mexico
TAA Compliant Yes
Certifications

Advanced Security Features
Content Protection
Access Control
