| Product Type | Outdoor LED Display |
| Manufacturer | Samsung |
| Model Number | LHX08VTB480 |
| Series | XPR-B |
| Pixel Pitch | 8 mm |
| Display Orientation | Single Face |
| Resolution | 240 x 120 |
| Panel Configuration | 4Hx8W |
| Mount Type | Fixed installation |
| Intended Use | Outdoor signage (municipal, retail, stadium) |
| Technology | Direct-view LED |
| Brightness | 8500 nits |
| Contrast Ratio | 5000:1 |
| Viewing Angle (Horizontal/Vertical) | 160° / 140° |
| Bit Depth | 16-bit per color |
| Color Capability | 281 trillion colors |
| Cabinet Material | Aluminum |
| Weight per Cabinet | Approximately 65 kg (143 lbs) |
| Power Consumption (Max) | 800 W/m² |
| Power Consumption (Typical) | 250 W/m² |
SAMSUNG XPR-B 8mm Outdoor LED Single Face Display

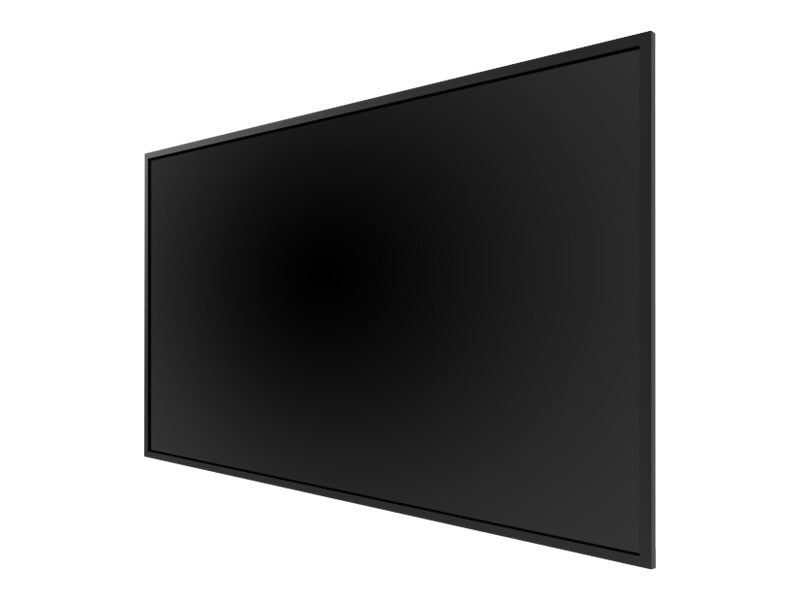

Photo is for illustration purposes only. Actual product may be different.
Regular price
$11,957.00
Regular price
Sale price
$11,957.00
Unit price
per
MSRP: $15,991.36
Shipping calculated at checkout.
Couldn't load pickup availability
- LED display type suitable for high-visibility outdoor applications
- 8mm pixel pitch delivering 240x120 resolution for medium-range clarity
- TAA compliance for use in government or regulatory environments
- Manufactured in Mexico, meeting regional sourcing requirements
- Single face display configuration optimized for directional signage
Shipping & Returns
Shipping & Returns
All our products can be shipped anywhere in the Continental United States.
Key Benefits
Eye-Insights™ by Eye-In Technologies
AI-Powered Summaries from Online Customer Reviews
AI-Powered Summaries from Online Customer Reviews
Eye-Insights™ are generated by proprietary AI that analyzes real online customer reviews to highlight top pros and key product features. While we aim for accuracy, insights are provided “as-is” and individual results may vary.
- TAA compliance ensures suitability for federal, state, or institutional procurement.
- LED technology and outdoor-ready design provide bright, reliable visuals in rugged environments.
- Large panel format (4x8 layout) with 240x120 resolution enables impactful visual messaging.
Product Overview
The SAMSUNG XPR-B 8mm Outdoor LED Single Face display offers 240x120 resolution across a 4Hx8W panel layout with TAA compliance for public and government use. Built in Mexico, this LED display features a rugged design ideal for commercial outdoor environments such as retail signage, stadium boards, or municipal messaging displays. While detailed specs like brightness and screen size are not available, the LED technology and single-face design optimize directional visibility and reliability in a wide range of outdoor signage scenarios.
Specifications
Product Overview
Wireless Features
| Wireless Control Support | Optional (via Samsung MagicINFO or 3rd-party solutions) |
Compliance & Origin
| TAA Compliant | Yes |
| Country of Origin | Mexico |
| Certifications | FCC Class A, UL, CE |
| RoHS Compliant | Yes |
Advanced Security Features
| Secure Remote Access | Yes (via secure controller integration) |
| Data Encryption | Supported, depending on control system |
Interfaces
| Input Connector Type | Gigabit Ethernet |
| Control Interface | RJ-45 / Fiber (Controller dependent) |
| Video Input Format | HDMI, DVI (via controller) |
| System Control Protocol | Samsung Proprietary / Third-party controller compatible |
Physical & Environmental
| Cabinet Dimensions (W x H x D) | 960 x 960 x 147 mm |
| IP Rating (Front/Rear) | IP65 / IP65 |
| Operating Temperature Range | -30°C to 50°C (-22°F to 122°F) |
| Storage Temperature Range | -40°C to 60°C (-40°F to 140°F) |
| Operating Humidity Range | 10% to 90% (non-condensing) |
| Service Access | Front and Rear Serviceable |
| Cooling Method | Natural convection with integrated ventilation |
Cloud Management & Licensing
| Remote Monitoring Support | Yes, with Samsung MagicINFO or 3rd-party software |
| Cloud Content Management | Supported (with compatible controller) |
| Included Software | Not included; optional MagicINFO license required |
| Data Synchronization | Yes, via LAN controller |
