| Manufacturer | Samsung |
| Model | XPR-B |
| Manufacturer Part Number | CY-08VTD380 |
| Product Type | Outdoor LED Display |
| Form Factor | Double-face Configuration |
| Pixel Pitch | 8 mm |
| Display Resolution | 240 x 90 |
| Brightness | 9000 nits |
| Contrast Ratio | 5000:1 |
| Viewing Angle (Horizontal/Vertical) | 160° / 160° |
| Color Capability | 281 Trillion Colors |
| Lifetime (Half Brightness) | 100,000 hours |
| Refresh Rate | 7680 Hz |
| Power Consumption (Max) | 600 W/m² |
| Power Consumption (Typical) | 250 W/m² |
| Power Supply | 100-240V AC, 50/60 Hz |

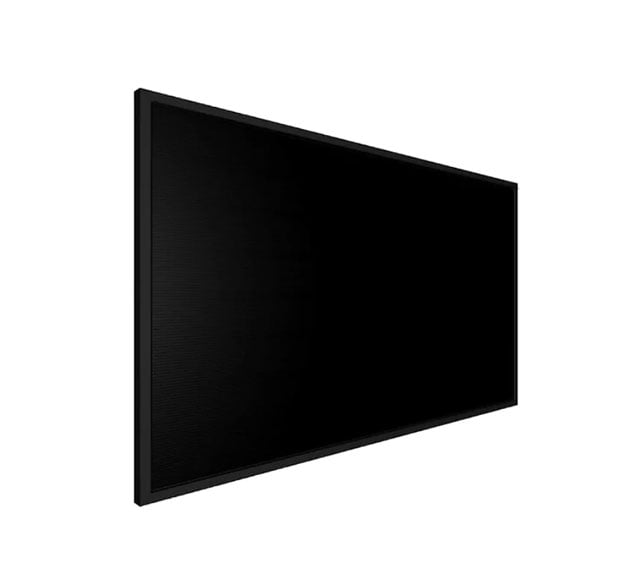

SAMSUNG XPR-B Outdoor LED Display 3Hx8W (240x90)
Photo is for illustration purposes only. Actual product may be different.
Regular price
$16,778.45 USD
Regular price
Sale price
$16,778.45 USD
Unit price
per
MSRP: $22,534.00
Shipping calculated at checkout.
Couldn't load pickup availability
- Display Type: LED Display
- Maximum Resolution: 240 x 90
- Pixel Pitch: 8 mm
- Model: XPR-B
- TAA Compliant: Yes
- Country of Origin: United States
Shipping & Returns
Shipping & Returns
All our products can be shipped anywhere in the Continental United States.
Key Benefits
Eye-Insights™ by Eye-In Technologies
AI-Powered Summaries from Online Customer Reviews
AI-Powered Summaries from Online Customer Reviews
Eye-Insights™ are generated by proprietary AI that analyzes real online customer reviews to highlight top pros and key product features. While we aim for accuracy, insights are provided “as-is” and individual results may vary.
- Designed for outdoor double-face display applications, enabling efficient bi-directional communication.
- TAA compliance ensures suitability for government or federally regulated installations.
- Manufactured in the United States, aiding in domestic sourcing and quicker supply chain fulfillment.
Product Overview
The SAMSUNG XPR-B 3Hx8W is a commercial-grade outdoor LED display with a 240x90 resolution and 8mm pixel pitch, optimized for high-visibility messaging. With its double-face configuration, it offers enhanced communication potential in dynamic environments. TAA-compliant and manufactured in the United States, this display supports both government specifications and durable performance in challenging outdoor conditions. Ideal for digital signage in transportation hubs, retail, public spaces, and institutional settings.
Specifications
Product Overview
Wireless Features
| Wireless Control Support | Yes (via Samsung MagicINFO or compatible wireless devices) |
Compliance & Origin
| TAA Compliant | Yes |
| Country of Origin | United States |
| Certifications | FCC Class A, CE, UL60950, RoHS |
Advanced Security Features
| Encrypted Communication | AES 256-bit available in MagicINFO |
| Access Control | Role-Based Authentication (via MagicINFO) |
| Security Compliance Features | HTTPS, SNMPv3, Firewall support (via network) |
Interfaces
| Video Input | HDMI, DVI, DisplayPort |
| Control/Management Interfaces | RJ45 (Ethernet), RS232, Fiber Optic (optional) |
Physical & Environmental
| Module Dimensions (W x H) | 960 mm x 320 mm |
| Cabinet Dimensions (WxHxD) | 7680 mm x 960 mm x 135 mm |
| Cabinet Weight | 60 kg/m² |
| Ingress Protection Rating | IP66 (Front and Rear) |
| Operating Temperature | -30°C to +50°C |
| Storage Temperature | -40°C to +60°C |
| Operating Humidity | 10% to 90% RH (non-condensing) |
| Cooling | Fanless natural convection |
| Mounting Type | Custom steel structure or pole mount |
Cloud Management & Licensing
| Cloud Management | Supported via Samsung MagicINFO |
| MagicINFO License | Optional, sold separately |
| Remote Monitoring | Yes, with MagicINFO or third-party CMS |
