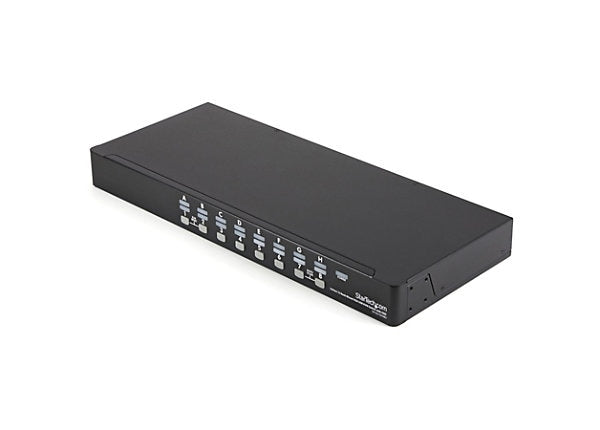

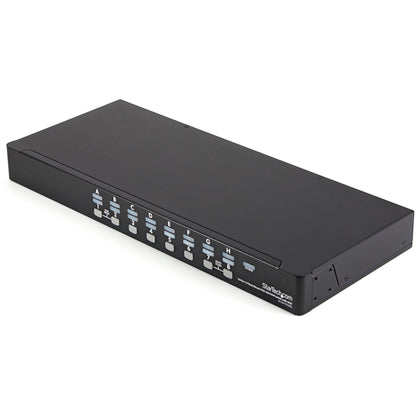

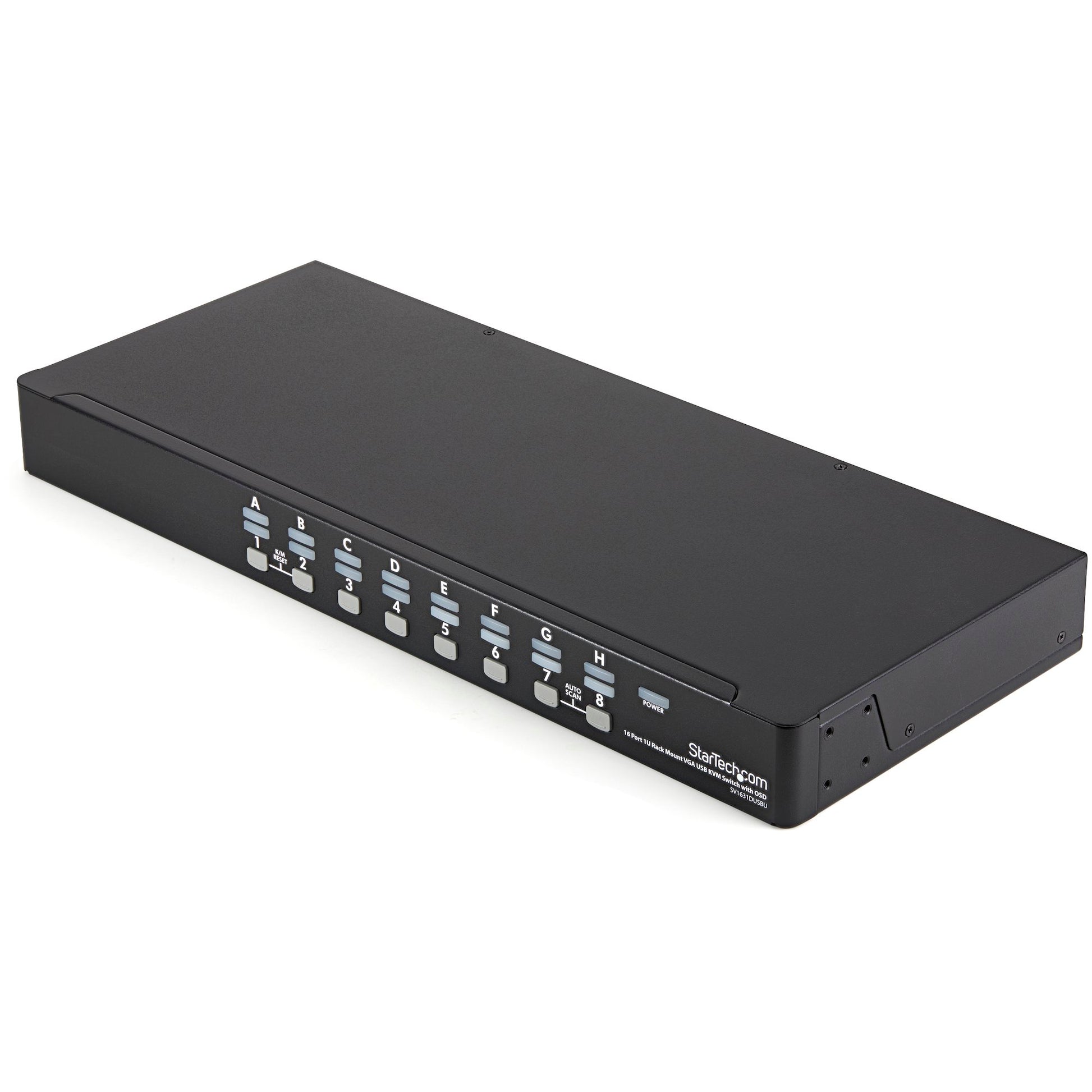

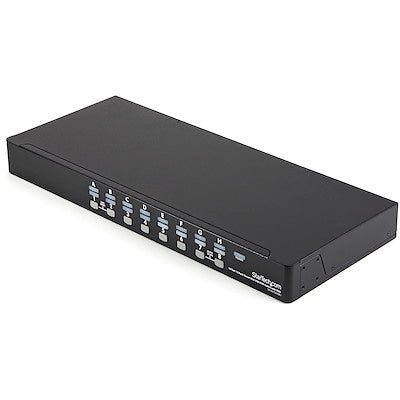

STARTECH 16-Port 1U Rackmount USB KVM Switch Kit

VENDOR: STARTECH Mfg Part#: SV1631DUSBUK UPC#: 065030840828
1 5
Photo is for illustration purposes only. Actual product may be different.
$678.99
$678.99
Sale Sold out
Shipping calculated at checkout.
  • 16-port USB KVM switch supports up to 16 systems via a single VGA console
  • Supports high resolutions up to 1920 x 1440@60Hz (1920 x 1200 for widescreen monitors)
  • 1U rackmount form factor saves valuable rack cabinet space
  • Includes cables and all necessary accessories for immediate deployment
  • Durable black enclosure with TAA compliance for government use
  • 3-year warranty provides extended product assurance

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Includes all necessary cables and accessories, reducing extra procurement and setup time
  • Compact 1U rackmount form factor saves physical space and simplifies equipment management
  • TAA compliance and Taiwanese manufacturing quality meet standards for regulated environments

Product Overview

A complete 16-port USB KVM kit, including all necessary cables and accessories - usb kvm switch - 16 port kvm switch - vga kvm switch -rack mount kvm

Specifications

Product Overview
Device Type KVM Switch
Form Factor Rackmount - 1U
Weight 2.4 kg (5.3 lb)
Power Requirements 100-240V AC, 50/60Hz, 0.8A
Included Accessories 16 x USB KVM Cables, Rackmount Brackets, Power Cord, User Manual
Enclosure Color Black

Wireless Features
Wireless Support

Compliance & Origin
Country of Origin Taiwan
TAA Compliant Yes
RoHS Compliant Yes
Certifications CE, FCC, UL
UPC 065030840828

Advanced Security Features
Password Protection Yes (Console Access Password)
Encryption No Encryption (Local KVM)
User Access Levels Yes (Limited Console Permissions)
Hotkey Security Lockout Yes

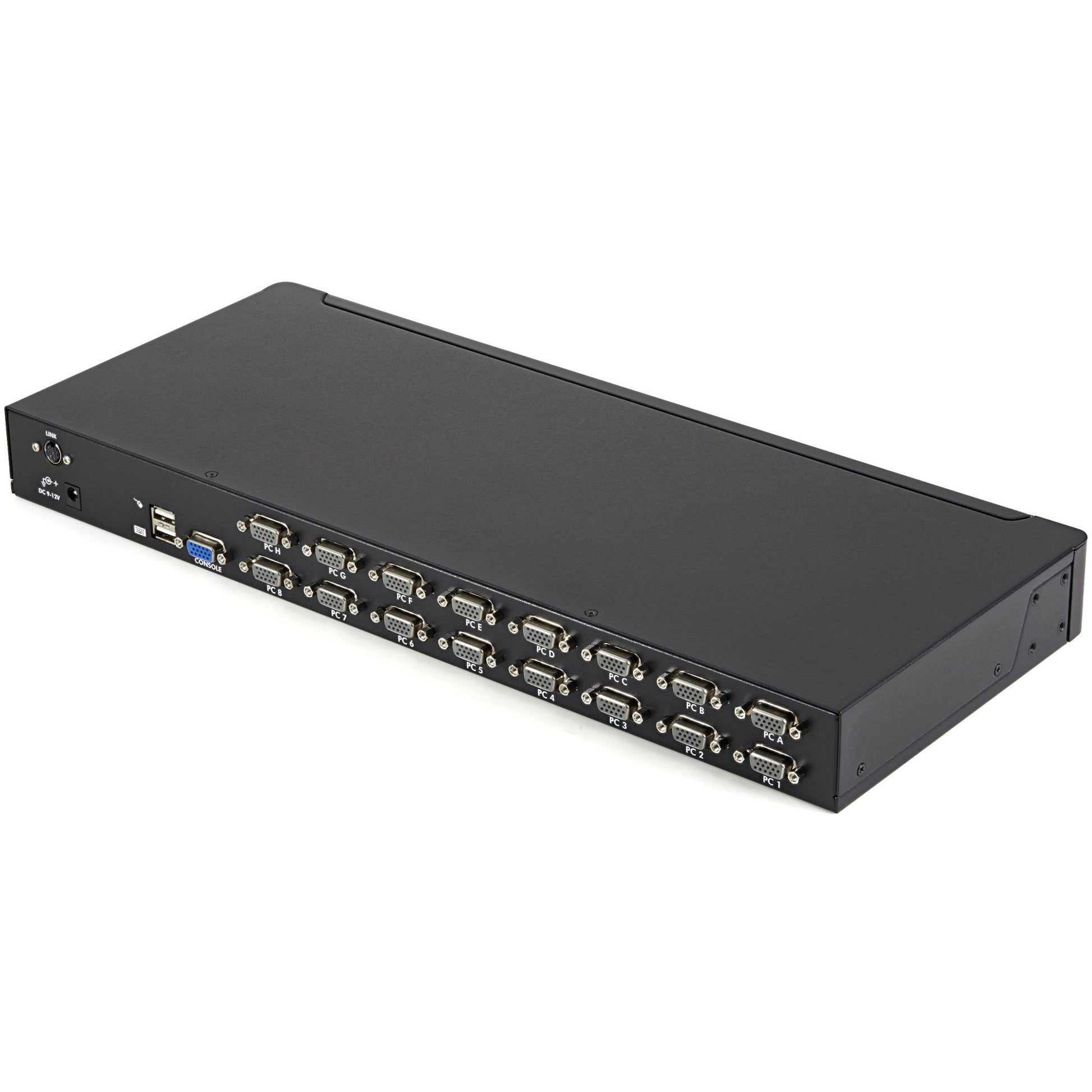

Interfaces
Console Ports 1 x VGA, 2 x USB Type-A, 1 x 3.5mm Audio (shared)
KVM Ports 16 x SPHD-15 (Keyboard/Mouse/Video Combined)
USB Type USB 2.0
Video Interface VGA (Analog)
Audio Interface 3.5mm Stereo (shared audio via cables)
Max Video Resolution 1920 x 1440 @ 60Hz
Wide Screen Max Resolution 1920 x 1200 @ 60Hz
Local Console Interface USB, VGA, Audio

Physical & Environmental
Width 44.0 cm (17.3 in)
Depth 18.9 cm (7.45 in)
Height 4.4 cm (1.73 in)
Rack Mountable Yes (1U)
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -20°C to 60°C (-4°F to 140°F)
Humidity Range (Operating) 0% to 80% RH (non-condensing)
MTBF 94,567 hours

Cloud Management & Licensing
Remote Management No (Local Only)
Cloud Management Not Supported
Licensing Requirements None
