StarTech 16-Port Rackmount USB/PS2 KVM Switch, VGA, 1U

VENDOR: STARTECH Mfg Part#: SV1631DUSB UPC#: 065030821100
1 5
Photo is for illustration purposes only. Actual product may be different.
$597.99
$597.99
Sale Sold out
Shipping calculated at checkout.
  • Supports both USB and PS/2 interface connections
  • VGA output with maximum resolution of 1920 x 1440 @60Hz
  • 1U rackmount form factor for space-efficient deployment
  • Wired connectivity for secure and stable operations
  • TAA compliant and manufactured in Taiwan
  • 3-year warranty for long-term support

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Enables centralized control of up to 16 systems from a single console, increasing operational efficiency
  • Supports mixed-system environments with both USB and PS/2 compatibility, enhancing deployment flexibility
  • Built to enterprise standards with TAA compliance and rack-optimized design, suitable for government and corporate use

Product Overview

Control up to 16 USB or PS/2-connected computers from one keyboard, mouse and monitor - usb kvm switch - 16 port kvm switch - vga kvm switch -rack mount kvm

Specifications

Product Overview
Product Type Rackmount KVM Switch
Form Factor 1U Rackmount
Device Type KVM Switch
Keyboard/Mouse Interface USB and PS/2
Monitor Interface VGA
Number of Ports 16
Power Consumption 6.3W
Power Supply 100~240V AC, 50/60Hz
Enclosure Color Black
Warranty 3 Years

Physical & Environmental
Width 17.2 in (437 mm)
Depth 7.1 in (180 mm)
Height 1.8 in (45 mm)
Weight 3.2 kg (7.1 lb)
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -20°C to 60°C (-4°F to 140°F)
Humidity (Operating) 0% - 80% RH, non-condensing

Cloud Management & Licensing
Remote Management Capable No
Software Included None Required
Licensing Requirements None

Interfaces
Console Ports 1 x VGA, 2 x USB (keyboard/mouse), 1 x PS/2 (keyboard), 1 x PS/2 (mouse)

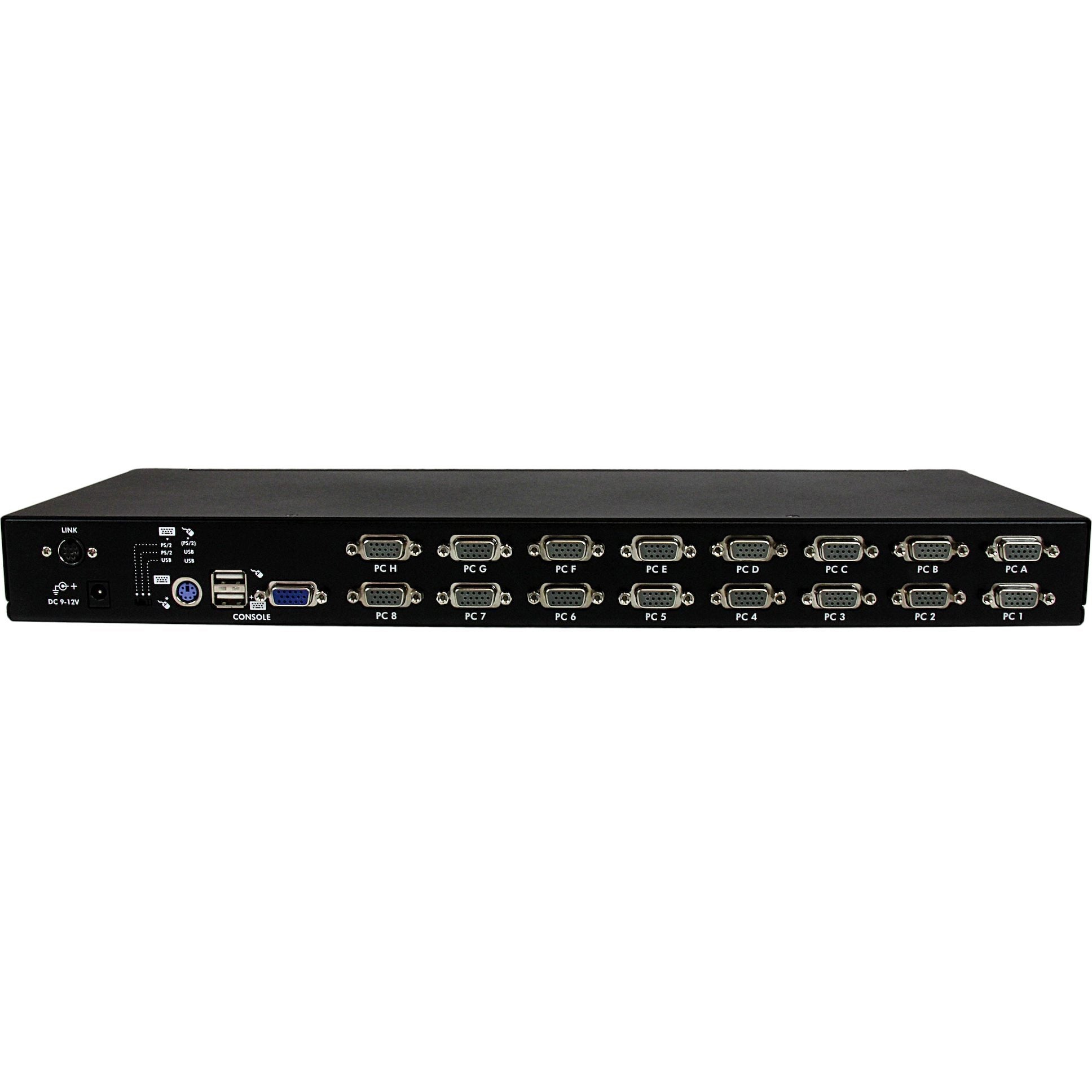

Host Ports 16 x HDDB15 (KVM)
KVM Technology Analog
Max Resolution Supported 1920 x 1440 @ 60Hz
Supported Video Signals VGA
Keyboard & Mouse Emulation Yes
Number of Users Supported 1 local user

Compliance & Origin
TAA Compliant Yes
Country of Origin Taiwan
Certifications CE, FCC, RoHS

Advanced Security Features
Password Protection Yes
User Access Control Yes
OSD (On Screen Display) Yes
Hotkey Functions Yes
Auto Scan Mode Yes
