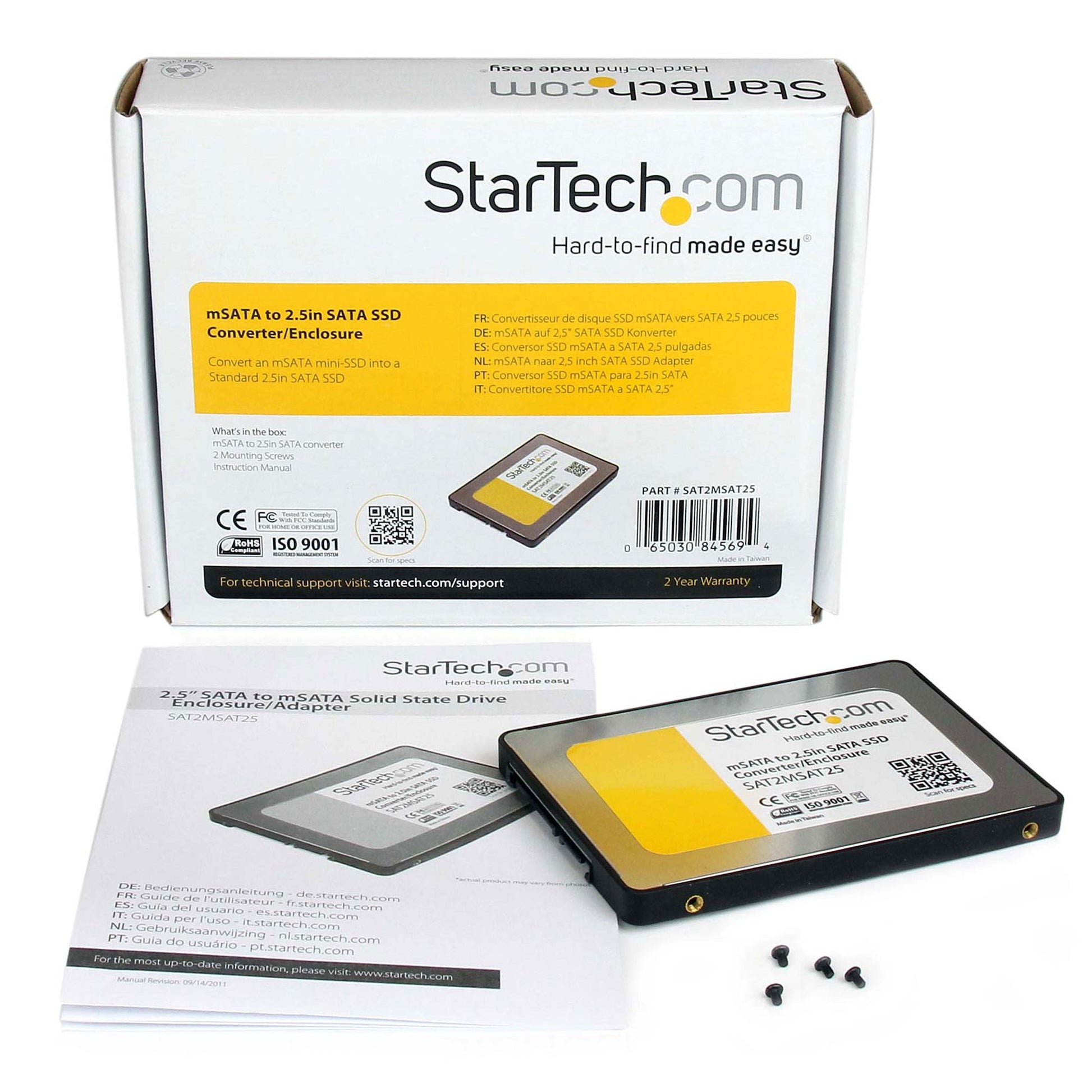

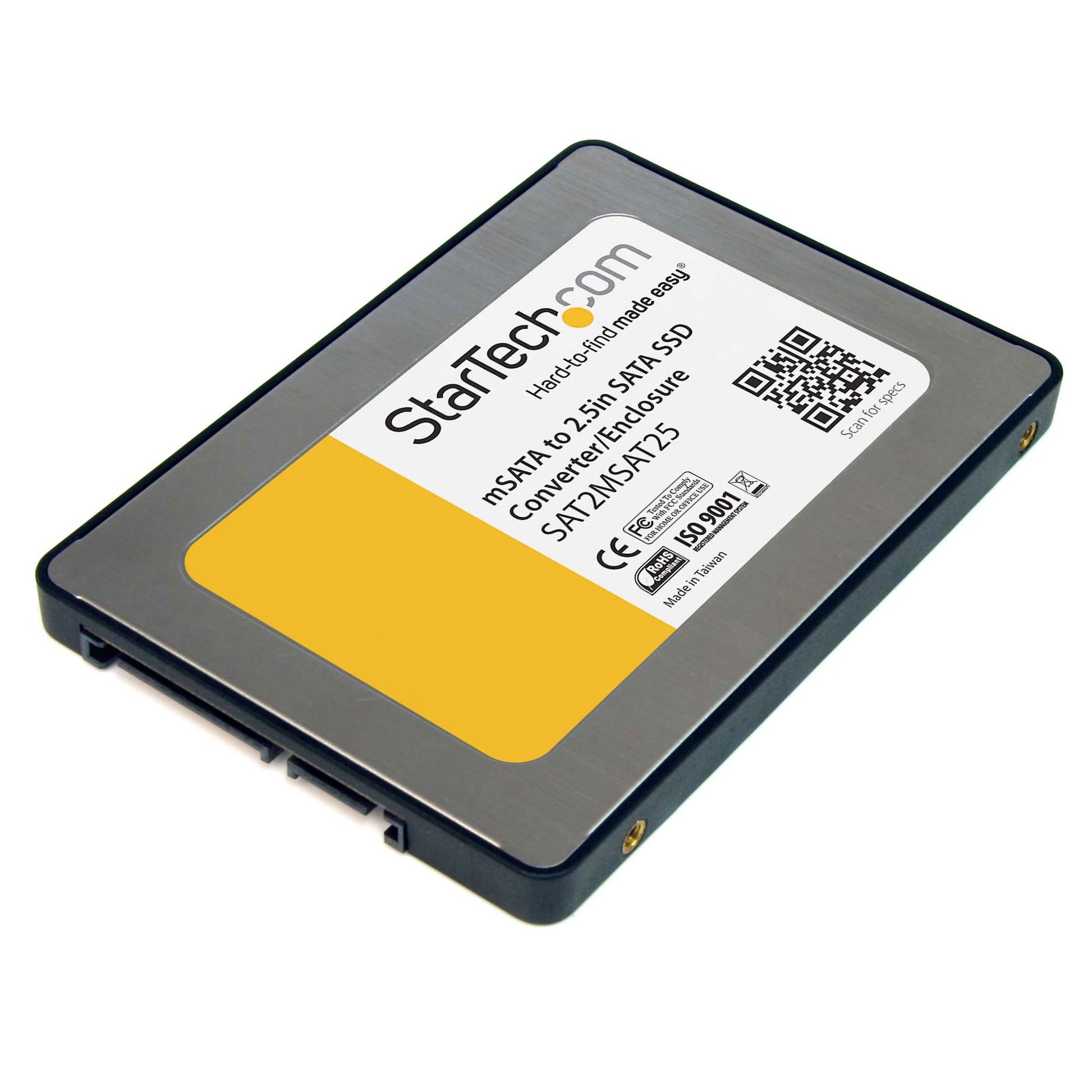

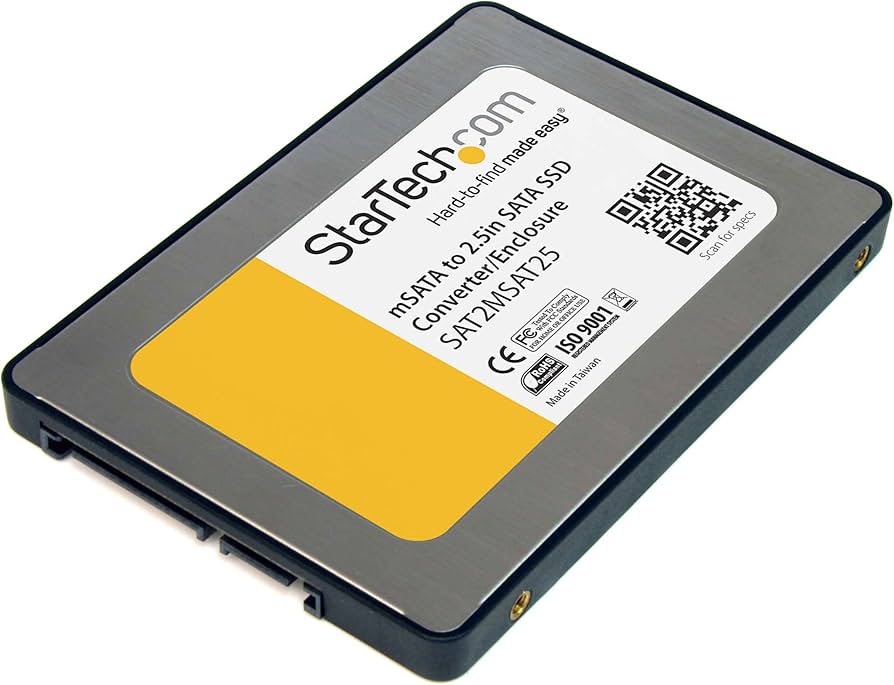

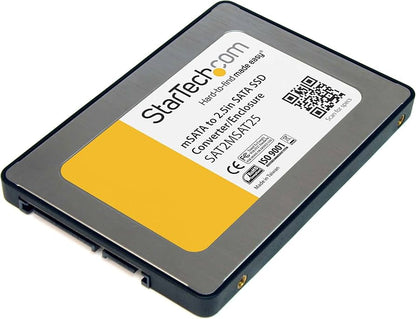

StarTech 2.5" SATA to Mini SATA SSD Adapter Enclosure - SAT2MSAT25

VENDOR: STARTECH Mfg Part#: SAT2MSAT25 UPC#: 065030845694
1 5
Photo is for illustration purposes only. Actual product may be different.
$27.58
$27.58
Sale Sold out
MSRP: $29.99
Shipping calculated at checkout.
  • Converts mSATA mini-SSD to standard 2.5-inch SATA SSD
  • SATA interface for wide compatibility with existing drive bays
  • TAA compliant for government and enterprise procurement
  • Compact dimensions: 2.8" (W) x 3.9" (D) x 0.3" (H)
  • Includes 2-year manufacturer support
  • Compatible with solid-state drives only

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Ideal for repurposing mSATA SSDs in systems requiring 2.5" SATA drives
  • TAA compliance and Taiwan manufacturing support procurement and sourcing standards
  • Compact and simple design ensures easy integration and low installation overhead

Product Overview

Convert an mSATA mini-SSD into a Standard 2.5in SATA SSD - sata to mini sata - sata to msata - mini pcie sata -mini pcie ssd adapter

Specifications

Product Overview
Product Type 2.5" SATA to mSATA SSD Adapter Enclosure
Device Form Factor 2.5-inch
Product Model SAT2MSAT25
Material Aluminum
Color Silver
Power Requirements Powered via SATA interface
Hot Swap Support Yes
Drive Compatibility Full-size mSATA SSD
Drive Installation Tool-less

Physical & Environmental
Width 2.8 in (70 mm)
Depth 3.9 in (100 mm)
Height 0.3 in (7 mm)
Weight 50 g (1.8 oz)
Operating Temperature 0°C to 50°C (32°F to 122°F)
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Operating Humidity 10% to 90% RH
Storage Humidity 5% to 95% RH

Cloud Management & Licensing
Software Management Interface
Cloud Enabled
License Requirement No

Service & Support
Warranty 2 Years
Technical Support Lifetime Technical Support

Interfaces
Drive Interface mSATA (Mini-SATA)
Host Interface SATA III (6 Gbps)
Data Transfer Rate Up to 6 Gbps
Connector Type (Host) 7-pin SATA data, 15-pin SATA power
Connector Type (Drive) mSATA mini PCIe interface
Number of Drive Bays 1 x mSATA

Compliance & Origin
Country of Origin Taiwan
TAA Compliant Yes
RoHS Compliance Yes
Certifications CE, FCC, REACH

Advanced Security Features
Encryption Support Dependent on SSD used
Drive Lock No
Tamper Evident No
