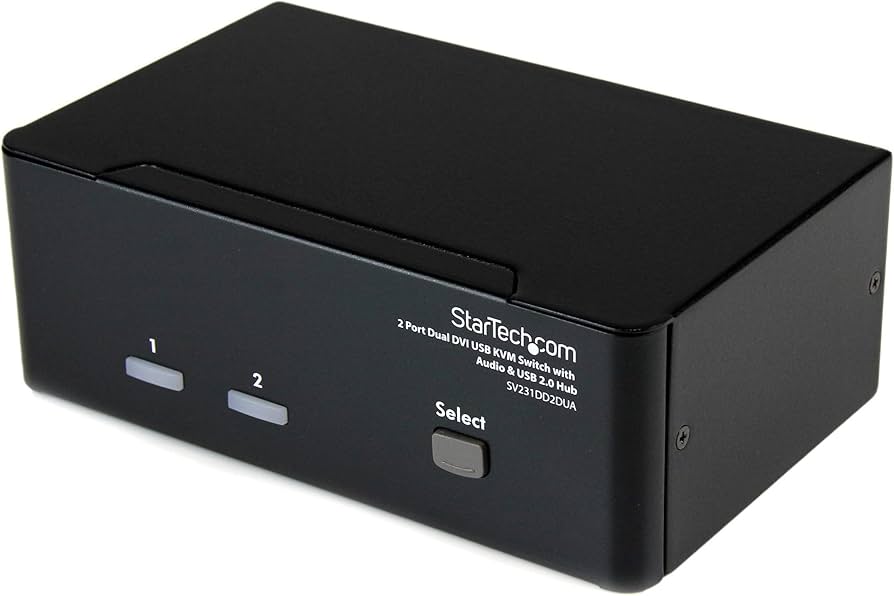

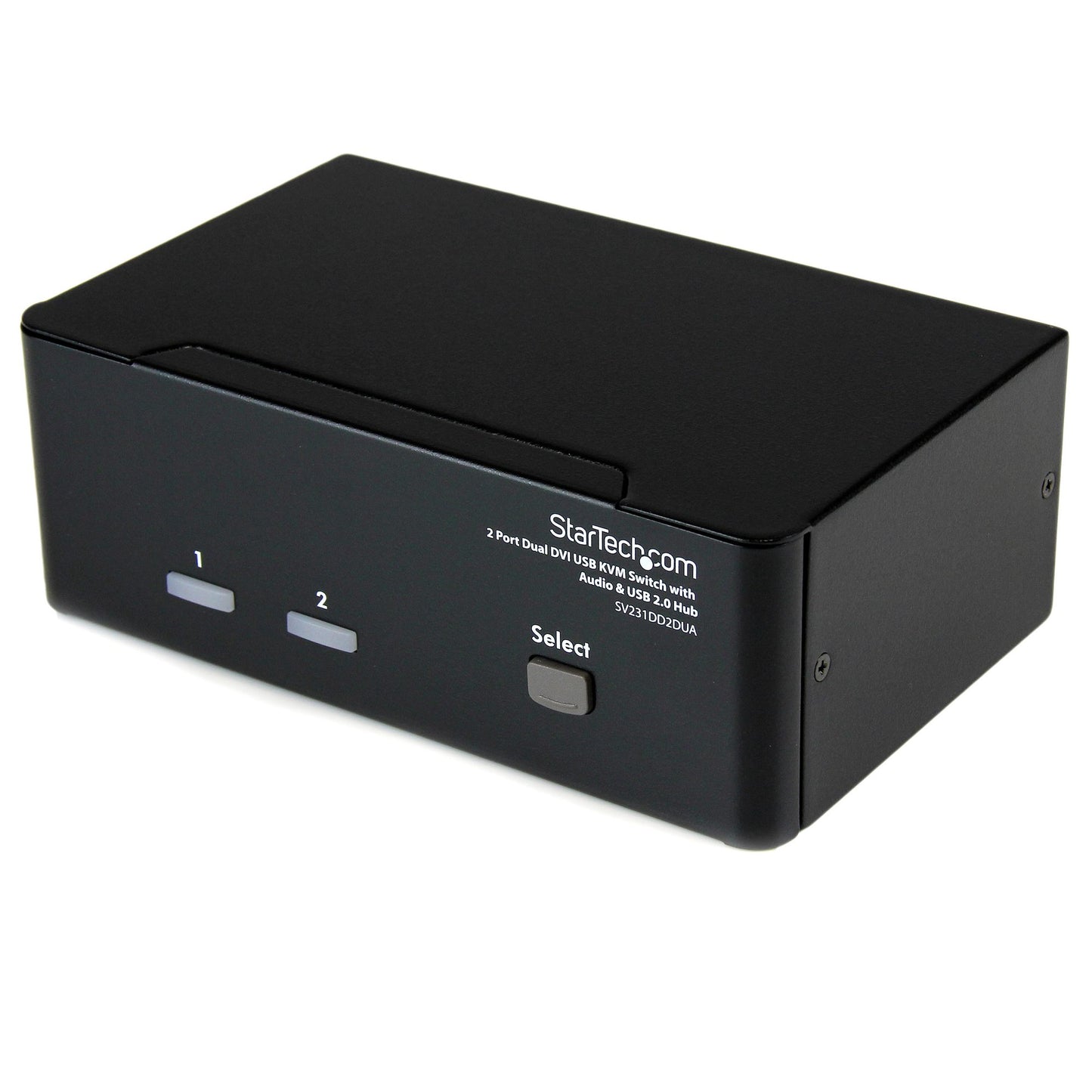

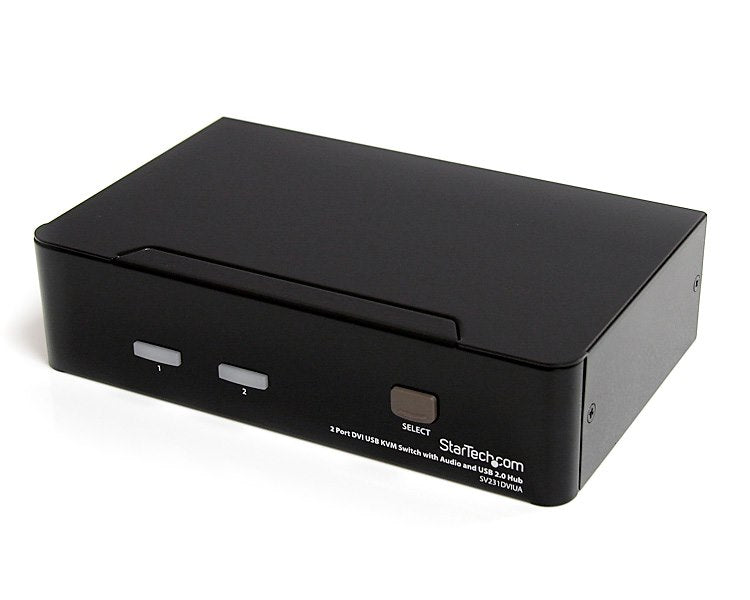

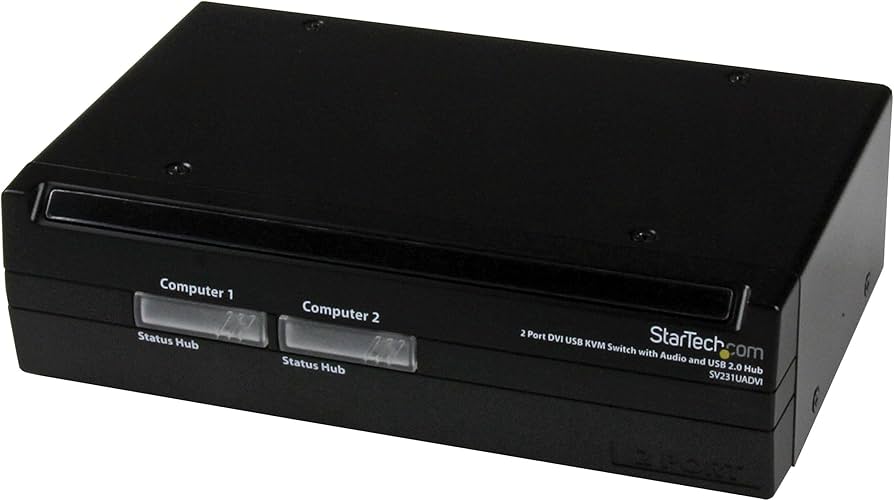

StarTech 2-Port DVI USB KVM Switch with Audio

VENDOR: STARTECH Mfg Part#: SV231DVIUA UPC#: 065030842075
1 5
Photo is for illustration purposes only. Actual product may be different.
$168.70
$168.70
Sale Sold out
MSRP: $169.99
Shipping calculated at checkout.
  • Supports up to 2 computers via single DVI display, keyboard, mouse, and audio
  • Maximum resolution of 1920 x 1200 @60/70 Hz for high-quality video
  • External, wired design for secure and stable system integration
  • TAA-compliant and manufactured in Taiwan for procurement readiness
  • Compact footprint: 3.9" W x 6.3" D x 1.6" H
  • 3-year warranty ensures long-term reliability and support

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Enables efficient workspace consolidation by connecting two computers to a single console
  • Supports high-resolution DVI displays and audio switching – ideal for multimedia environments
  • Meets TAA compliance, making it suitable for government and enterprise deployment

Product Overview

Share keyboard, mouse, speakers and a DVI display between two multimedia computers - usb kvm switch - DVI KVM Switch - USB DVI KVM Switch

Specifications

Product Overview
Product Type KVM Switch
Form Factor External
Number of Connected Computers Supported 2
Multimedia Support Yes, with audio switching
Console Port Control Push-buttons; Hotkeys
Enclosure Color Black
Power Requirements 5V DC, 2A (via included power adapter)
Power Consumption Approx. 2.5W
Warranty 3 Years

Wireless Features
Wireless Support

Compliance & Origin
Country of Origin Taiwan
TAA Compliant Yes
RoHS Compliant Yes
Certifications CE, FCC
UPC 065030842075

Advanced Security Features
Data Isolation Between Ports Yes, USB device emulation isolates inputs per port
Keyboard Emulation Yes
Mouse Emulation Yes
Firmware Upgradeable No

Interfaces
Display Interface DVI-I (digital only used)
Number of DVI Ports 3 (1 x DVI-I console, 2 x DVI-I host)
Keyboard/Mouse Interface USB Type B (host), USB Type A (console)
Audio Interface 3.5mm stereo jacks (2 x host, 1 x console)
USB Hub Ports 2 x USB 2.0 (shared across computers)
KVM Cable Type DVI + USB + 3.5mm audio (not included)
Data Transfer Rate (USB) 480 Mbps (USB 2.0)
Console Keyboard/Mouse Port 2 x USB Type A female

Physical & Environmental
Width 3.9 in (100 mm)
Depth 6.3 in (160 mm)
Height 1.6 in (40 mm)
Weight 1.4 lb (0.64 kg)
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -20°C to 60°C (-4°F to 140°F)
Humidity 0% to 80% RH, non-condensing

Cloud Management & Licensing
Remote Management No
Cloud Management No
Software Included None Required
Licensing Requirements No license required
