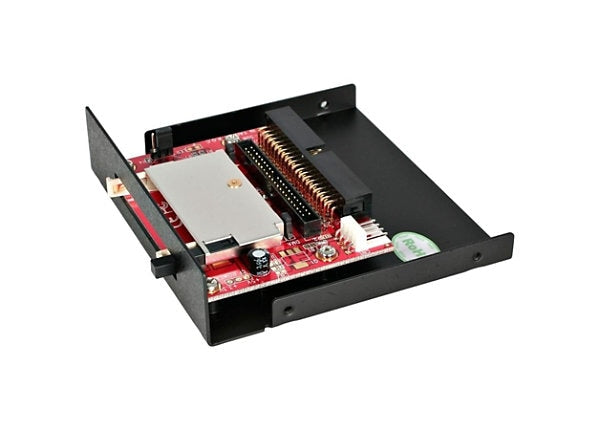

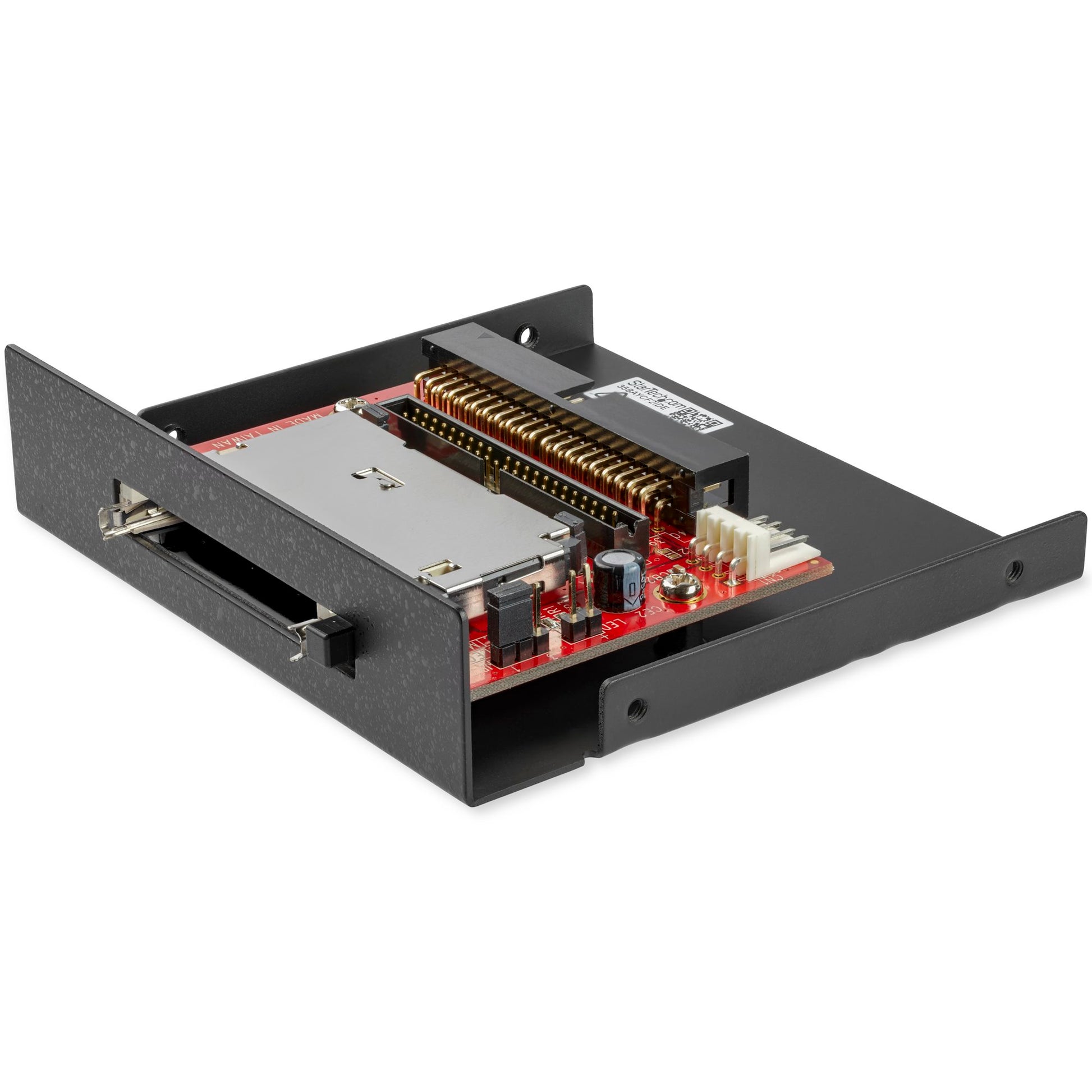

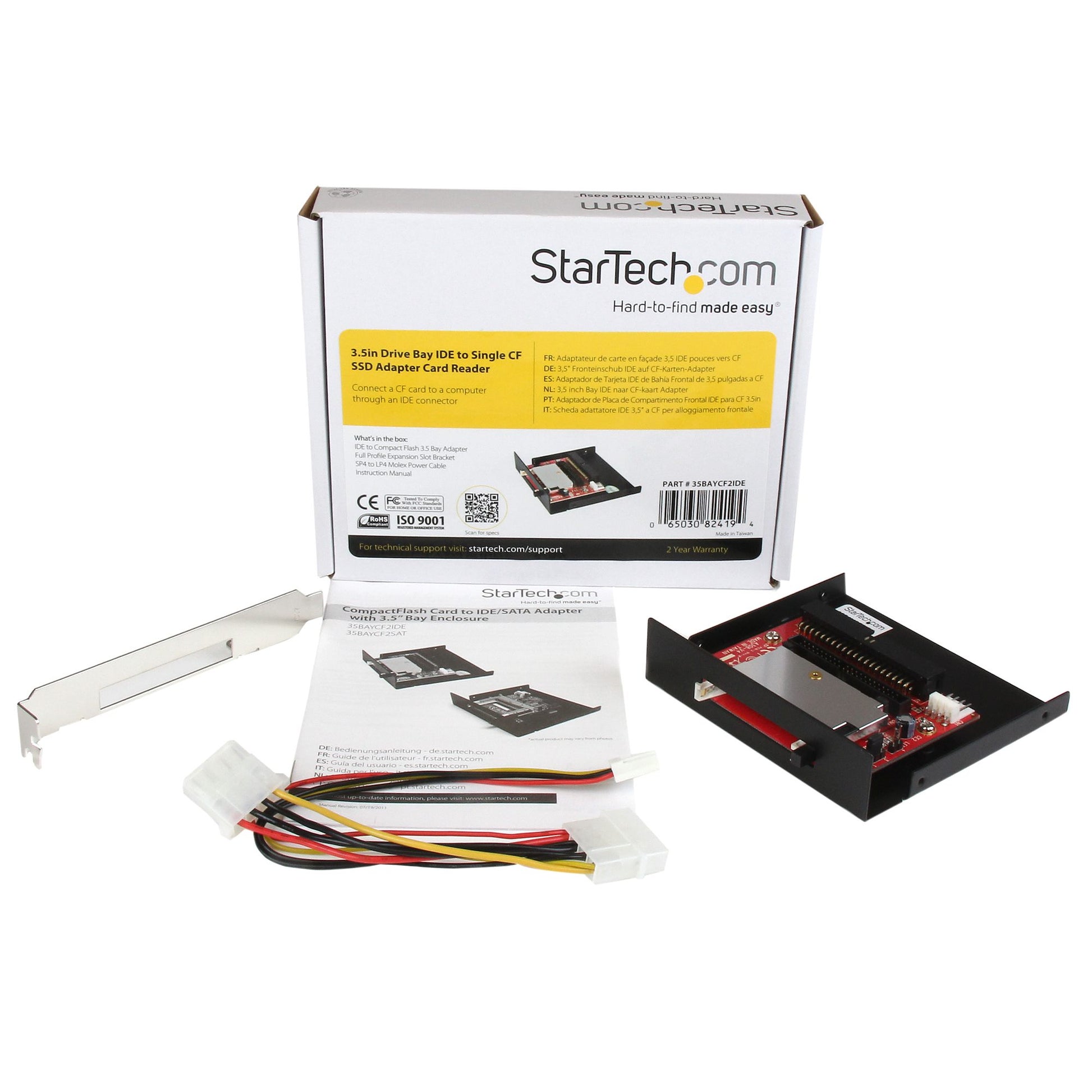

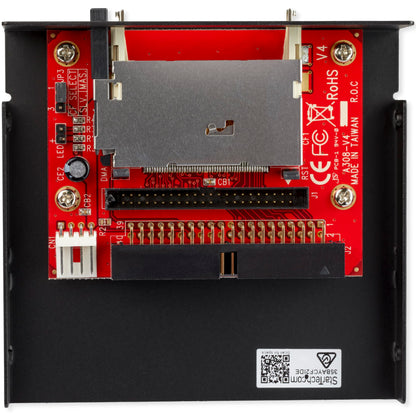

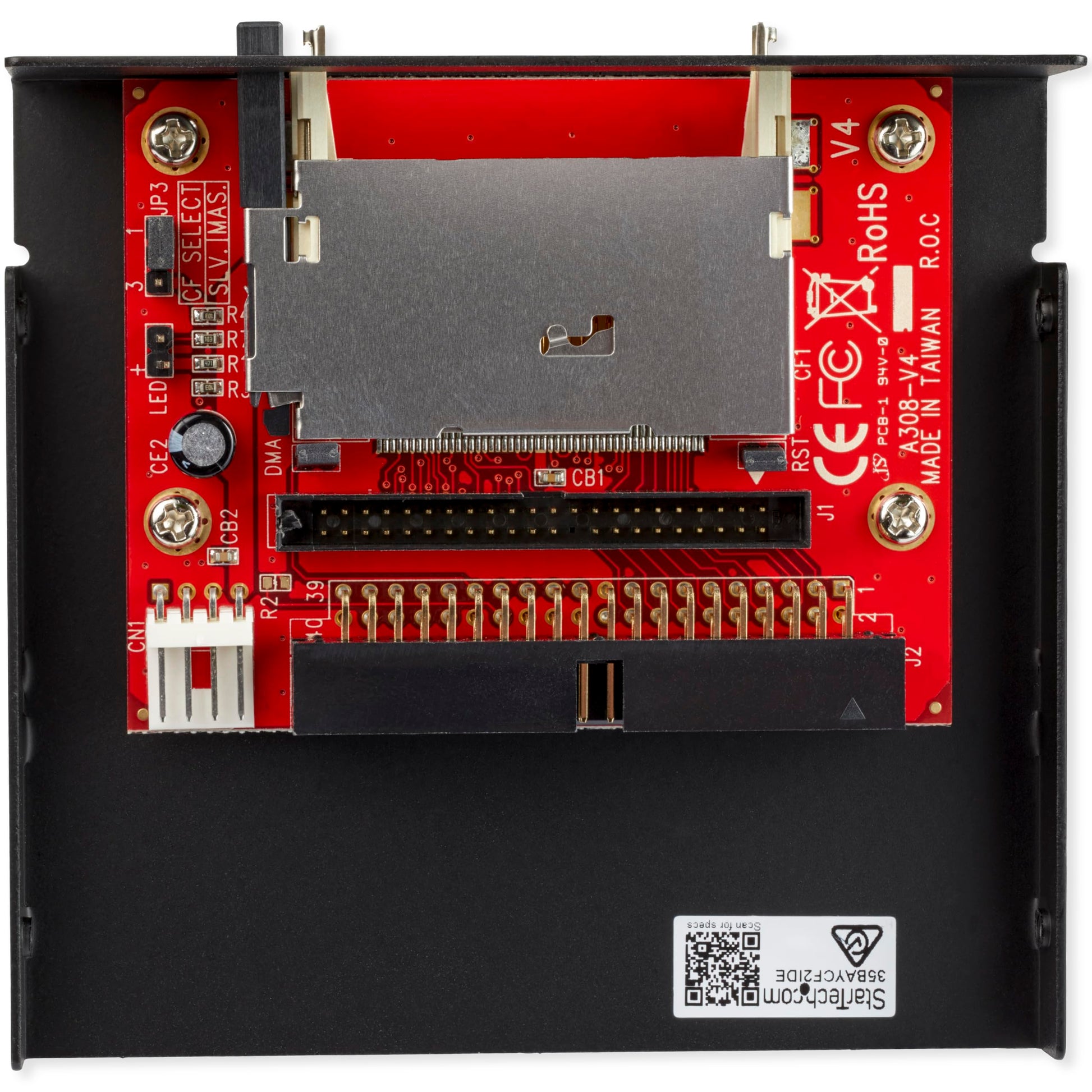

StarTech 3.5in Drive Bay IDE to CF Adapter Card

VENDOR: STARTECH Mfg Part#: 35BAYCF2IDE UPC#: 065030824194
1 5
Photo is for illustration purposes only. Actual product may be different.
$28.76
$28.76
Sale Sold out
MSRP: $30.99
Shipping calculated at checkout.
  • Fits in standard 3.5-inch drive bays for legacy system compatibility
  • Acts as an SSD adapter and CF card reader via IDE interface
  • Supports extreme operating temperatures from -55°C to 85°C
  • RoHS and TAA compliant, manufactured in Taiwan
  • Includes 2-year service and support coverage

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Optimizes legacy systems by providing a solid-state CF-to-IDE storage solution
  • Built for industrial-grade reliability with wide temperature tolerance (-55°C to 85°C)
  • Compliant with RoHS and TAA standards, offering reliable sourcing for regulated industries

Product Overview

Connect a CF card to a computer through an IDE connector - compact flash to ide adapter - cf to ide adapter - cf to ide converter - ide to cf card reader - compact flash adapter

Specifications

Product Overview
Product Type SSD Adapter Card Reader
Form Factor 3.5-inch Drive Bay Mountable
Color Black
Weight 115 g
Power Requirements 5V DC via IDE interface
Mounting Type Internal
Compatible Drive Type CompactFlash (CF) Type I/II
Drive Interface IDE/ATA 40-pin

Physical & Environmental
Width 3.9 Inch
Height 1 Inch
Depth 3.8 Inch
Operating Temperature -55°C to 85°C
Storage Temperature -55°C to 85°C
Humidity (Operating) 5% ~ 95% RH (Non-Condensing)
Enclosure Type Steel and Plastic

Cloud Management & Licensing
Cloud Management Platform
Subscription Licensing
Software Included

Interfaces
Host Interface IDE / ATA 40-pin Male Connector
Card Interface CompactFlash (CF) Type I/II Slot
Data Transfer Rate Up to ATA-66 (66 MB/s)
Connector Type 1 IDE 40-pin Male
Connector Type 2 1 x CF Card Slot
Supported Media CompactFlash I & II, CF Type I / II

Compliance & Origin
Country of Origin Taiwan
RoHS Compliance Yes
TAA Compliant Yes
Certifications CE, FCC, RoHS
Warranty 2 Years

Advanced Security Features
Hardware Encryption
Content Filtering
Bootable Support Yes
Hot Swap Support No
Read-Only Mode No
