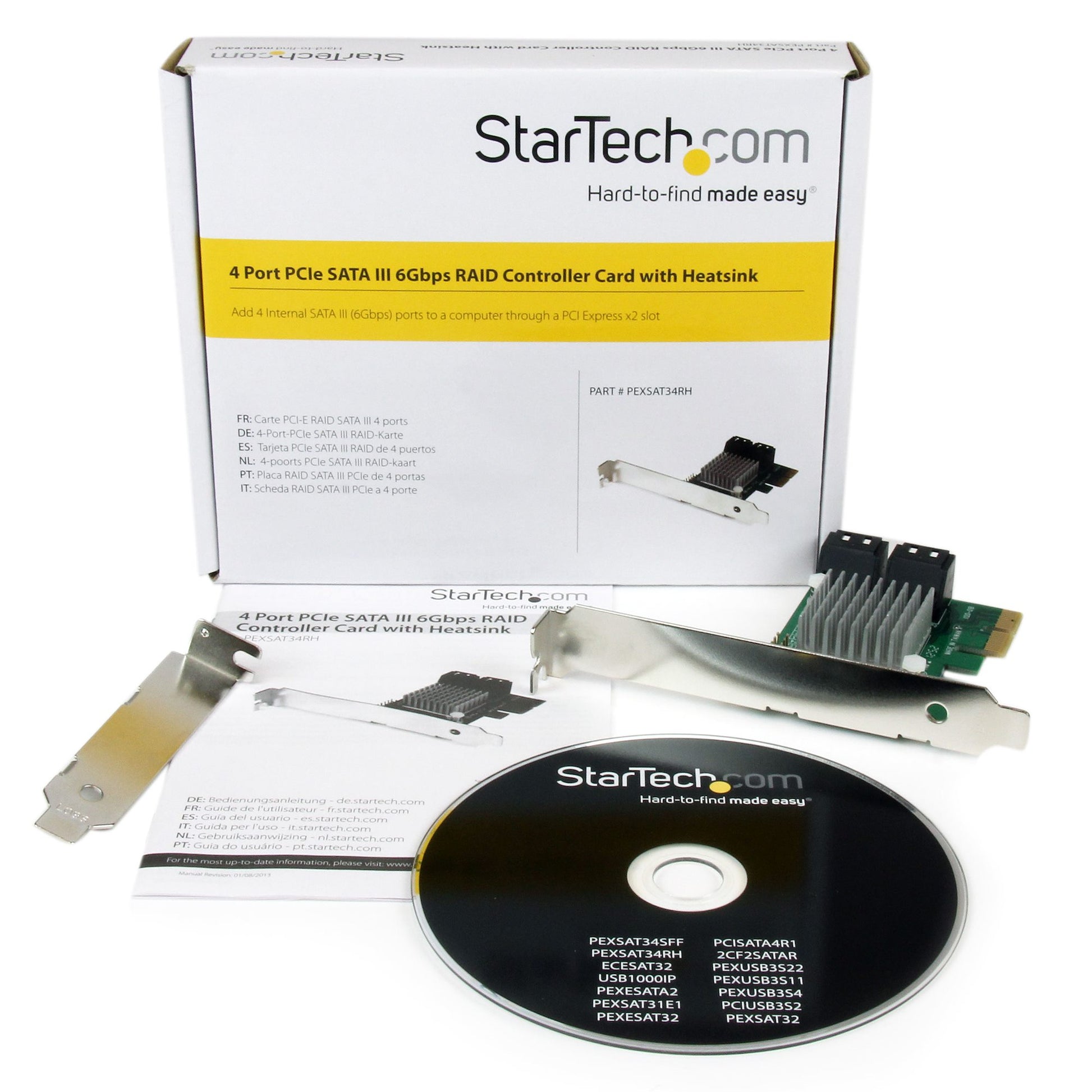

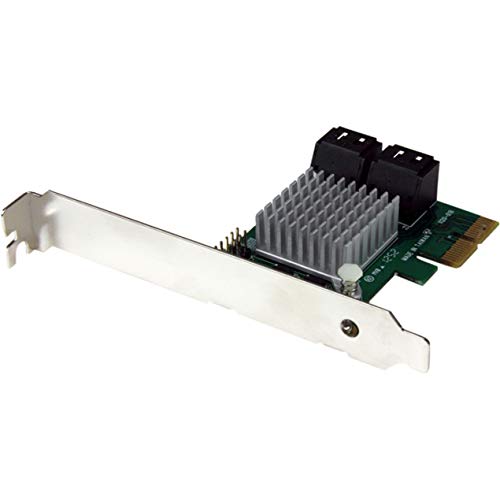

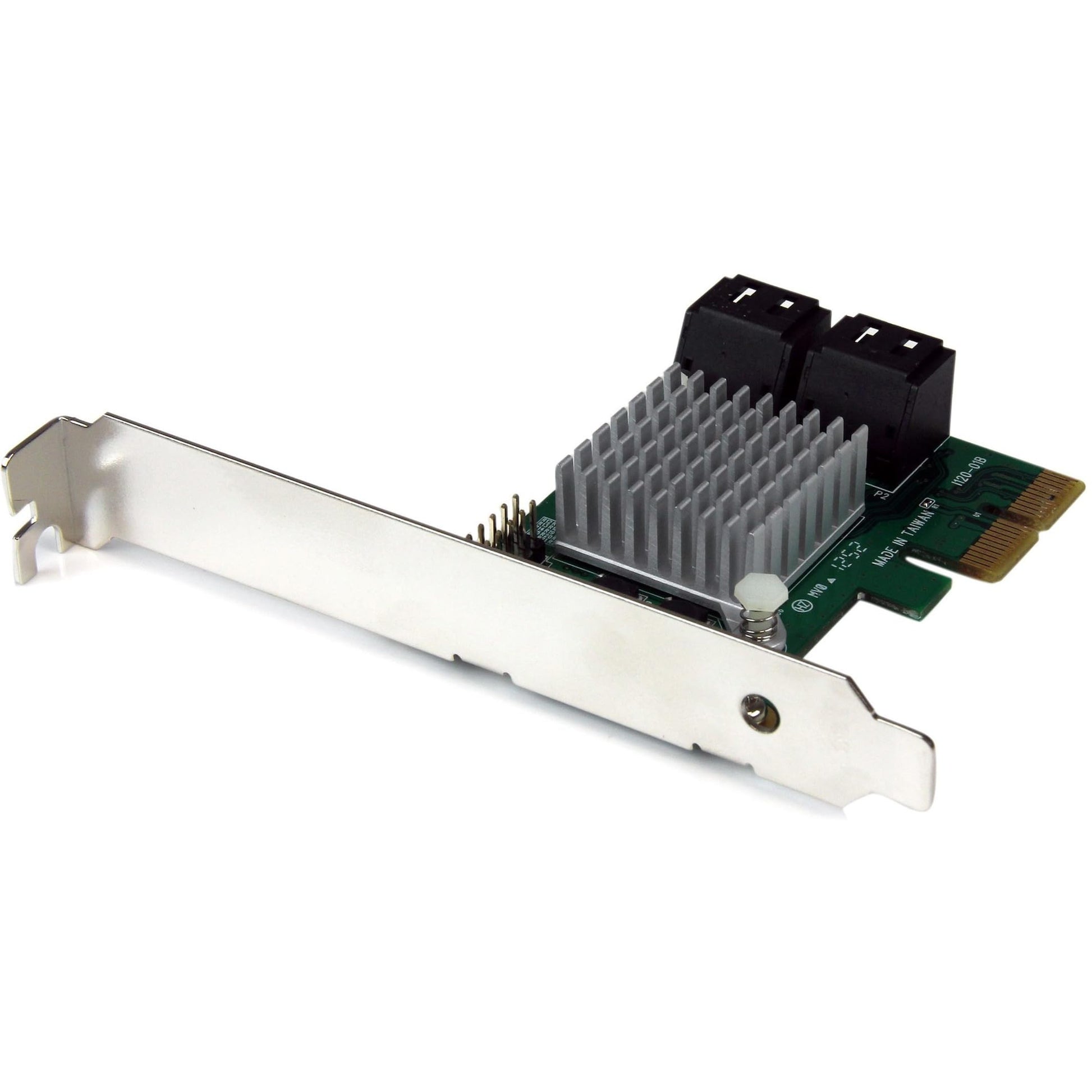

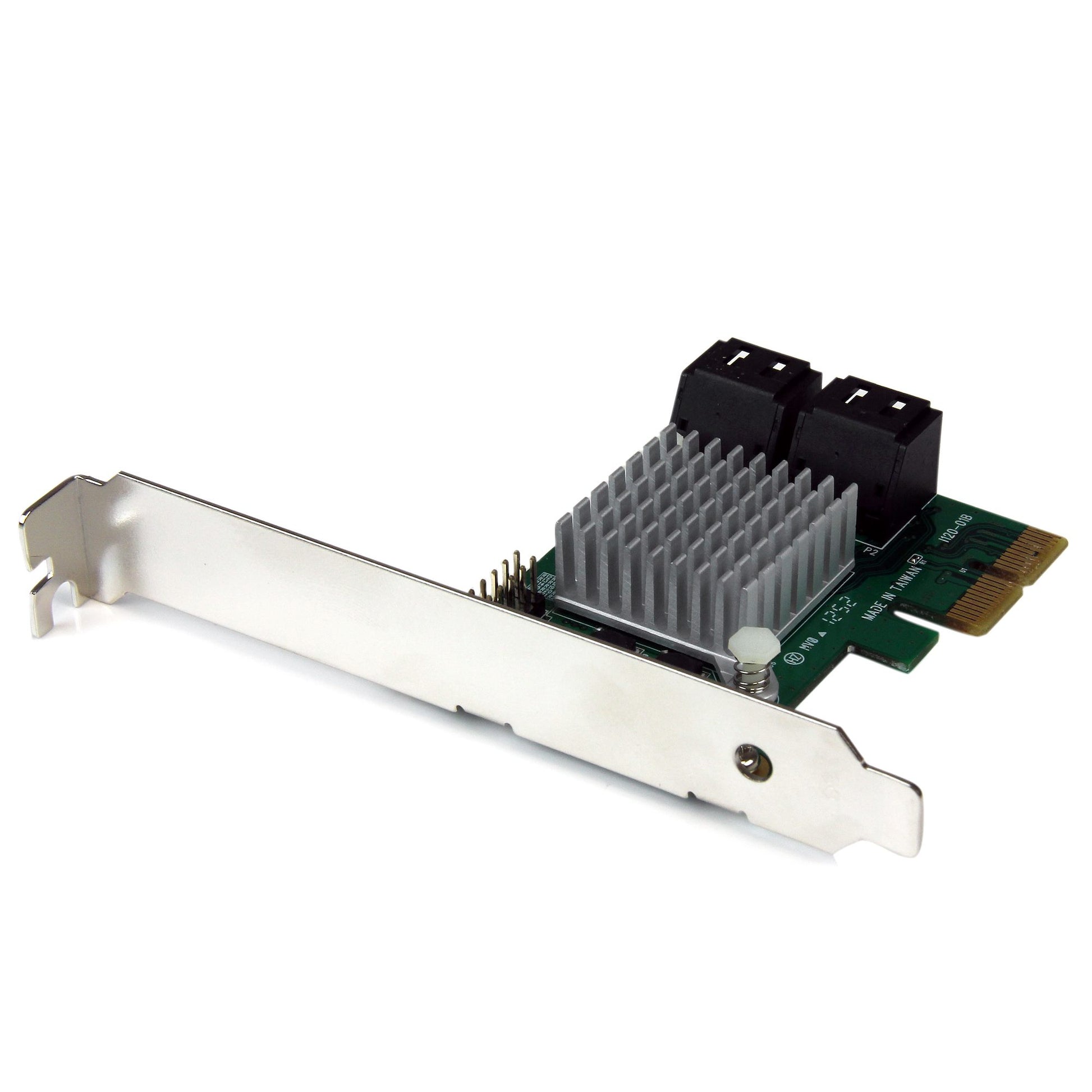

StarTech 4-Port PCIe SATA III RAID Controller Card (PEXSAT34RH)

VENDOR: STARTECH Mfg Part#: PEXSAT34RH UPC#: 065030849951
1 5
Photo is for illustration purposes only. Actual product may be different.
$89.23
$89.23
Sale Sold out
MSRP: $95.99
Shipping calculated at checkout.
  • Four internal SATA III ports supporting 6 Gbps data transfer
  • PCI Express x2 (PCIe 2.0) interface for high-speed connectivity
  • RAID support for levels 0, 1, 10, and JBOD
  • HyperDuo SSD Tiering for performance optimization
  • Standard profile form factor with low-profile bracket included
  • TAA compliant and backed by 2-year manufacturer warranty

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Offers flexible RAID options (0, 1, 10, JBOD) for performance and redundancy tailored to your needs
  • Delivers up to 6 Gbps per port over SATA III for fast storage access and data throughput
  • Carries TAA compliance and a 2-year warranty, making it ideal for institutional and government buyers

Product Overview

Add 4 Internal SATA III (6Gbps) ports to a computer through a PCI Express x2 slot - PCI Express 2.0 SATA Controller with HyperDuo SSD Tiering - 4 Port PCI Express SATA III 6Gb - PCI Express SATA RAID Card - PCIe SATA 6G - Full/Low profile bracket

Specifications

Product Overview
Product Type RAID Controller
Form Factor Standard Profile
Bracket Types Included Full-height and Low-profile (half-height)
Chipset Marvell 88SE9230
RAID Levels Supported JBOD, RAID 0, RAID 1, RAID 10
HyperDuo Technology Yes
Bootable Yes
Card Type PCIe SATA Controller Card
Power Requirements Powered via PCI Express bus
Weight 61 g (2.2 oz)

Physical & Environmental
Width 4.7 in (120 mm)
Depth 2.8 in (70 mm)
Height 0.8 in (20 mm)
Operating Temperature 5°C to 50°C (41°F to 122°F)
Storage Temperature -25°C to 70°C (-13°F to 158°F)
Operating Humidity 15% to 90% non-condensing
Storage Humidity 15% to 90% non-condensing

Cloud Management & Licensing
Bundled Software Marvell RAID Management Utility
OS Compatibility Windows 7/8/10, Windows Server 2008/2012/2016, Linux

Interfaces
Interface Type PCI Express 2.0 x2
Internal Ports 4 x SATA III (6Gbps)
Number of Ports 4
Data Transfer Rate Up to 6 Gbps per port
Supported Drive Types SATA I/II/III HDDs and SSDs
Port Multiplier Not supported
Hot Swap Capability Yes

Compliance & Origin
Country of Origin Taiwan
TAA Compliant Yes
RoHS Compliant Yes
Certifications CE, FCC

Advanced Security Features
Data Redundancy Support Yes, via RAID 1 and 10
RAID Management Features Web-based GUI, CLI-based tool (Marvell utility)
