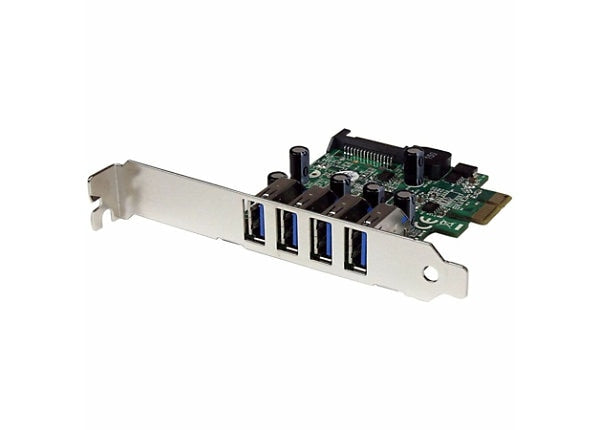

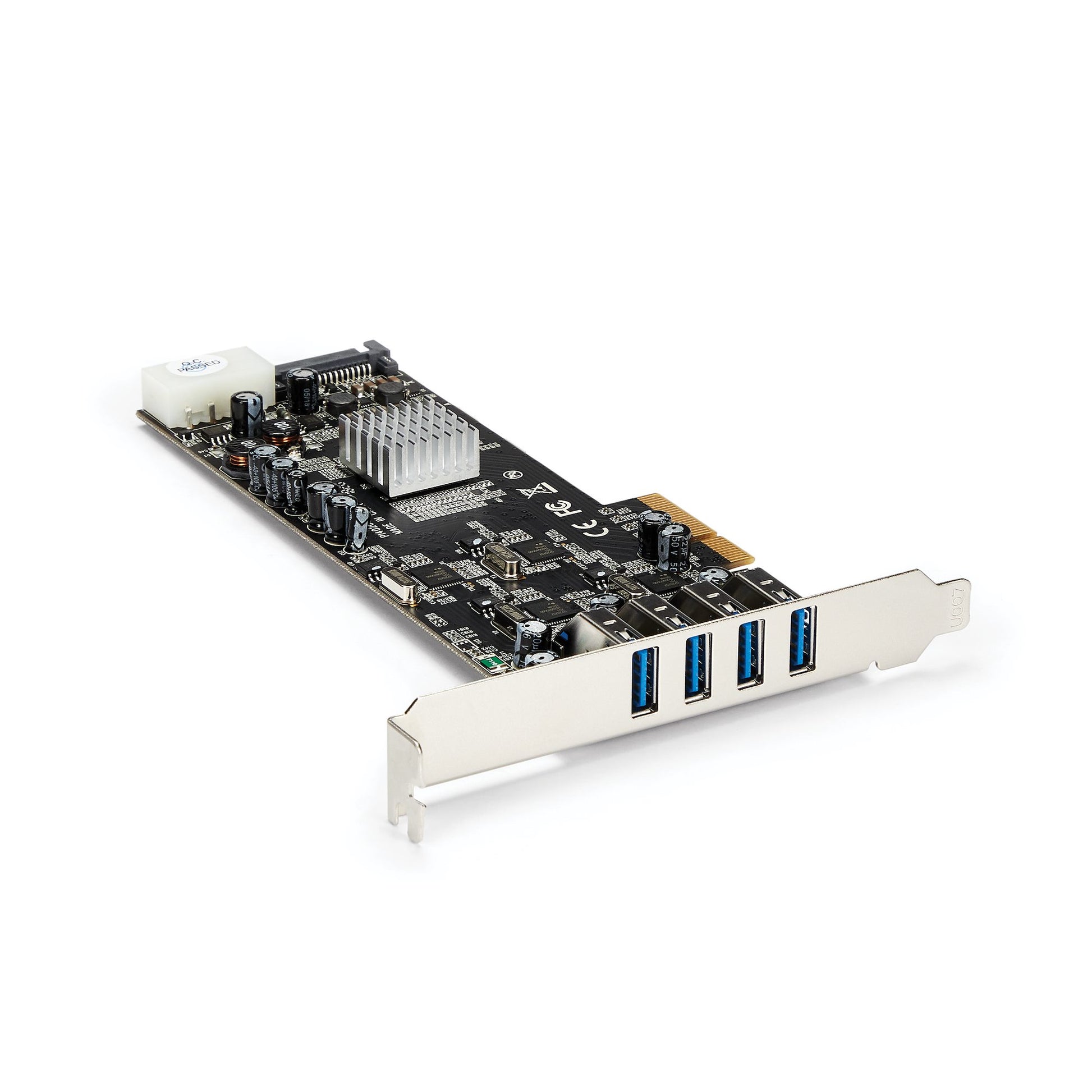

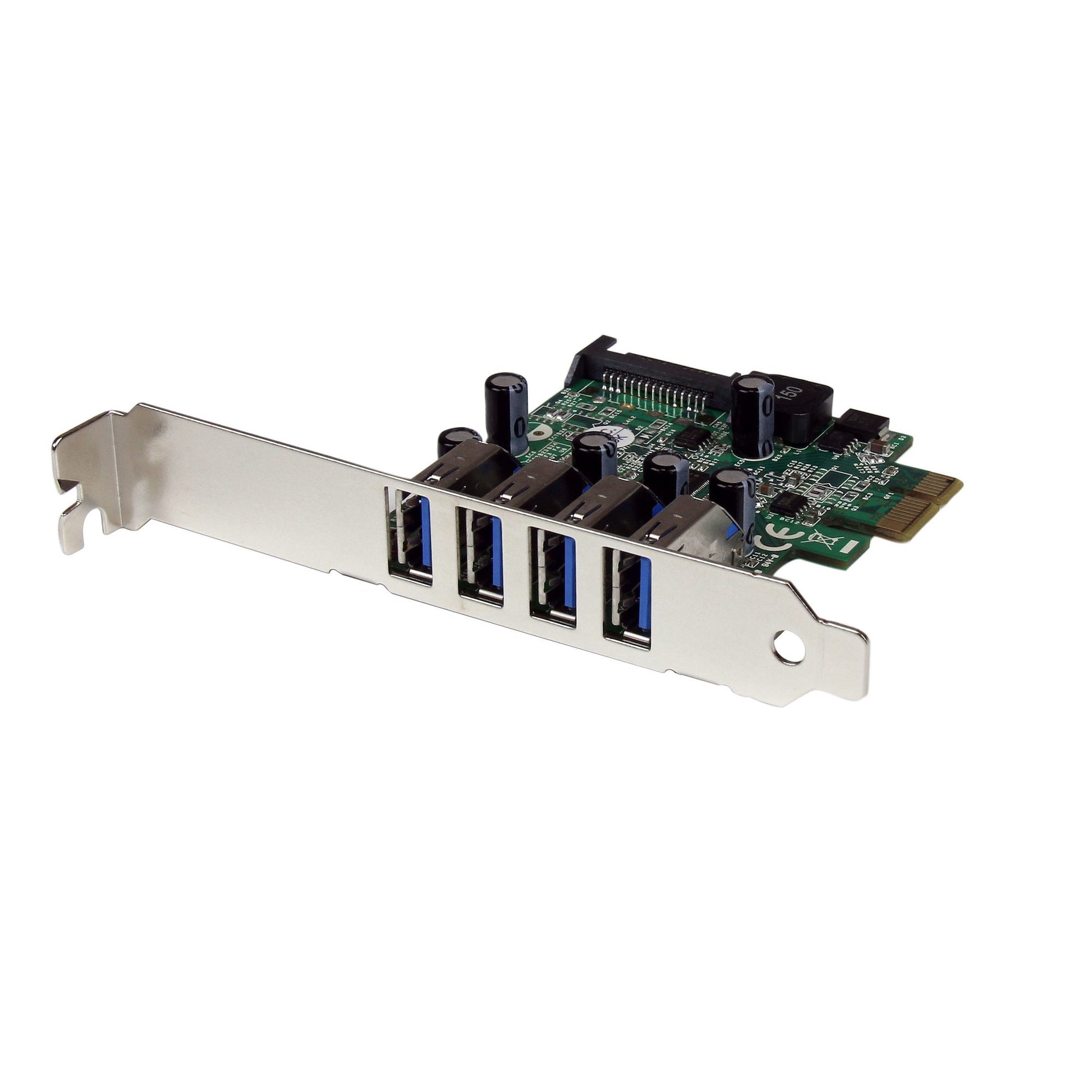

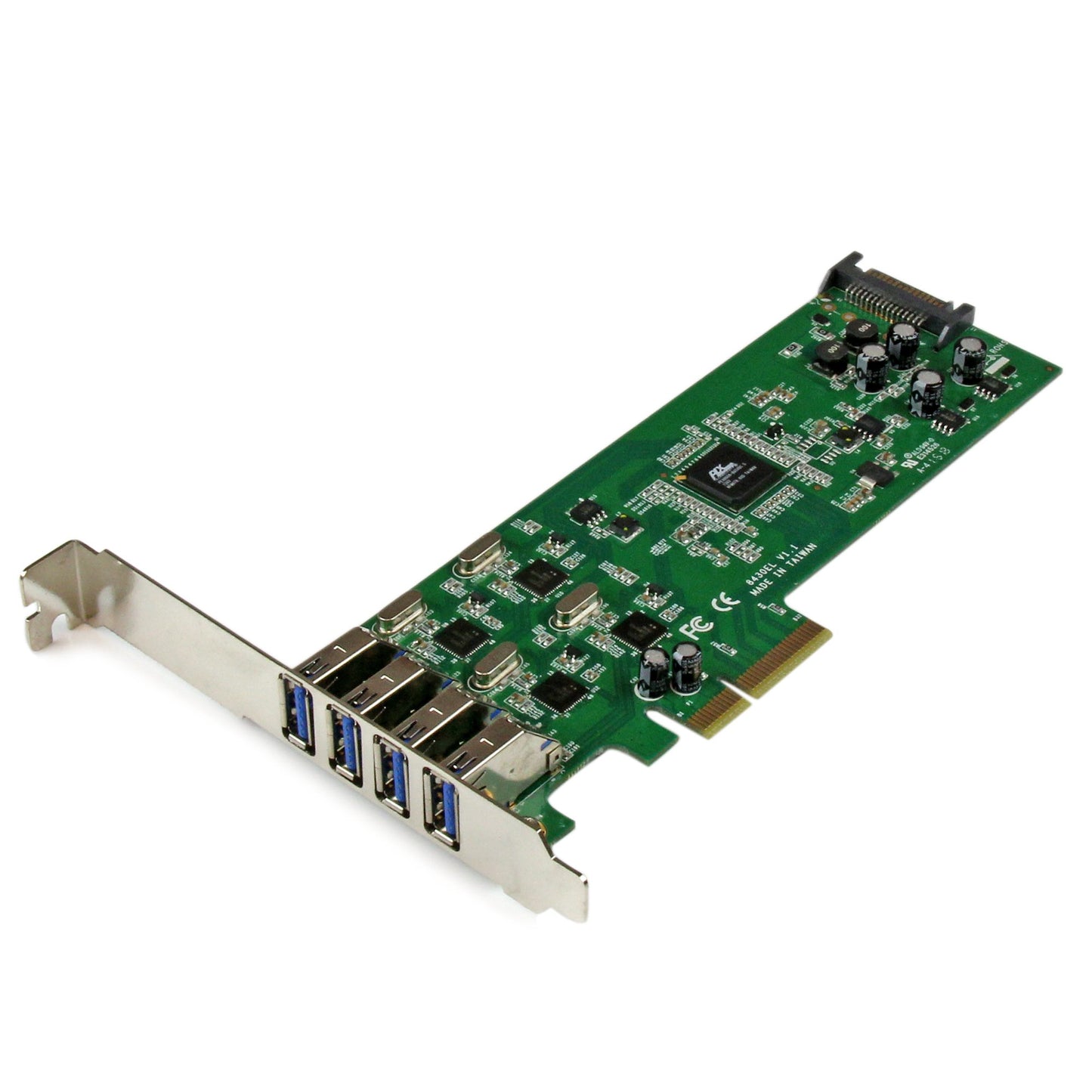

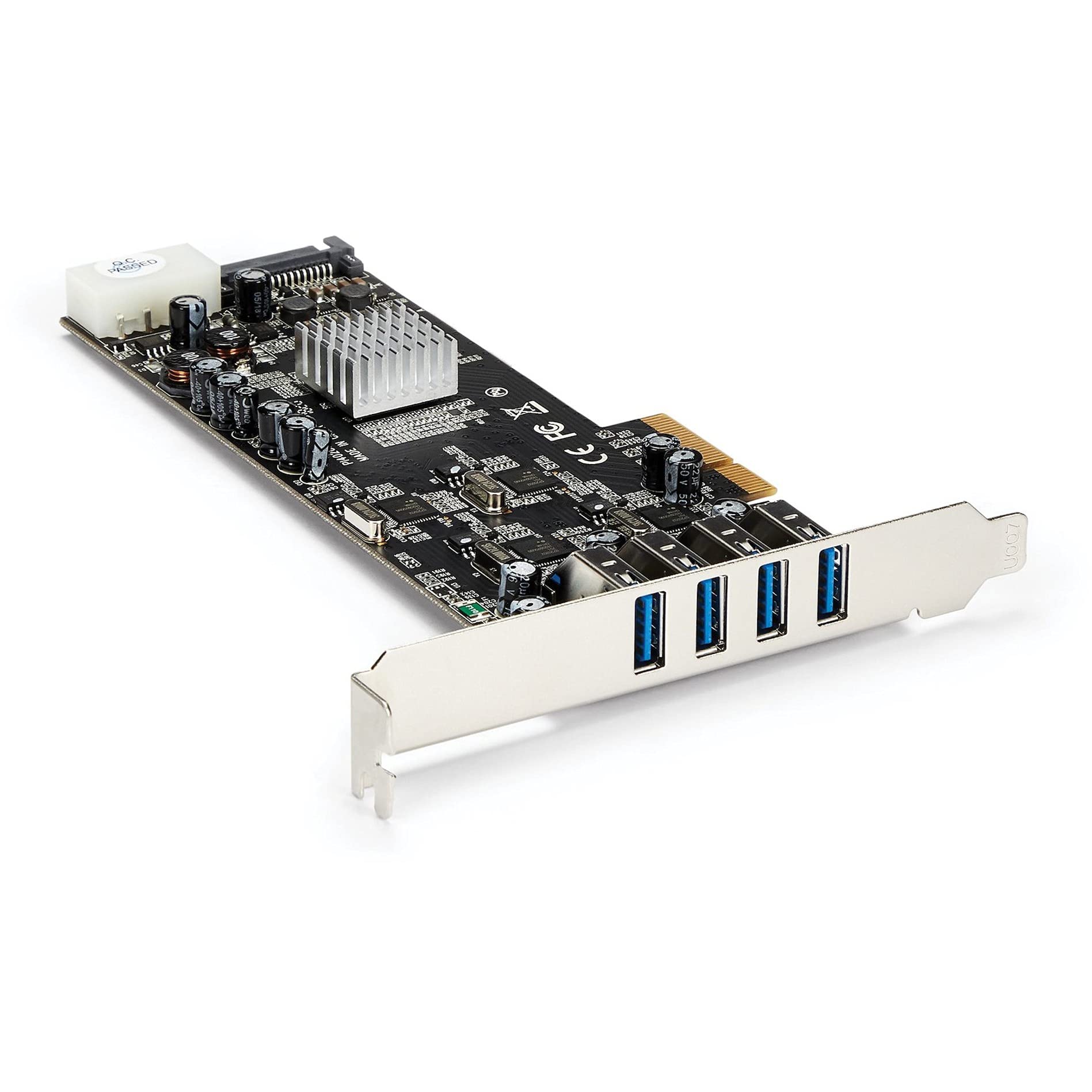

StarTech 4-Port USB 3.0 PCIe Controller Card with UASP & SATA Power

VENDOR: STARTECH Mfg Part#: PEXUSB3S4V UPC#: 065030848961
1 5
Photo is for illustration purposes only. Actual product may be different.
$54.16
$54.16
Sale Sold out
MSRP: $57.99
Shipping calculated at checkout.
  • Adds 4 external USB 3.0 ports via PCI Express interface
  • Supports SuperSpeed USB 3.0 with data transfer speeds up to 5Gbps
  • Enables UASP-enhanced performance for compatible devices
  • Includes SATA power connector for adequate power delivery
  • Constructed with durable steel materials
  • Complies with TAA standards; includes 2-year warranty

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Boosts desktop expandability with 4 high-speed USB 3.0 ports via PCIe
  • Delivers improved file transfer efficiency with UASP support
  • TAA compliance and 2-year warranty make it ideal for enterprise use

Product Overview

Add 4 external USB 3.0 ports to a low profile or standard computer, through PCI Express - 4 Port PCI Express SuperSpeed USB 3.0 Controller Card Adapter with UASP - SATA Power - USB 3 PCIe Card - USB 3.0 PCI-e Card - 4 Port USB 3.0 PCI Express Card

Specifications

Product Overview
Product Type Card Adapter
Form Factor Low Profile and Full Height (interchangeable brackets included)
Chipset ID Renesas / NEC D720201
Weight 67 g
Power Requirements SATA power connector required for bus-powered USB devices
Bus Type PCI Express x1
Color Green
Product Material Steel
Warranty 2 Years

Wireless Features
Wireless Support

Compliance & Origin
TAA Compliance Yes
Certifications CE, FCC, RoHS, REACH
Country of Origin Taiwan
Environmental Compliance RoHS, REACH

Advanced Security Features
Security Features USB physical port disablement not supported; software-based endpoint protection recommended

Interfaces
Host Interface PCI Express (PCIe) x1
External Ports 4 x USB 3.0 Type-A (Female)
USB Standard USB 3.0 / USB 3.1 Gen 1
Data Transfer Rate Up to 5 Gbps
UASP Support Yes
Port Style Integrated on Card
Connector Type(s) 1 x PCI Express x1 Male; 4 x USB Type-A (9 pin) USB 3.0 Female; 1 x SATA Power (15 pin) Plug
Hot Swap Support Yes

Physical & Environmental
Width 0.7 Inch
Height 2.7 Inch
Depth 3 Inch
Operating Temperature 5°C to 50°C (41°F to 122°F)
Storage Temperature -25°C to 70°C (-13°F to 158°F)
Operating Humidity 20% ~ 80% RH (Non-condensing)
Storage Humidity 15% ~ 90% RH
LED Indicators 1 x Power LED

Cloud Management & Licensing
Cloud Management Platform
Software Included Drivers available for Windows, Linux, and macOS
License Type Not Required
