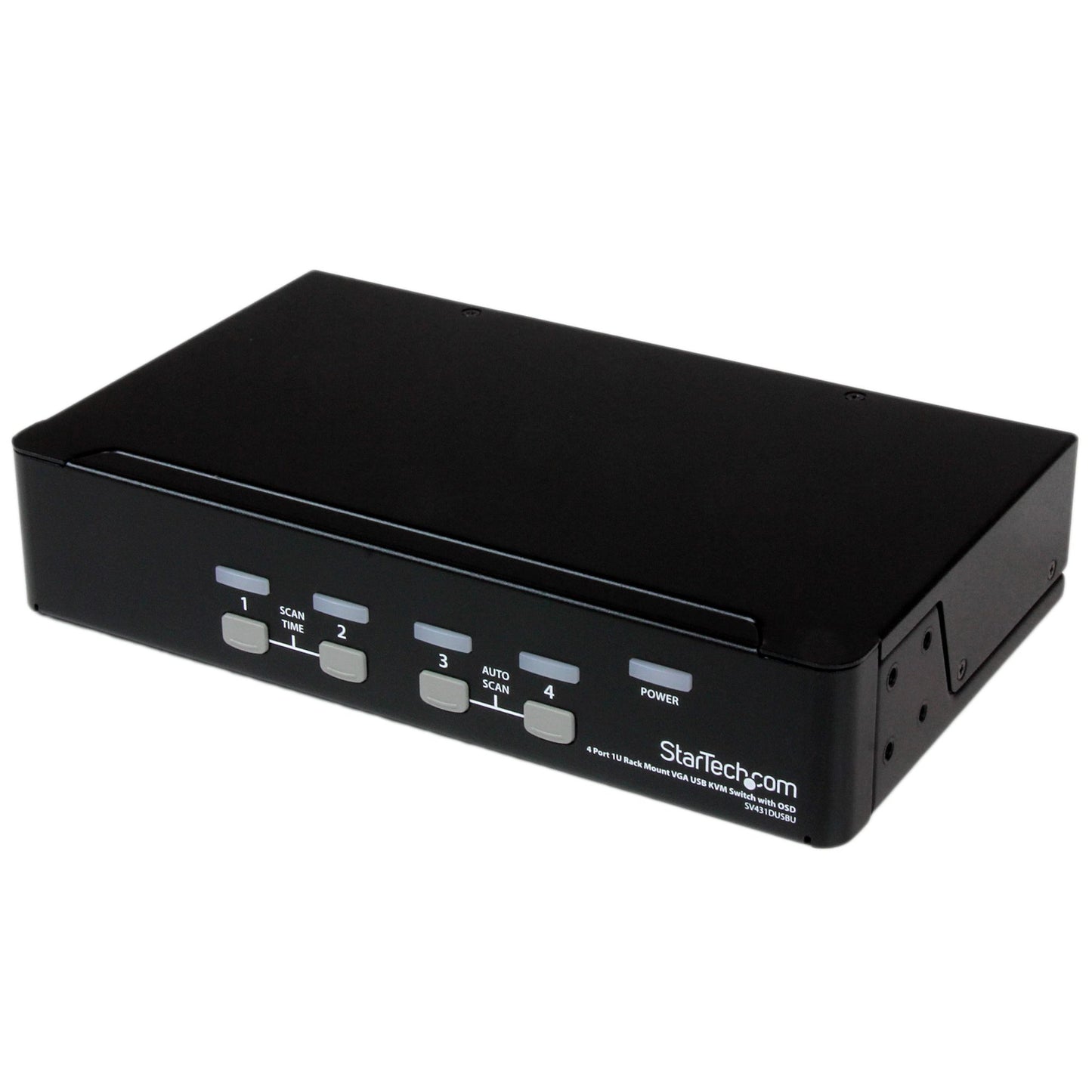

StarTech 4-Port USB VGA KVM Switch Rackmount SV431DUSBU

VENDOR: STARTECH Mfg Part#: SV431DUSBU UPC#: 065030837231
1 5
Photo is for illustration purposes only. Actual product may be different.
$196.84
$196.84
Sale Sold out
MSRP: $197.99
Shipping calculated at checkout.
  • Supports up to 4 VGA and USB computers through a single console
  • Maximum resolution supported: 1920 x 1440@60Hz (1920 x 1200@60Hz for widescreen)
  • 1U rackmount form factor with external housing
  • Wired connectivity for stable and secure operation
  • TAA compliant; manufactured in Taiwan
  • Includes 3-year warranty for long-term security

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Consolidates 4 computer systems into one console, reducing hardware clutter and improving workflow efficiency
  • Delivers high-resolution video support up to 1920 x 1200, ensuring compatibility with modern displays
  • Compact 1U rackmount design saves space in racks and is ideal for enterprise-grade deployments

Product Overview

Control up to 4 VGA and USB computers from a single keyboard, mouse and monitor - usb kvm switch - 4 port kvm switch - vga kvm switch -rack mount kvm

Specifications

Product Overview
Type KVM Switch
Form Factor Rackmount - 1U
Number of Computers Supported 4
Monitor Count 1
Video Resolution (Maximum) 1920 x 1440 @ 60Hz, 1920 x 1200 @ 60Hz (Widescreen)
Enclosure Color Black
Power Requirements DC 9V @ 600mA

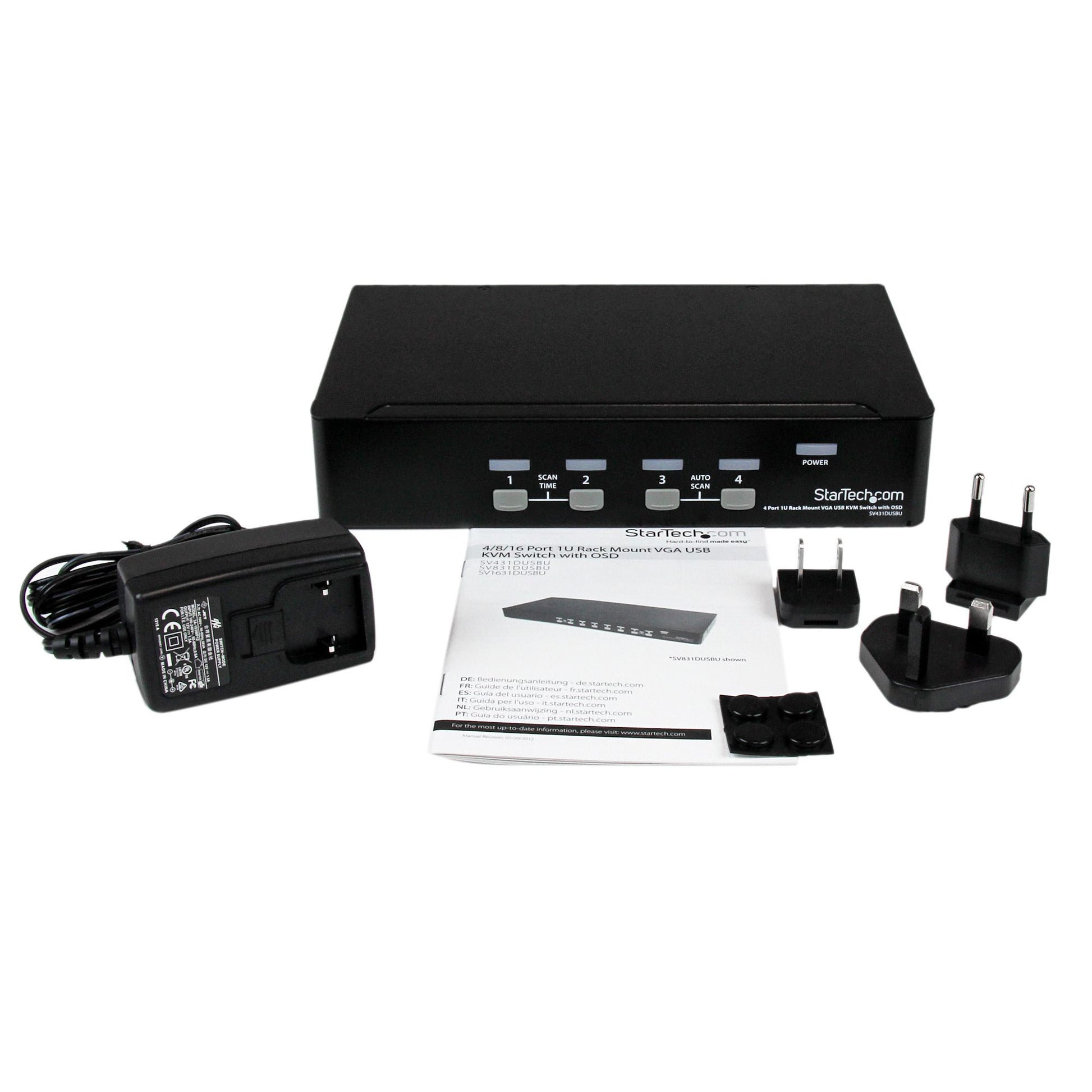

Included Accessories Power adapter, mounting brackets, user manual
Warranty 3 Years

Physical & Environmental
Width 13.8 in (35.0 cm)
Depth 4.4 in (11.2 cm)
Height 1.7 in (4.4 cm)
Rack Mountable Yes (1U)
Product Weight 2.5 lb (1.1 kg)
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -20°C to 60°C (-4°F to 140°F)
Operating Humidity 0% to 80% RH, non-condensing

Cloud Management & Licensing
Cloud-Based Management No
Software Included No
Licensing Requirements No licensing required

Interfaces
Console Ports 1 x VGA, 2 x USB A (keyboard & mouse)
KVM Ports 4 x HDB-15 VGA + USB Type B combo
USB Hub Ports 2 x USB A (shared peripheral ports)
PC Selection Push Buttons, Hotkeys
Supported Video Signal Analog VGA
Audio Support No
Port Switching Method Hotkey or front-panel pushbutton

Compliance & Origin
TAA Compliant Yes
Country of Origin Taiwan
Certifications CE, FCC, RoHS

Advanced Security Features
Authentication Hotkey command access
Encryption No
User Access Control No user profiles, direct input access only
