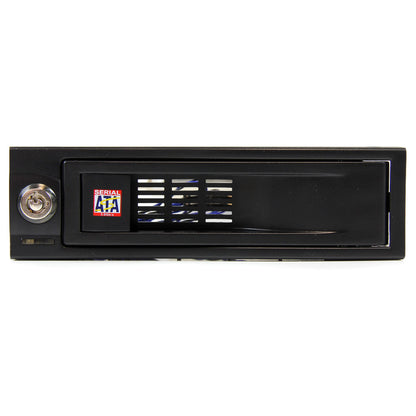

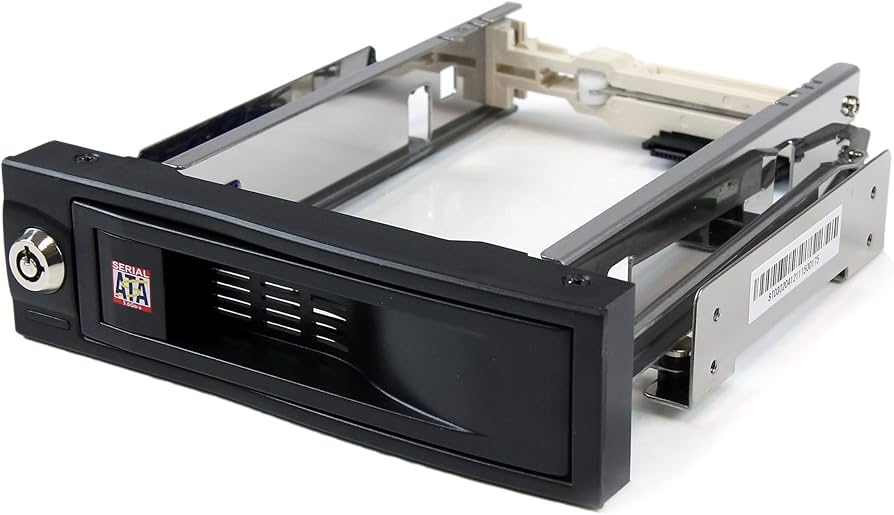

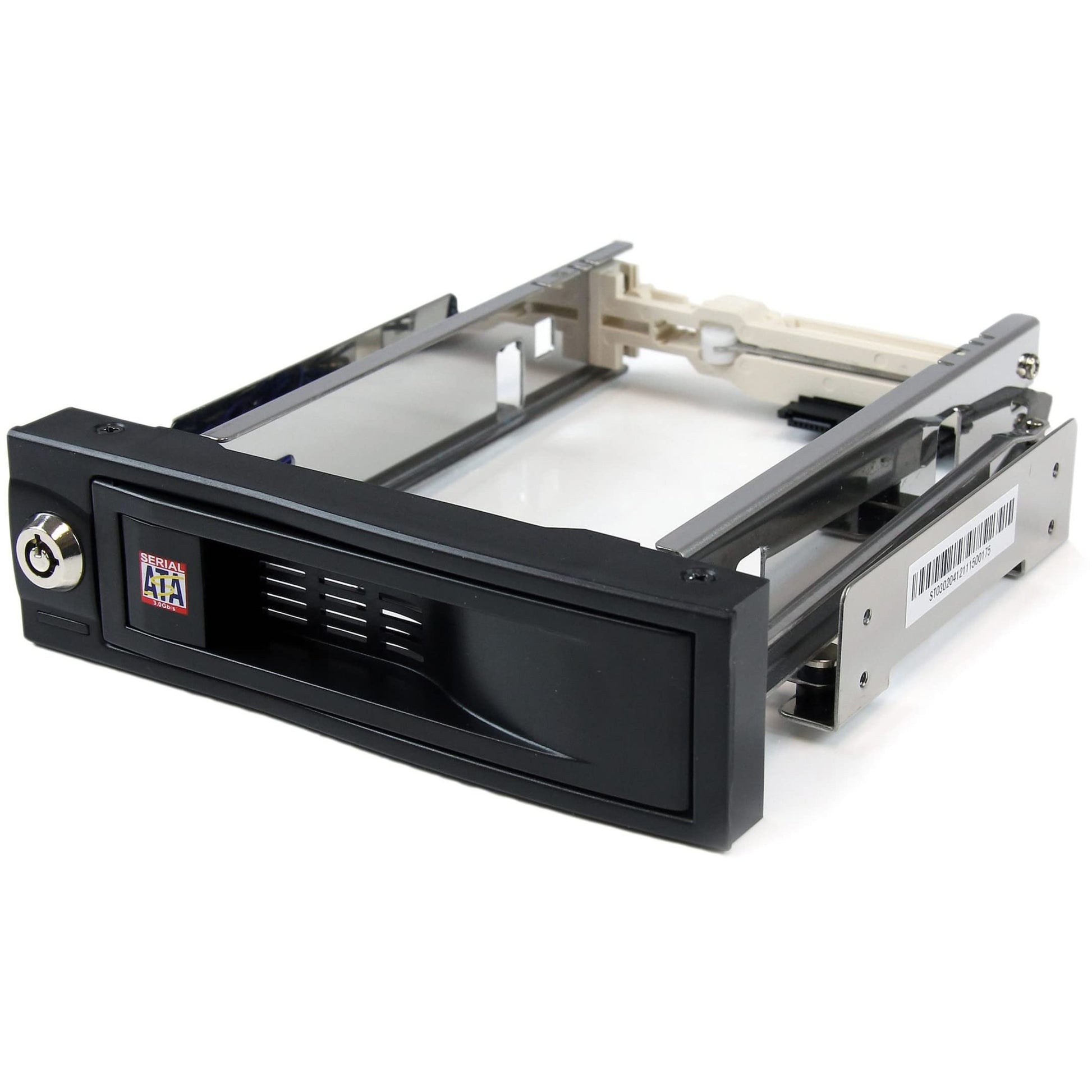

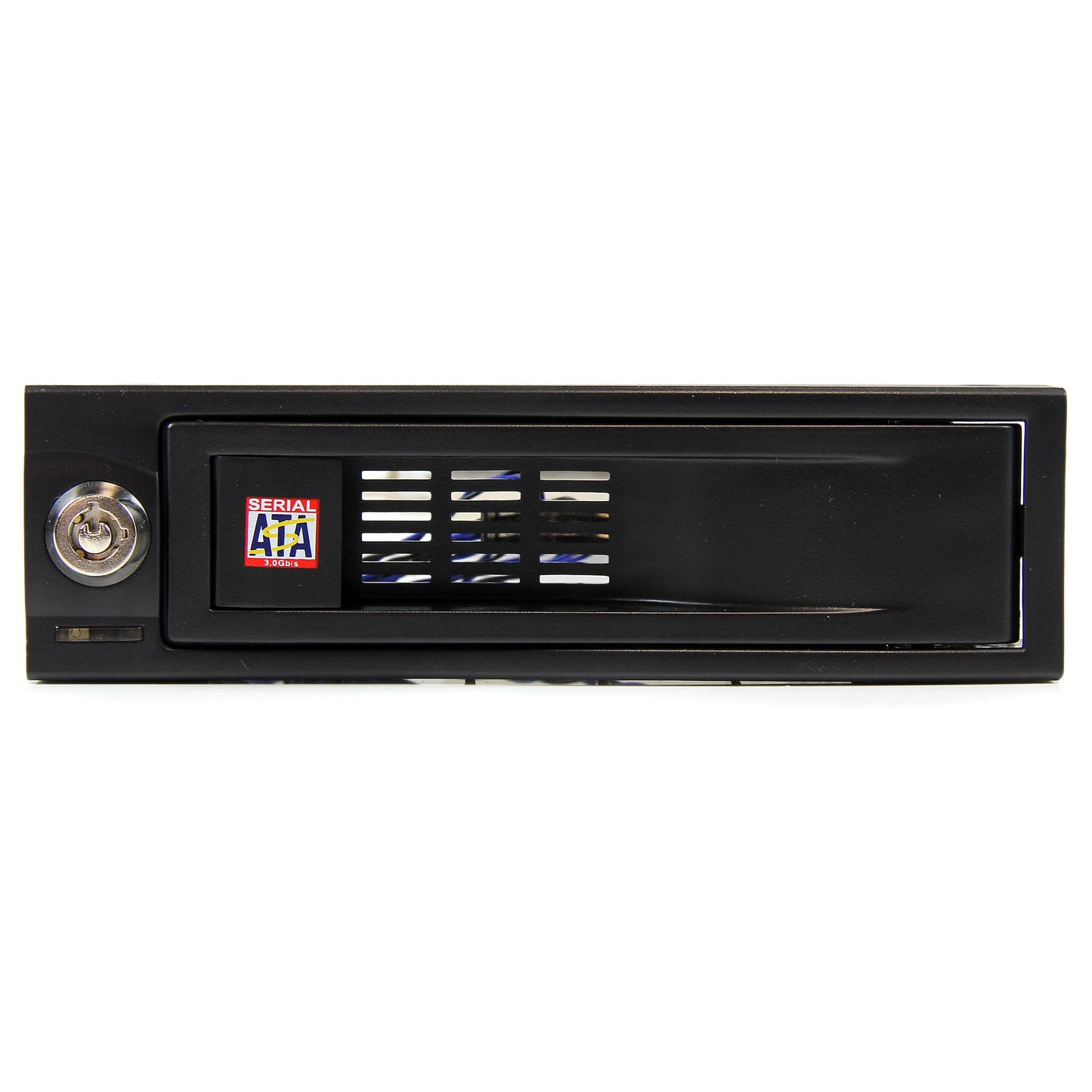

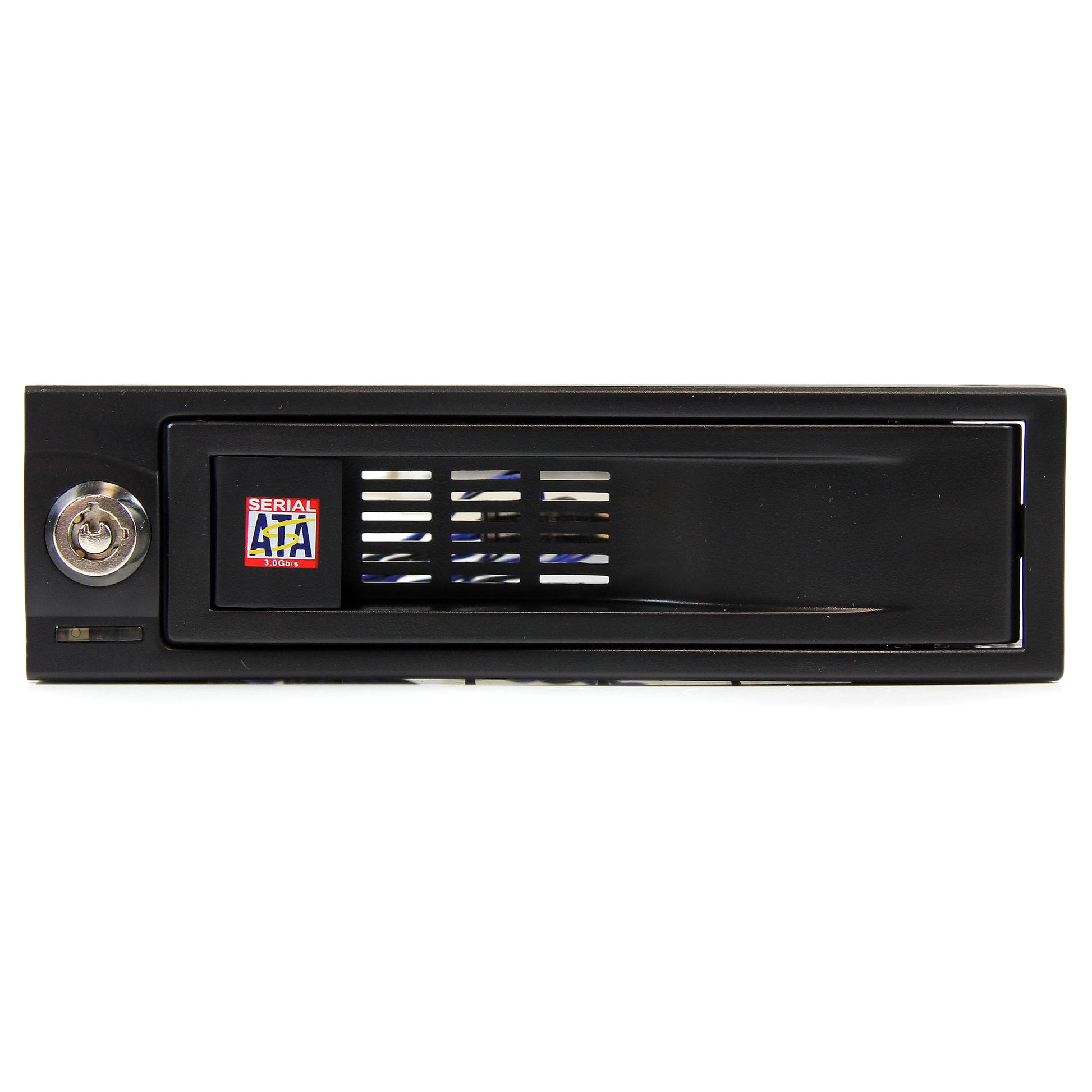

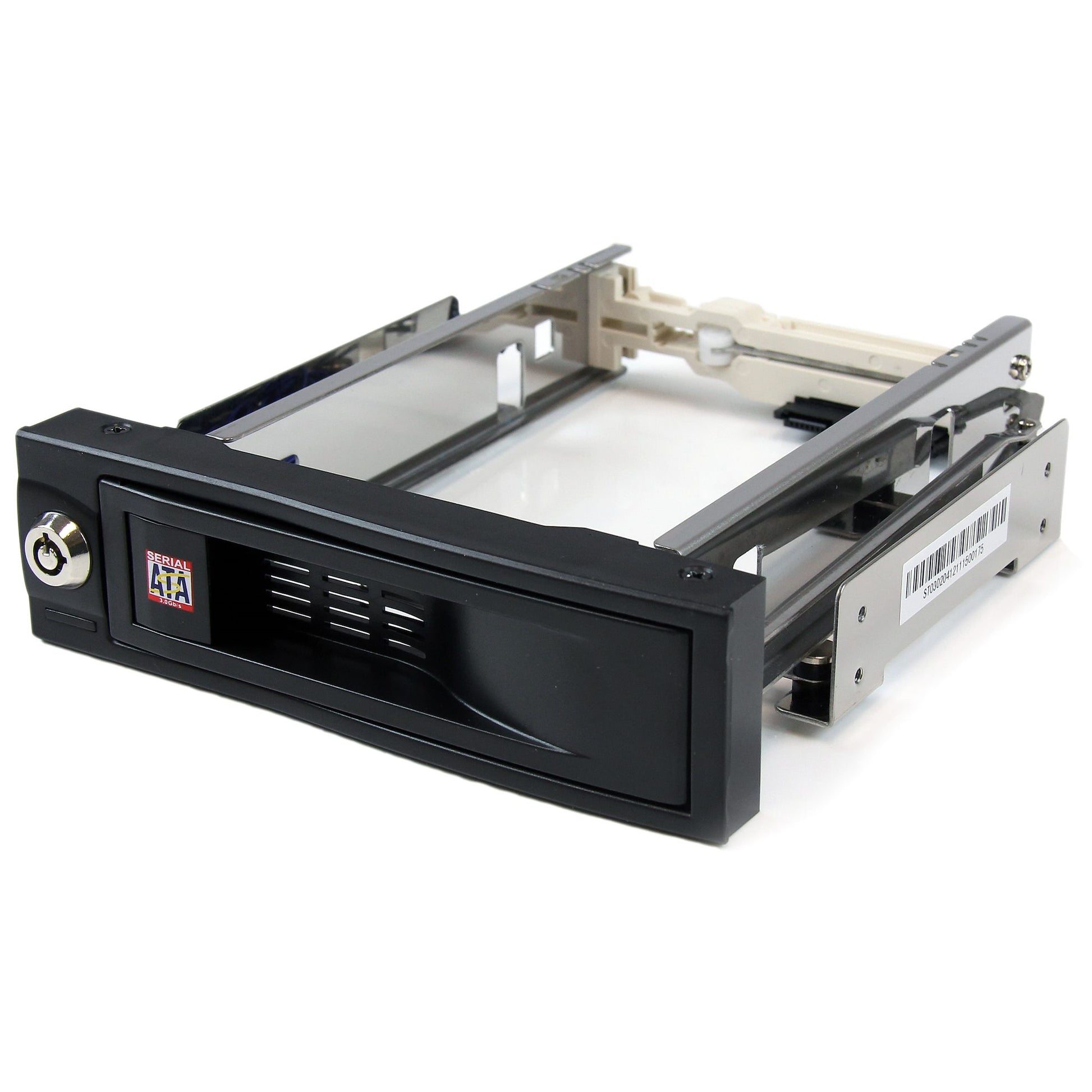

StarTech 5.25in Trayless Mobile Rack for 3.5in SATA HD - HSB100SATBK

VENDOR: STARTECH Mfg Part#: HSB100SATBK UPC#: 065030821360
1 5
Photo is for illustration purposes only. Actual product may be different.
$31.74
$31.74
Sale Sold out
MSRP: $33.99
Shipping calculated at checkout.
  • Hot-swap bay supports standard 3.5" SATA hard drives
  • Tool-less and trayless design for rapid drive insertion/removal
  • Fits into any standard 5.25-inch front-accessible computer bay
  • Durable construction using aluminum and plastic materials
  • Includes a 2-year manufacturer warranty
  • TAA compliant for government and institutional use

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Enables seamless and tool-free swapping of SATA drives, saving time during system maintenance and upgrades.
  • Constructed for long-term reliability with durable materials and a backed 2-year warranty.
  • TAA compliance and versatile compatibility make it ideal for government, educational, and enterprise-level applications.

Product Overview

Hot-swap any 3.5in SATA hard drive easily from any computer with a 5.25in bay - trayless hot swap - hot swap mobile rack - 5.25 bay - internal enclosure - sata backplane

Specifications

Product Overview
Product Type Hard drive hot-swap bay
Form Factor Internal 5.25-inch bay
Compatible Drive Form Factor 3.5-inch SATA drive
Trayless Design Yes
Material Aluminum and Plastic
Color Black
Hot Swap Capability Yes
Tools Required No (tool-less design)
Installation Type Front accessible
Power Requirements 12V DC from SATA power connector
MTBF 30,000 hours
Weight 454 g

Physical & Environmental
Width 5.9 Inch
Height 1.7 Inch
Depth 7.2 Inch
Unit Dimensions (Metric) 150 x 43 x 183 mm
Weight (Metric) 0.454 kg
Operating Temperature 5°C to 50°C (41°F to 122°F)
Storage Temperature -10°C to 65°C (14°F to 149°F)
Humidity (Operating) 5% to 85% RH

Cloud Management & Licensing
Cloud Management

Interfaces
Drive Interface SATA I/II/III
Host Interface SATA
Max Data Transfer Rate 6 Gbps
Drive Bays Supported 1 x 3.5"
Number of Interfaces 1 x SATA data, 1 x SATA power
Drive Connector Type SATA

Compliance & Origin
Country of Origin Taiwan
TAA Compliant Yes
RoHS Compliant Yes
CE Certified Yes
FCC Compliant Yes
WEEE Compliant Yes

Advanced Security Features
Drive Locking Mechanism Yes, key lock on front panel
Activity LED Yes
LED Indicators Drive activity and power
