StarTech SV565HDIP HDMI KVM Extender over IP 4K, USB, 100m

VENDOR: STARTECH Mfg Part#: SV565HDIP UPC#: 065030877947
1 5

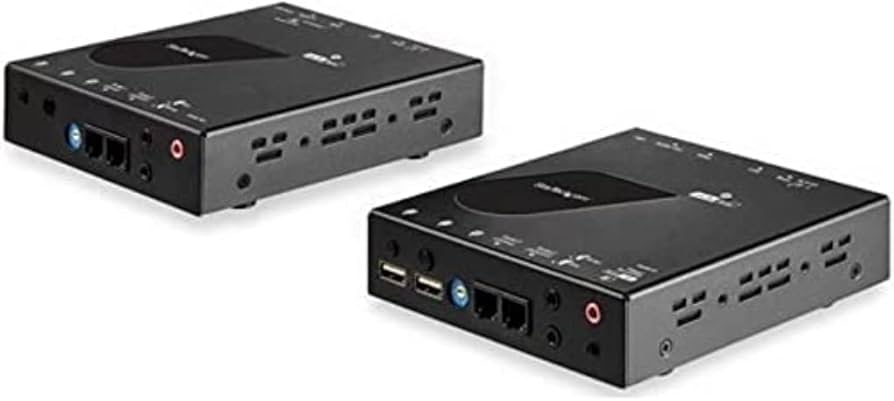

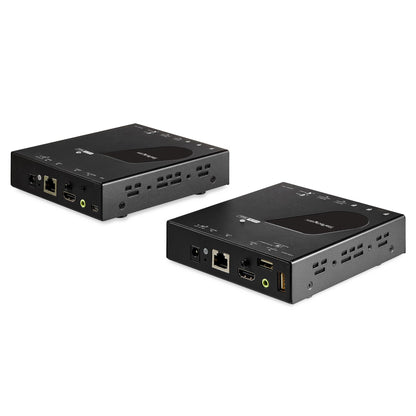

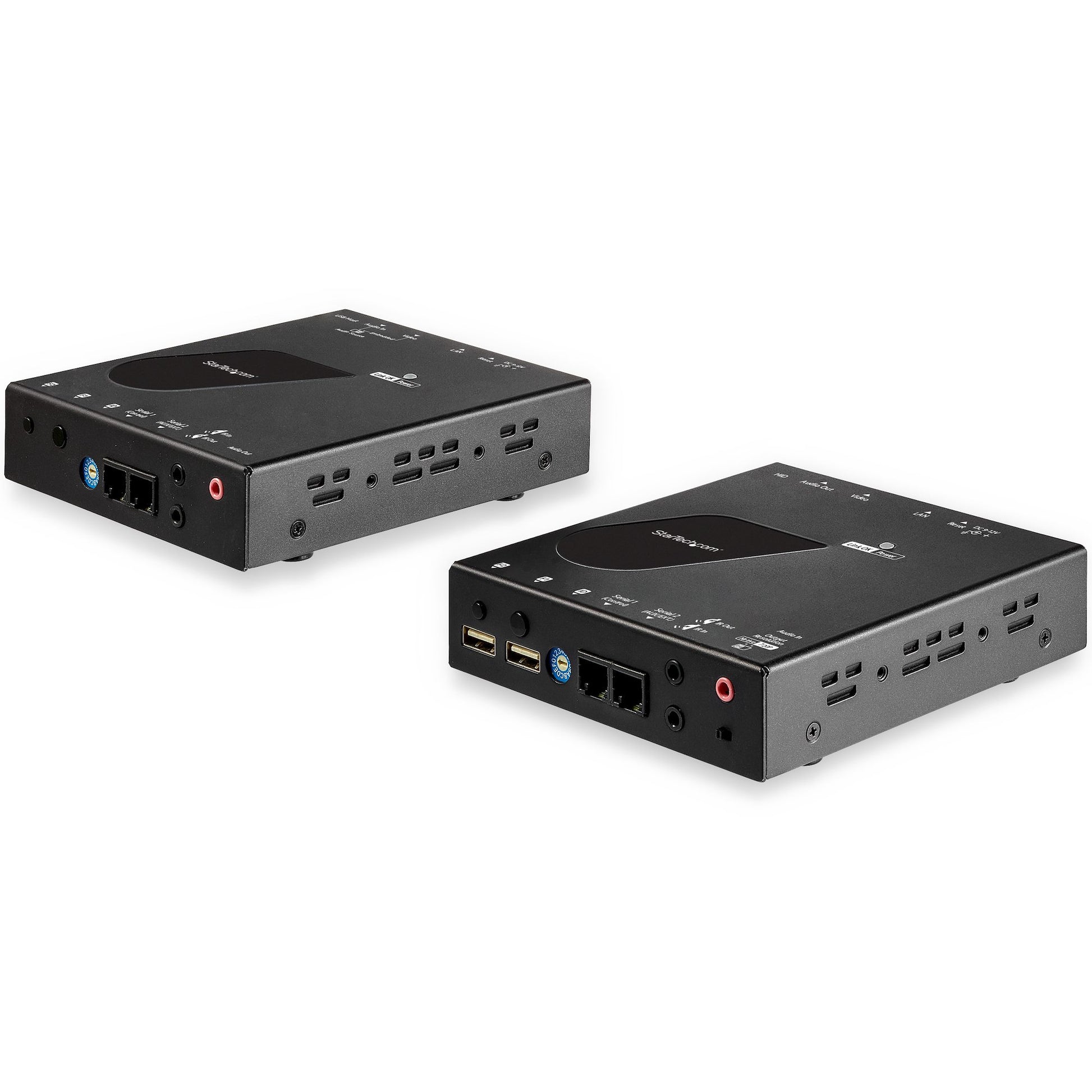

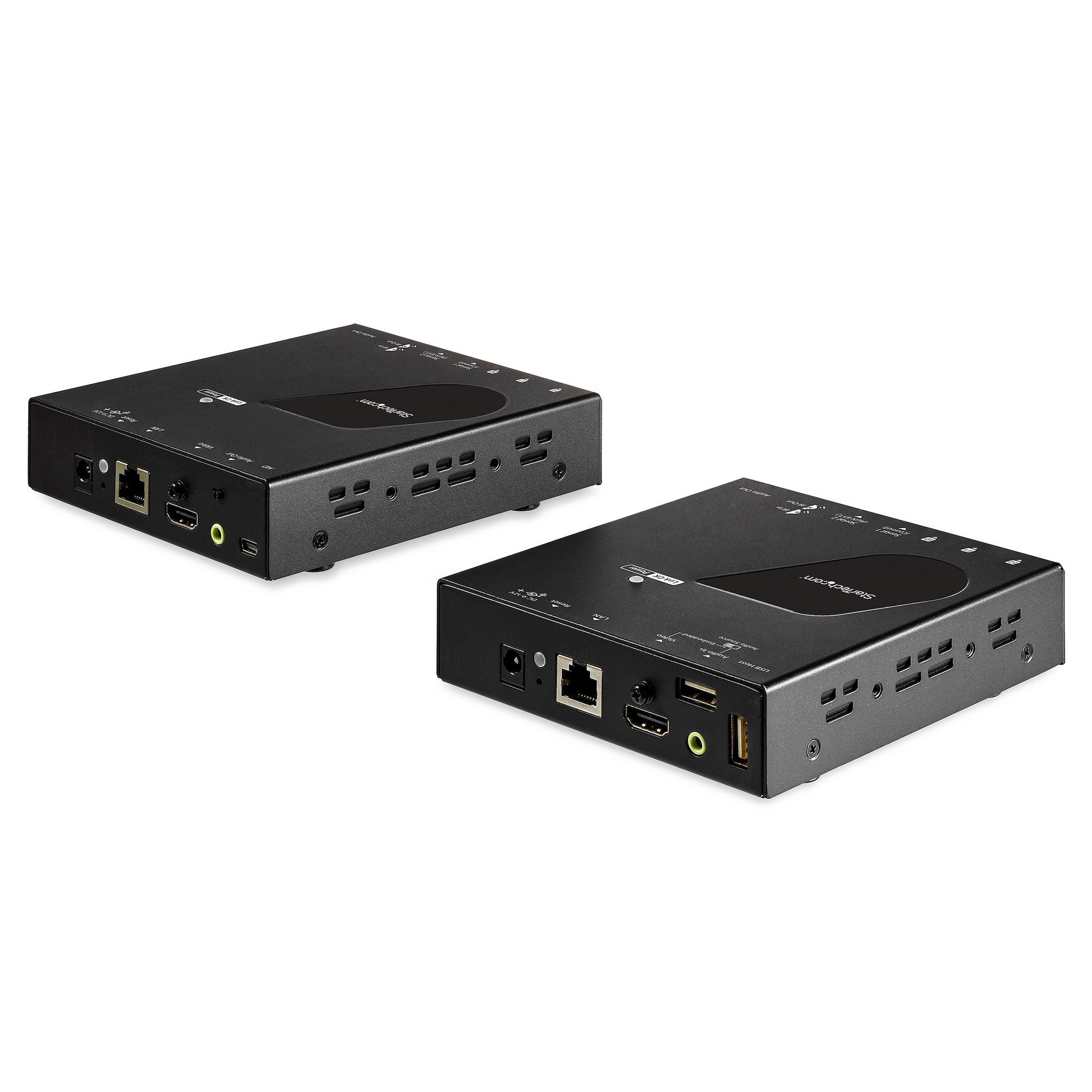

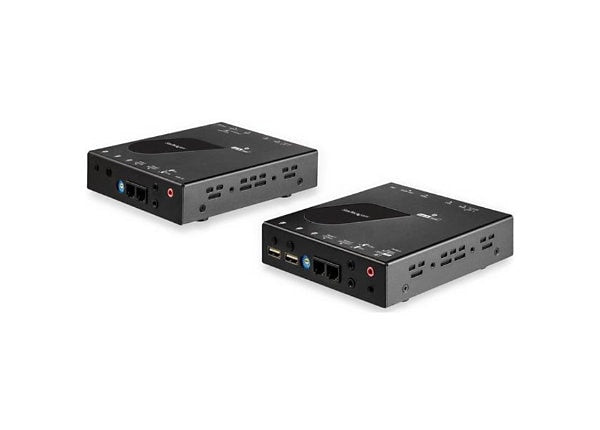

Photo is for illustration purposes only. Actual product may be different.
$680.99
$680.99
Sale Sold out
Shipping calculated at checkout.
  • Supports HDMI 4K resolution at 3840 x 2160 @ 30Hz
  • Extends KVM over IP up to 100 meters via Cat5e/6
  • USB 2.0 HID input control capability
  • EDID passthrough for consistent display detection
  • Includes 1 transmitter unit with RJ-45 interface
  • TAA compliant with 2-year warranty coverage

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Enables centralized KVM access for server rooms or video walls up to 100m via standard Ethernet
  • Delivers crisp 4K UHD video quality at 30Hz for high-end visualization applications
  • Easy USB input integration ensures seamless remote control using HID peripherals

Product Overview

HDMI KVM Extender over IP transmitter receiver kit remotely controls KVM switch/console or PC from up to 330ft/100m over Cat5e/6 Ethernet network cable/IP enabled LAN - 4K UHD 30Hz /EDID Passthrough/USB2.0 HID/ Large Signage Display or Video Wall

Specifications

Product Overview
Device Type HDMI KVM Extender over IP
Form Factor Standalone transmitter and receiver kit
Model SV565HDIP
Enclosure Color Black
Max Resolution 3840 × 2160 @ 30Hz (4K UHD)
Power Requirements 5V DC, 2A
Max Transmission Distance 100 m (330 ft) over Cat5e/6
Video Compression H.264
EDID Pass-Through Yes
Audio Support Yes, embedded in HDMI
Video Wall Support Yes
KVM Support USB Keyboard and Mouse
Included Components 1 Transmitter, 1 Receiver, power adapters, instruction manual

Wireless Features
Wireless Capability

Compliance & Origin
Country of Origin Taiwan
TAA Compliant Yes
Certifications CE, FCC, RoHS
UPC 065030877947

Advanced Security Features
Encryption AES 128-bit encryption
Access Control Local access only, not internet-facing
Password Protection Yes

Interfaces
Interface Types HDMI, USB Type-A, RJ-45, DC power input
HDMI Ports 1 per unit
USB Ports 2 × USB 2.0 Type-A Ports (Receiver)
Ethernet Port 1 × RJ-45 (10/100 Mbps)
Data Transfer Rate 12 Mbps (USB), 100 Mbps (Ethernet)
Data Link Protocol Ethernet

Physical & Environmental
Width 5.1 in (130 mm)
Depth 4.6 in (117 mm)
Height 1.1 in (28 mm)
Product Weight 0.9 lb (0.4 kg)
Operating Temperature 0°C to 50°C (32°F to 122°F)
Storage Temperature -10°C to 80°C (14°F to 176°F)
Humidity Range 0% to 90% RH (non-condensing)
Housing Material Aluminum

Cloud Management & Licensing
Cloud/Remote Management No (operates over IP via unmanaged point-to-point or LAN)
Configuration Method DIP switch / Web GUI for video wall mode
Software Required No (hardware-based solution)
