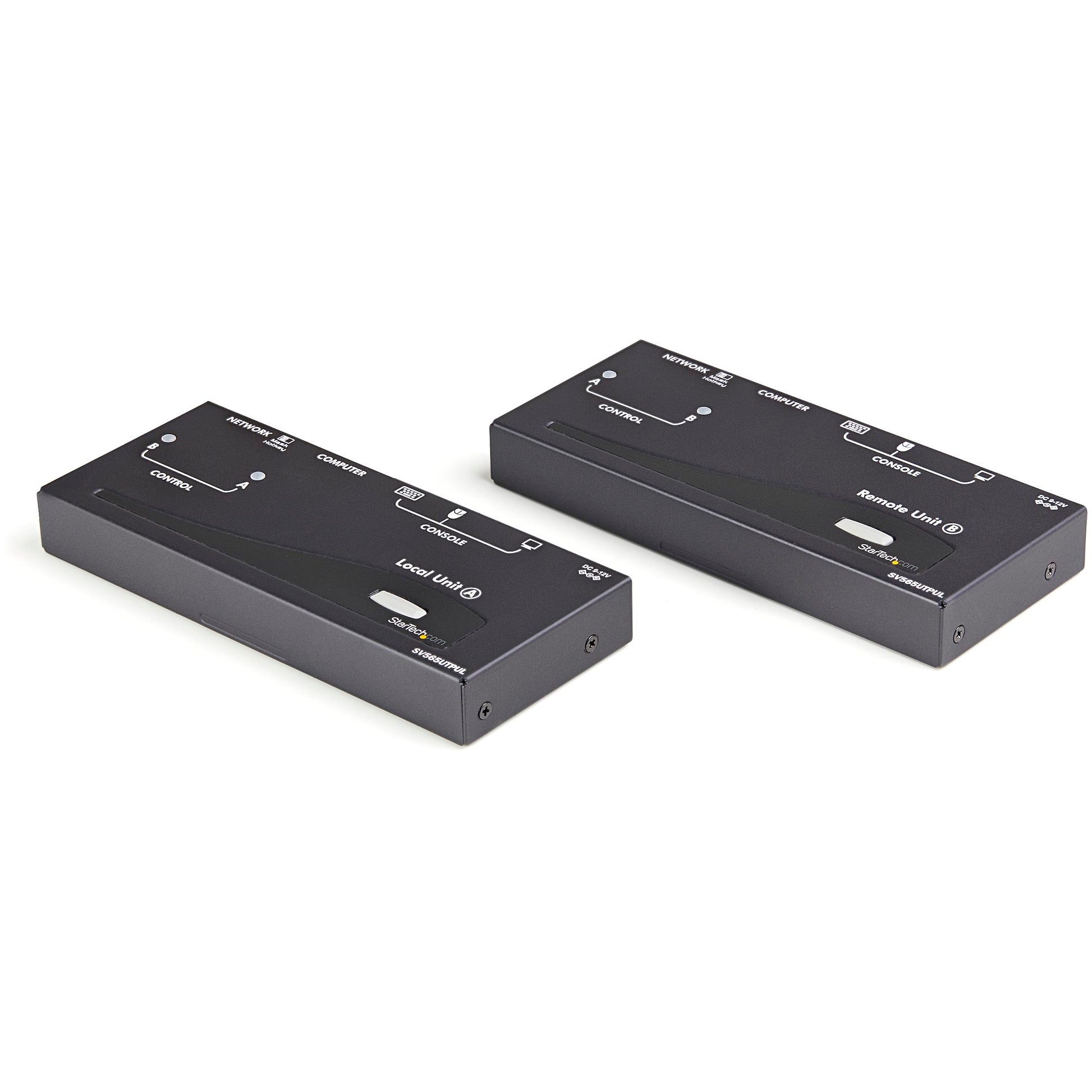

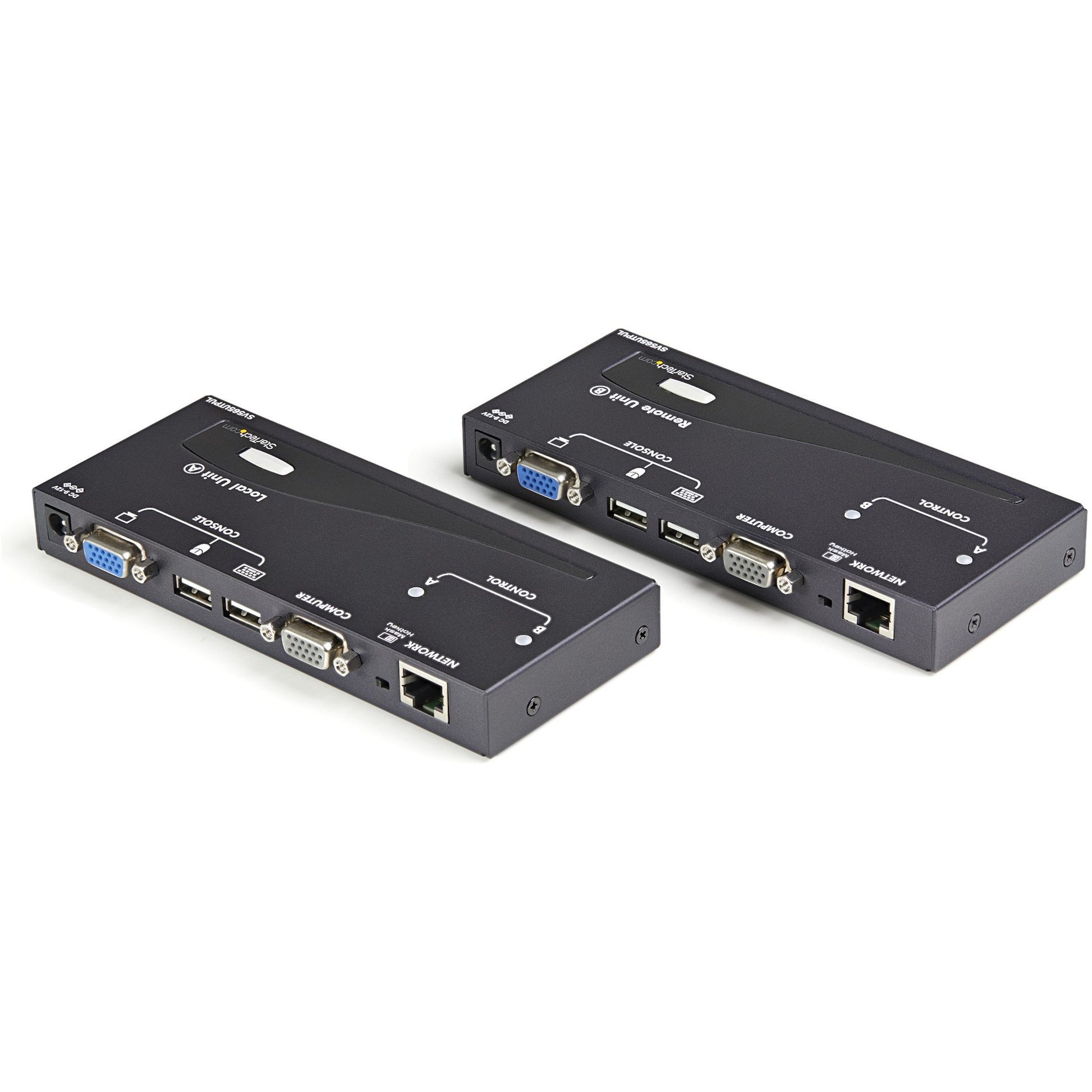

StarTech USB VGA KVM Console Extender Over CAT5, UXGA/WUXGA, 984ft

VENDOR: STARTECH Mfg Part#: SV565UTPUL UPC#: 065030839259
1 5
Photo is for illustration purposes only. Actual product may be different.
$383.99
$383.99
Sale Sold out
Shipping calculated at checkout.
  • Supports UXGA (1600x1200) and WUXGA (1920x1200) resolutions
  • Extends USB and VGA signals up to 984 ft (300 meters) over CAT5
  • Plug-and-play installation with no drivers; OS independent
  • Includes both Local and Remote KVM Unit Extenders
  • Enclosure dimensions: 6.2" W x 2.8" D x 0.8" H in black casing
  • TAA compliant and includes 3-year manufacturer warranty

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Enables remote KVM access up to 984 feet—ideal for large-scale IT and secure server management
  • Simplifies deployment with plug-and-play support and no software required
  • TAA compliance and 3-year warranty ensure suitability for regulated and enterprise environments

Product Overview

Control a KVM or server from up to 300m (984ft) away - kvm extender - KVM Extender CAT5 - Console extender - Compatibility mode enables hotkey commands to be passed to connected StarView KVMs

Specifications

Product Overview
Product Type KVM Console Extender
Form Factor External
Connectivity Technology Wired
Max Transmission Distance 300 m (984 ft)
Power Adapter Included Yes
Power Supply Type Universal AC Adapter
Enclosure Color Black
Model Number SV565UTPUL
Package Contents 2 KVM Extenders (1x Local, 1x Remote), 1 Universal Power Adapter
System Requirements OS Independent; No software or drivers required
Warranty 3 Years

Physical & Environmental
Width 6.2 in
Depth 2.8 in
Height 0.8 in
Unit Weight 0.9 lb (approx. 0.41 kg)
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -20°C to 60°C (-4°F to 140°F)
Operating Humidity 0% to 80% Relative Humidity, Non-Condensing

Cloud Management & Licensing
Cloud Management Support
Licensing Required No licensing required

Interfaces

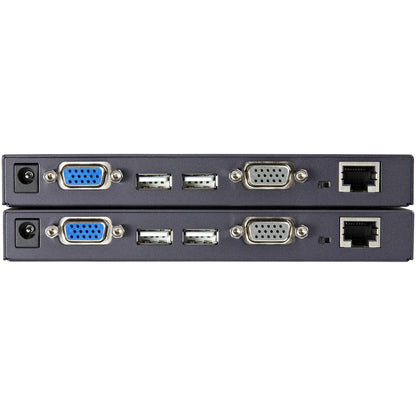

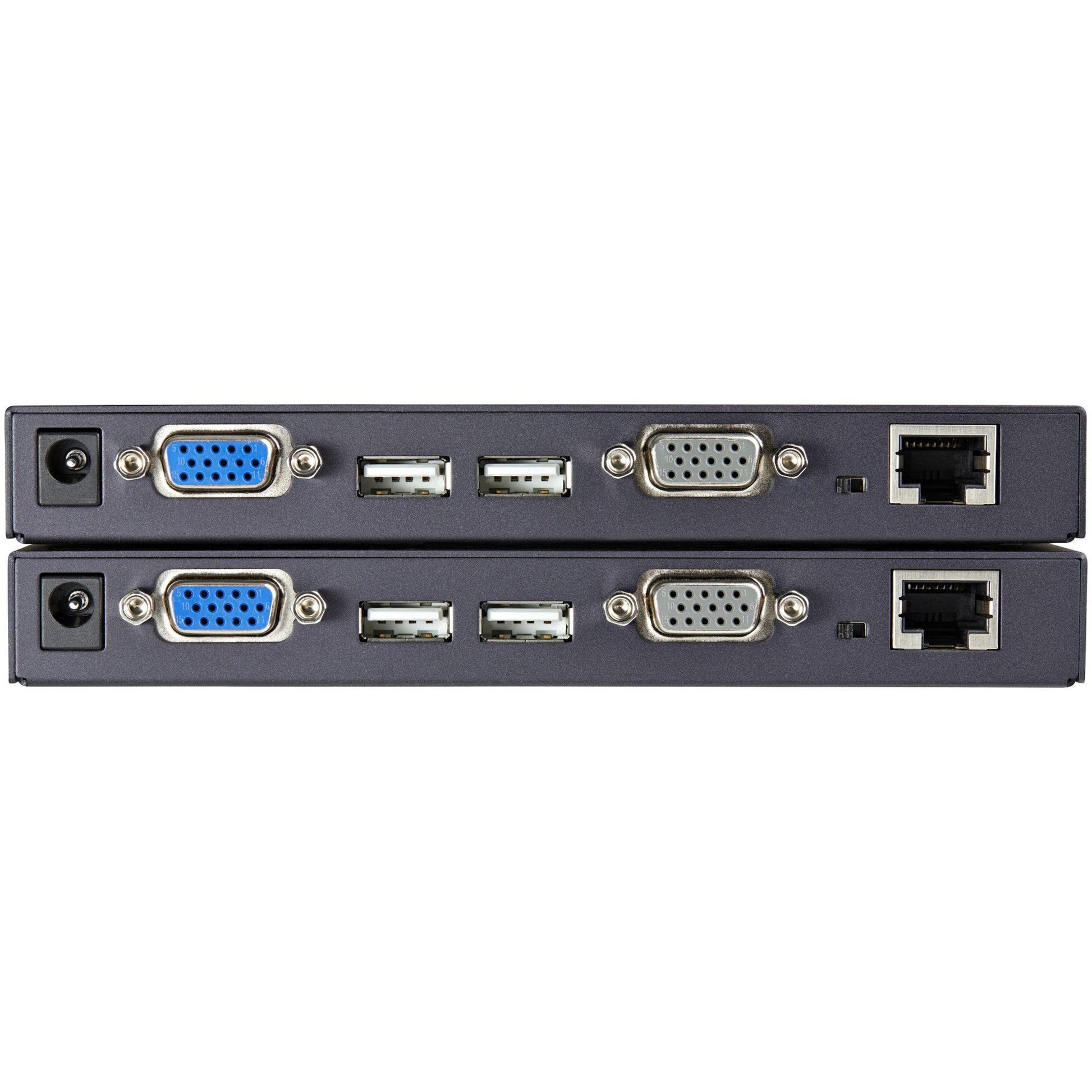

Computer Interface 1 x VGA, 1 x USB Type-A
Console Interface 1 x VGA, 2 x USB Type-A (Keyboard, Mouse)
Host Interface USB and VGA
KVM Ports 1
Video Resolution Supported UXGA (1600x1200), WUXGA (1920x1200)
UTP Cable Required Standard Cat5e or Cat6
Video Bandwidth 150 MHz

Compliance & Origin
Country of Origin Taiwan
TAA Compliant Yes
RoHS Compliant Yes
Certifications CE, FCC, REACH
UPC 065030839259

Advanced Security Features
Data Encryption No
Authentication No built-in authentication
Security Features Physical device separation; No network access required
